Характеристики
electronic card panel -20~60C 1.54 inch 152x152 low temperature e ink display
General Description

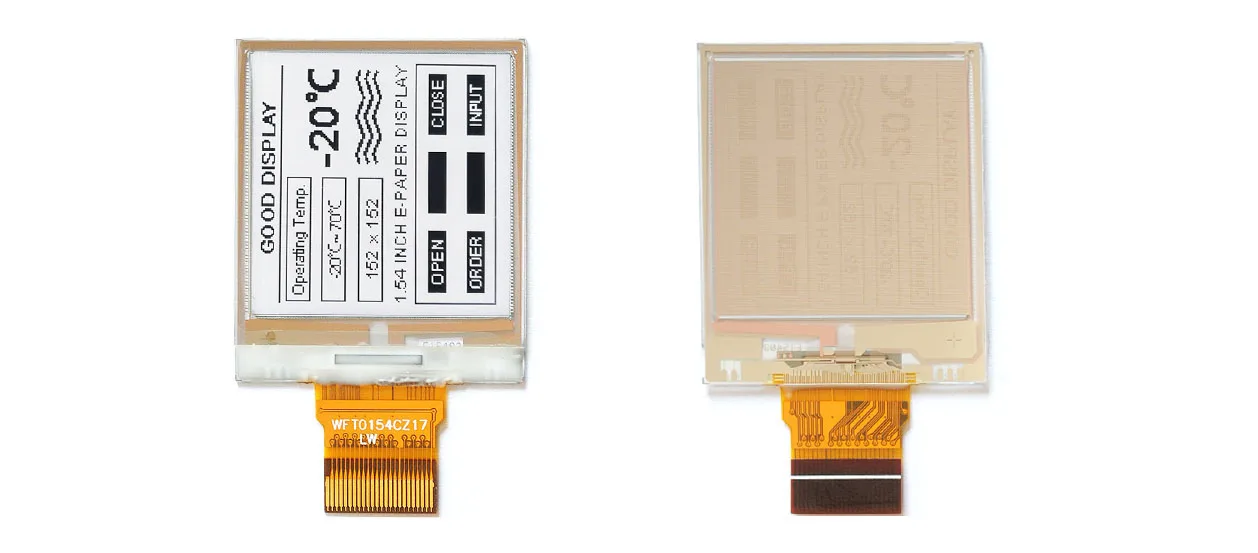

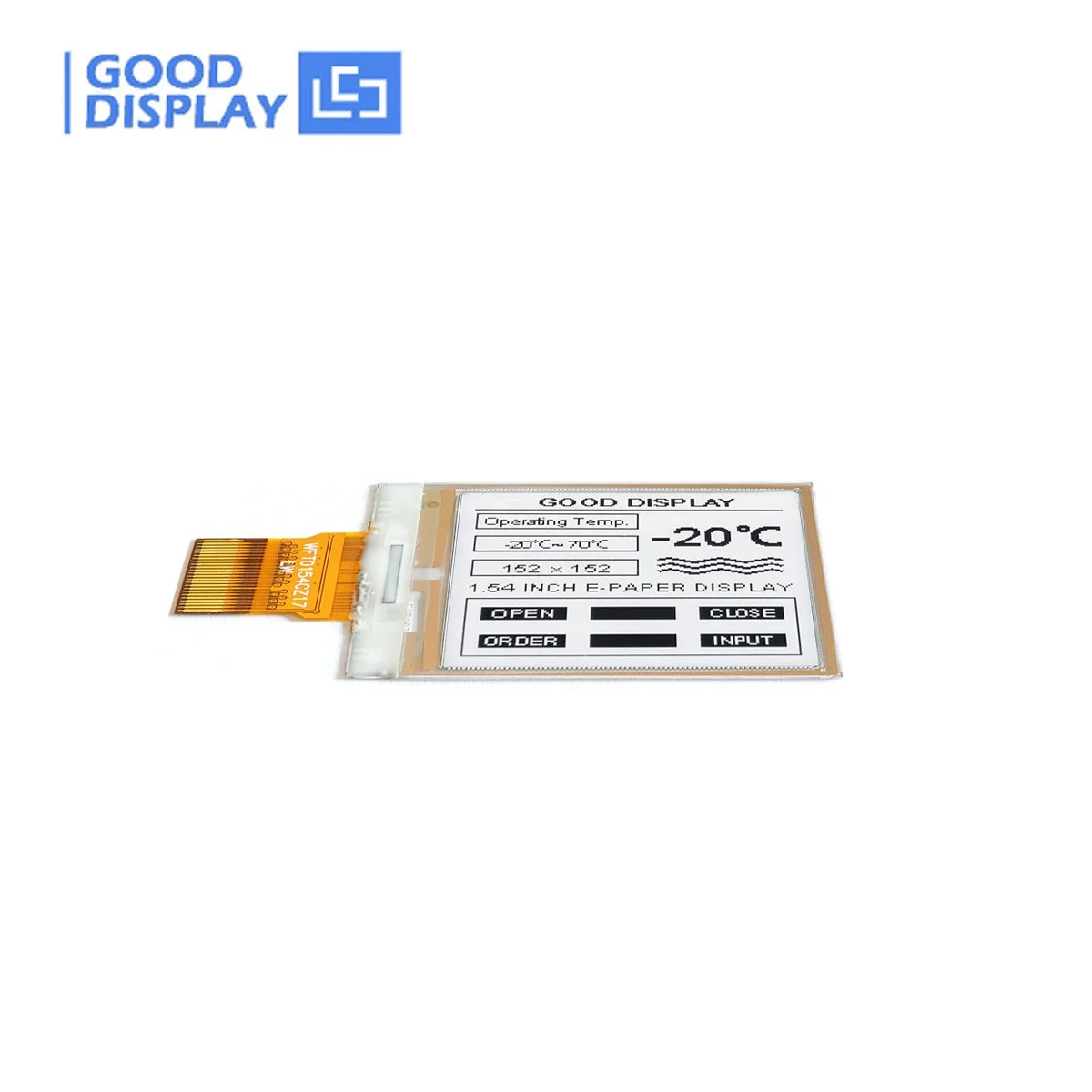

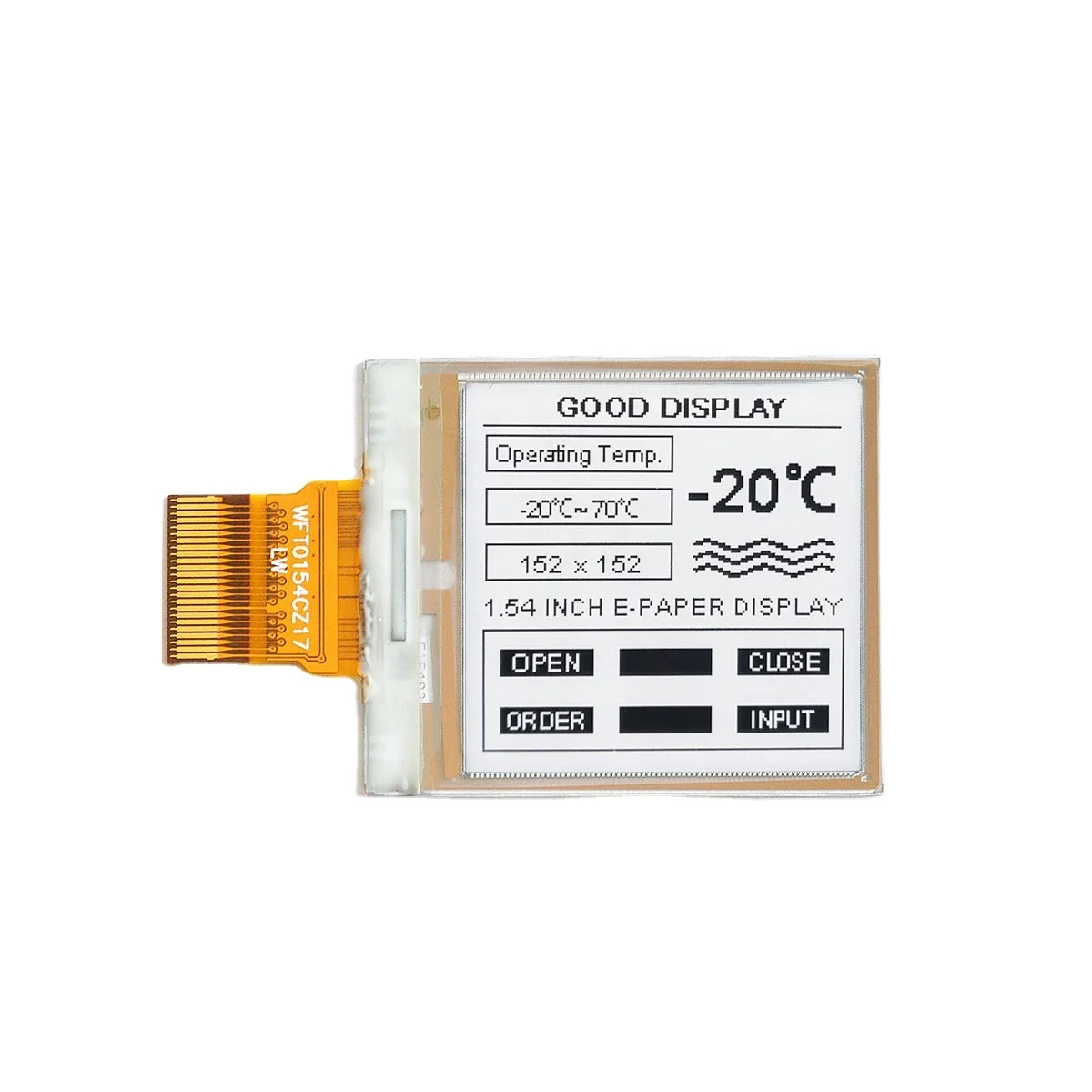

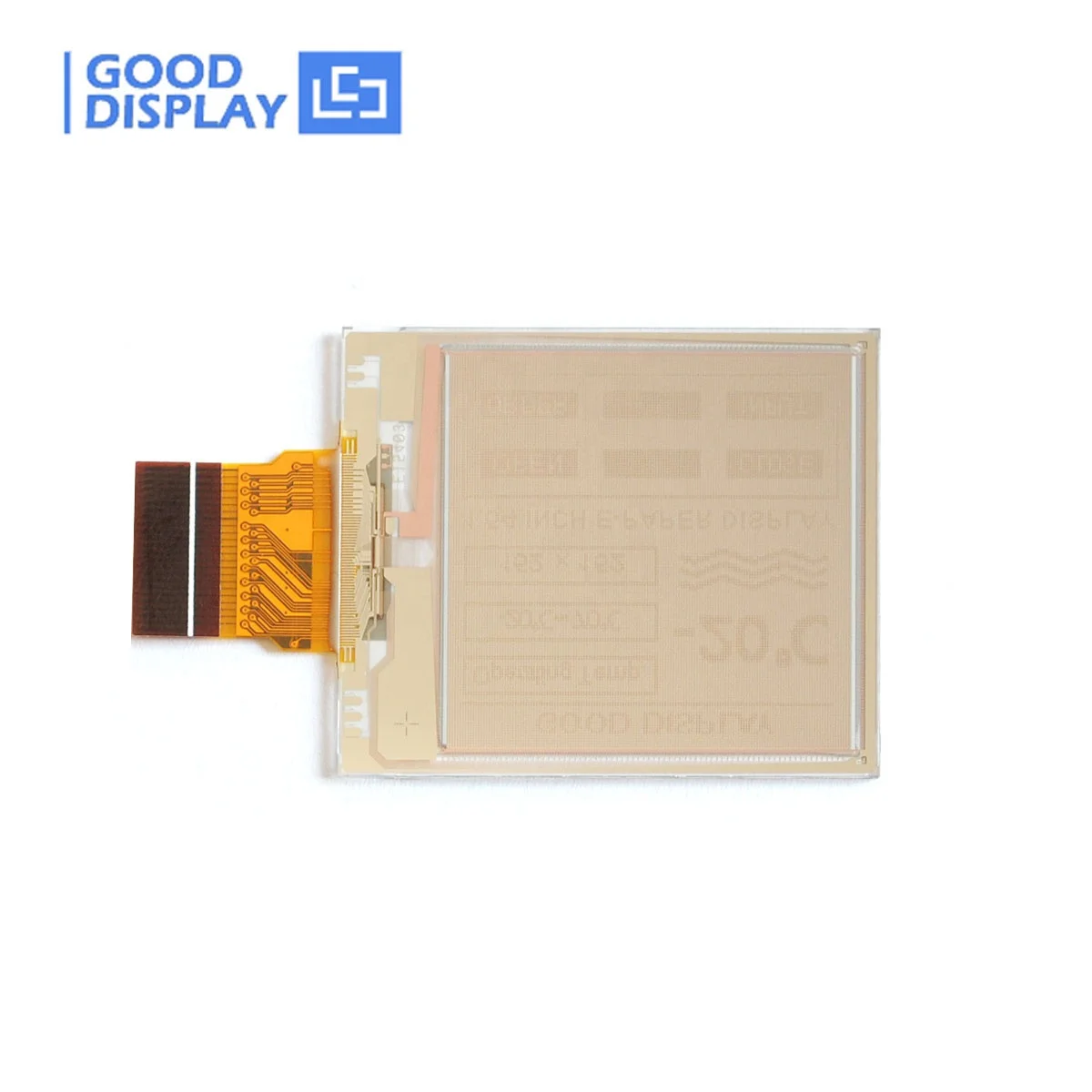

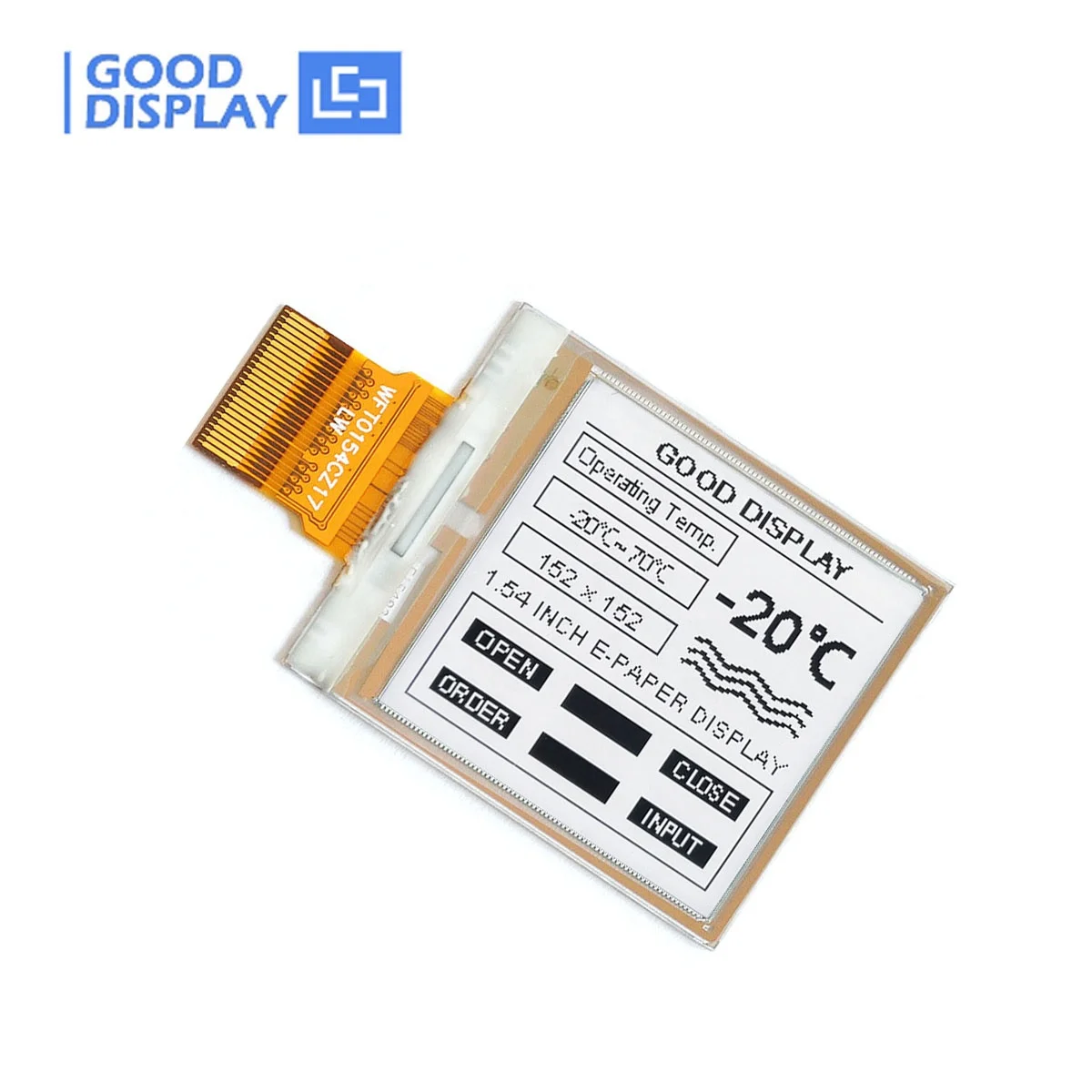

This is a DES 1.54 inch e-paper display with 152x152 resolution, SPI interface, and the display is capable to display images with black and white content. Your image holds indefinitely without power – put up your image, then shut down the power. This e-paper is perfect for low power devices powered by solar or batteries. This 1.54 inch DES electronic paper display GDEW0154M10 breaks the limitations of traditional e-paper display on the working environment, apply to more projects.
We could provide Front light and Touch screen for you.
Use our free e-paper software to prepare your bitmap image for this display.
We could provide Front light and Touch screen for you.
Use our free e-paper software to prepare your bitmap image for this display.
Main Parameters
Part Number | GDEW0154M10 |
Size | 1.54 inch |
Technology | DES |
IC | UC8151C |
Resolution | 152x152 |
Outline Size(mm) | 31.8x37.32x1.02 |
Active Size(mm) | 27.512x27.512 |
Pixel Pitch(mm) | 0.181x0.181 |
Operating Temp. | -20℃~60℃ |
Storage Temp. | -25~70℃ |

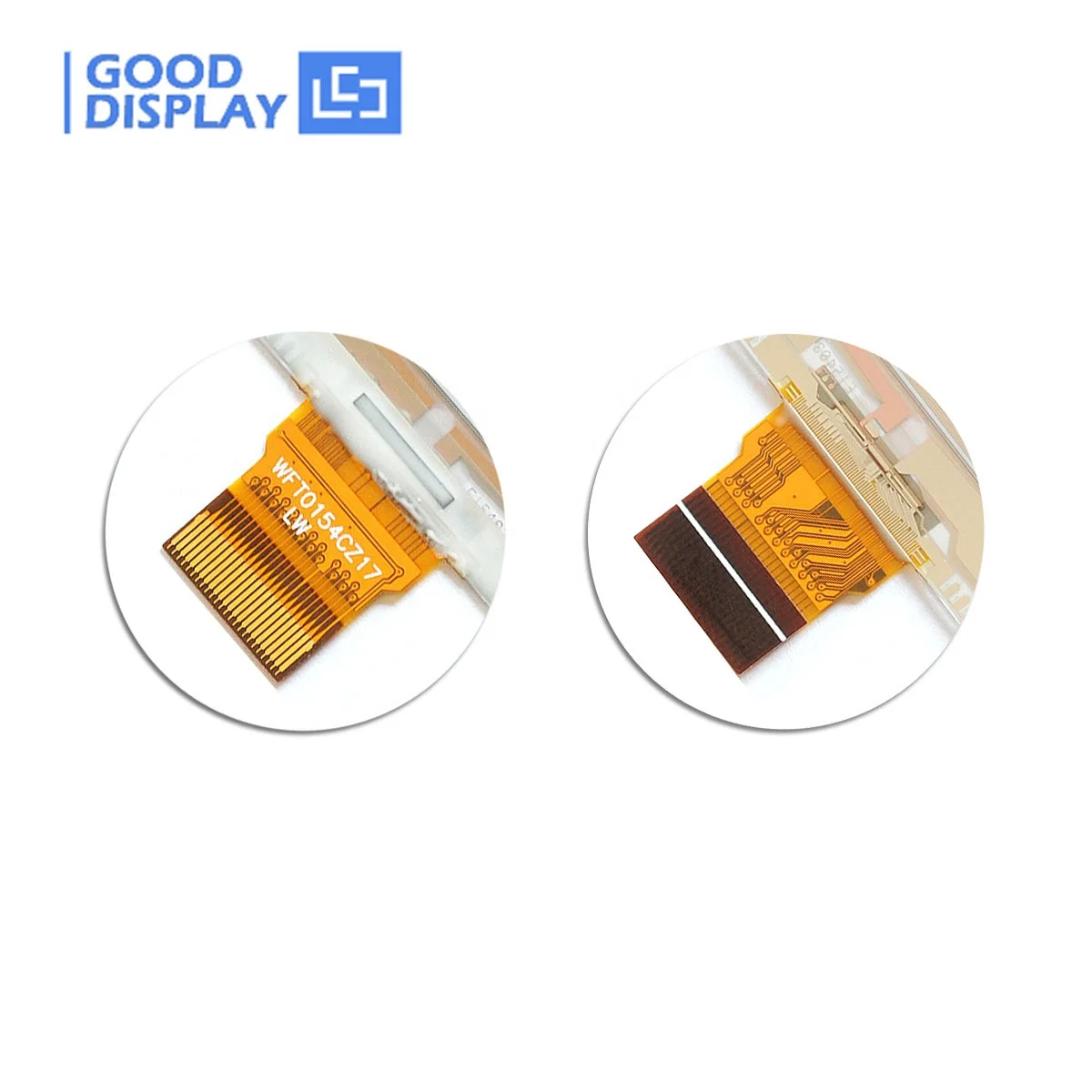

Connector | 24 Pin FPC, Pitch:0.5mm |
Interface | SPI |
Color | Black,White |
Power Consumption(mW) | 18 |
Standby Power Consumption(mW) | 0.0165 |
GDEW0154M10's refresh time at different temperature
Operating Temperature | Refresh Time |
-25℃~-20℃ | 60s |
-20℃~-10℃ | 60s |
-10℃~0℃ | 30.58s |
0℃~10℃ | 9.86s |
10℃~20℃ | 4.74s |
20℃~30℃ | 2.8s |
30℃~60℃ | 2.92s |
Features
GDEW0154M10
● Black and white monochrome is easy to read.
● Versatile. Use in portrait or landscape format.
● Contrast Ratio is higher than normal e-paper display.
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor.
● Wide operating temperature range: -20℃~60℃ (Normal e-paper display: 0~50℃, Normal color e-paper display: 0℃~40℃, low temperature e-paper display:-20℃~25℃).
● Versatile. Use in portrait or landscape format.
● Contrast Ratio is higher than normal e-paper display.
● Bistable. (Will continue to display with no power source)
● I2C Signal Master Interface to read external temperature sensor.
● Wide operating temperature range: -20℃~60℃ (Normal e-paper display: 0~50℃, Normal color e-paper display: 0℃~40℃, low temperature e-paper display:-20℃~25℃).
Other Products
Same Size Product List
Part Number | Resolution | Refresh Time(s) | Color | Feature |
152X152 | 3 | Black, White | Fexible, Partial Refresh | |
200x200 | 0.82 | Black, White | Support Partial Refresh Faster Update | |
200x200 | 2 | Black, White | Support Partial Refresh | |
200x200 | 2 | Black, White | With Frontlight | |
152x152 | 3 | Black, White | Support Partial Refresh, 4 Grayscale | |
200x200 | 15 | Black, White, Red | Tri-color |
Matched Demo Kit
We can provide you demo kit and technical support.
Please click the picture for more details.
*Notice that the above price does not include the Demo Kit.
Please click the picture for more details.
*Notice that the above price does not include the Demo Kit.
Development Kit for SPI interface dot matrix e- ink Display on STM32 Platform.
Development Kit for SPI interface dot matrix e- ink Display on Arduino platform.
Development Kit for SPI interface dot matrix e- ink Display on Raspberry Pi.Also it can driving our e-paper display with touch panel and frontlight.
The ESP8266 for EPD development kit supports Wi-Fi, users need to develop by themselves.
The ESP32-02 development kit supports Wi-Fi and Bluetooth, users need to develop by themselves.
About Us
E-Paper Display Q&A
Q: What is Display Electronic Slurry (DES)?
A: The DES display module adopts a new display structure which is completely different from the current micro-cup and micro-capsule structure. The structure forms a layer of cofferdam structure on the surface of the TFT by forming a cofferdam around the periphery of a single pixel electrode, and the bank covers the source and gate lines on the TFT. The patterned structure is characterized in that each pixel electrode is surrounded by a cofferdam, the microstructure is not visible on the front side, and the number of layers is reduced, thereby obtaining the higher definition and resolution display effect. In order to distinguish it from the traditional micro-cup and micro-capsule technology, we call it the new display electronic slurry (DES) technology.
Q: How large/small can Matrix e-ink displays be?
A: At present, the largest e-ink display is 32 inch E-ink Display, and the smallest e-ink display is 1.02 inch E-ink Display.
Q: Storage humidity for electronic paper.
A: 40% to 70%.
Q: Does Good Display provide or support flexible matrix displays?
A: The flexibility of an EPD display is controlled by the backplane. Good Display does support flexible backplanes, if you're intrested, please contact us.
Q: Can an Matrix e-ink display support animation or video rates?
A: Using the faster update modes, e-ink screens can support animation quality video rates. A number of examples are available from customers that show examples of e-ink screens showing video.
A: The DES display module adopts a new display structure which is completely different from the current micro-cup and micro-capsule structure. The structure forms a layer of cofferdam structure on the surface of the TFT by forming a cofferdam around the periphery of a single pixel electrode, and the bank covers the source and gate lines on the TFT. The patterned structure is characterized in that each pixel electrode is surrounded by a cofferdam, the microstructure is not visible on the front side, and the number of layers is reduced, thereby obtaining the higher definition and resolution display effect. In order to distinguish it from the traditional micro-cup and micro-capsule technology, we call it the new display electronic slurry (DES) technology.
Q: How large/small can Matrix e-ink displays be?
A: At present, the largest e-ink display is 32 inch E-ink Display, and the smallest e-ink display is 1.02 inch E-ink Display.
Q: Storage humidity for electronic paper.
A: 40% to 70%.
Q: Does Good Display provide or support flexible matrix displays?
A: The flexibility of an EPD display is controlled by the backplane. Good Display does support flexible backplanes, if you're intrested, please contact us.
Q: Can an Matrix e-ink display support animation or video rates?
A: Using the faster update modes, e-ink screens can support animation quality video rates. A number of examples are available from customers that show examples of e-ink screens showing video.
