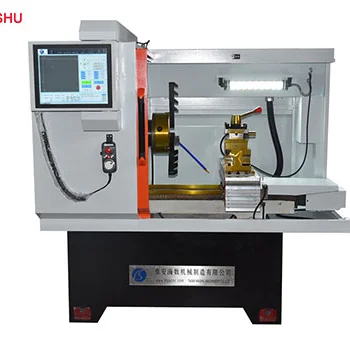

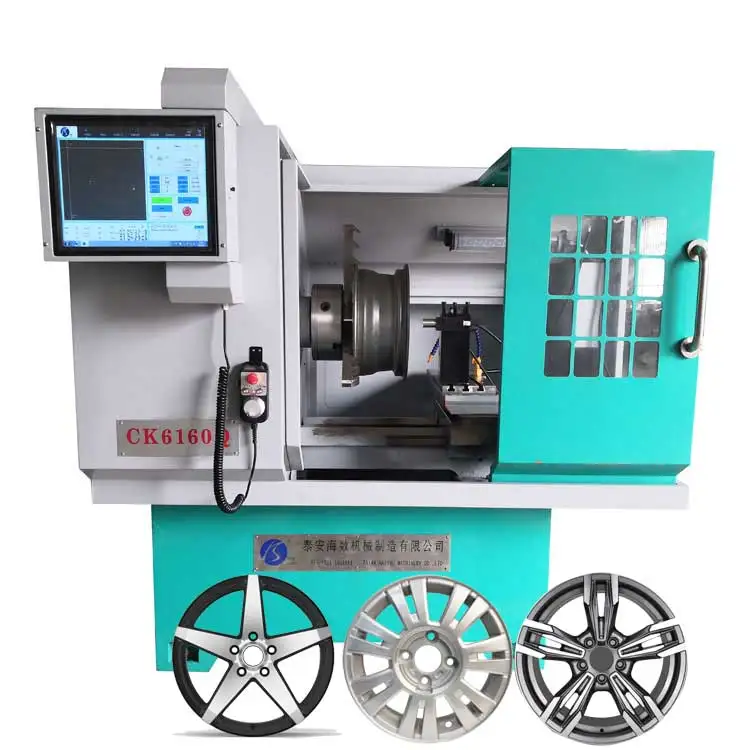

Токарный станок CK6160Q с ЧПУ для ремонта СПЛАВНЫХ
- Категория: Токарный станок с ЧПУ >>>
- Поставщик: Taian,Haishu,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 663199.79 $* | 696359.4 $* |
| Aug-19-2025 | 657626.89 $* | 690507.75 $* |
| Jul-19-2025 | 551737.21 $* | 579324.29 $* |
| Jun-19-2025 | 646480.90 $* | 678804.86 $* |
| May-19-2025 | 562883.58 $* | 591027.89 $* |
| Apr-19-2025 | 635333.31 $* | 667100.38 $* |
| Mar-19-2025 | 629760.82 $* | 661248.98 $* |
| Feb-19-2025 | 624187.87 $* | 655396.45 $* |
| Jan-19-2025 | 618614.32 $* | 649545.5 $* |
Характеристики
Alloy Wheel Repair CNC Lathe machine CK6160Q
|
Project name |
Unit |
Technical parameters |
|
Max. turning diameter |
mm |
720 |
|
Max. wheel machining diameter |
mm |
24” |
|
Max. workpiece length |
mm |
500 |
|
Probe measuring direction |
|
X,Z |
|
Probe measure way |
|
Laser probe or touch probe |
|
Machning accuracy |
|
IT6~IT7 |
|
Surface roughness |
um |
Ra0.8~1.6 |
|
Main transmission form |
|
Independent spindle; frequency conversion step-less |
|
Range of spindle speed |
rpm |
150~2000 |
|
Main motor power |
kw |
3 |
|
Fast-moving feed |
mm/min |
X - axis:5000 Z - axis:8000 |
|
Repeat positioning accuracy |
mm |
X - axis:0.01 Z - axis:0.015 |
|
Turret form |
|
2-position fixed tool holder |
|
Section of turning tool |
mm |
25×25 |
|
The size of the machine (L×W×H) |
mm |
2000×1500×1800 |
|
Net weight of the machine |
1500Kg |
|
