Complete production  automatic  white alabaster artificial marble quartz making machine



The process flow chart of automatic high efficiency artificial quartz plate production line.



Main machines on artificial quartz production line

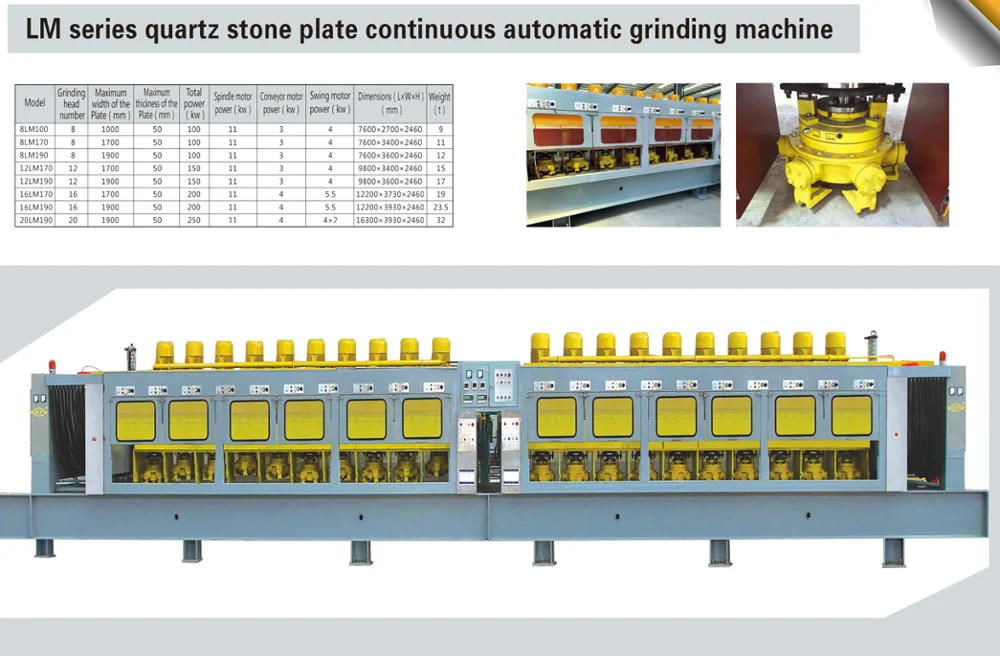

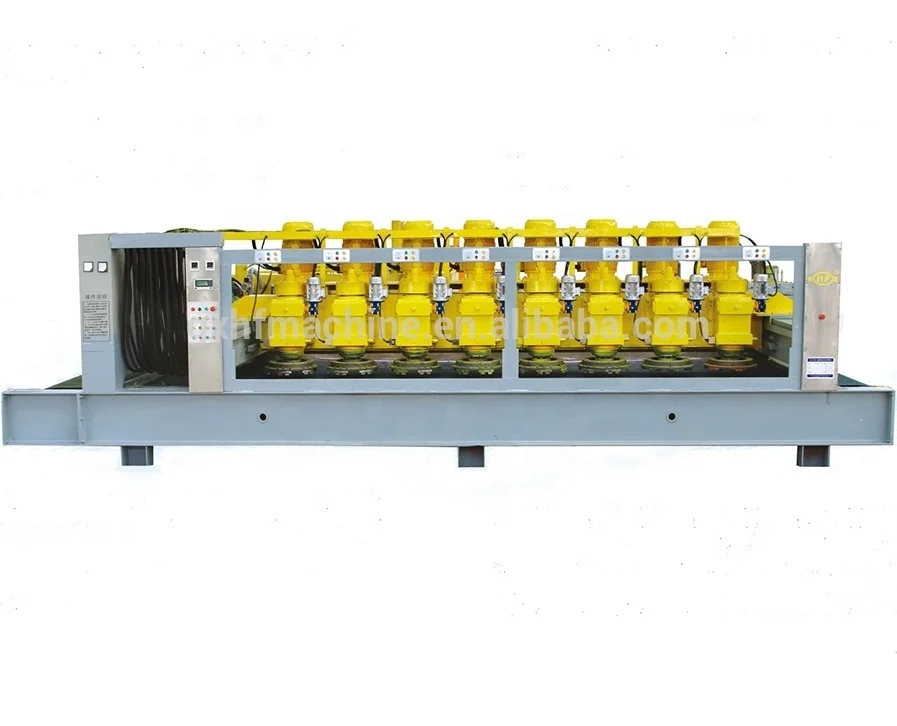

LM series quartz stone plate continuous automatic grinding machine

Description:This machine used in the process of polishing of artificial quartz stone plate has four types with 8,12,16 and 20 heads differently and its grinding width includes 1m,1.7m,1.9m.



LX continuous automatic artificial quartz stone plate thickness calibrating machine.

Description:LX thickness calibrating machine is designed for the process of calibrate thickness before polishing artificial quartz stone.There are three types-4 ends,6ends,8 ends.It can make three width type quartz stone:1m,1.7m,1.9m.

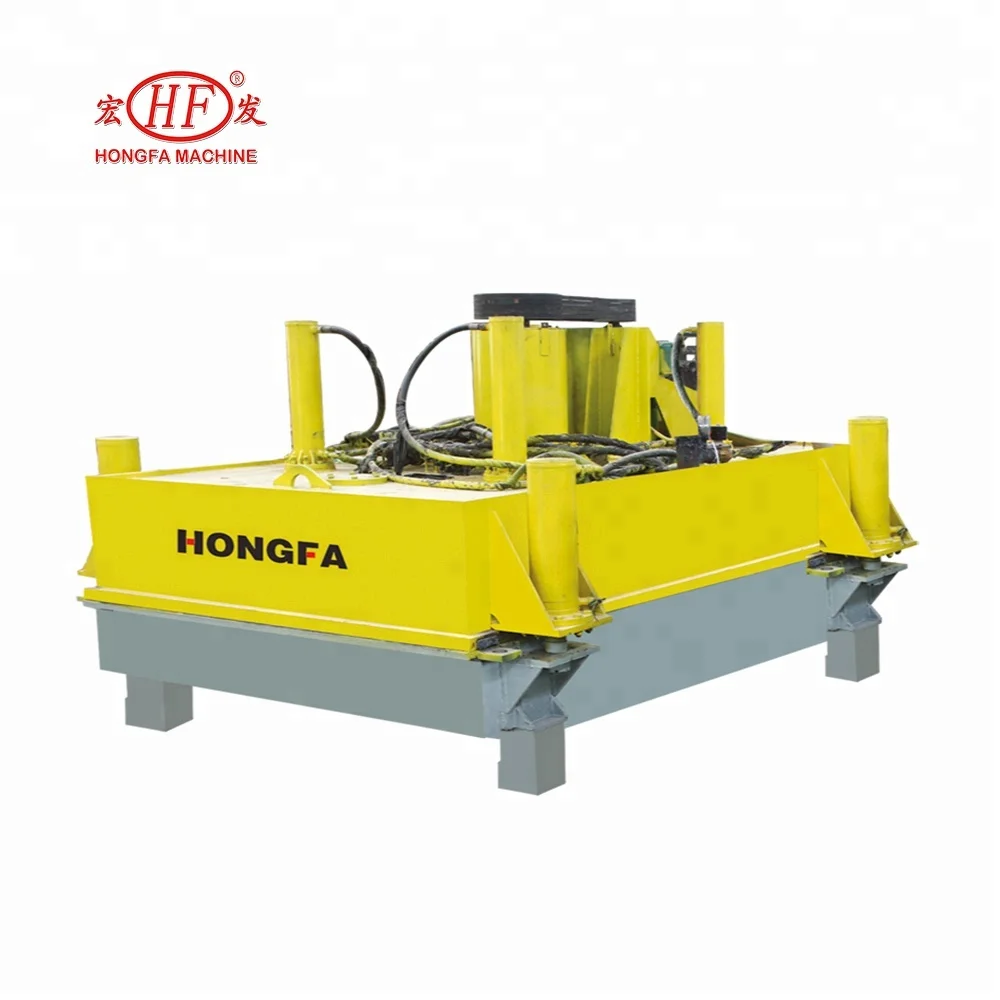

LY series vacuum vibration pressing machine

Description:LY series vacuum vibration pressing machine is used to make the artificial quartz stone plate bulk material into blank plate.Pressing machine contains machine frame,vacuum box,vibration motor,lifting oil cylinder,pressurized cylinder,transmission parts vacuum parts,hydraulic electric control,etc.

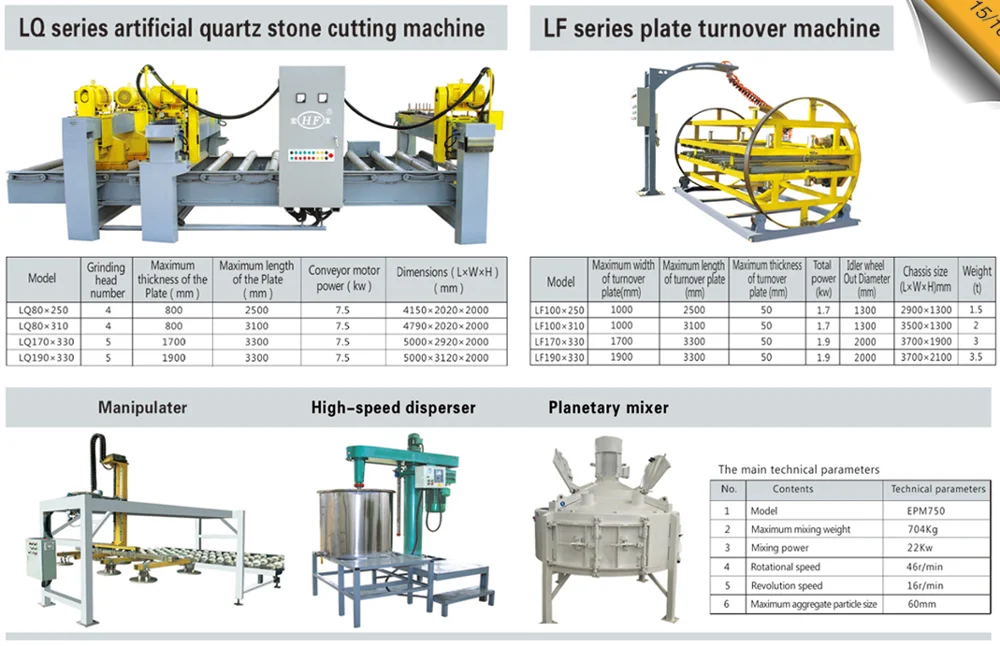

LQ series artificial quartz stone cutting machine and LF series plate turnover machine

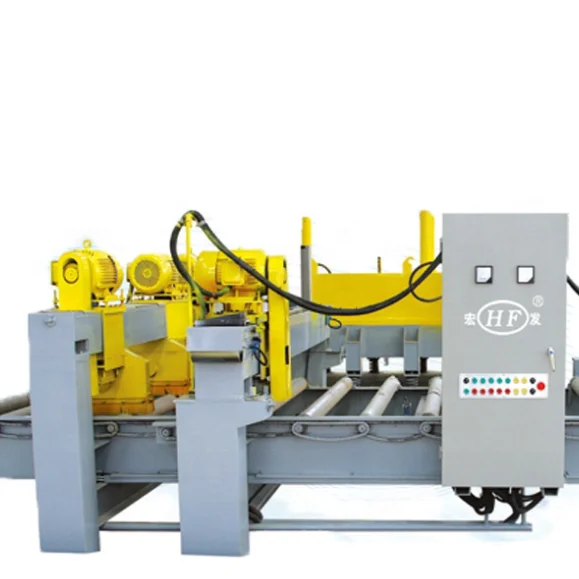

Description:LQ series artificial quartz stone cutting machine is used for plate of quartz stone in vertical and horizontal cutting.It can make the plate pass continuously on the production line and cut down turnover of the plate

LF series plate turnover machine is ancillary support machine of artificial quartz stone production line,so that the plate can be milled on both sides to calibrating thick.The maximum width of turnover plate have 1meter,1.7meters,1.9meters in three sizes.Plate turnovers maximum thickness 50mm,Enter,out and turnover of plate are all finished automatic.



The photos of artificial quartz production line



How about the raw materials of artificial quartz stone



The products and application of automatic artificial quartz slab plate



Our factory

We are a diversified manufacturer in China with 30 years experiences in the construction materials machinery,we have professional engineer service group,we can provide best service for every customer.



Don't forget to inform us if you have any interesting.
