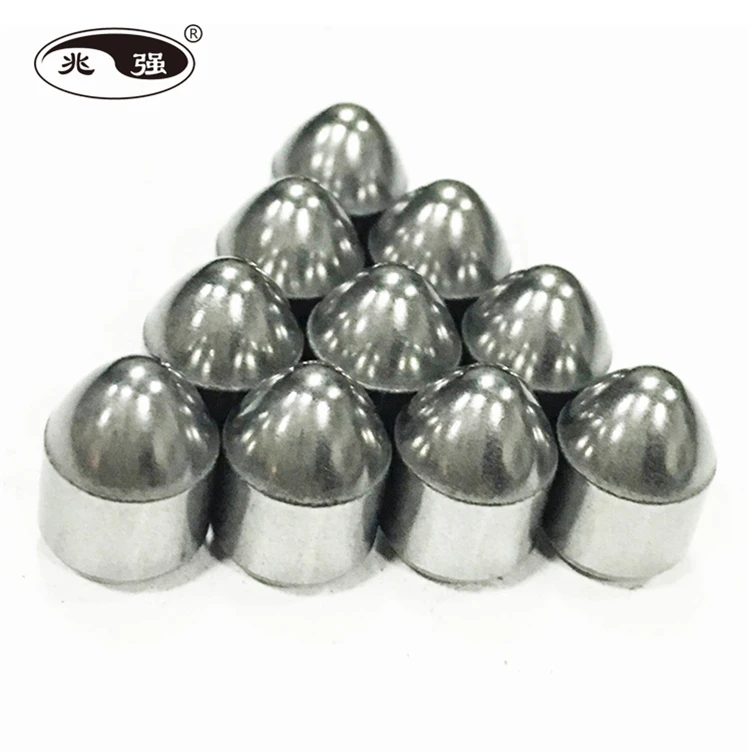

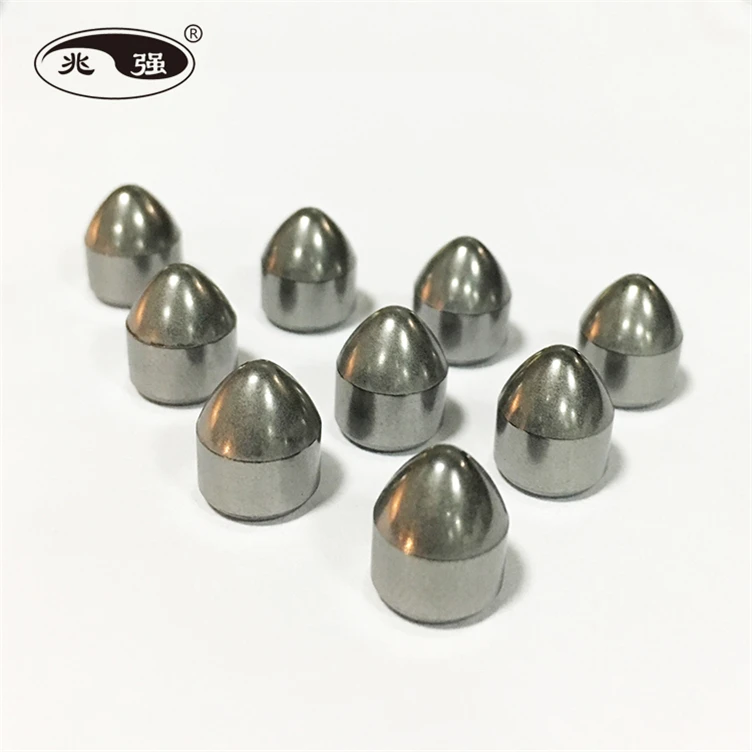

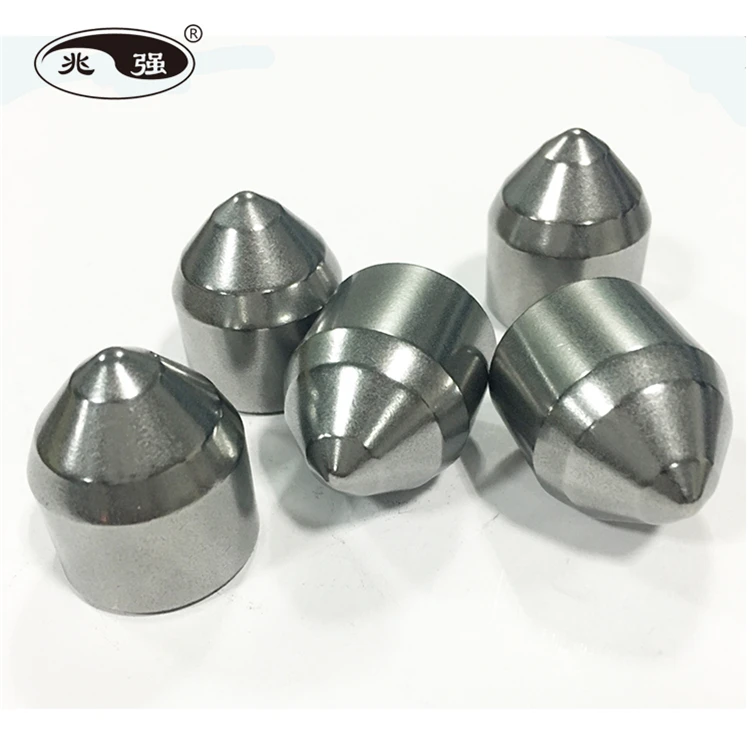

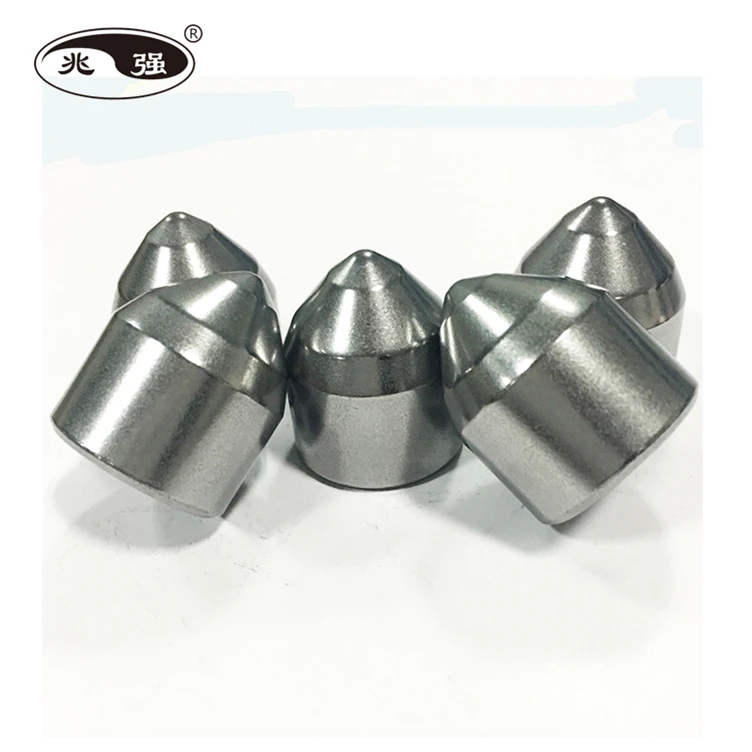

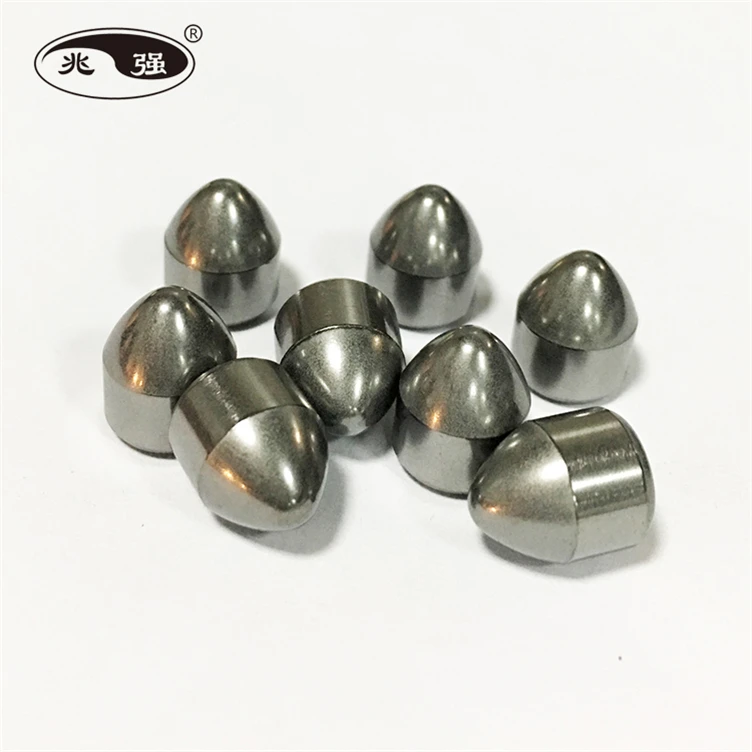

cemented carbide spherical buttons tungsten carbide button bits for mining drilling rock cutting
Product Description
Tungsten carbide button have their unique working properties. It is widely used in oil drilling and shoveling snow, snow machines and other equipment and used for quarrying, mining, tunnel engineering, and civil buildings. Our advantages: 1. Manufactured with the highest quality carbide for stable & consistent quality.
2. Processing with latest manufacturing technologyHIP sintered to produce ultimate in quality.
3. Strict quality checkingaccompany the overall production process to ensure every batch of product meet customers' standard before being put on the market.
4. A wide range of tungsten carbide grade and size for selection.
5. Factory-direct shipment ensure short delivery time.
6. We also offer experienced advice to help you produce the best possible product at thelowest possible cost.
7. Customised Polished carbide insert for button bitss are available!
Remarks:
1.We also could desigh, develop and produce according to customer's requirements and drawings.
2.Blank and finished products are available.
Tungsten Carbide Buttona Material Grade Specification:
Grade
Density
(g/cm3)
Typical Value
Application Scope
Hardness
Bending Strength
YG3
15.10~15.30
92.5
1700
Superior wear resistance only less than YG3X, sensitive to impact and vibration, suitable for cast non-ferrous metal and its alloy finish turning, semi-finish turning, thread finish turning and hole expanding.
YG3X
15.10~15.30
93.6
1450
Best wear resistance in Tungeten and Cobalt alooy, but not good in anti-impact proprety, suitable for cast iron, non-ferrous and alloy, quenched steel, alloy steel small cutting section machining at high speed.
YG6X
14.80~15.00
92.4
2000
Belong to small granule Tungsten carbide alloy, wear resistance higher than YG6. Suitable for machining cold and hard alloy cast iron and heat resistance alloy steel, as well as finish machiing for normal cast iron.
YG6
14.80~15.00
91.1
2100
High wear resistance but less than YG3, better anti-impact and anti-vibration than YG3X, Suitable for cast iron, non-ferrous and alloy, non-metal material semi-finish machining and finish machining.
YG6A
14.8~15.00
92.8
1850
Belong to small granule alloy, wear resistance hig, suitable for semi-finish machining of cold and hard cast iron, non-ferrous and alloy, as well as semi-finish machining and finish machining for quenched steel, alloy steel
YG8
14.6~14.80
90.5
2300
High bending strength resistance, better anti-impact and anti-vibration than YG6, suitable for cast iron, non-ferrous and alloy, non-metal material rough machining at low speed.
YG522
14.20~14.40
92.5
2000
High wear resistance, and high strength, special grade for bamboo and wood processing, also suitable for non-ferrous and non-metal material cutting process.
YG546
14.55~14.75
90.5
2700
High flexibility and high strength, withstand high impact load, suitable for stainless steel and cast iron rough processing
YG610
14.60~14.80
93.5
2000
High wear resistance and high hardness, suitable for cast iron, high temperature alloy, quenched material cutting continuous and discontinuously.
YG640
13.10~13.30
91.5
2300
Impact resistance and anti-oxidant, suitable for large cast piece cutting continuous and discontinuously, and anti-heat steel, high strength steel milling and digging.
YG643
13.60~13.80
93.3
1700
High wear resistance, high anti-stick property, suitable for cast iron, high temperature cast iron, high temperature alloy, stainless steel, quenched steel and non-ferrous processing.
YG813
14.30~14.50
92
2200
Good wear resistance, high bending strength resistance and anti-stick property, suitable for processing high temperature alloy, stainless steel and high Manganese steel and other material.
