XN-T21 Introduction and detail Description:

XN-T21 steam turbine is a multi-stage condensing turbine. The flow passage of the turbine adopts one double-row complex speed stage (or single-row complex speed stage) and seven to nine pressure stages as the modular steam turbine. The actual number of stages used depends on the output power, rated speed, inlet steam pressure, and temperature of the turbine. The turbine is optimized to ensure high efficiency. The output rated power.
The turbine speed is 3000r/min, and the output power range is 3000-6000KW. The regulating system adopts full hydraulic regulator or electro-hydraulic regulating mode (WOODWARD 505 controller + CPCii electro-hydraulic converter or domestic DEH electro-hydraulic regulating system), multi-valve nozzle regulating, double-layer arrangement. The T21 steam turbine is a multi-stage condensing steam turbine, which can not only drive large rotating equipment such as fans and compressors (variable speed operation) but also be used as a dragging condensing steam turbine; it can also drag generators to generate electricity (constant speed operation), as a power generation condensing steam turbine used in a wide range of applications and occasions.

Main Techincal Parameters of XN-T21:

Model	XN-T21 Series Multistage Condensing Steam Turbines
Rated Speed (rpm)	3000
Rated Power (KW)	3000-6000
Inlet Steam Pressure (MPa)	0.5-3.43
Inlet Steam Temperature (℃)	160-450
series	One single (double) column complex speed stage +7-9 Stage pressure stage
Inlet Steam Path (mm)	150-250
Exhaust steam path (mm)	1100
Regulating system type	Full Hydraulic Control System or Hydraulic Control System
Barring type	Electric barring

Technical specification of Different XN-T21 Series Models:

Product Model	Factory Code	Rated Power (KW)	Rated Speed (rpm)	Inlet steam pressure (MPa)	Inlet steam Temperature (℃)	Exhaust Steam Pressure (MPa)	Steam Consumption (kg/kwh)
N6-3.43	XN-T21	6000	3000	3.43	435	0.008	4.76
N3-1.08	XN-T21	3000	3000	1.08	185	0.008	7.88
N4-1.27	XN-T21	4000	3000	1.27	280	0.008	6.46
N4.5-1.25	XN-T21	4500	3000	1.25	250	0.008	6.8
N5.5-2.35	XN-T21	5500	3000	2.35	390	0.008	5.4

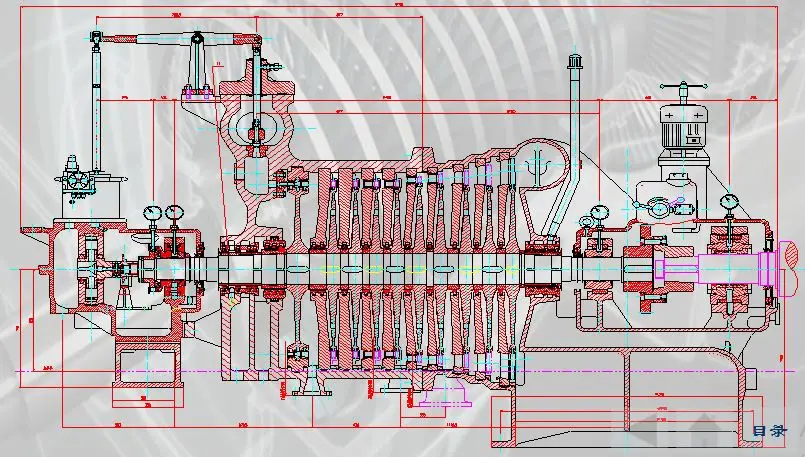

XN-T21 Longitudinal profile:

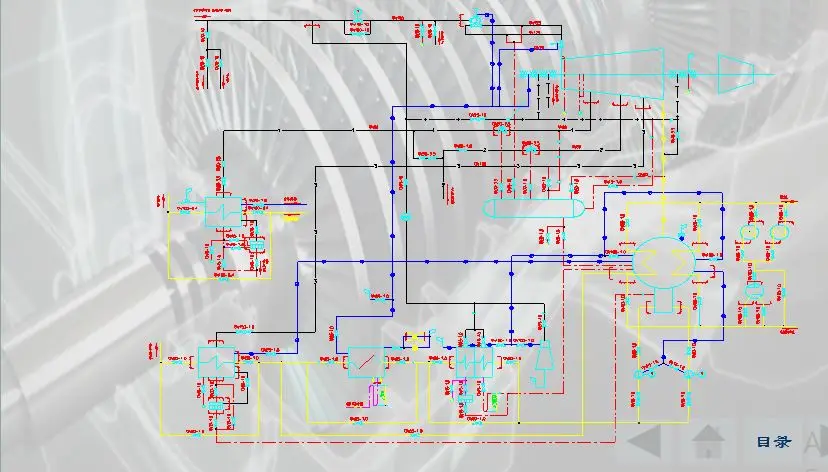

XN-T21 thermodynamic system diagram:

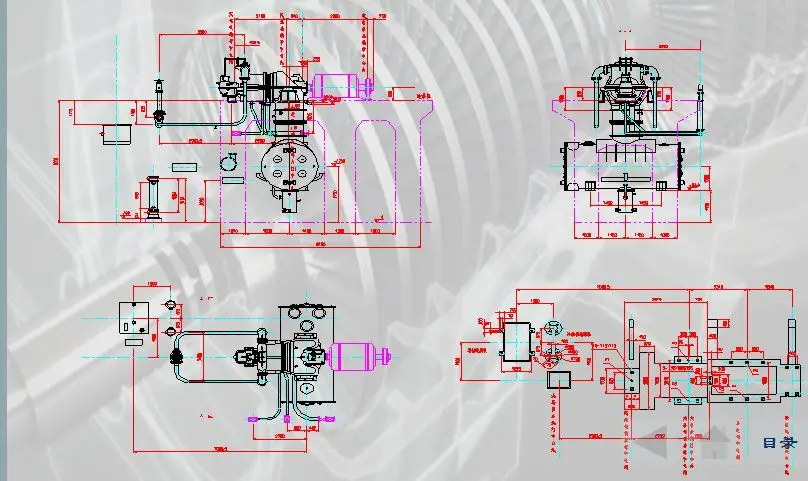

The general layout drawing of XN-T21 Series:

About Company:

Anhui Xinning Energy Technology Co., Ltd. located in Ningguo National Economic and Technological Development Zone. It is an "equipment supplier and power operator" that provides the overall solution of industrial waste heat and residual pressure power generation and new energy power generation. The company's main products are special turbines for energy recovery and new energy thermal power generation, with strong R&D strength. At present, the company has independent intellectual property rights such as "radial steam turbine series", "special working medium steam turbine", “Organic Rankine Cycle (ORC) Low-Temperature Power Plant".  Radial steam turbine working fluids include steam, Freon, carbon dioxide, compressed air, nitrogen, methane, and pentane, and so on. They are mainly used in iron and steel, metallurgy, petrochemical, chemical industry (coking, coal chemical, phosphorus chemical, alkali chemical, lithium salt, rubber, calcium carbide, ferroalloy, carbon), thermoelectricity, papermaking, kiln, furnace, etc. Waste heat and residual pressure recovery and high-speed dragging in printing and dyeing, cement, ceramics, coal gangue, oil field waste heat liquid, medicine, tobacco, food, and many other industries can also be applied to distributed energy systems, geothermal, biomass energy, solar thermal power generation. The radial turbine manufactured by our company is a kind of mechanical equipment which uses the temperature and pressure of steam (steam, compressed air, nitrogen, carbon dioxide, Freon and other different gases). The company upholds the "integrity, cooperation and win-win" business philosophy to create maximum customer value for the development of purpose, timely grasp of industrial energy-saving high-end technology fields and the pulse of the industry, to provide users with energy-saving overall solutions. Hardworking and sincere we are willing to go hand in hand with you, create brilliant!

Awards and Certification:

Our Services:

1. All turbines, generators, and control systems like DEH, ETS, TSI, etc. have to pass the strict inspection and tested before shipping.


2. After receiving the goods, we accept your feedback the first time.


3. We could provide an installation guide, if you have a need, we could give you a global service


4. provide the customized solution.


5. Our Sales are 24-hours online for our request.


6. We value every inquiry sent to us, ensure a quick competitive offer.


7. We cooperate with the customer to bid tenders. Provide necessary documents.


8. We are a sales team, with all technical support from the engineering team.

FAQs:

1. Why Choose us?

We are R&D based manufacturer Compared with the same industry, our products are small in size, lightweight, low steam consumption, high thermal efficiency, and simple in operation.

2. How to get the quote?

There are different types of steam turbines and generators set, to choose the appropriate steam turbine and generator according to your requirements please provide us the following parameters

1. steam turbine inlet pressure, flow, and temperature of the steam.

2. Steam turbine Capacity in KW or MW.

3. Generator terminal voltage and frequency

4. Generator cooling method, ON/OFF grid.

5. Outlet steam pressure of the turbine in case of backpressure steam turbine.

6. Extraction pressure and the flow in case of extraction and condensing steam turbine.

3. Are you a manufacturer?

Yes, we are a manufacturer as well as a supplier of various types of steam turbines.

4.What about the product quality?

We have a testing and quality control department to ensure the quality of the products meet national and international standards in the steam turbine industry.

5.What about the price?

We only offer a reasonable price instead of the high price.

6.How about the shipment?

Shipment by sea and by air is accepted, it depends on the volume of the order.

7. What about after-sales services?

We provide after-sales services based on customer demand. we provide installation and maintenance assistance abroad as we have customers around the globe. for more detail see above "Our Services".

8. What about Custom manufacturing?

Yes, we do custom manufacturing as well based on customer requirements.
