60 кВА Солнечная система установки на земле солнечные энергетические системы для
- Категория: Монтажная система на солнечной батарее >>>
- Поставщик: Guangzhou,Felicity,Solar,Technology,Company,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 7735.25 $* | 8122.65 $* |
| Aug-17-2025 | 7670.39 $* | 8054.44 $* |
| Jul-17-2025 | 6435.8 $* | 6757.51 $* |
| Jun-17-2025 | 7540.11 $* | 7917.93 $* |
| May-17-2025 | 6565.97 $* | 6893.46 $* |
| Apr-17-2025 | 7410.97 $* | 7781.7 $* |
| Mar-17-2025 | 7345.21 $* | 7712.0 $* |
| Feb-17-2025 | 7280.83 $* | 7644.25 $* |
| Jan-17-2025 | 7215.50 $* | 7576.45 $* |
Характеристики
Felicitysolar 10kva 48v Off-Grid Home System
Product Introduction
1. Solar power system is a new kind of energy-saving and environmentally friendly system. It is a system which uses PV modules to convert sunlight into electricity. It's made up of PV module, controller, battery and inverter. It is mainly used in some remote and power-unstable areas.
2. Solar PV systems are very reliable and clean source of electricity that can suit a wide range of applications such as
residence, industry, agriculture, livestock, etc.
3. Solar power system is mainly used to drive all kinds of household electrical appliances and office equipment, to solve the power shortage situation without electricity or people living or working electricity problem.
2. Solar PV systems are very reliable and clean source of electricity that can suit a wide range of applications such as
residence, industry, agriculture, livestock, etc.
3. Solar power system is mainly used to drive all kinds of household electrical appliances and office equipment, to solve the power shortage situation without electricity or people living or working electricity problem.

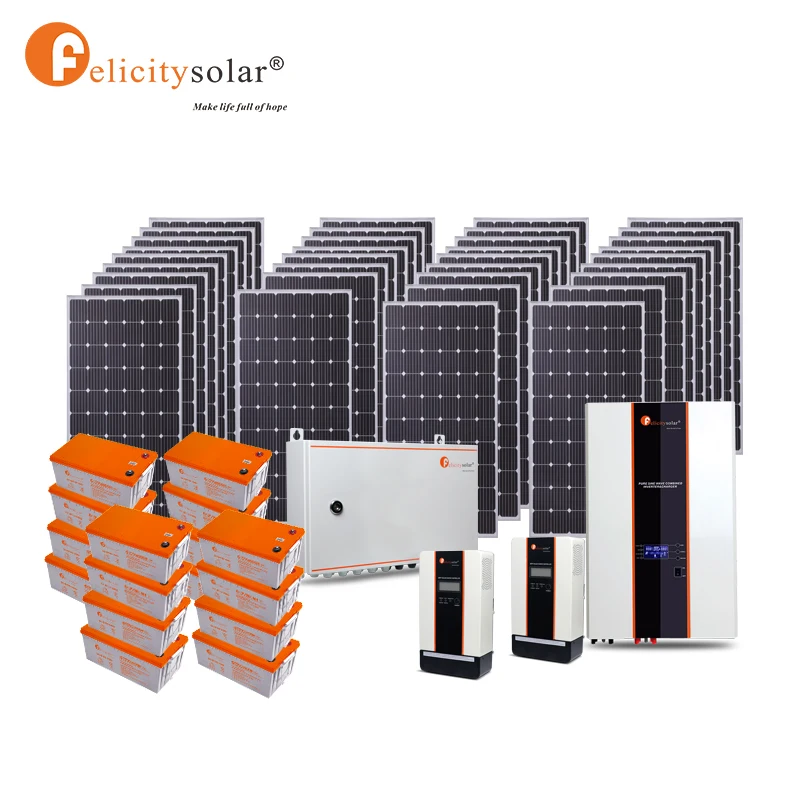

General Image of the System
Main Advantages
(1)Solar cell module
Solar modules is a major part, but also the value of the highest solar power system components, its role is to convert the sun's radiant energy to DC power.
(2)Solar Charge Controller
Solar Charge Controller, also known as "PV Controller", whose role is issued by the solar cell module to adjust and control power, maximize battery charge, and played a battery charge protection, over-discharge protection effect. Place in a large temperature difference, solar controller should have temperature compensation function.
(3)Battery
Its main task is battery energy storage in order to ensure that the load-day electricity at night or rainy.
(4) Battery Box and Wires
Battery box is helpful for storage and usage of battery. And we choose special PV wires for the solar power system.
(5)Off-grid inverters
Off-grid inverter is the core component of off -grid power system, is responsible for converting direct current to alternating current for AC load use. In order to improve the overall performance of photovoltaic power generation system to ensure long-term stable operation of the power station, the inverter performance is very important.
Solar modules is a major part, but also the value of the highest solar power system components, its role is to convert the sun's radiant energy to DC power.
(2)Solar Charge Controller
Solar Charge Controller, also known as "PV Controller", whose role is issued by the solar cell module to adjust and control power, maximize battery charge, and played a battery charge protection, over-discharge protection effect. Place in a large temperature difference, solar controller should have temperature compensation function.
(3)Battery
Its main task is battery energy storage in order to ensure that the load-day electricity at night or rainy.
(4) Battery Box and Wires
Battery box is helpful for storage and usage of battery. And we choose special PV wires for the solar power system.
(5)Off-grid inverters
Off-grid inverter is the core component of off -grid power system, is responsible for converting direct current to alternating current for AC load use. In order to improve the overall performance of photovoltaic power generation system to ensure long-term stable operation of the power station, the inverter performance is very important.
Product Details

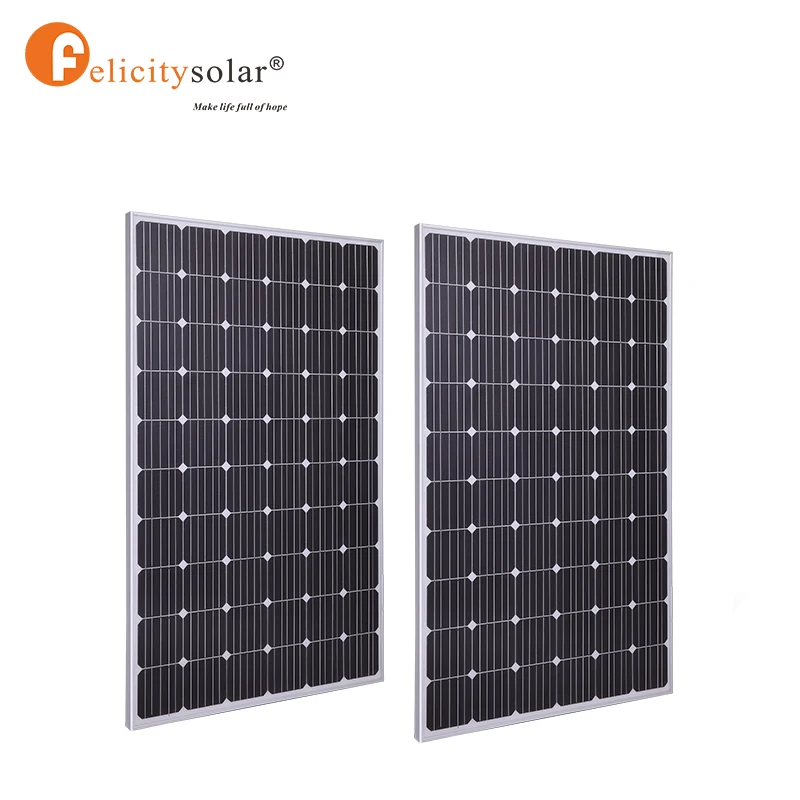

Model | M-260w |
Type | MONOCRYSTALLINE |
Output Power | 260W |
Max.Power Voltage | 30.6V |
Max.Power Current | 8.66A |
Open-Circuit Voltage | 36.72V |
Short-Circuit Current | 9.20A |
Quantity | 36pcs |
Solar Panel Feature:
1. Efficient mono-crystalline modules are suitable for residential, public application areas, and can be widely used in the roof and ground electric power station projects.
2. Applying the most advancing technology with high output power. The maximum conversation rate is up to 16.39%.
3. Using anti-reflection glass, not only increases the absorption of light, but also strengthens the its self-cleaning function
when the modules are in the water environment, which can effectively reduce the loss caused by dust.
4. Excellent low light electricity generation performance
5. Modules with strong compression capability, able to withstand 2400 Pa wind pressure and 5400 Pa snow load.
2. Applying the most advancing technology with high output power. The maximum conversation rate is up to 16.39%.
3. Using anti-reflection glass, not only increases the absorption of light, but also strengthens the its self-cleaning function
when the modules are in the water environment, which can effectively reduce the loss caused by dust.
4. Excellent low light electricity generation performance
5. Modules with strong compression capability, able to withstand 2400 Pa wind pressure and 5400 Pa snow load.

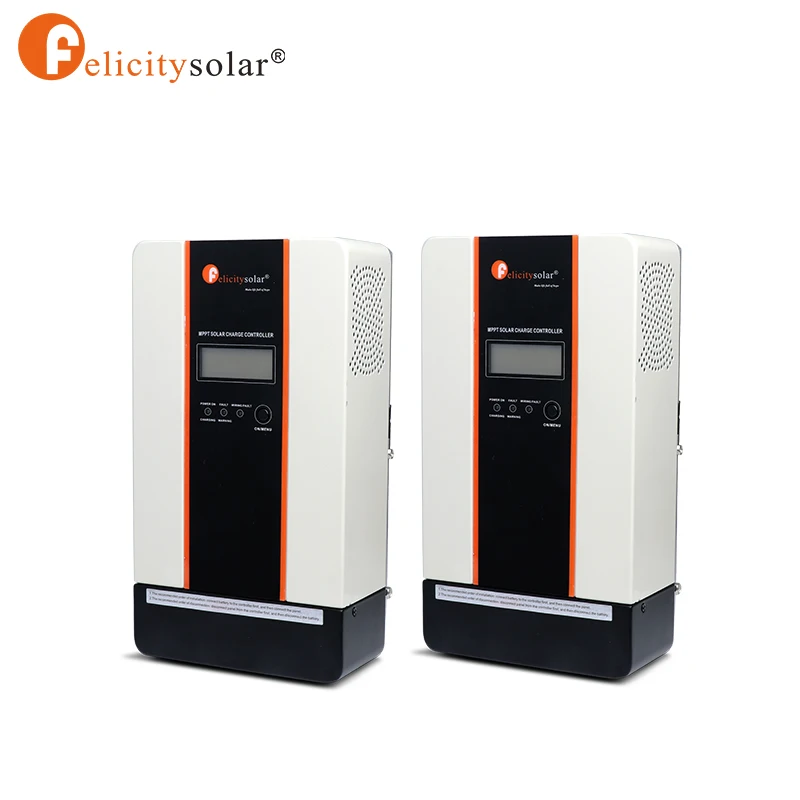

Model | SCCM12048 |
Syatem Voltage | 12,24,48 VDC (Auto dectecion) |
Max. Battery Current | 120A |
Max. Input Power | 12 Volt 1100Watts |
24 Volt 2200Watts | |
48 Volt 44300Watts | |
Storage Temperature | -40℃ to 75℃ |
Enclose | IP31 |
Quantity | 2pcs |
Controller Feature:
1. Intelligent Maximum Power Point Tracking technology increases efficiency 25%~30%
2. Compatible for PV systems in 12V, 24V or 48V
3. Three-stage charging optimizes battery performance
4. Maximum charging current up to 60A
5. Maximum efficiency up to 98%
6. Battery temperature sensor (BTS) automatically provides temperature compensation
7. Automatic battery voltage detection
8. Support wide range of lead-acid batteries including wet, AGM and gel batteries
9. Integrated intelligent slot compatible with SNMP/MODBUS communication
1. Intelligent Maximum Power Point Tracking technology increases efficiency 25%~30%
2. Compatible for PV systems in 12V, 24V or 48V
3. Three-stage charging optimizes battery performance
4. Maximum charging current up to 60A
5. Maximum efficiency up to 98%
6. Battery temperature sensor (BTS) automatically provides temperature compensation
7. Automatic battery voltage detection
8. Support wide range of lead-acid batteries including wet, AGM and gel batteries
9. Integrated intelligent slot compatible with SNMP/MODBUS communication

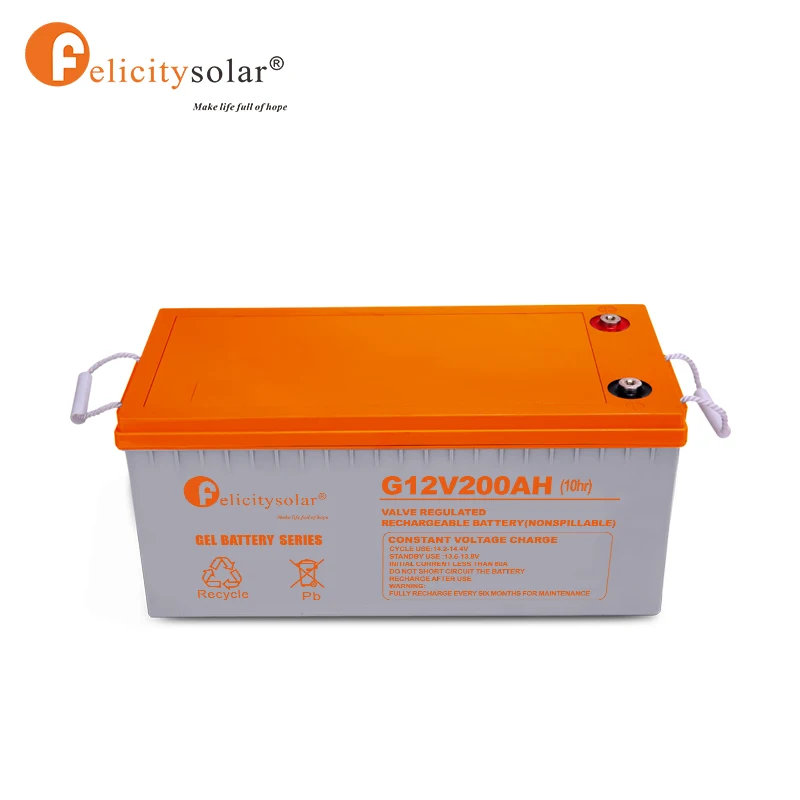

Model | G200AH 12V |
Voltage | 12V |
Capacity | 200AH@10hour rate |
MAX. Discharge Current | 2000A |
Recommended MAX. Charging | 60A |
Quantity | 16pcs |
Battery Feature:
1. Solve electrolyte stratification, sulfuric acid evenly distributed.
2. The silica gel electrolyte lead-acid batteries can be so deep discharge, thus greatly extending the cycle life of the
battery.
3. The battery float current is small (about 1/3 AGM battery), the floating charge lower energy consumption, less warming,
reduce battery thermal runaway risk.
4. low self-discharge rate of the battery.
1. Solve electrolyte stratification, sulfuric acid evenly distributed.
2. The silica gel electrolyte lead-acid batteries can be so deep discharge, thus greatly extending the cycle life of the
battery.
3. The battery float current is small (about 1/3 AGM battery), the floating charge lower energy consumption, less warming,
reduce battery thermal runaway risk.
4. low self-discharge rate of the battery.

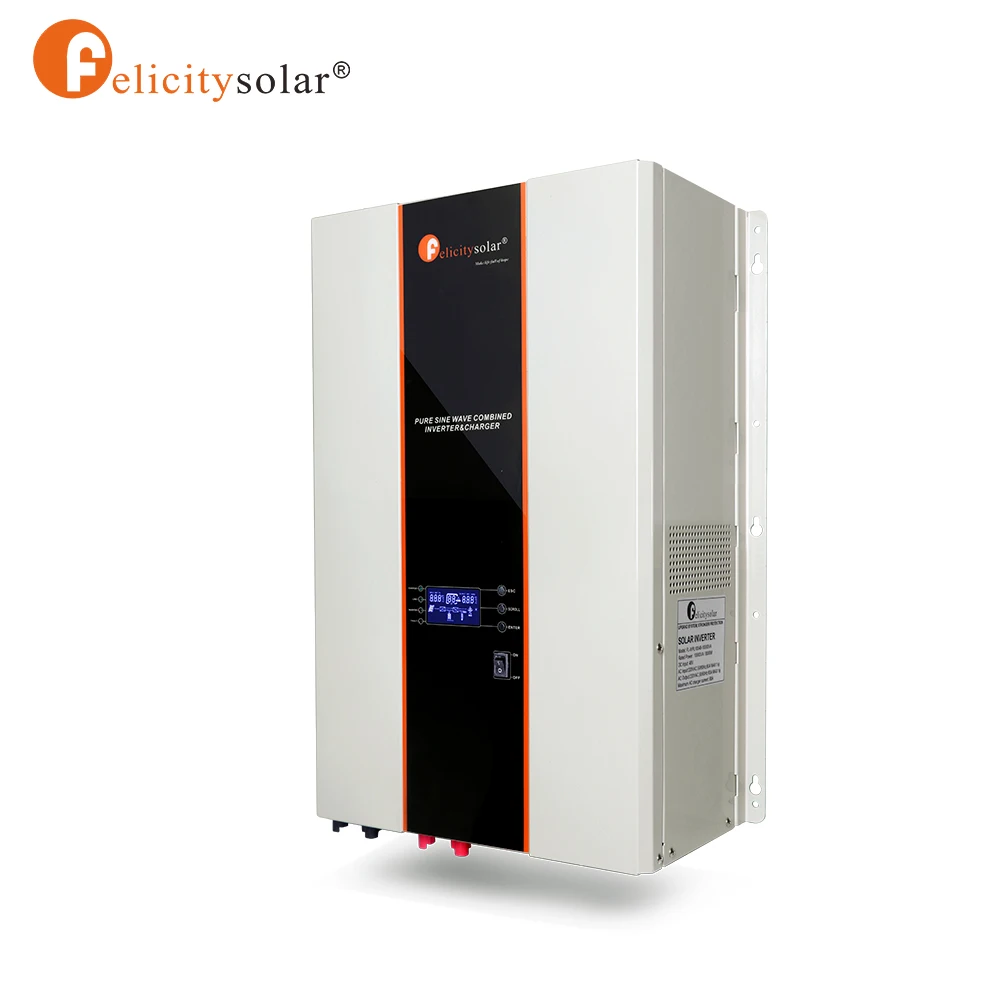

Model | IVPL10048-10000VA |
Rated Output Power | 10000VA / 8000W |
DC Input Voltage | 48V |
Over-Load Protection | AC 40A |
Output Short Circuit Protection | AC 40A |
Input Overload Current | AC 40A |
MAX. Chargeing Current | DC 60A |
Nominal Output Voltage | depends on battery type |
Quantity | 1pc |
Inverter Feature:
1. Communicate with our MPPT charge controller
2. Bypass charging function, AC charge available when the unit off.
3. Built-in battery reverse polarity protection.
4. Adjustable charging current and output frequency 50/60hz.
5. Grid electricity and battery power priority is optional.
6. Generator has function of automatic control on and off.
7. 90-280V AC wide input voltage.
8. AC input and output protection switch.
9. Built-in battery temperature compensation interface.
10. Automatic AC and PV charger after shutdown.
11. Low frequency high reliable pure sine wave circuit architecture.
12. Optional 8 types of batteries, three-stage intelligent charger
1. Communicate with our MPPT charge controller
2. Bypass charging function, AC charge available when the unit off.
3. Built-in battery reverse polarity protection.
4. Adjustable charging current and output frequency 50/60hz.
5. Grid electricity and battery power priority is optional.
6. Generator has function of automatic control on and off.
7. 90-280V AC wide input voltage.
8. AC input and output protection switch.
9. Built-in battery temperature compensation interface.
10. Automatic AC and PV charger after shutdown.
11. Low frequency high reliable pure sine wave circuit architecture.
12. Optional 8 types of batteries, three-stage intelligent charger
Production Line
System connection

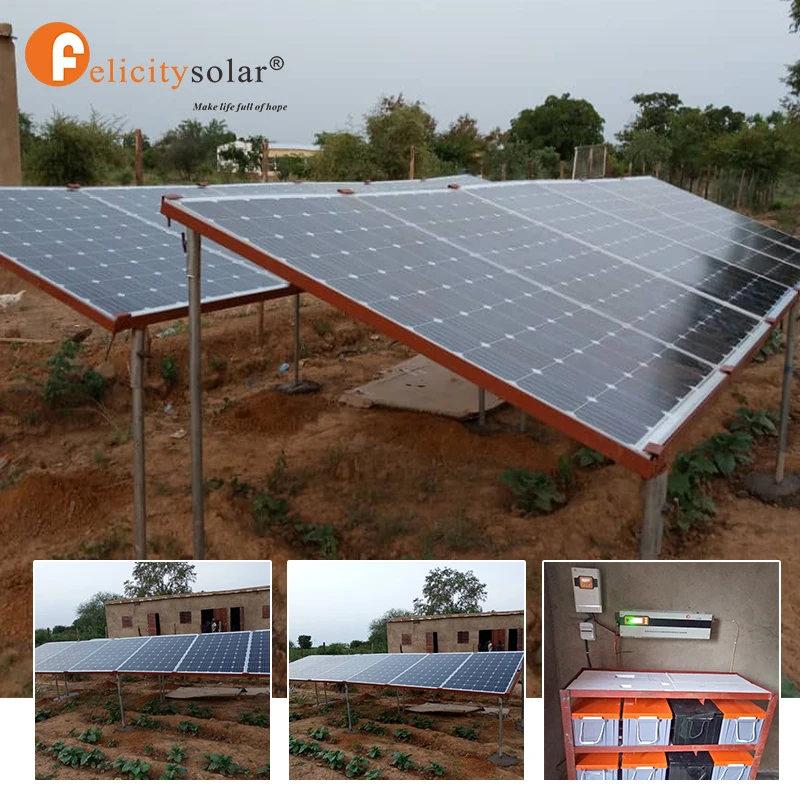

Customer Cases
Packaging & Delivery
Felicitysolar power system is with normal paper carton package if without special requirement. If you need special package such as wooden framworks or wooden box, please consult us.
Regarding to the delivery time. Less than 10sets, 7-10days can deliver. More than 10sets, usually need to confirm the delivery time when you order.
Company Profile
Felicitysolar was founded in 2007. We are absorbed in solar business persistently.
With over 12 years of experience in this industry, we have the strong ability of R&D, production, after-sales, and so on
Our products cover solar power system, solar street light, solar inverter, solar charge controller, solar panel, solar battery( lithium battery and gel battery), etc.
With over 12 years of experience in this industry, we have the strong ability of R&D, production, after-sales, and so on
best quality, best selling products in the fair.
