Заголовочный станок LD20 для предварительно напряженного кабеля по заводской
- Категория: Металлические стройматериалы >>>
- Поставщик: Liuzhou,Lingqiao,Prestressed,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 464.28 $* | 473.35 $* |
| Jul-19-2025 | 376.9 $* | 384.24 $* |
| Jun-19-2025 | 456.4 $* | 465.16 $* |
| May-19-2025 | 453.49 $* | 462.11 $* |
| Apr-19-2025 | 361.99 $* | 368.51 $* |
| Mar-19-2025 | 445.63 $* | 454.5 $* |
| Feb-19-2025 | 442.11 $* | 451.65 $* |
| Jan-19-2025 | 438.16 $* | 447.4 $* |
Характеристики
Product Description

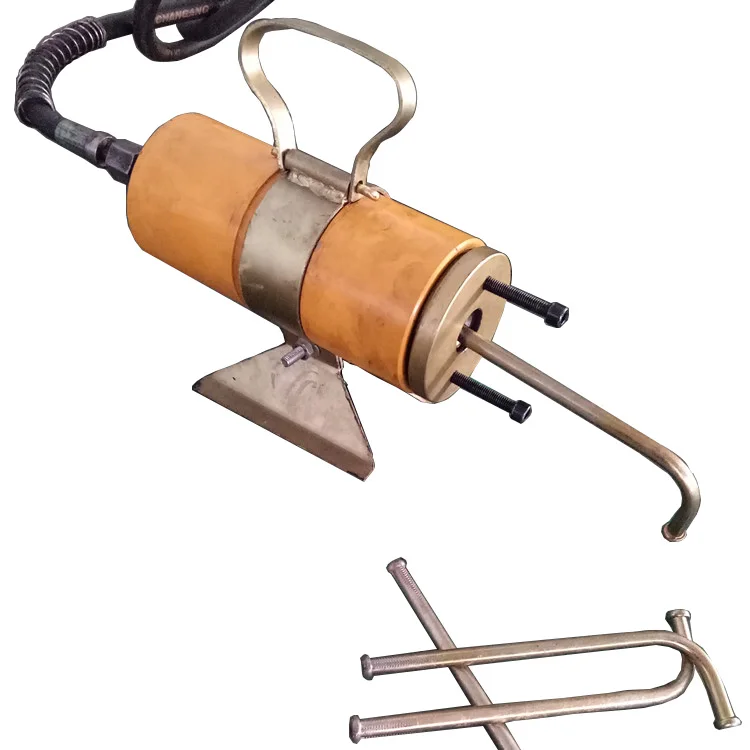

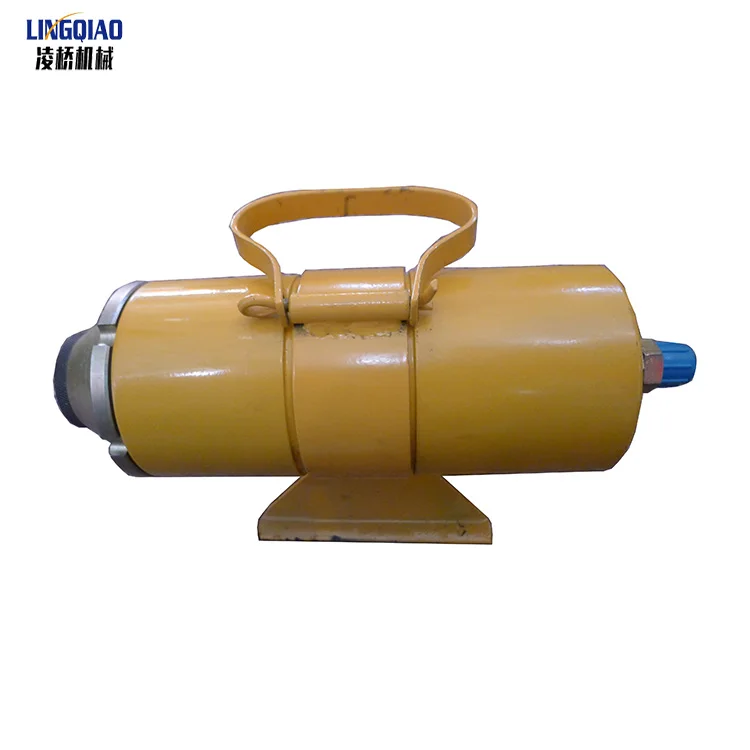

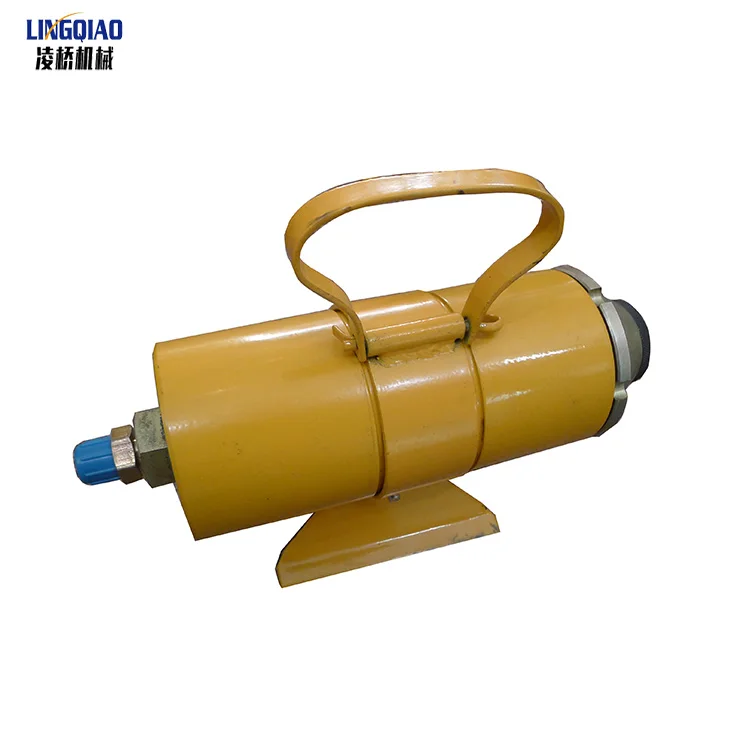

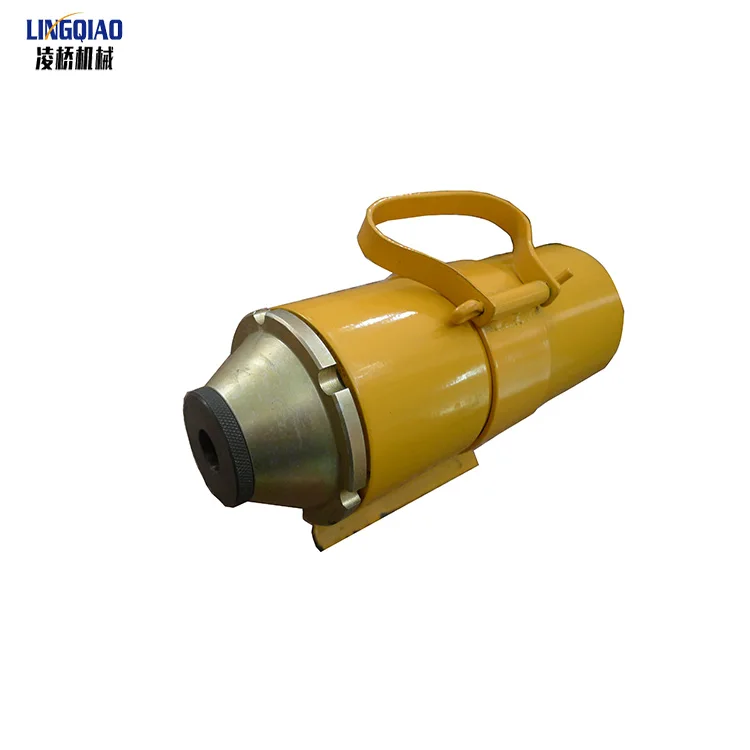

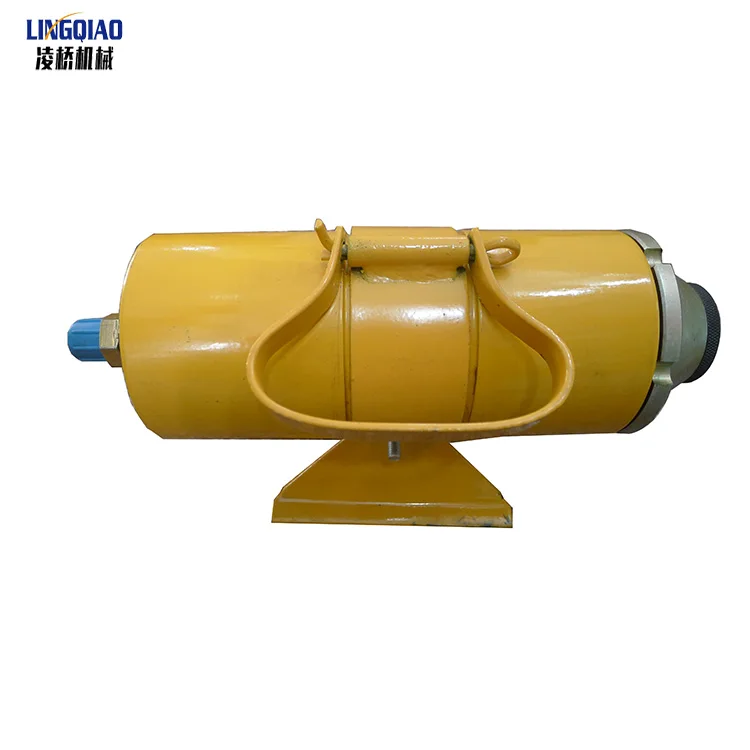

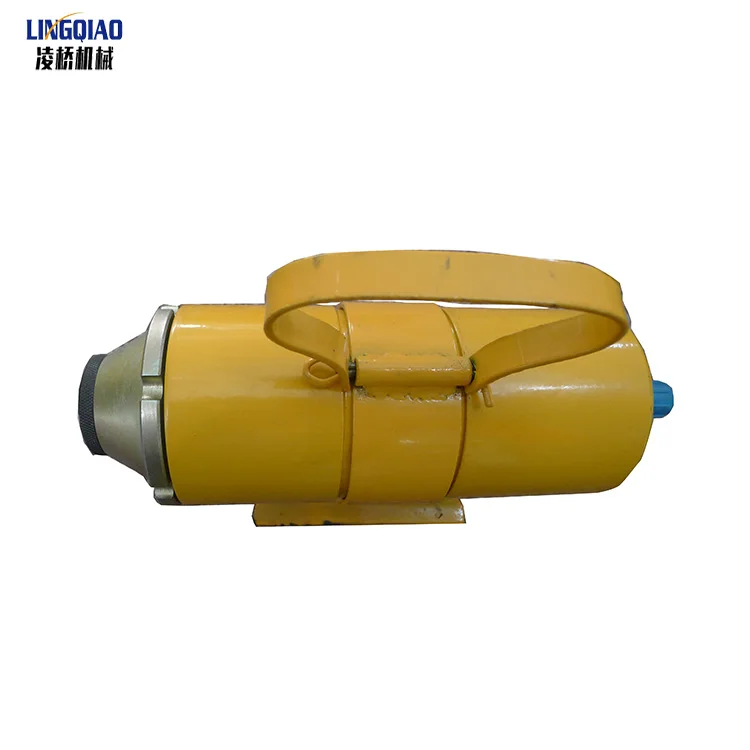

Button Heading Machine LD20 for Prestressed Cable-Factory Price
Button Heading Machine for Prestressed Concrete engineering is special equipment to make button head on steel wire, LD10/20/30 can be applied for 5mm, 7mm, 9mm steel wire.
Button head machine make button head for high-strength steel wire tendon in post-tensioning and pre-tensioning processing projects.
Button head machine used widely in precast factory, bridge, high buildings, coal mine, highway, railway, etc.
Feature:
- Simplicity of operator,one person could operate.
- Light and easy to take.
- Button head operate fast and safety.
Technical Parameter:
Type | LD10 | LD20 |
Rated Oil Pressure | 39 MPa | 43 MPa |
Heading Object | Φ5 mm | Φ7 mm |
Max.Heading Force | 88.2 KN | 165 KN |
Sequence Opening Pressure | 3.1 MPa | 3.2 MPa |
Heading Piston Stroke | 6 mm | 7.5 mm |
Clamping Piston Stroke | 12 mm | 20 mm |
Size | Φ98x279x199 mm | Φ125x300x249 mm |
Weight | 13 kg | 20 kg |
Certifications
Packing & Delivery
Company Profile
Liuzhou Lingqiao Prestressed Force Machinery Co., Ltd. is a prestressed product research and development, equipment, anchor production, construction as one of professional enterprises.
Its products are widely used in road and bridge, municipal, high-rise buildings, power plant construction, geotechnical Anchorage, deep excavation works,etc. Our company is strong in technology, with a number of years in prestressing anchorage machinery professional and technical personnel, to provide users with inexpensive high-quality products and good after-sales service and professional technical advice.
We sincerely hope that can together with countries in the world to promote the application and development of our prestressed, create brilliant career.
We sincerely hope that can together with countries in the world to promote the application and development of our prestressed, create brilliant career.
