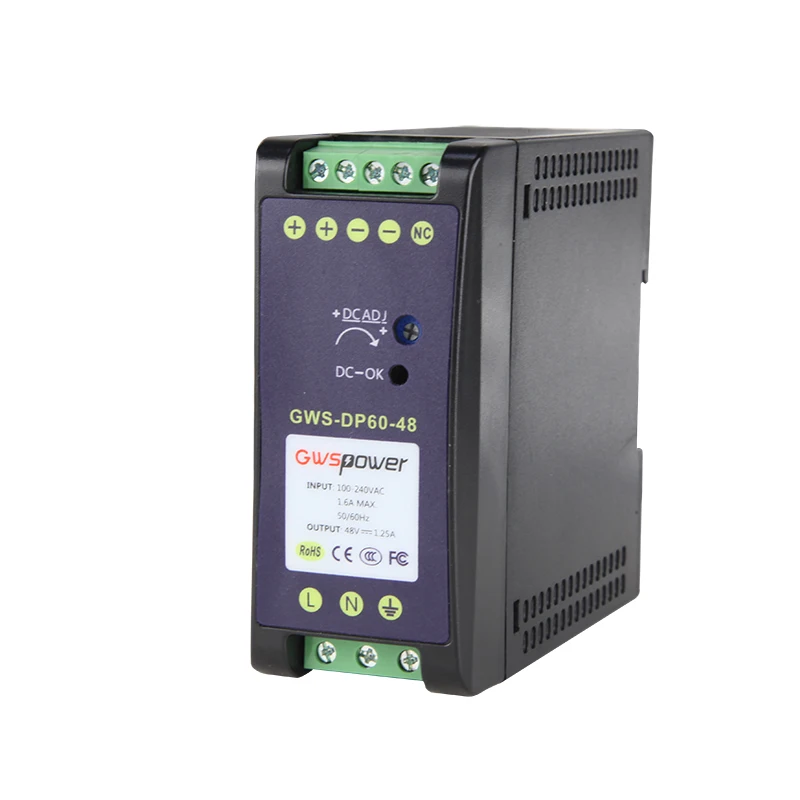

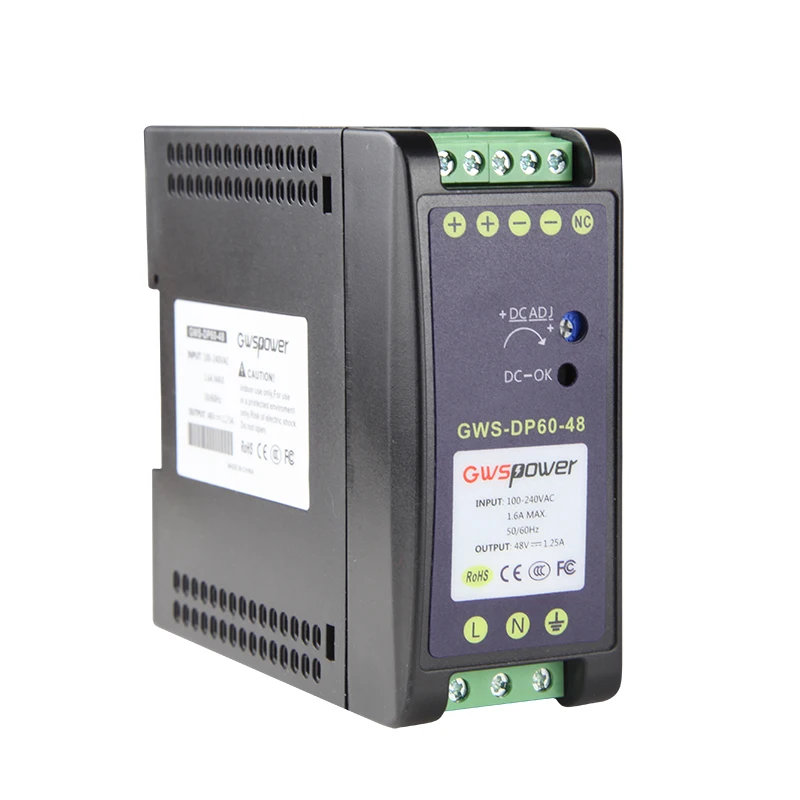

60 Вт/48 В Промышленный источник питания на DIN-рейке для промышленного

Model

GWS-DP60-48

Output

Group of Output

1

DC Voltage

48V DC

Default Output Voltage

48.00-48.2V (VIN: 220VAC / LOAD: 0A)

Output Rated Current

1.25A

Output Current Range

0-1.25A

Output Rated Power

60W

Total Peak Output Power

Up to 90W(Sustainable time 10S/220VAC)

Peak Output Current

1.5A( Sustainable time 10S/220VAC)

Ripple noise

Peak - Peak ≤100mV (Test Method: The terminal shall be in parallel with capacitance of 0.1uF and 47uF, testing at 20MHz)

Output Regulation Range

DC47~56V

Stabilized Voltage Precision

±1% (@ 90-264Vac input, 100% load)

Line Regulation

±0.5% (@ 90-264Vac input, 100% load)

Load Regulation

±1% (@ 90-264Vac input, 100% load)

Temperature Coefficient

±0.03%/℃

Output Start Time

< 1.5S @ 115VAC

Output Hold Time

> 20ms @ 115VAC,
> 125 ms @ 230Vac (100% load )

Voltage Overshoot

≤5%

Input

Input Voltage Range

90~264VAC

Input Rated Voltage Range

100~240VAC

Frequency Range

47Hz~63Hz

Rated Frequency

50/60Hz

Starting Voltage

90V AC

Efficiency

> 85.0% @ 115Vac, > 89.0% @ 230Vac

Input Current

< 1.40A @ 115Vac, < 0.80A @ 230Vac

Inrush Starting Current

< 20A @ 115Vac,
< 35A @ 230Vac

Power Factor

PF>0.6 (at full load)

Protection

Output

Over power

78~97W Swing machine (Testing method: Increase the output current until enabling the protection. Protection mode:Swing machine, Self-recovery after over-power released.)

Over voltage

57~70V Swing machine (Short circuit the Pin1-2 of U8, swing machine. Output recovery to normal after removing the short circuit) Note: Do not use external voltage.

Over current

1.5~1.875A Swing machine (Testing method: Increase the output current until enabling the protection. Protection mode:Swing machine, Self-recovery after over-current released.)

Short circuit

It achieves the long-term short circuit by connecting a sufficient cross-sectional area copper cable (Length at 15cm±5cm) with power output port. Self-recovery to normal after removing the short circuit.

Dimension (L*W*H)

93*102.5*41mm
