Производитель спиральных выдвижных плоских пружин из нержавеющей
- Категория: Springs >>>
- Поставщик: Yueqing,Hrya,Electric,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.5 $* | 0.14 $* |
| Aug-20-2025 | 0.93 $* | 0.62 $* |
| Jul-20-2025 | 0.4 $* | 0.5 $* |
| Jun-20-2025 | 0.60 $* | 0.6 $* |
| May-20-2025 | 0.17 $* | 0.38 $* |
| Apr-20-2025 | 0.76 $* | 0.91 $* |
| Mar-20-2025 | 0.5 $* | 0.14 $* |
| Feb-20-2025 | 0.90 $* | 0.9 $* |
| Jan-20-2025 | 0.78 $* | 0.38 $* |
Характеристики
Manufacturer Stainless Steel Volute Spiral Retractable Custom Flat Coil Springs
Product Display
| Specification | ||||
| Item no. | ID | Thickness | Width | Circle |
| HY-12 | 12mm | 0.20mm | 16mm | 7 |
| HY-14 | 14mm | 0.20mm | 16mm | 7 |
| HY-16 | 16mm | 0.20mm | 16mm | 7 |
| HY-18 | 18mm | 0.25mm | 16mm | 7 |
| HY-20 | 20mm | 0.30mm | 16mm | 7 |
| HY-25 | 25mm | 0.35mm | 16mm | 7 |
| HY-28 | 28mm | 0.40mm | 20mm | 7 |
| HY-30 | 30mm | 0.40mm | 20mm | 7 |
| HY-32 | 32mm | 0.40mm | 20mm | 7 |
| HY-36 | 36mm | 0.40mm | 20mm | 7 |
| HY-40 | 40mm | 0.50mm | 20mm | 7 |
| HY-46 | 46mm | 0.50mm | 20mm | 7 |
| HY-50 | 50mm | 0.60mm | 20mm | 7 |
| HY-60 | 60mm | 0.60mm | 20mm | 7 |
| HY-70 | 70mm | 0.60mm | 20mm | 7 |
| HY-80 | 80mm | 0.70mm | 20mm | 7 |
| HY-90 | 90mm | 0.70mm | 20mm | 7 |
| HY-82 | 100mm | 0.70mm | 20mm | 7 |
| More specification, Welcome to request for quotation! | ||||

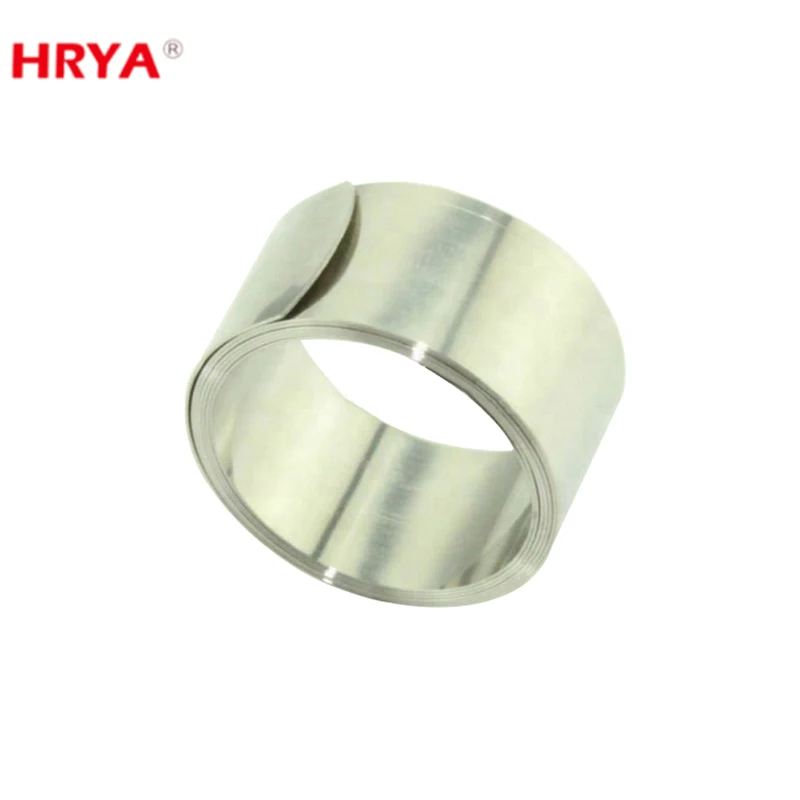

constant force spring Operating principle:
The constant force spring is made by the rolled stainless steel ribbon, through a particular machine to stereotypia the high strength steel ribbon, when it is straightened by an external force , the constant force spring will roll by naturally and then generate elastic force. Thereby, the object can go back to the appointed original place.
- Made in China
- Both magnetic and non-magnetic are available
- Material standard: JIS G4313
- Material: SUS 301
- Shape: can be customizable
Application of constant force spring:
1) Cable, fire damper
2) Window, door and curtain
3) Automatic propelling shelf spring
4) Adjustment of LCD and Fan
5) Skin stapler, gas nail gun and book sewer
Constant force spring Scope:
1) Thickness: 0.05~1.5MM
2) Width: 2~50MM
3) Length: according to order
4) Material: Stainless steel, Carbon Steel
Company Information
Packaging & Shipping
FAQ
Q1: Are you a factory or trading company?
A1: We are a factory, we can guarantee our price is first-hand, very cheap and competitive
Q2: How does your factory do regarding quality control?
A2: All the products will be 100% checked before the shipment
Q3: When can I get the price?
A3: Usually we quote within 24 hours after we get your inquiry
Q4: How could I get a sample?
A4: if you can not buy our product in your local area, we will ship a sample to you. You wi
be charged a sample price plus all related shipping costs. Express delivery charge depends
on the quantity of the samples
Q5: What is the price of shipping?
A5: Depending upon the port of delivery, prices varies
