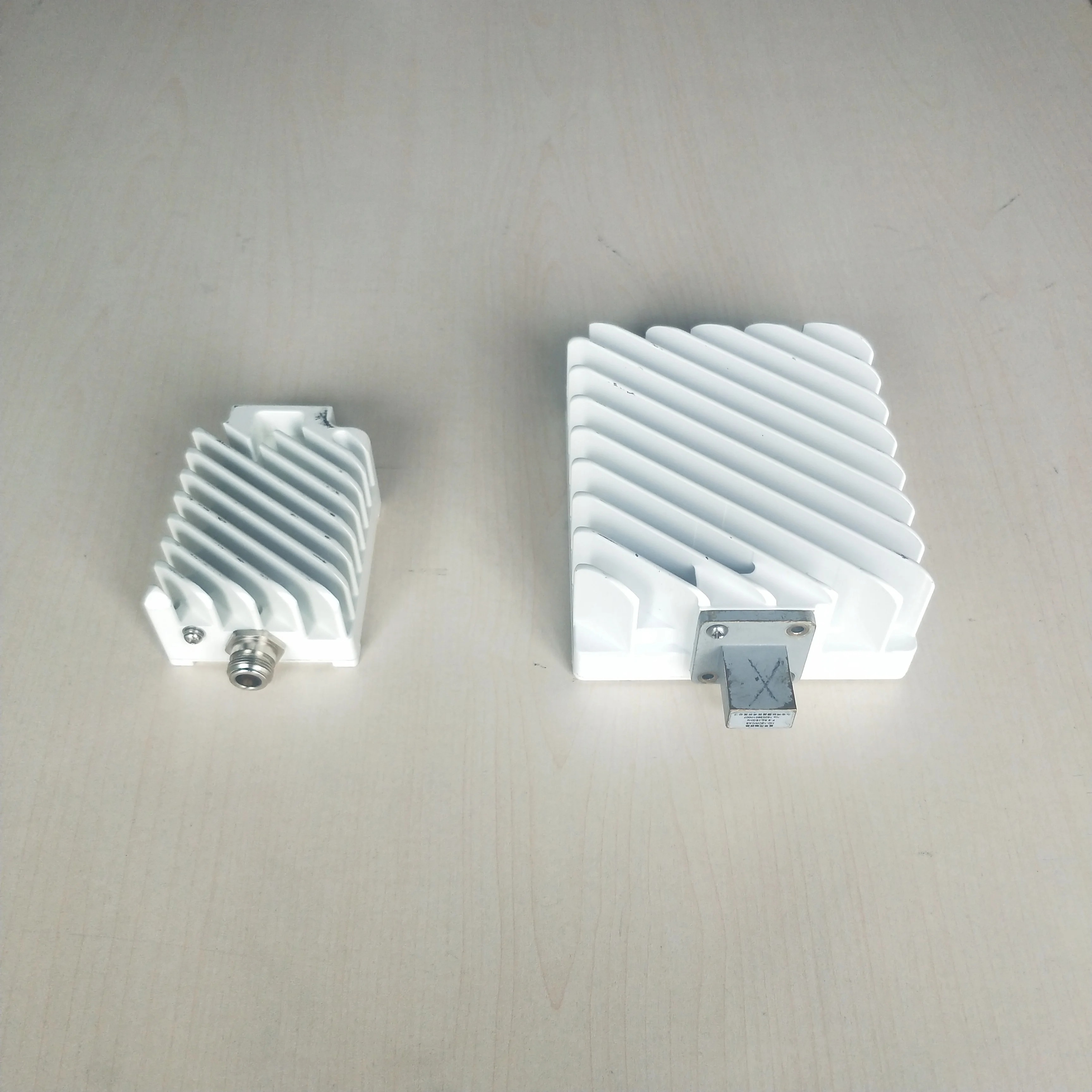

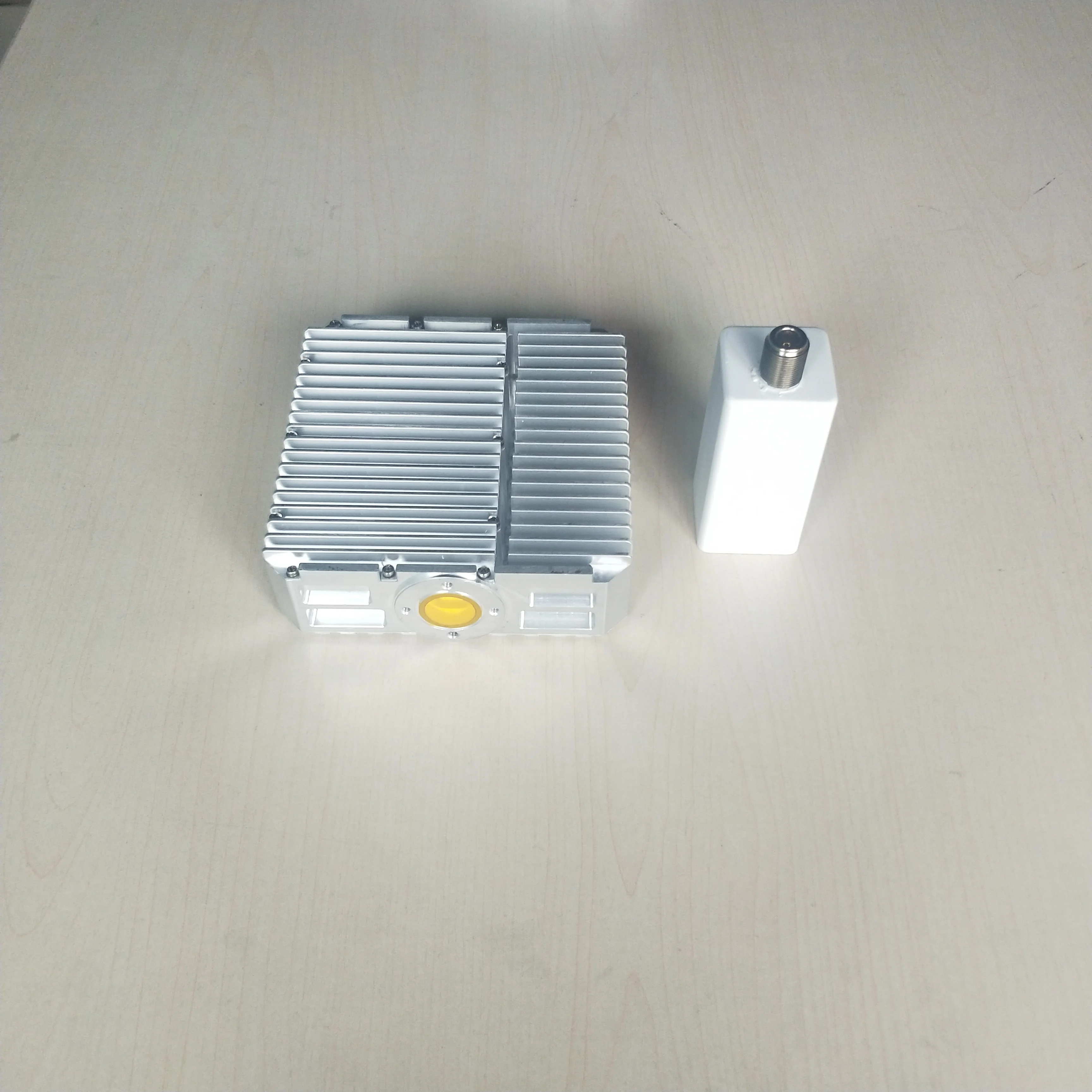

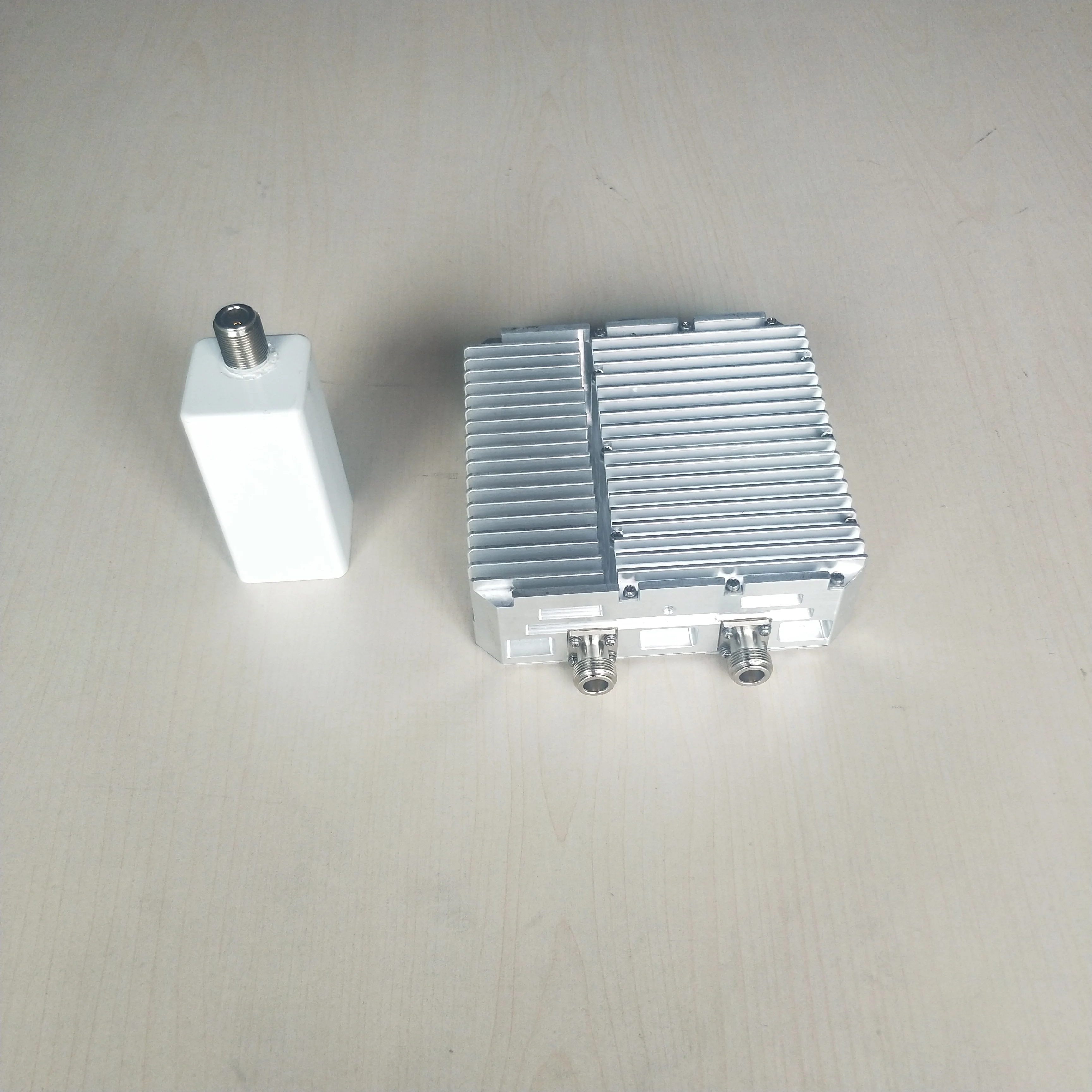

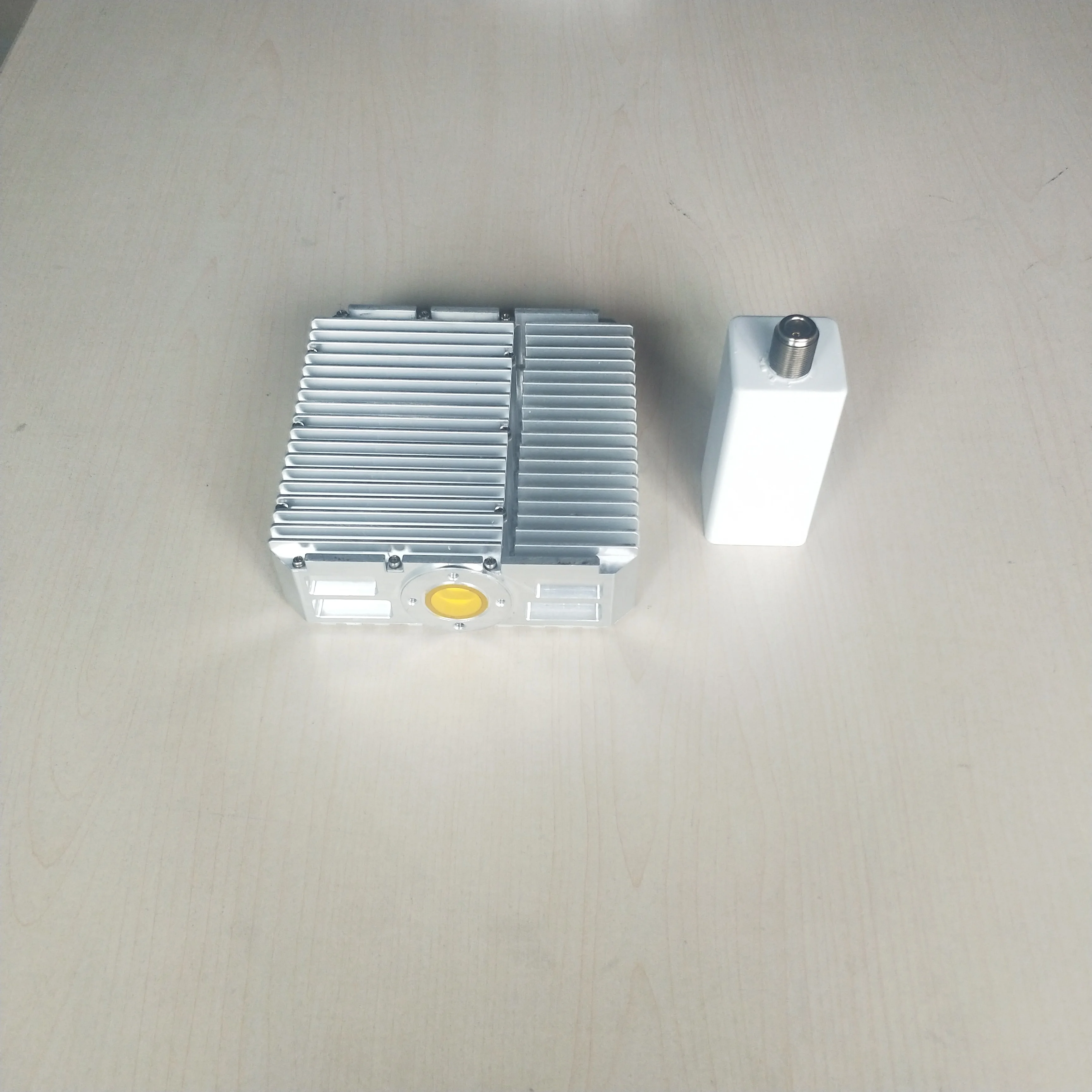

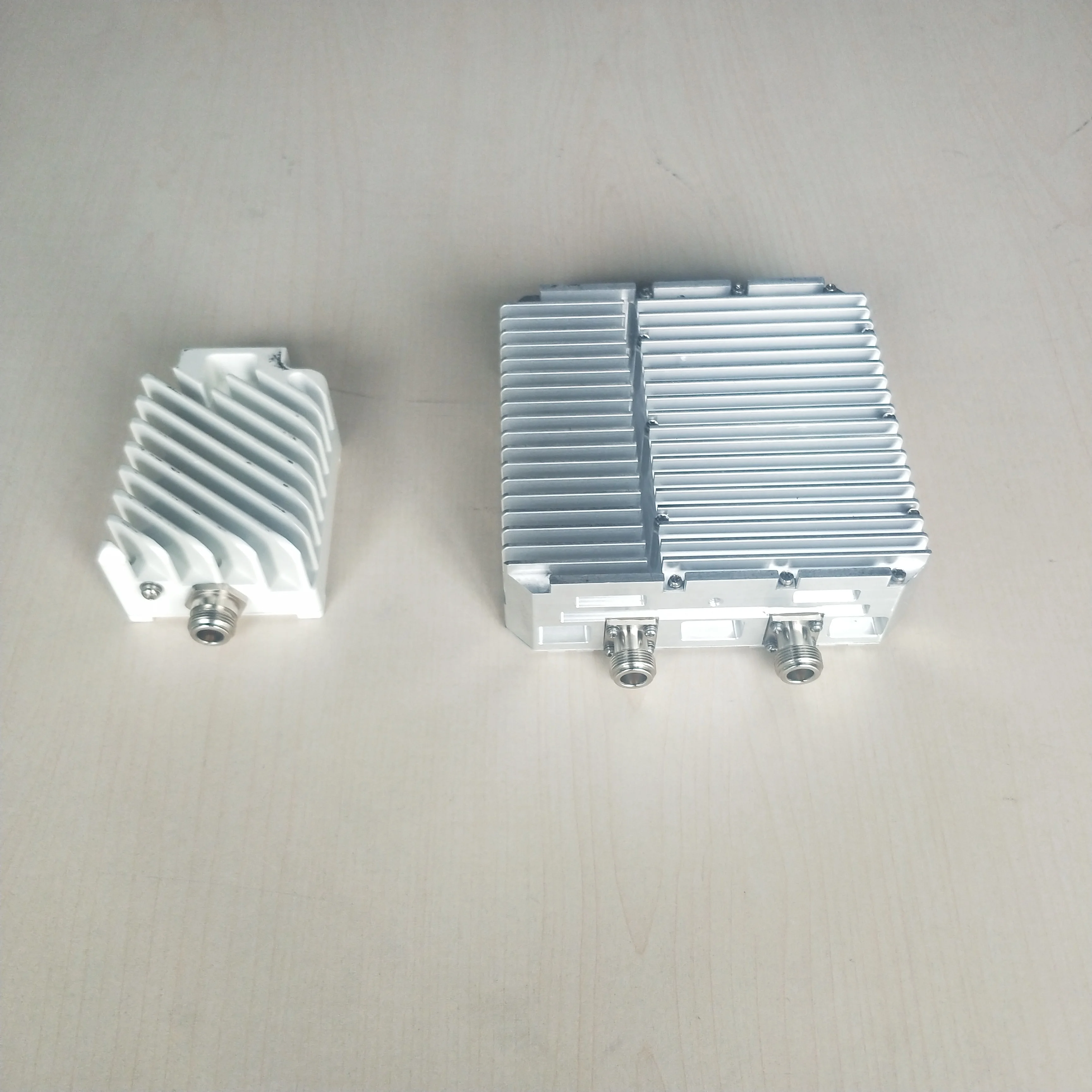

200mW/2W/4W/8W/10W/12W/15W стойка или наружная модель RF спутник ku
- Категория: Satellite TV Receivers >>>
- Поставщик: Anhui,Bowei,Electronics,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 0.35 $* | 0.66 $* |
| Aug-20-2025 | 0.66 $* | 0.19 $* |
| Jul-20-2025 | 0.28 $* | 0.23 $* |
| Jun-20-2025 | 0.40 $* | 0.45 $* |
| May-20-2025 | 0.96 $* | 0.23 $* |
| Apr-20-2025 | 0.62 $* | 0.55 $* |
| Mar-20-2025 | 0.9 $* | 0.53 $* |
| Feb-20-2025 | 0.50 $* | 0.66 $* |
| Jan-20-2025 | 0.24 $* | 0.27 $* |
Характеристики
Product Description
Tx specification :
IF Input Frequency Band: 950-1450MHz
RF Output Frequency Band : 14.0-14.5GHz
Local Oscillator frequency: 13.05GHz
Local Oscillator Pease Noise (RMS 100H to 1MHz) : 2.5°
Input impedance: 75Ω
Input VSWR: 2.5:1
Input power range: -25 to -5dBm
Output saturated powe: 33dBm (2W) typical
Output saturated power : 32-24.5dBm versus all condition
Power flattens: 2dB typical
Output noise : -94dBm/Hz
Output spurious level:
13.6-14.9GHz.: -25dBm
28.0-29.0GHz: -20dBm
Linear Gain : 59 min
DC Characteristics:
Input Voltage Range at Tx IF connector: 13-24V
Tx Power consumption : 18W typical
Non Damage voltage : 0-30V
Environmental condition
Operational temperature range :-40 -70°C
Non-operating temperature : -50 -80°C
Moisture/humidity protection: IP67
Physical/Electrical Interfaces:
75-Ohm female F-Type connector
DC power
IF L Band
Output Tx Signals via WR 75 without grooved with gasket
