Характеристики

pea vibration cleaner

KAIFENG HYDE MACHINERY CO., LTD.

MAOSHENG GROUP

u 50 YEARS MANUFACTURING EXPERIENCE SINCE 1976.

u CHINA TOP 10 GRAIN PROCESSING MACHINERY MANUFACTURING COMPANY.

u MEMBER OF 13 CHINA NATIONAL STANDARDS DRAFTER IN GRAIN PROCESSING INDUSTRY.

u 75 PATENTED TECHNOLOGIES AND PRODUCTS.

u 600,000 SQUARE METER PRODUCTION AREA.

u OVER 100 EXPERIENCED ENGINEERS, RESEARCH STAFF AND TECHNICIANS.

u STATE-OF-THE-ART FACILITIES. ADVANCED IMPORTED CNC MACHINES FOR FUNCTION PARTS.

u FULL RANGE OF SERVICE, FROM SINGLE MACHINE TO TURNKEY SYSTEMS IN GRAIN AND FLOUR INDUSTRY.

u MACHINERY AND EQUIPMENT QUALITY TESTED BY DOMESTIC AND GLOBAL MARKET, RICH INSTALLATION AND TROUBLE-SHOOTING EXPERIENCE.

Product Overviews:

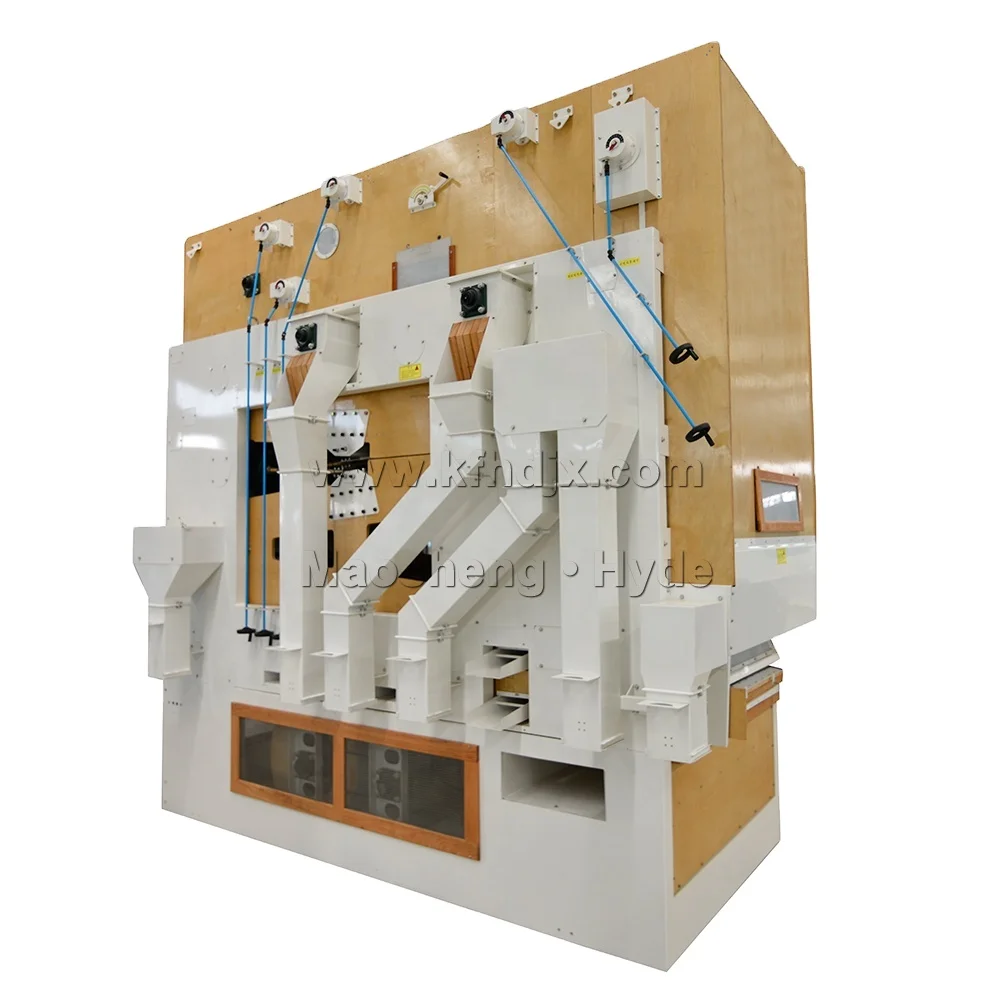

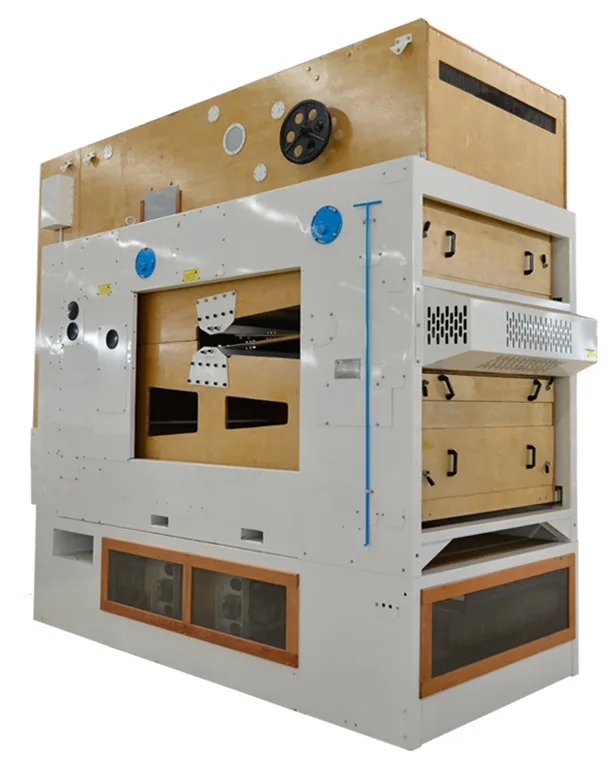

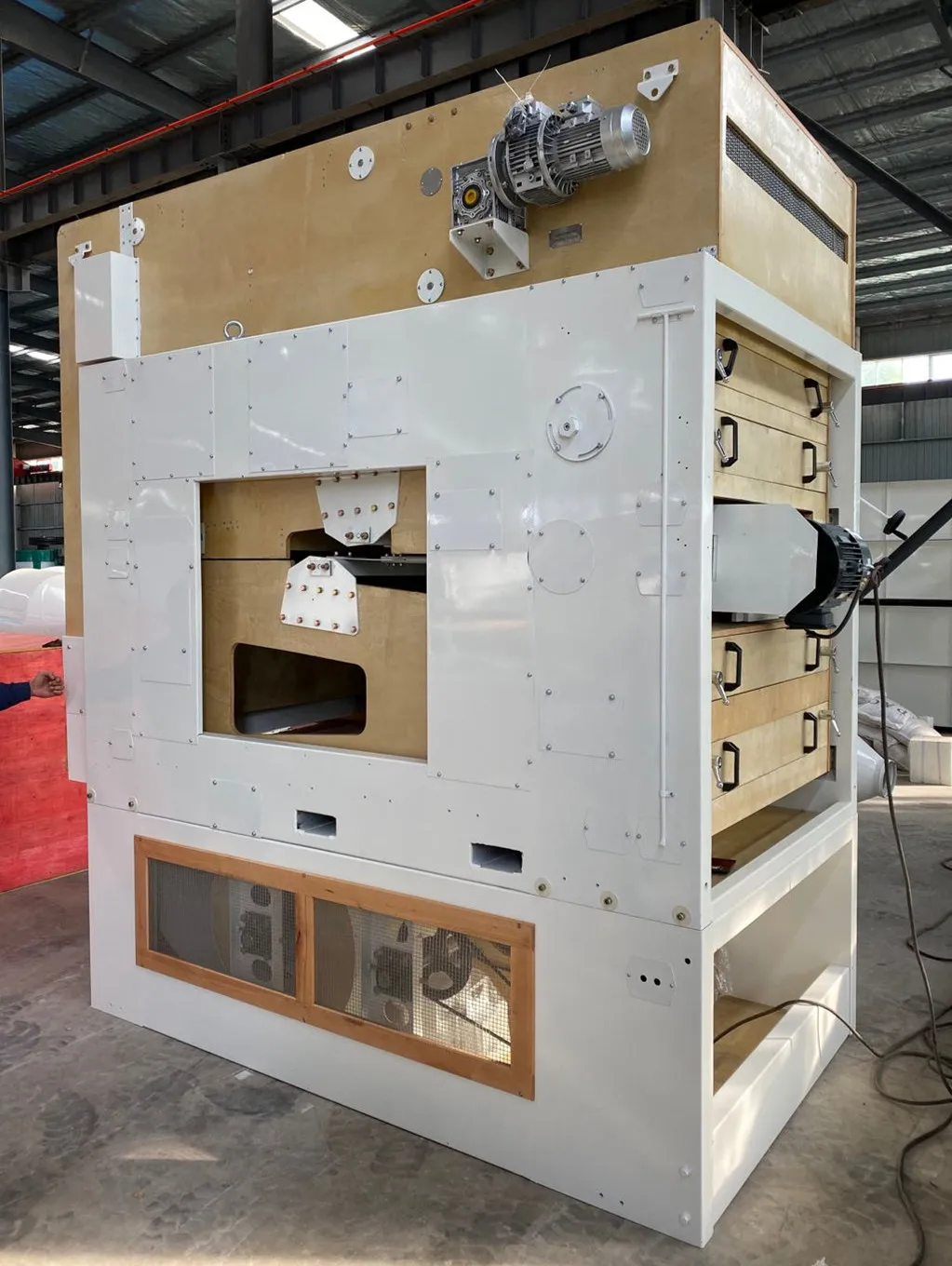

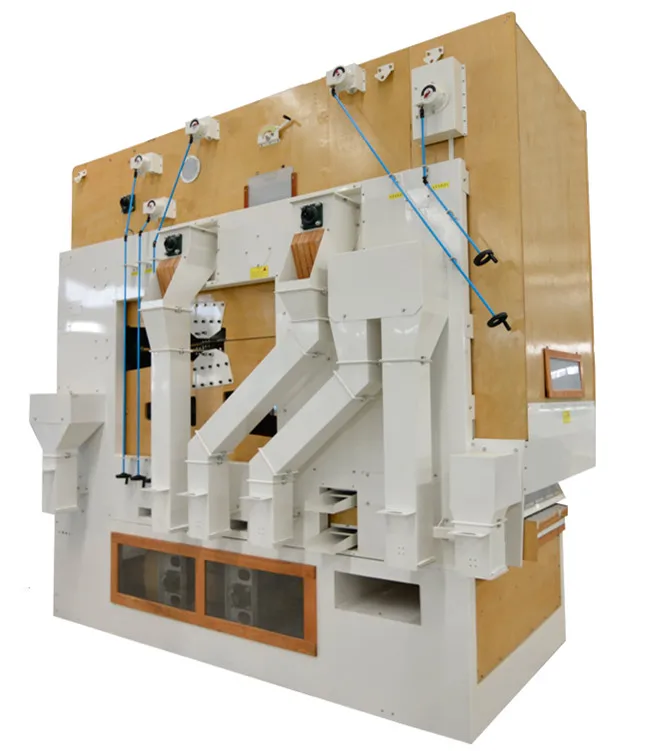

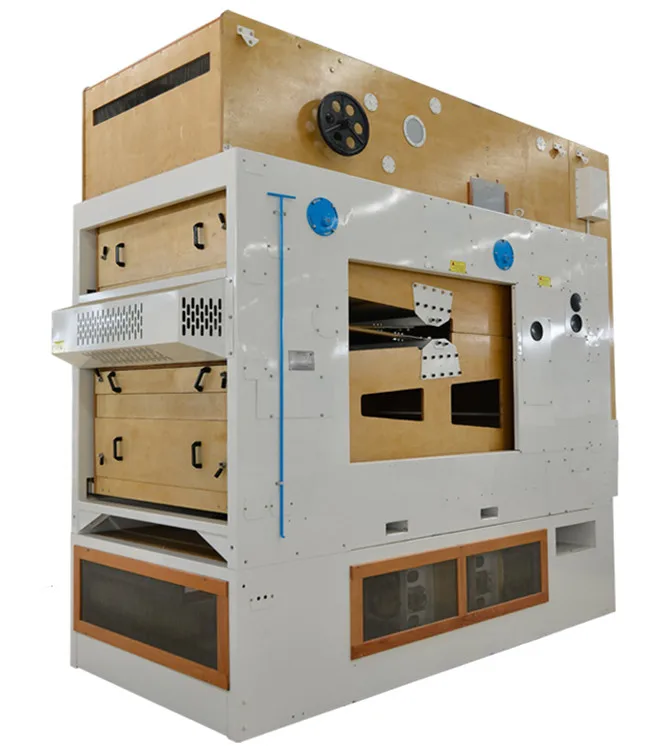

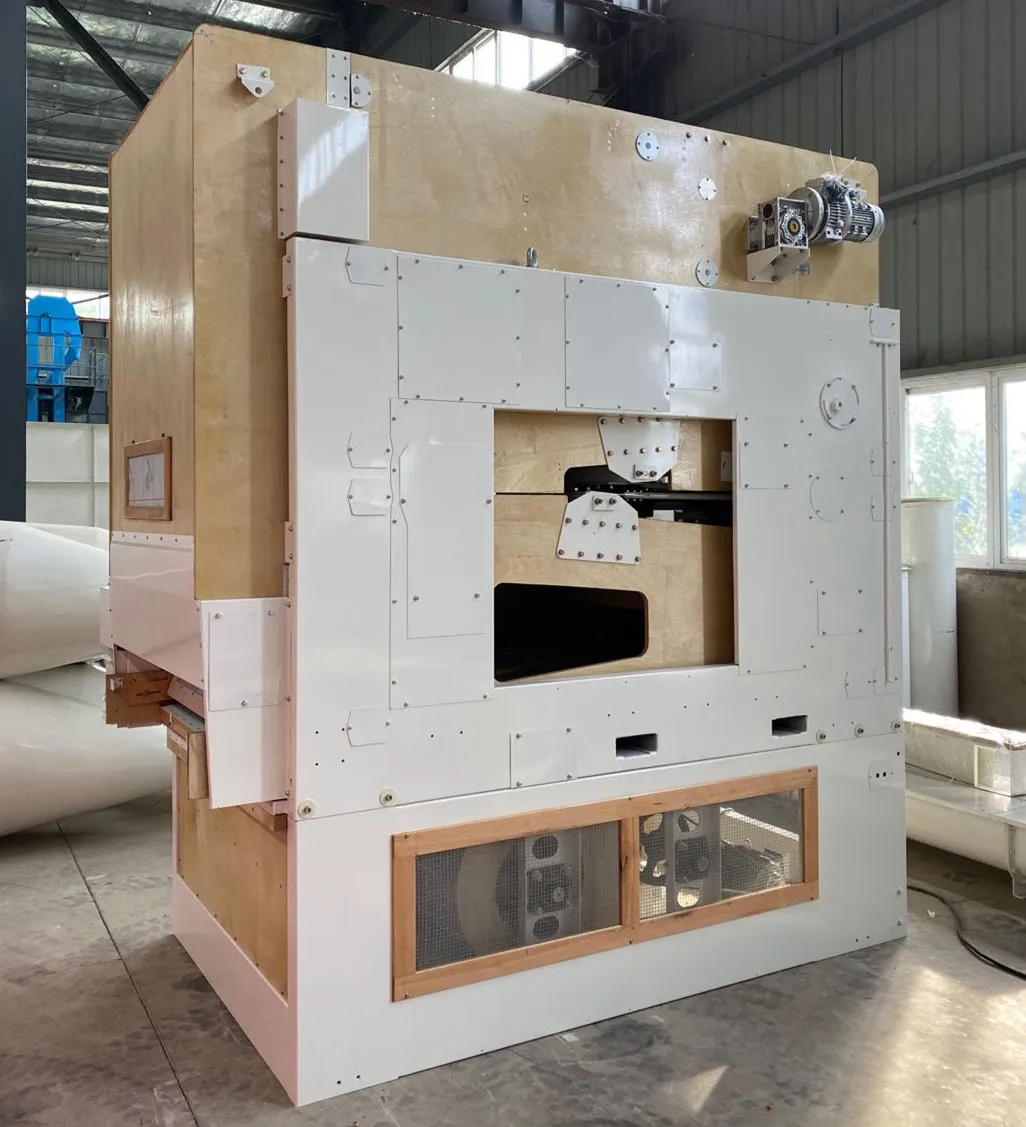

5X-5 & 5X-12 AIR SCREEN SEED CLEANER

paste-pic-dp_uuid_zbt5n

1. 5X Air Screen Cleaners Are Widely Used For Cleaning Of Grains And Seeds, Such As Wheat, Barley, Lentils Beans, Rice, Maize, Spices, Grass Seeds, Oil Seeds, Coffee Beans, Sesame Seeds And Forestry Seeds, etc.

2. Seeds And Grains Can Be Separated From Impurities For Different Physical And Mechanical Properties.

3. Seeds Are Separated Completed By Fans (Air Blowers), Different Weight And Aerodynamic Characteristics.

4. Screens: According To Different Width And Thickness Sizes Of Seeds.

The Multi-layer Cleaning Screens Are Changeable Easily For Different Processing Requirements.

5. Excellent Cleaning And Grading Function Is Accomplished By Variable Screen Configuration, Pre And After Suction System, And Air Lifting Blowers At The Bottom.

6. Closed, Bolted And Painted Steel Construction Ensures The Long Service Life And Safe Operation.

Structure Drawings:

1. Multi-layer Screens Are Installed In Opposite Directions, Products Discharge At Lowest Layer, Good Cleaning For Large And Small Impurities.
2. Upper And Lower Screen Boats Are Installed In Opposite Directions, Good Dynamical Balance For Stablerunning.
3. Easy Interchangeable Screens Are Flexible For Different Processing Requirements.
4. Positive And Negative Pressure Blower Systems Are Installed At Top Or External And Bottom, Twice Remove Light Impurities And Diseased Seeds.
5. Screen Frames, Light Impurity Settling Chamber And Feeder Parts Are Made Of High Quality Wood, Good Sealing And Vibration Absorption Performance, Whole Machine Running With Low Noise.
6. Wide Adjustable Range And Easy Adjustment Realize Fine Cleaning Process Easily.
7. Integral Steel Frame Rubber Ball Tray For Screen Cleaning, Easy To Clean The Sieve And Machine.
8. Safety Guard Is Equipped For Every Moving Part To Ensure Safe Operation.
9. Box-type Screen Body Structure Efficiently Reduce Dust Content In Workshop.
10. Symmetric Machine Structure, Products Discharge System Can Be Installed Left Or Right According To Site Conditions Of Customer.

Technical Specifications:

Model	5X-5	5X-12
Overall Dimension (LWH)	320019203600 mm	379019404060 mm
Total Weight	3250 kg	3600 kg
Rated Capacity (wheat)	3~5 t/h	10~12 t/h
Total Air Inflow	8200 m³	12520 m³
Power
Top Air Blower (Optional)	4-72N0-5A, 7.5 kW	4-79N0-6A, 11kw
Sieve Vibration Motor	2.2 kW	Y132S-8, 2.2 kW
Bottom Lifting System Motor (VVVF Motor)	3.0 kW	3.0 kW
Feeding Motor (VVVF Motor)	1.5 kW	WR41-Y0.75-4P-1.68-M1, 1.5kW
Total Power	6.7 kW	6.7kW
Screen
Screen Type	Pierced Screen
Screen Dimension (L×W)	800×1250 mm
Frequency	300(80~400) /min
Amplitude	30 mm
Layers and Number	4 Layers, 7 Pieces	5 Layers,15 Pieces
1st Layer	1 Piece, Round Hole	3 Pieces, Slot Hole
2nd Layer	2 Pieces, Slot Hole	3 Pieces, Slot Hole
3rd Layer	2 Pieces, Slot Hole	3 Pieces, Slot Hole
4th Layer	2 Pieces, Slot Hole	3 Pieces, Slot Hole
5th Layer	/	3 Pieces, Slot Hole

Notes:

1. Individual Machine Will Be Supplied With 1 Set Of Screens (7 Pcs Or 15 Pcs), No Top Blower.

2. Machine Can Be Converted To Different Cleaning Programs, Screens Shall Be Changed Accordingly.

3. Above Technical Data Can Vary Due To Continued Development, Or Different Machine Configurations.

5ZT SEED CLEANING PROCESSING LINE PLANT:

paste-pic-dp_uuid_hzoak

STRUCTURE DRAWINGS:

Seed Cleaning Plant

Technical Specifications:

Notes:

1. Machine can be converted to different cleaning programs, screens shall be changed accordingly.

2. Above technical data can vary due to continued development, or different machine configurations.

3. Turkey Project Machine And Service Available For Wheat, Barley, Lentils Beans, Rice, Maize, Spices, Grass Seeds, Oil Seeds, Coffee Beans, Sesame Seeds And Forestry Seeds, etc.

4. Building Structure And Steel Structure Platform.:

Factory & Workshop:

Hyde Maosheng Advanced Facility 2017

Other Grain and Seed Cleaning Machines:

Pre-cleaners, Fine Cleaners, Rotary Cleaners, Seed Graders, Seed Gravity Separators, Indented Cylinder, Wheat Paddy De-awner, Destoner, Vibration Cleaner, Rotary Cleaner, Air Aspirator, Cyclone Dust Collector, Seed Treater, Seed Dryers, Elevators And Conveyors, Auto-packing Scales.
