 Nylon  Single slot Sucker rod guide/centralizer with factory cost

1.Single slot sucker rod  Guide



Type	Centralizer I/D(inch)	For Tubing diameter(inch)
FZ3/4	3/4	2-3/8"/2-7/8"
FZ7/8	7/8	2-3/8"/2-7/8"
FZ1	1	2-7/8"/3-1/2"





2.The major technical indicators



Compressive strength:     60 - 90 MPa



Impact Strength:          3.5 - 4.8 kJ/m2



Scope:                  16mm,19mm, 22mm,25mm Sucker Rod



Maximum OD:          46mm/58mm



Length:                 98.4 mm



Medium temperature:      0-80 °C







3.Use principles



a.If it is little partial-wear well section, a set of this product will be installed on the middle of each sucker rod.



b.If it is less serious partial-wear well section, two sets of this product will be installed on the middle and one end of each sucker rod.



c.If it is serious partial-wear well section, three sets of this product will be installed on the middle and ends of each sucker rod

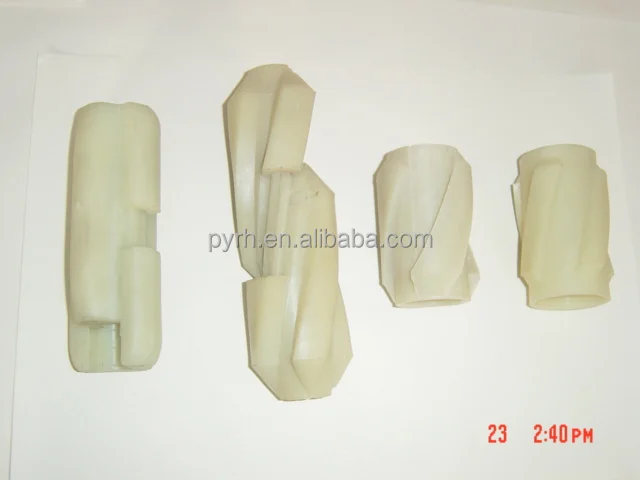

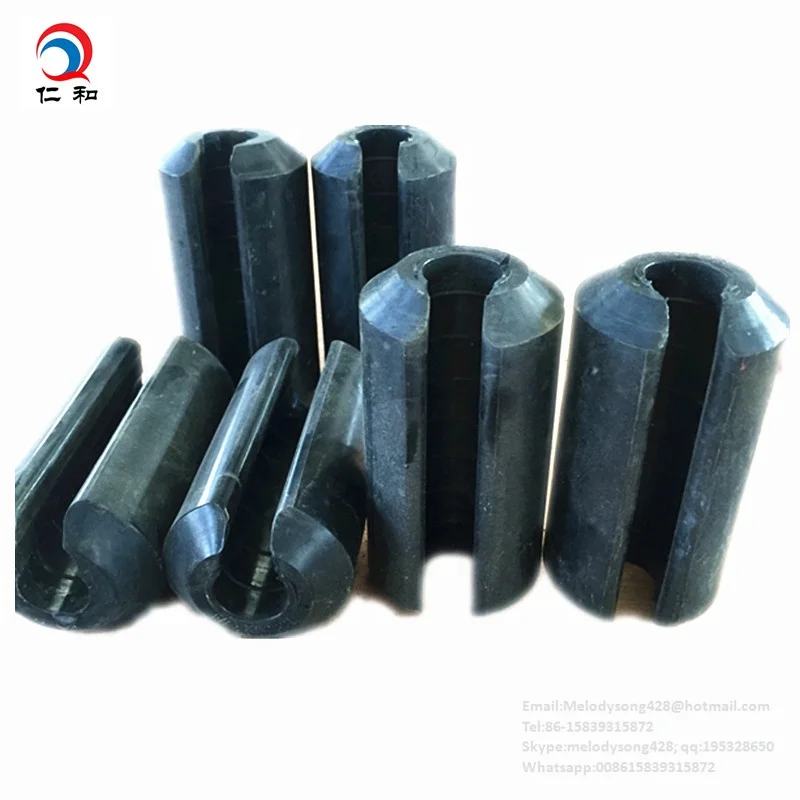

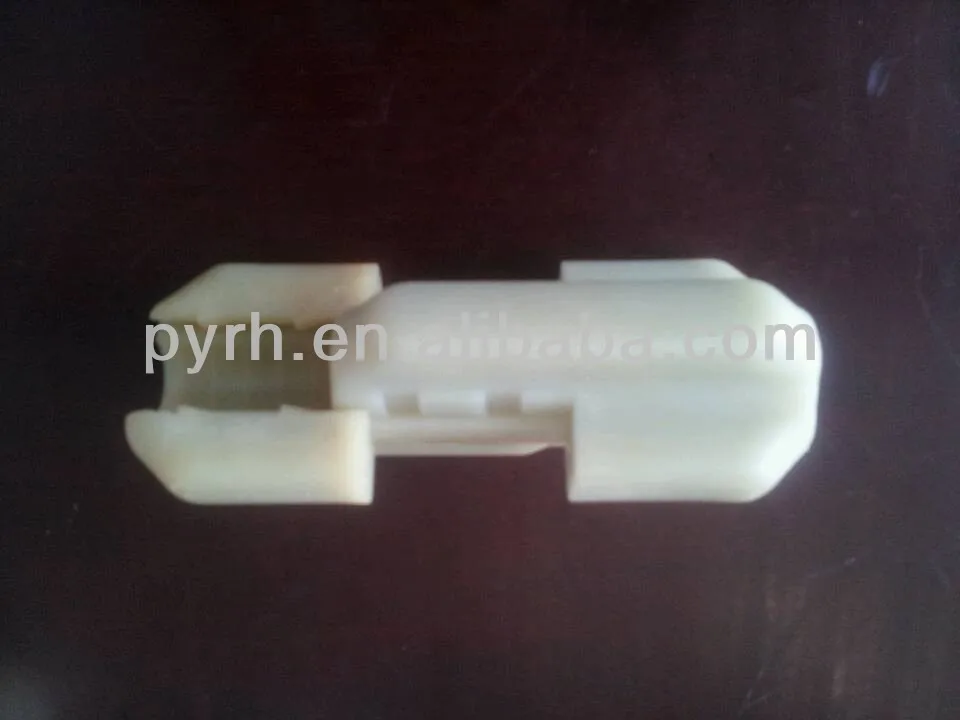

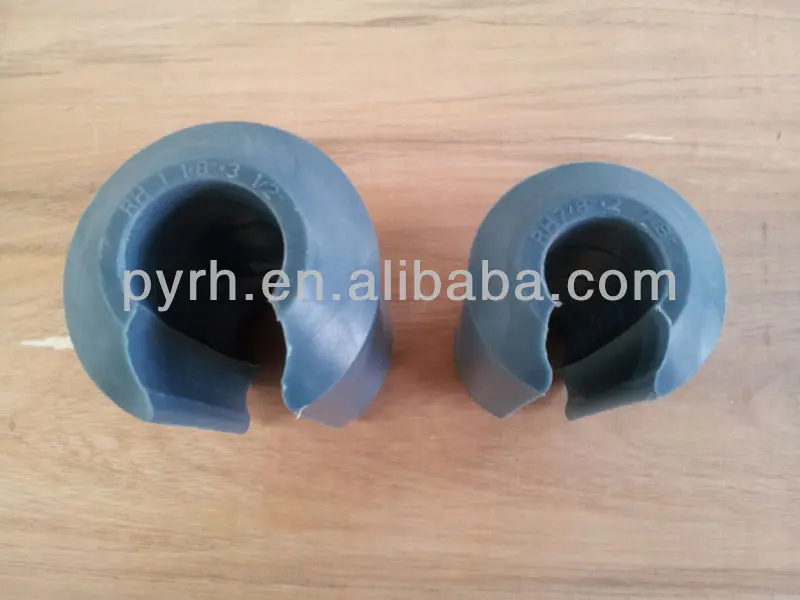

The photos
