Датчик температуры PT100 RTD 0-10 В преобразователь 4 20 мА

Through the transmitter, resistance signal of the thermal resistance can convert into 4-20mA current signal, easy to install, convenient to use with computer.
Sensor: PT100
Measuring rang: 0 to 100°C
Working voltage: DC 24V
Diameter: Approx. 45mm (1.77inch)

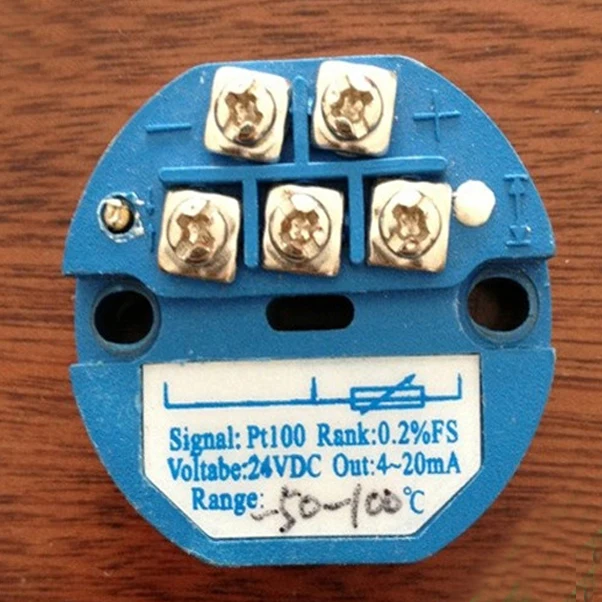

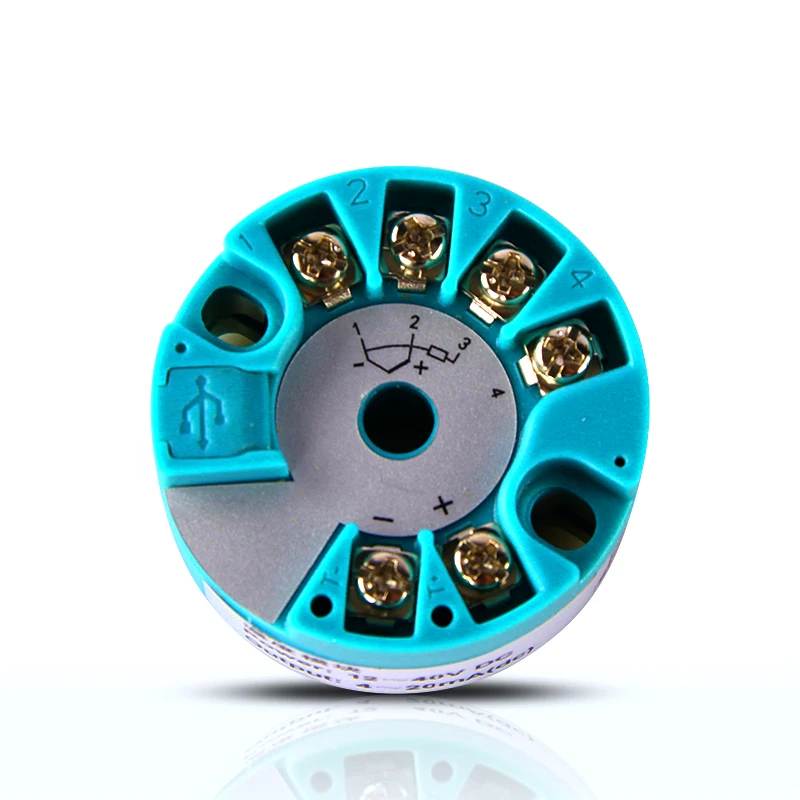

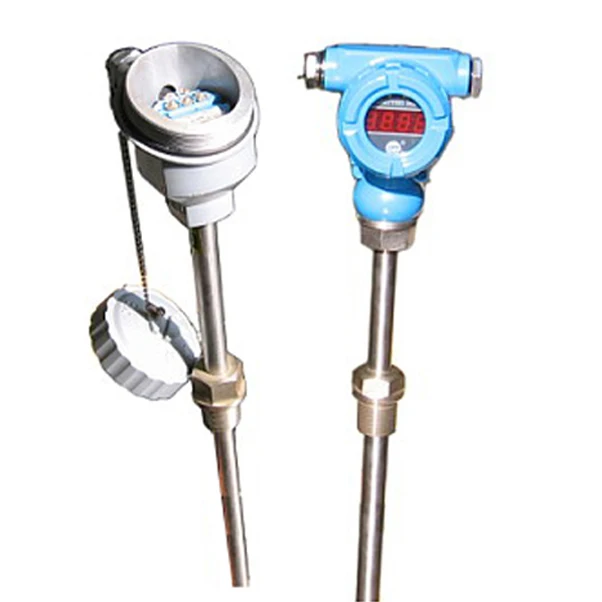

RTD input, 4-20mA output, measurement setting by Dial switch GD100 is a 2-wire smart temperature transmitter which can be programmed by dial switch. it has measurement input for various RTD signal and converts this signal into 4-20mA( 2-wire) standard current signal after linear processing; a special signal can be set in advance while the ensor is burnout or short. It is often installed into the junction box of temperature sensor's head, or matched with mounting bracket on standard DIN gurde rail. round and striped design for the mounting hol can meet different requirements for the junction box. measurement range ca be easily adjust though dial swtich using a small screw driver, no need for power supply, or accessing one resistance box, signal generator to the input terminal; regardless of being matched with temperature sensor or used for field mounted. It can realize realtime adjustment, which can greatly shorten the time of adjustment, moreover lower the difficult of adjustment with different position of dial switch we can see clearly the present meansuring range, its remarkable feature.

Through the transmitter, resistance signal of the thermal resistance can convert into 4-20mA current signal, easy to install, convenient to use with computer.

Features:
Sensor: PT100
Measuring rang: 0 to 100°C
Output: 0-10V
Working voltage: DC 24V
Accuracy: plus or minus 0.2 percent FS
Diameter: Approx. 45mm (1.77inch)
Material: Plastic
Package includes:
1X Transmitter
