180x810mm 25 Micron 50 Micron Polyester Water Filter Bag Replacement Eaton Filter Bag
The ZX PE filter bag is made of Polyester fiber filter cloth.It is of high filtration accuracy and is produced by singe,calendaring or membrane cove collar.
All abutting edges are welded ensuring no side leakage.
It can be equipped with double layer structure or internal folding structure,Which can effectively expand the filtration area and efficiently increase the dirt-retention capacity.
PE filter bag has high performance price ratio and is suitable for medium and low viscosity liquid filtration.
| Product Name | ZX PE filter bag |
| Material | Polyester |
| Size | 180*430mm;180*810mm;105*230mm;105*380mm;152*550mm;customized |
| Adapter Material | Plastic ring;Stainless steel ring;Galvanized steel ring;Draw string |
| Sewing | Five stitches;Welded |
| Bottom | V bottom;U bottom;Cylindrical bottom |
| Working temperature | ≤ 120℃ |
| Pressure resistance | ≤0.5Mpa@20℃,≤0.4Mpa@120℃ |

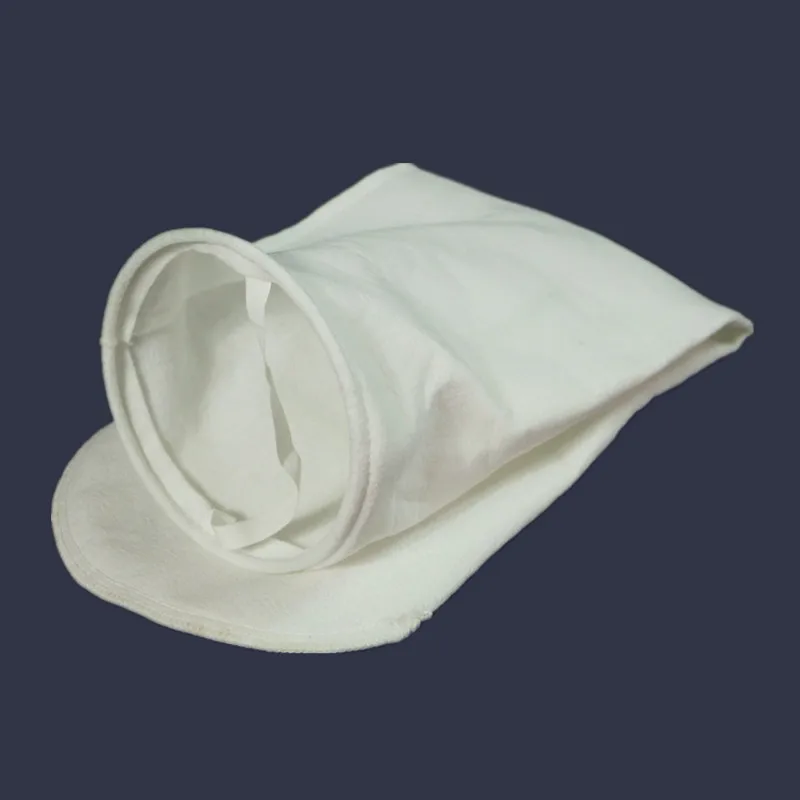

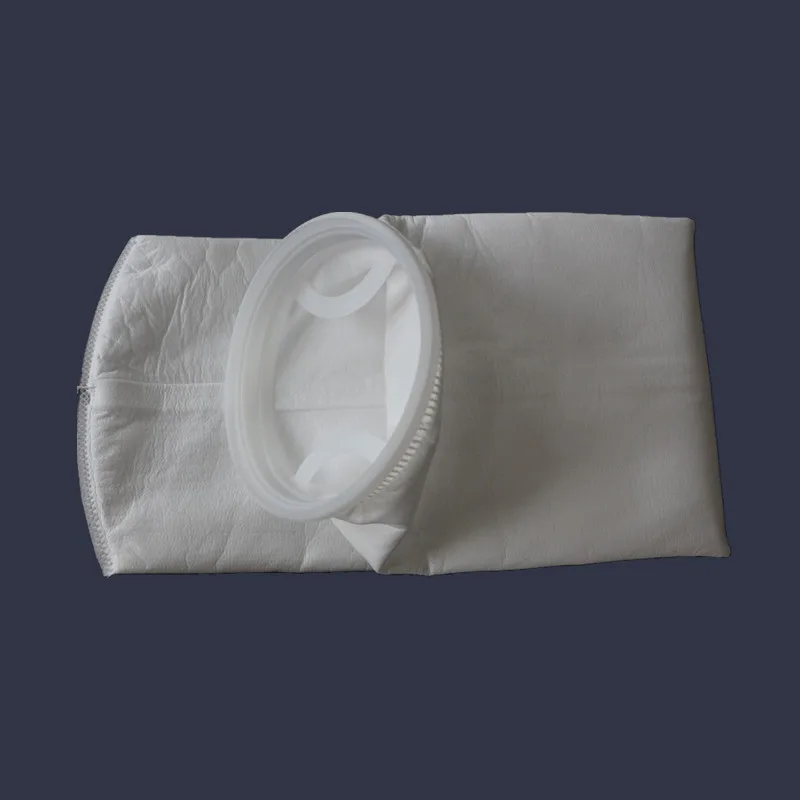

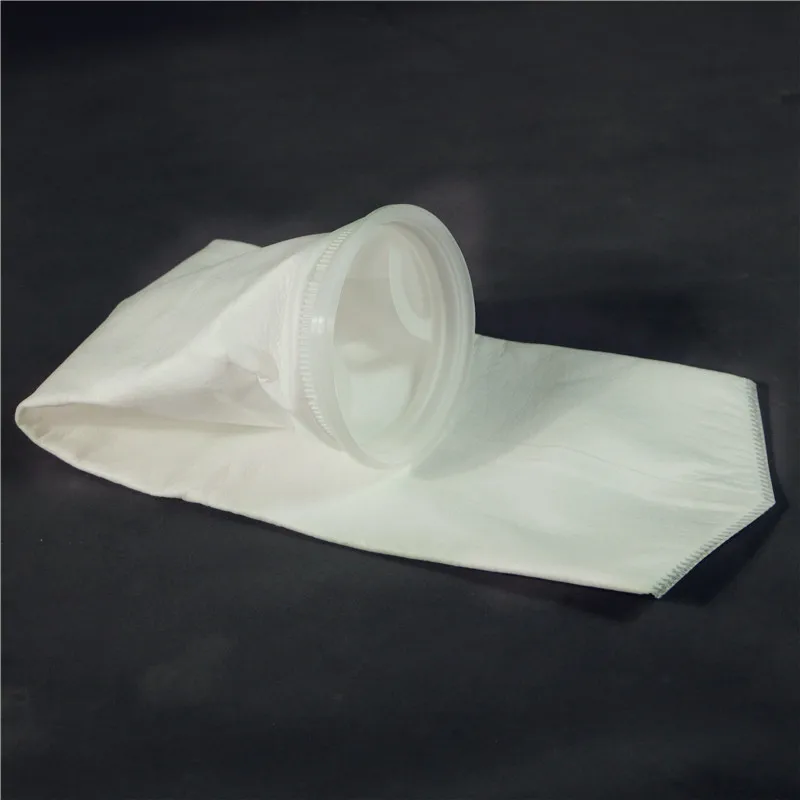

Products Show
![]()
![]()
![]()
![]()
Specification:
Acid resistant but not alkali,which is suitable for acid liquid filtration.
A tight structure that produced by singe,calendaring or membrane cove collar.
All abutting edges are welded ensuring no side leakage.
The edges are tightly sewn with five wire ensuring no side leakage.
Depth filtration with good dirt-retention capacity.
Multilayer or folded structures is more efficient than monolayer.
Material and Technology:
Product material: Polyester non-wowen fabric(PE)
Ring material: Plastic;Stainless steel;Galvanized steel;Drawstring
Size: See dimension parameter table
Process: Full welded;Edge five stitches+ring sewn;Edge five stitches+ring welded;Edge welded+ring sewn
Bottom Styles: V bottom;U bottom;Cylinder bottom;Flat bottom
Proformance:
PH : 1-10
Filter accuracy: 0.3micron~300micron
Working Temp: ≤120℃
Pressure: ≤0.5Mpa@20℃,≤0.4Mpa@120℃
![]()
Our Company
![]()
![]()
Factory
Workshop
![]()
![]()
Filter Cartridge Workshop
Wire Mesh Workshop
Packing & Delivery
Packing Details : One product with a plastic bag,20-50 pcs/Carton.
Delivery details: 3-30 days after ordering, depending on quantity.
![]()
![]()
![]()
1.Check the product.2. With Plastic bag.3. Export box.![]()
![]()
![]()
4.Cartons and pallet.5. Container for ship.6. Container for ship.
Our Certifications
![]()
![]()
![]()
![]()
ISO REACH ROHS FOOD CONTACT
FAQ
Q: Are you trading company or manufacturer ?
A: We are factory.
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
If you have another question, pls feel free to contact us as below:
