2 канала ШИМ генератор сигналов модуль частота импульсов рабочий цикл регулируемый прямоугольную волну


Поделиться:


Цена:137,87 ₽*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Aug-15-2025 174.22 $* 177.41 $*
Jul-15-2025 141.90 $* 144.95 $*
Jun-15-2025 171.20 $* 174.13 $*
May-15-2025 170.39 $* 173.76 $*
Apr-15-2025 136.64 $* 139.22 $*
Mar-15-2025 167.51 $* 170.83 $*
Feb-15-2025 166.89 $* 169.6 $*
Jan-15-2025 164.16 $* 167.95 $*

Характеристики

Product Description

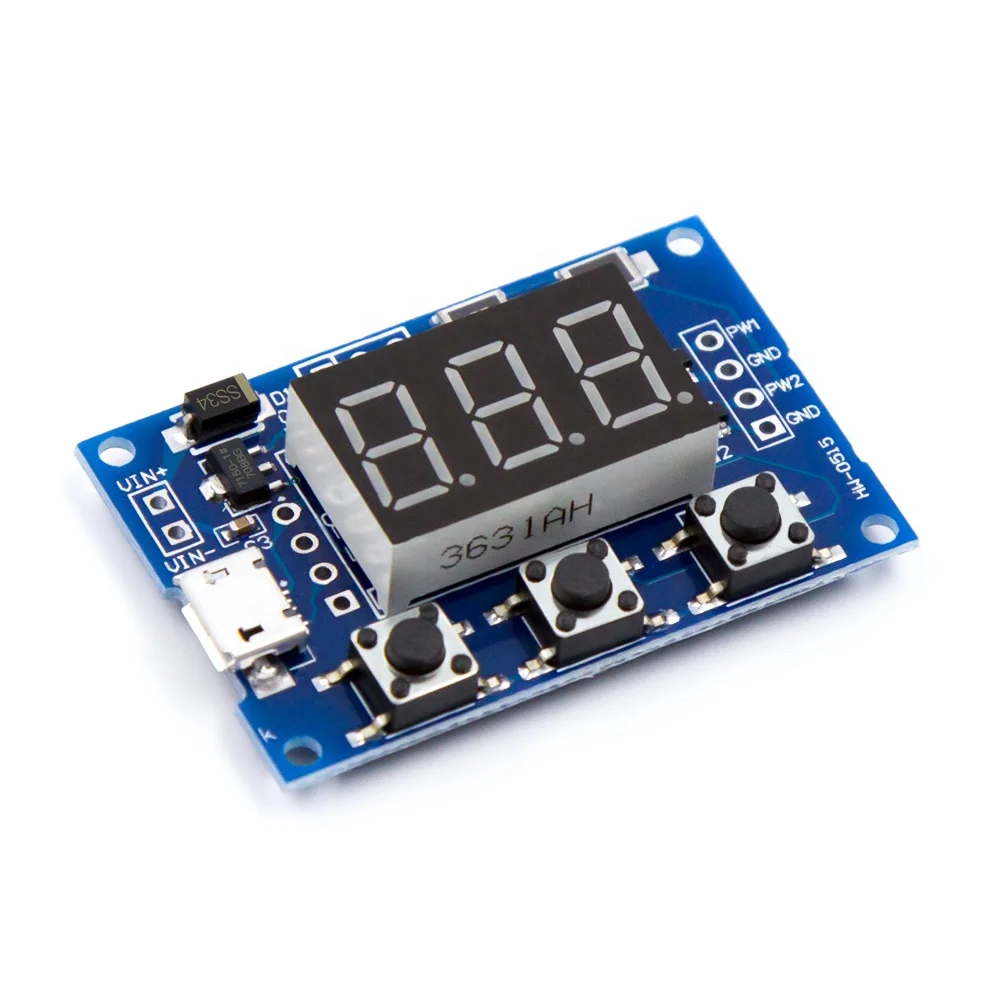

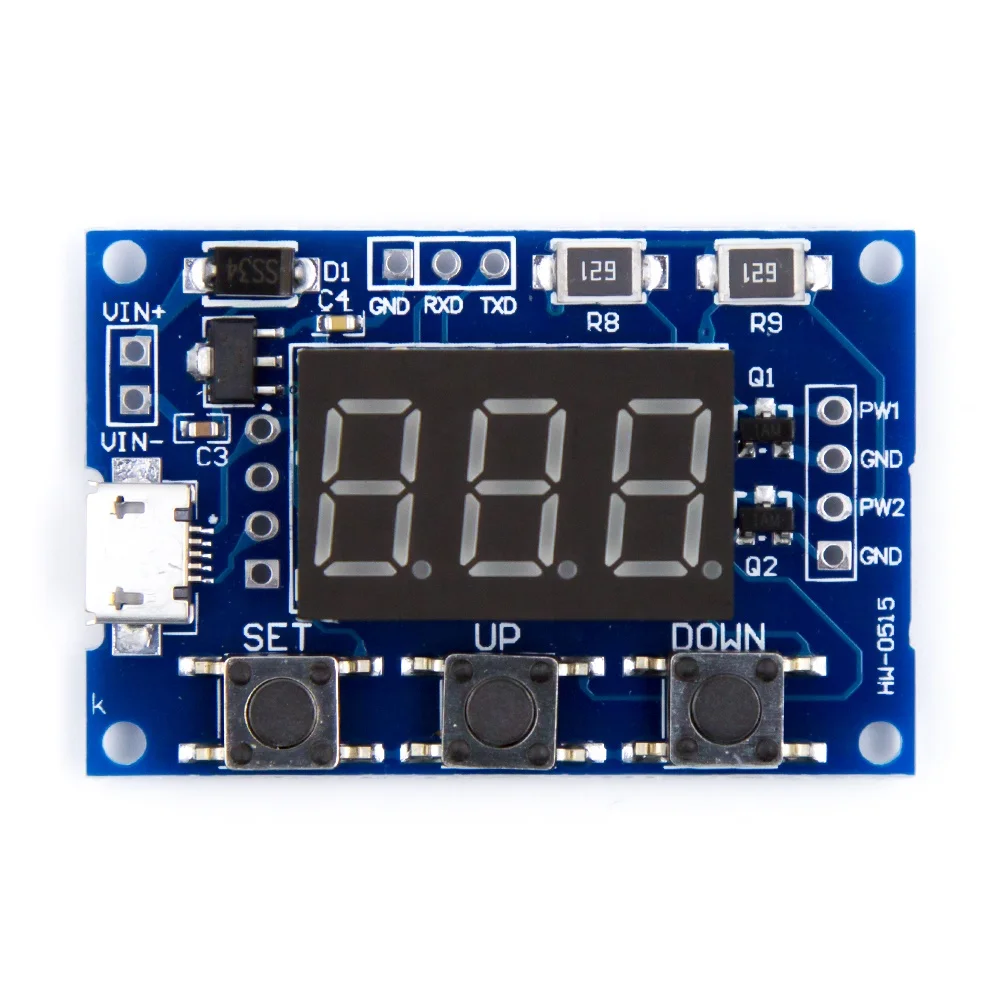

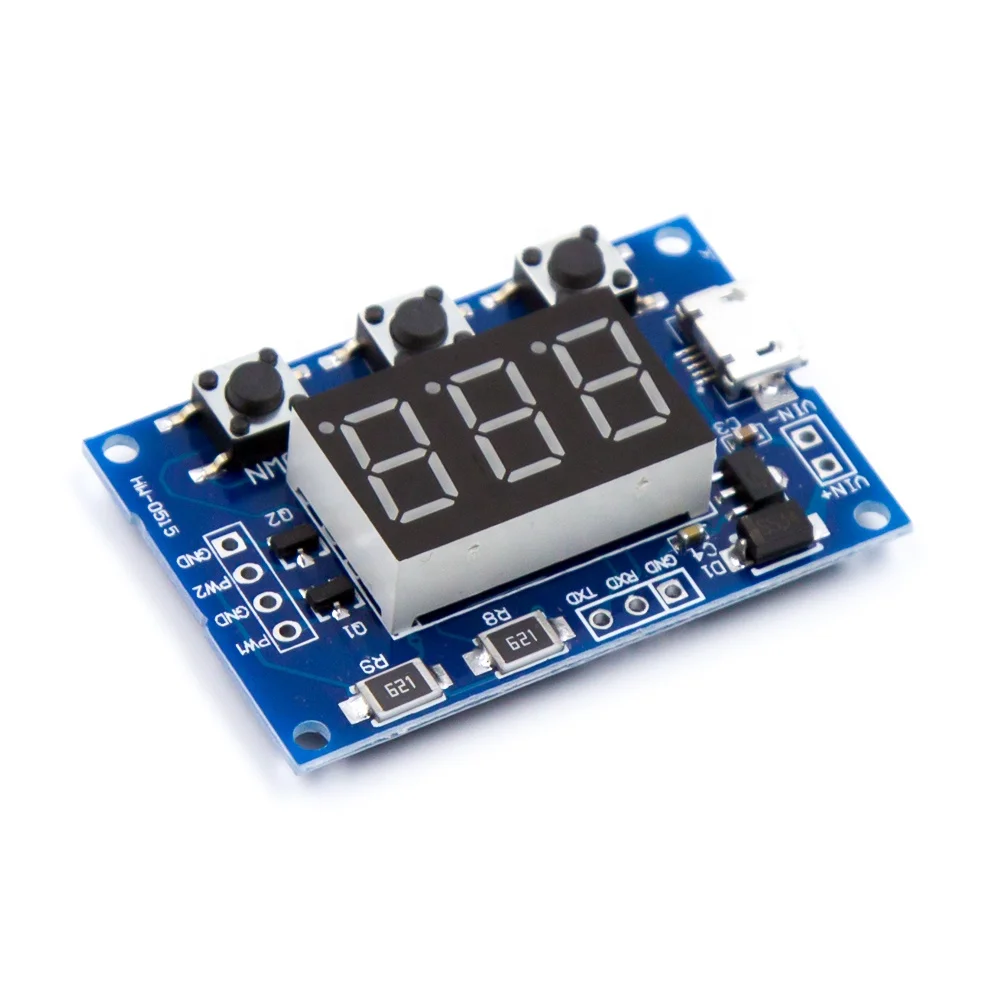

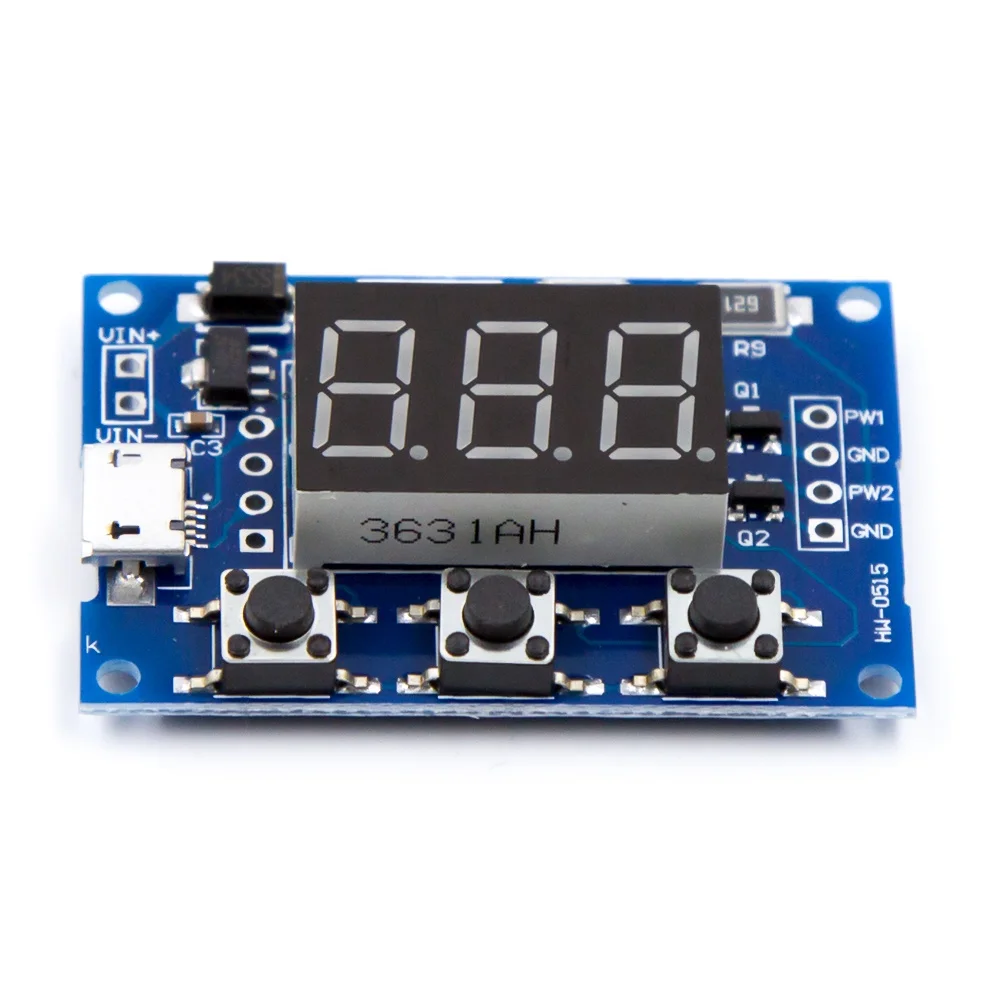

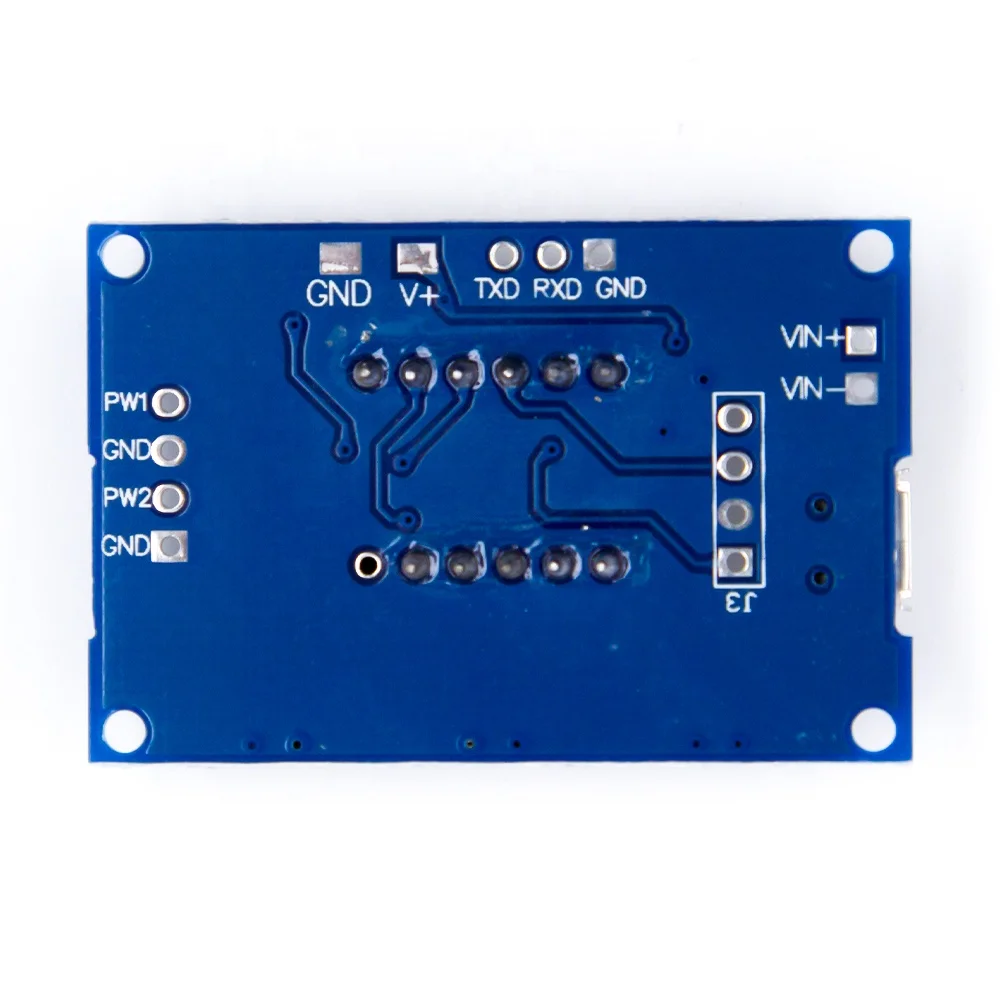

2 Channel PWM Pulse Frequency Adjustable Duty Cycle Square Wave Rectangular Wave Signal Generator Module
Item No.
AA257
Operating voltage
5-30V,support USB 5.0V power supply
Frequency Range
1Hz~150KHz
Frequency Precision
2%
Signal Load Capacity
output current is within 8--30mA
Output Range
default 5V V-pp (can be changed by external power)
Ambient Temperature
-30 Celsius ~70 Celsius

Application Fields:

1. As square wave generator to generate square wave for experiment development
2. Used to drive steeping motor driver's square wave
3. Generate adjustable pulse for MCU using
4. Generate adjustable pulse for controlling relative circuit (PWM adjust speed etc)

Detailed Image

Serial Port Control:

1. Communication Standard:9600 bps
2. Data Bit:8
3. Stop Bit:1
4. Verify Bit:none
5. Flow Control:none

Setting PWM Frequency:

1."S1FXXXT": PWM1 frequency as XXX HZ (001~999)
2."S1FXX.XT": PWM1 frequency as XX.X KHZ (00.1~99.9)
3."S1F:X.X.X.T": PWM1 frequency as XXX KHZ (0.0.1.~1.5.0.)
4."S1": PWM1
5."S2": PWM2
6."F": frequency
7."D": duty cycle

8."T": stop sign bit.

Setting PWM Duty Cycle:

1."S1DXXXT": PWM1 duty cycle as XXX;(001~100)
2."S2DXXXT": PWM2 duty cycle as XXX;(001~100)

Setting successfully back: DOWN
Setting unsuccessfully back: FALL
