Характеристики

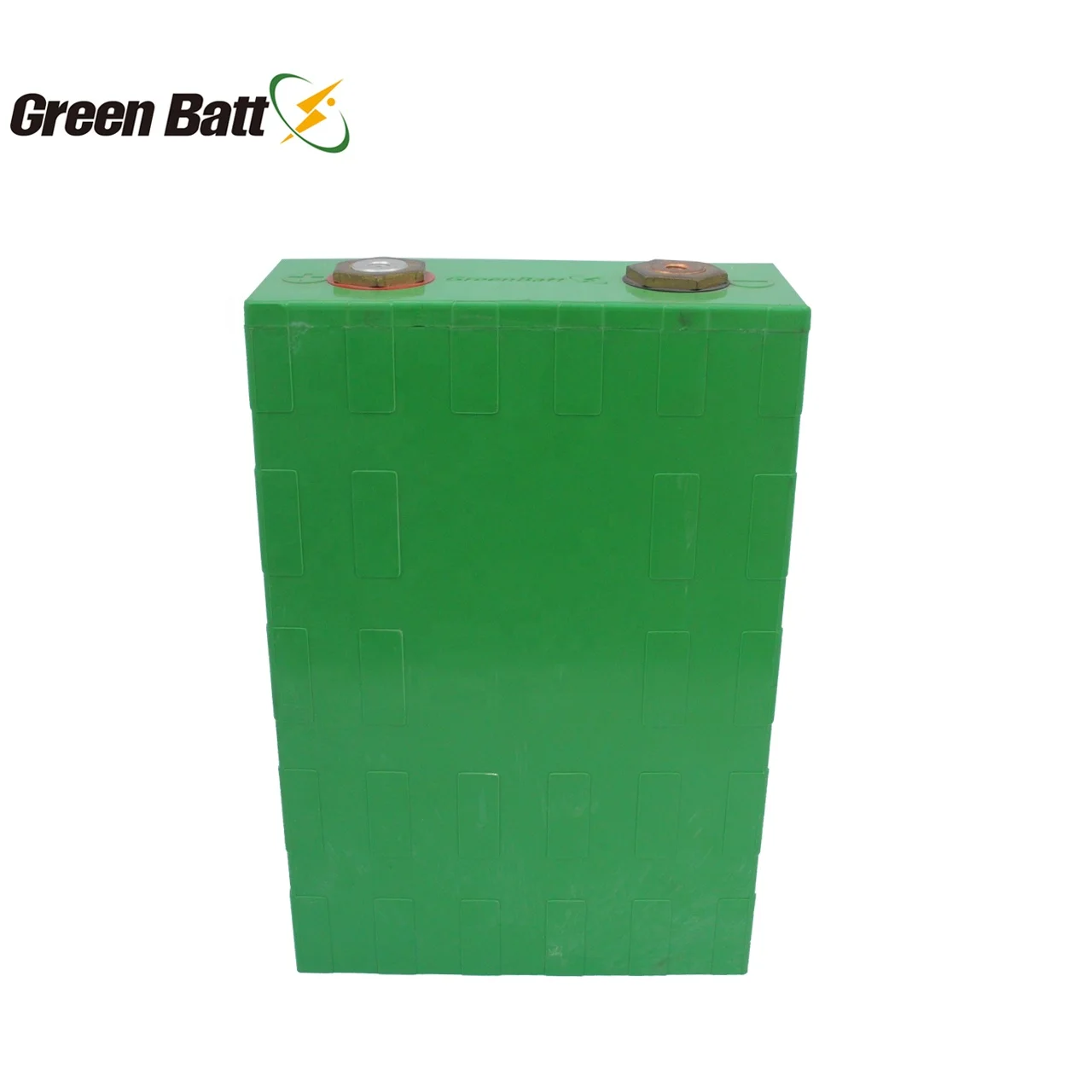

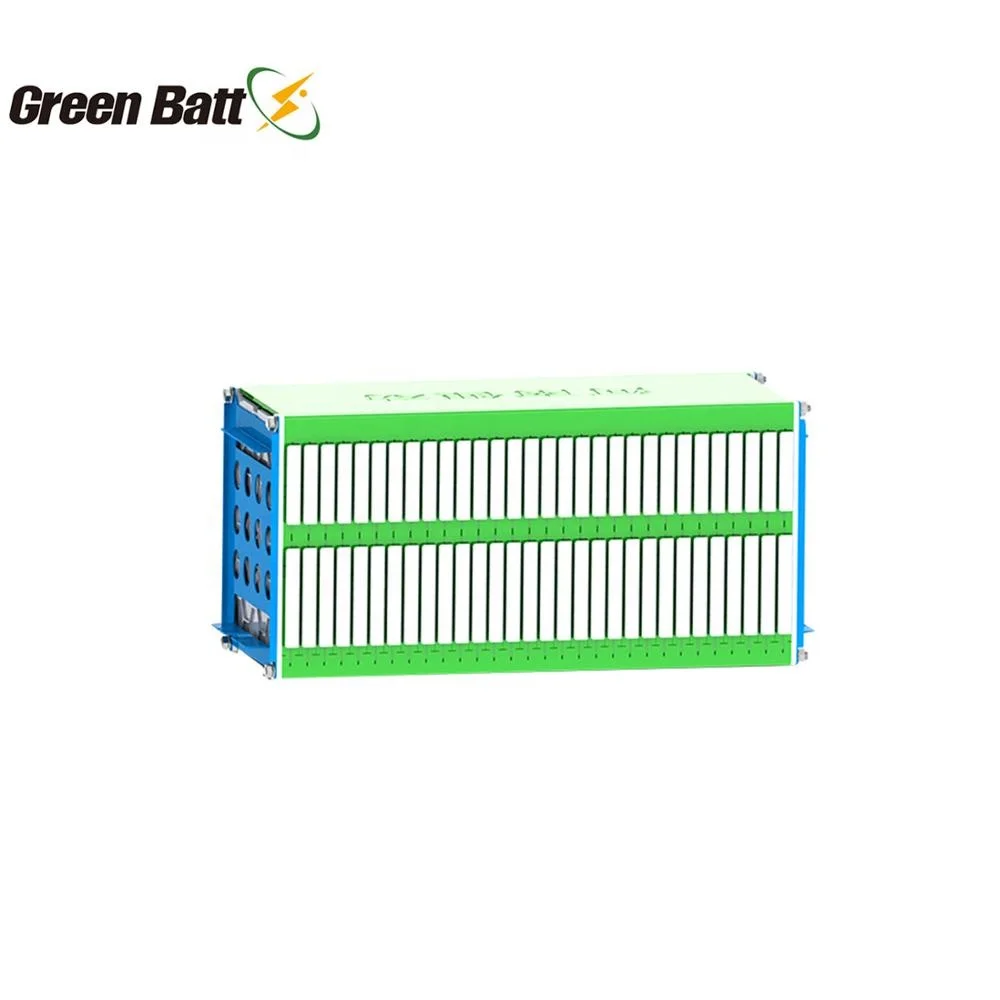

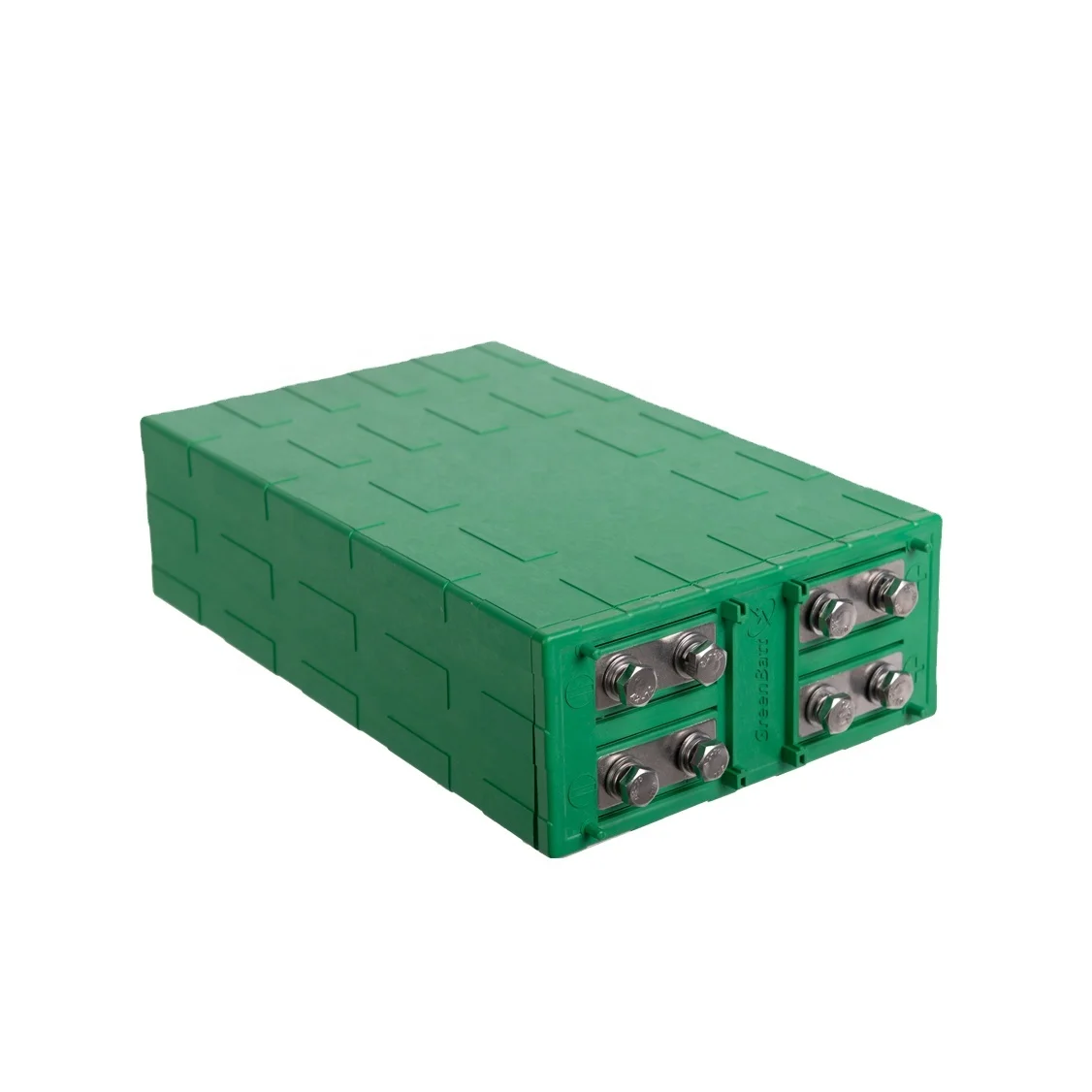

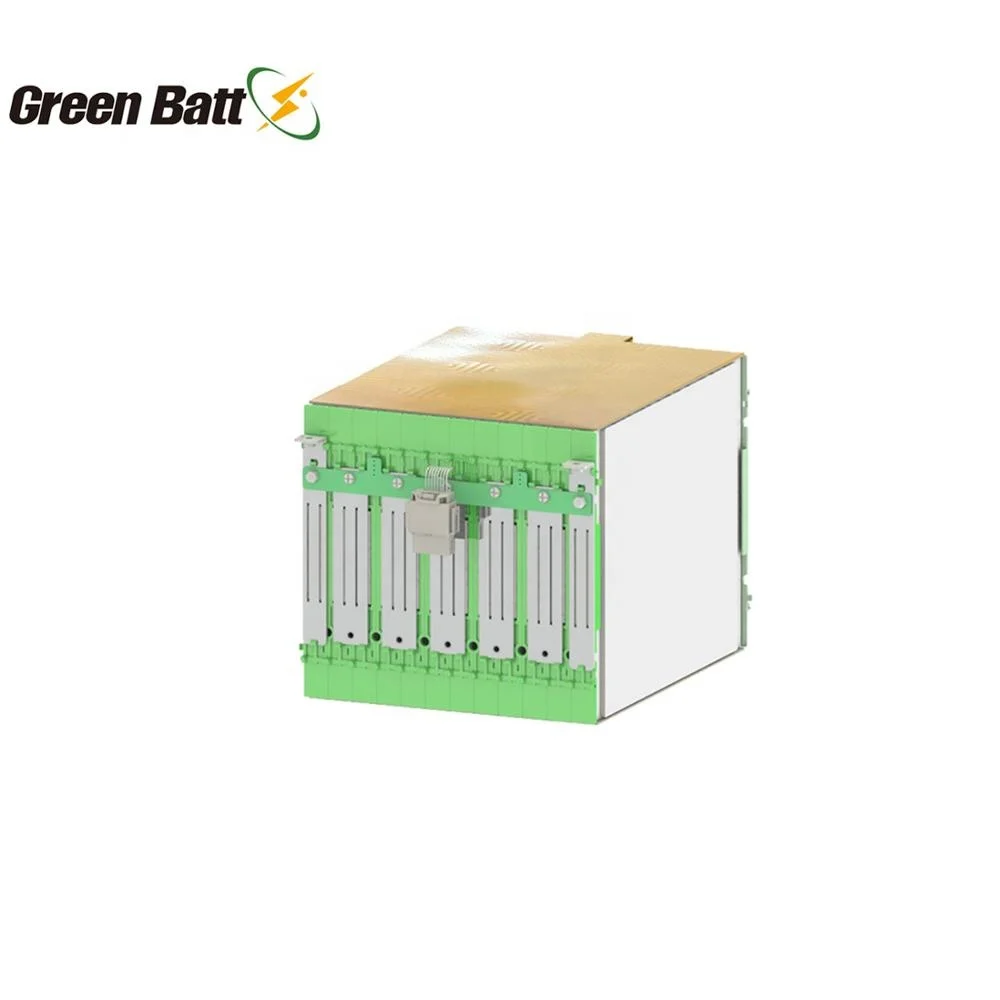

Ev bus pack lifepo4 hybrid battery module
Product Description
Product Parameter
Model NO. | EV-P-001160-PX07 |
Rated Voltage | 3.2 V |
Typical Capacity | 160 Ah |
Minimum Capacity | 160 Ah |
Standard charge | Constant current at 0.3 C with max. voltage Of 3.6 V and cutoff current at 0.01C |
Standard discharge | Constant current at 0.5 C to 2.0 V |
Max. charge current | 160 A（1C） |
Max. discharge current | 320 A（2C, 30sec） |
Operating temperature | charge 0 ~ 45℃ discharge -20 ~ 55℃ |
Storage temperature | -10 ℃ ~ 45℃ /Less than 3 months -0 ℃~ 25 ℃ / Less than 1 year |
Storage humidity | 25-85﹪RH |
Weight | Approx. 5.2kg |
Internal impedance | ≤0.4 mΩ（Internal resistance measured at AC 1KHZ after 50% SOC） |
Dimension | 64（Thickness）*180（Width）*268（Length）mm |
Product Advantage
The computer obtains the internal information of the
battery pack through RS485, RS232, CAN.
The computer obtains the internal information of the
battery pack via Bluetooth.
INTERNAL WORK COMPARISON
Regular products, solid materials
Independent cell with national patent
Recycling used batteries, small workshop inferior cell
Application scenario
Real shot
Company Profile
Henan Lithium Power Source Co., Ltd began to research and produce lithium battery and key related materials with Chinese Academy of Sciences 713 institute in 2001.After years of accumulation of technology experience,it was officially established in 2009, the registered capital is 300 million yuan.The company located in Xinxiang (Henan) chemical and physical power industrial park, covers an area of 400 acres, east of Beijing-Hong Kong-Macao freeway, north of Changyuan-Jiyuan freeway. The company has been developed over a long period of time, which has owned proprietary intellectual property rights and reached advanced level on lithium battery research, production and marketing.The battery products have been affirmed which conform to MIIT standards for electric vehicles.
Henan Lithium keeps developing new technologies and providing customers with high-quality products and excellent services.
Certificates
Shipping and payment methods
PACKING
Precautions for the use of lithium batteries
1. The battery needs to be handled gently during use to avoid damage to internal components;
2. Batteries are not allowed to be used in series or parallel;
3. The battery module shall not be loose, shake, squeeze and deform when placed inside the battery shell;
4. It is forbidden to plug the positive and negative wires of the battery into each other,reverse the load, or connect with the load of an electric vehicle that does not match;
4. It is forbidden to plug the positive and negative wires of the battery into each other,reverse the load, or connect with the load of an electric vehicle that does not match;
5. The battery needs to be charged in time or within 24 hours after discharge;
6. During battery storage, charge the battery every 1 month;
6. During battery storage, charge the battery every 1 month;
7. It must be charged with a matching charger, and the use of lead-acid battery charger is strictly prohibited;
8. Unauthorized disassembly is strictly prohibited during use;
9. It is strictly forbidden to use and leave the battery near a heat source or high temperature source (such as fire, heater, etc.);
10. It is strictly forbidden to immerse the battery in water, and place it in a cool and dry environment when it is not in use.
8. Unauthorized disassembly is strictly prohibited during use;
9. It is strictly forbidden to use and leave the battery near a heat source or high temperature source (such as fire, heater, etc.);
10. It is strictly forbidden to immerse the battery in water, and place it in a cool and dry environment when it is not in use.
