Рекламная цена станок для резки конической шестерни с

Promotion Price Cnc Bevel Gear Cutting Shaping Machine

Product Application

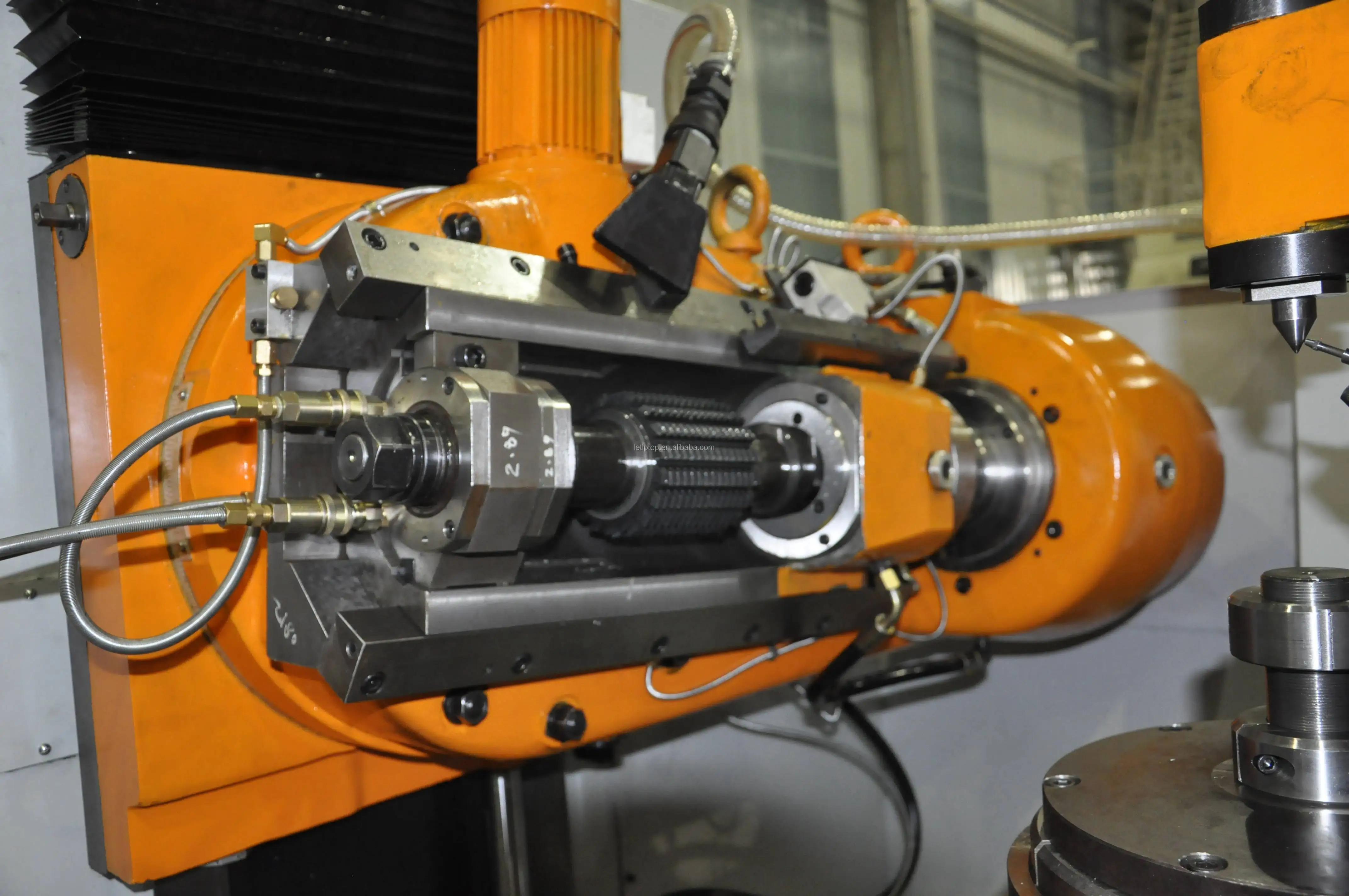

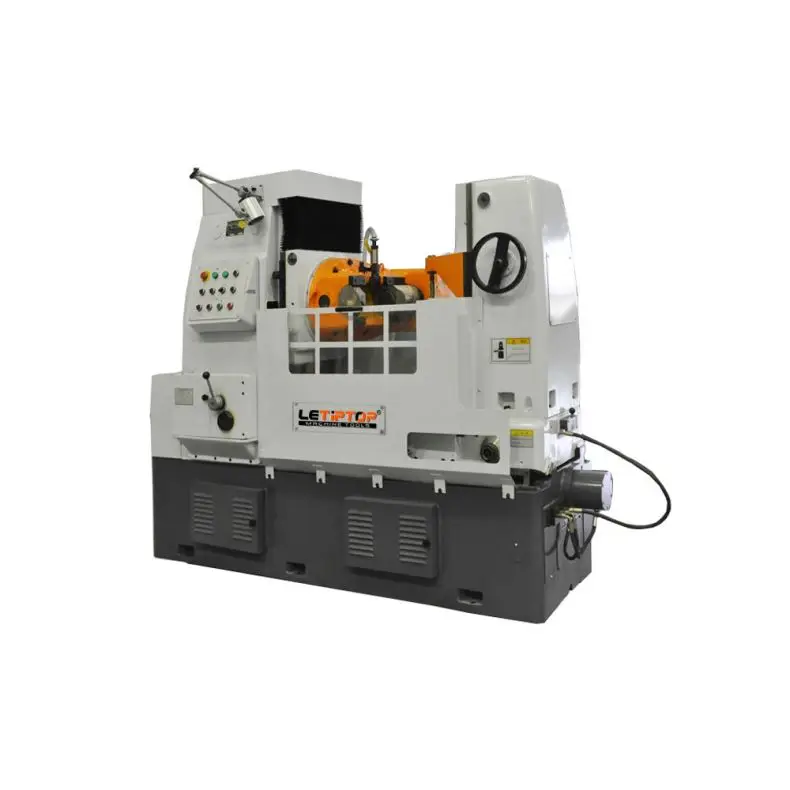

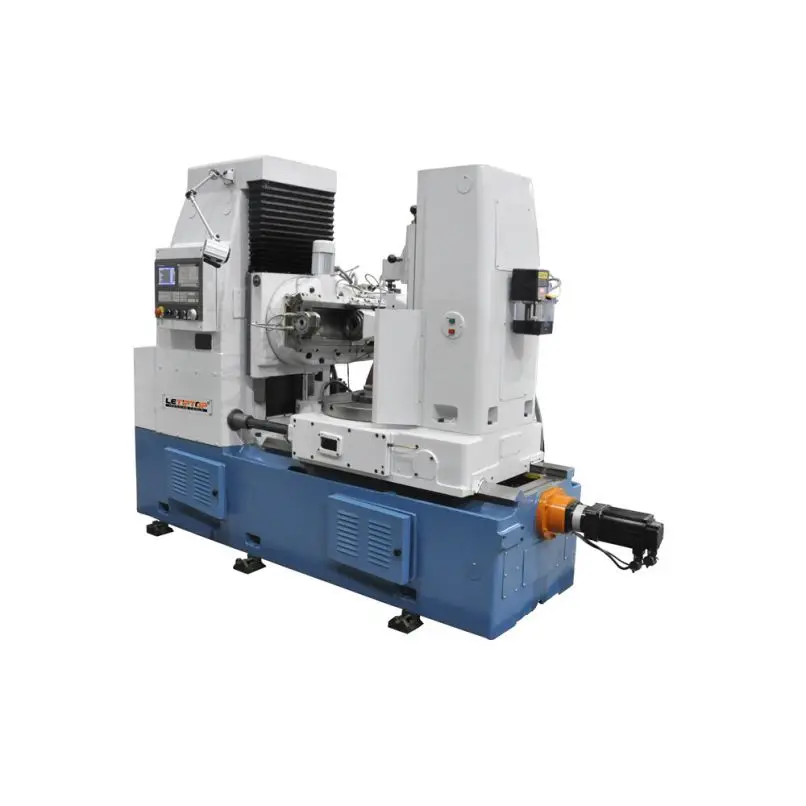

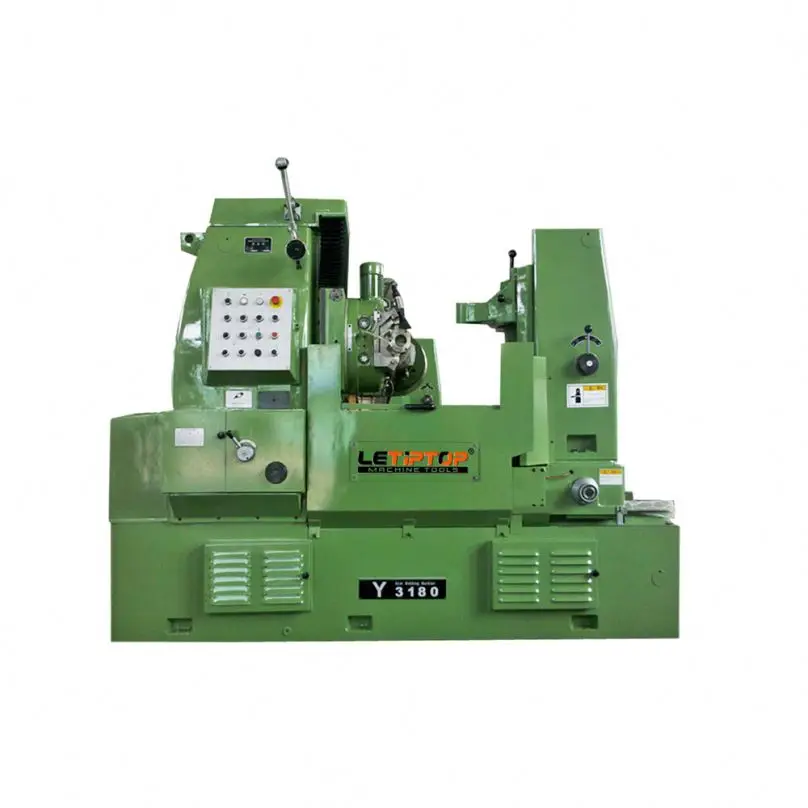

 LETIPTOP gear hobbing machine is fixed by vertical column and adopts the traditional layout of horizontally moving working table, suitable for processing cylindrical gears, worm wheel and short spline shaft in bulk, in package, or in single workpiece. The machine has the following characteristics:
 1.Raised height for vertical column and increased stroke: The vertical column is made higher to enable processing of larger tooth width.
2.Service life of cutting tools is increased by electric tool leap. The longest stroke, such electric tool leap takes longer hob and greatly increases life the hob.
 3.High precision and long service life: The machine adopts the worm gear of a high precision over five grade and uses bronze alloy material which is of high abrasion resistance, enabling long service life and steady accuracy.
4.Higher tool speed allowed: Rolling bearings replace the traditional bearings along the hobs to allow greater rotating speed of the tools.
5.Backlash balancing cylinder is involved as the tool post moves in the axial direction, effectively reducing the space between lead screws and eliminating vibration.
6.Convenient hydraulic powered structure reduces the non-cutting time as well as the times to use the cutting tools.

Main Features

♦Interactive PLC touch screen offers easy access to auto and manual operating modes.
♦System diagnostics and multiple language capability.
♦Standard clockwise bending direction.
♦Fully hydraulic clamping on clamp die and pressure die.
♦Drop-way hydraulic clamping.
♦Direct acting hydraulic pressure die with adjustable speed valve.
♦Maximum 100 sets of program storage,Maximum 32 bends for each program.
♦With Independent programmable speeds Y, B, and C axes.
♦Programmable material spring back settings for each bend angle.
♦Automatic release of tube prior to final bend.
♦Bending Axis-Driven by Cylinder,Feeding Axis-Driven by Servo Motor,Rotating Axis-Driven by Servo Motor

♦Obtain quality repeatable bends in steel, stainless, aluminum, titanium and brass.
♦Foot Pedal Cycle start.
♦With Air Cooling System.
♦One set of Tooling for Draw Bending.
♦Wiper die Bracket.
♦1 Mandrel Rod.
♦Operation and Maintenance Manual.
♦Tool Box with Adjusted Tools.
♦Electric: As required (3 phase 220V or 380V or 415V...)
