Кабель электропитания 0,75-10 мм2, Электрический кабель
US $0.45-$0.55
Многожильный неэкранированный кабель управления изолированный негалогенный огнезащитный огнестойкий из изоляции
- Категория: Control Cables >>>
- Поставщик: Shenzhen,Chengtiantai,Cable,Industrial,Development,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.49 $* | 0.35 $* |
| Aug-18-2025 | 0.63 $* | 0.31 $* |
| Jul-18-2025 | 0.49 $* | 0.19 $* |
| Jun-18-2025 | 0.58 $* | 0.88 $* |
| May-18-2025 | 0.9 $* | 0.88 $* |
| Apr-18-2025 | 0.70 $* | 0.37 $* |
| Mar-18-2025 | 0.36 $* | 0.72 $* |
| Feb-18-2025 | 0.77 $* | 0.44 $* |
| Jan-18-2025 | 0.39 $* | 0.85 $* |
Характеристики
DESCRIPTION
APPLICATIONS
• Wiring of fire alarms
• Smoke detectors
• Voice communications
• Burglar alarms
• Fire protective circuits
STANDARDS/REFERENCES:
International: IEC 60227-5
National: GB/T 9330-2008
CONSTRUCTION CHARACTERISTICS
CONDUCTOR:
bear copper class 1 according to IEC 60228 (solid conductors)
bear copper class 2 according to IEC 60228 (stranded conductors)
INSULATION:
Crosslinked polyethylene ( XLPE)
Core Identification : with continuous black numbering
SHEATH:
polyethylene ( PE)
Sheath color: black
DIMENSIONAL CHARACTERISTICS
[Number of cores ]: 2, 3, 4, 5, 7, 8, 10, 12, 14, 16, 19, 24, 27, 30, 37, 44, 48, 52, 61
[Conductor size] : 1.0, 1.5, 2.5, 4, 6, 10 mm2
TECHNICAL DATA
[Rated voltage (Uo/U) ]: 450/ 750V
[Test voltage ]:3000 V
USAGE CHARACTERISTICS
[Maximum operating temperature] : 90 ℃
[Short-circuit max conductor temperature ( duration up to 5s ) ]: 250 ℃
[Temperature range]: -5 to +90 ℃
INSTALLATION CONDITION
[Installation temperature ]: 5 ℃
[Minimum bending radius ]: 6 x cable diameter

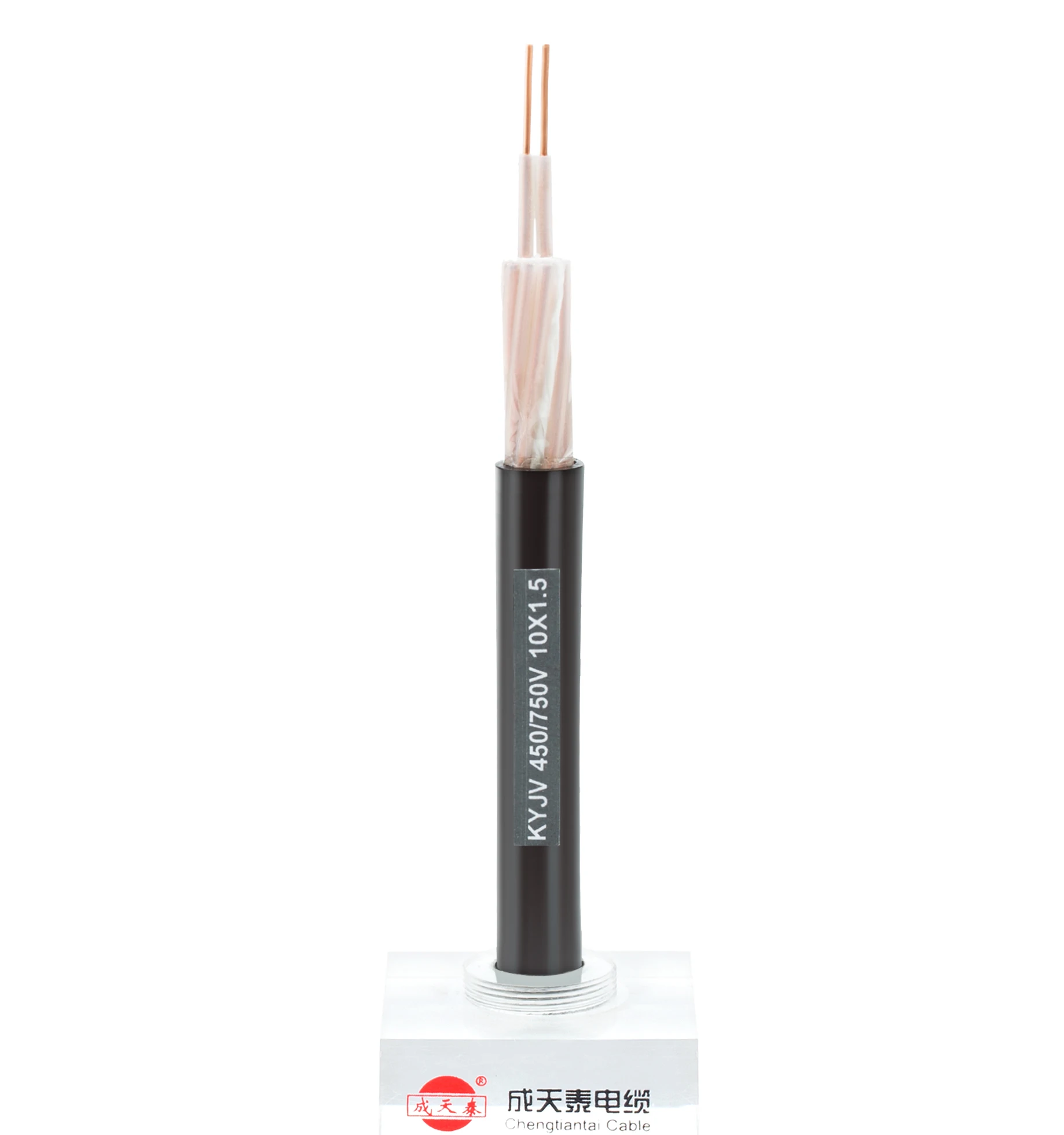

Multi-conductor
unshielded Control cable
Cable Dimensions
| Number of cores | Cross-sec. | strand | Outer | Weight approx. | Base Unit | Price (base price) |
|---|---|---|---|---|---|---|
| 2 | 1 | solid | 11.1 | 148 | m | Price on request |
| 2 | 1.5 | solid | 12.2 | 186 | m | Price on request |
| 2 | 2.5 | solid | 13.1 | 236 | m | Price on request |
| 2 | 4 | solid | 14.8 | 406 | m | Price on request |
| 2 | 6 | solid | 16.3 | 410 | m | Price on request |
| 3 | 1 | solid | 11.4 | 158 | m | Price on request |
| 3 | 1.5 | solid | 12.6 | 208 | m | Price on request |
| 3 | 2.5 | solid | 13.8 | 288 | m | Price on request |
| 3 | 4 | solid | 15.8 | 406 | m | Price on request |
| 3 | 6 | solid | 17.3 | 547 | m | Price on request |
| 4 | 1 | solid | 10.3 | 198 | m | Price on request |
| 4 | 1.5 | solid | 11.3 | 233 | m | Price on request |
| 4 | 2.5 | solid | 11.7 | 375 | m | Price on request |
| 4 | 4 | solid | 14.3 | 493 | m | Price on request |
| 4 | 6 | solid | 15.7 | 602 | m | Price on request |
| 5 | 1 | solid | 10.7 | 232 | m | Price on request |
| 5 | 1.5 | solid | 12.7 | 299 | m | Price on request |
| 5 | 2.5 | solid | 14.3 | 448 | m | Price on request |
| 5 | 4 | solid | 15.4 | 562 | m | Price on request |
| 5 | 6 | solid | 16.9 | 708 | m | Price on request |
| 7 | 1 | solid | 11.4 | 259 | m | Price on request |
| 7 | 1.5 | solid | 13.5 | 378 | m | Price on request |
| 7 | 2.5 | solid | 15.3 | 520 | m | Price on request |
| 7 | 4 | solid | 16.5 | 679 | m | Price on request |
| 7 | 6 | solid | 18.3 | 892 | m | Price on request |
| 8 | 1 | solid | 12.7 | 286 | m | Price on request |
| 8 | 1.5 | solid | 14.4 | 442 | m | Price on request |
| 8 | 2.5 | solid | 16.3 | 598 | m | Price on request |
| 8 | 4 | solid | 18 | 760 | m | Price on request |
| 8 | 6 | solid | 20 | 1002 | m | Price on request |
| 10 | 1 | solid | 14.3 | 438 | m | Price on request |
| 10 | 1.5 | solid | 16.3 | 520 | m | Price on request |
| 10 | 2.5 | solid | 19.1 | 726 | m | Price on request |
| 10 | 4 | solid | 20.7 | 941 | m | Price on request |
| 10 | 6 | solid | 22.7 | 1208 | m | Price on request |
| 12 | 1 | solid | 14.7 | 470 | m | Price on request |
| 12 | 1.5 | solid | 16.4 | 596 | m | Price on request |
| 12 | 2.5 | solid | 19.9 | 816 | m | Price on request |
| 12 | 4 | solid | 21.3 | 1096 | m | Price on request |
| 12 | 6 | solid | 23.8 | 1403 | m | Price on request |
| 14 | 1 | solid | 15.3 | 518 | m | Price on request |
| 14 | 1.5 | solid | 17.5 | 672 | m | Price on request |
| 14 | 2.5 | solid | 20.5 | 900 | m | Price on request |
| 14 | 4 | solid | 22.3 | 1149 | m | Price on request |
| 14 | 6 | solid | 24.9 | 1434 | m | Price on request |
| 16 | 1 | solid | 15.9 | 560 | m | Price on request |
| 16 | 1.5 | solid | 18.3 | 729 | m | Price on request |
| 16 | 2.5 | solid | 21.58 | 984 | m | Price on request |
| 19 | 1 | solid | 16.6 | 629 | m | Price on request |
| 19 | 1.5 | solid | 19.5 | 808 | m | Price on request |
| 19 | 2.5 | solid | 22.5 | 1103 | m | Price on request |
| 24 | 1 | solid | 19.3 | 760 | m | Price on request |
| 24 | 1.5 | solid | 22.3 | 985 | m | Price on request |
| 24 | 2.5 | solid | 25.9 | 1360 | m | Price on request |
| 27 | 1 | solid | 19.7 | 805 | m | Price on request |
| 27 | 1.5 | solid | 22.7 | 1047 | m | Price on request |
| 27 | 2.5 | solid | 26.4 | 1463 | m | Price on request |
| 30 | 1 | solid | 20.3 | 854 | m | Price on request |
| 30 | 1.5 | solid | 23.5 | 1204 | m | Price on request |
| 30 | 2.5 | solid | 27.3 | 1650 | m | Price on request |
| 37 | 1 | solid | 21.6 | 997 | m | Price on request |
| 37 | 1.5 | solid | 25.1 | 1315 | m | Price on request |
| 37 | 2.5 | solid | 29.9 | 1900 | m | Price on request |
| 44 | 1 | solid | 23.96 | 1168 | m | Price on request |
| 44 | 1.5 | solid | 27.9 | 1525 | m | Price on request |
| 44 | 2.5 | solid | 33.3 | 2294 | m | Price on request |
| 48 | 1 | solid | 24.3 | 1220 | m | Price on request |
| 48 | 1.5 | solid | 28.3 | 1620 | m | Price on request |
| 48 | 2.5 | solid | 38.5 | 2347 | m | Price on request |
| 52 | 1 | solid | 28.5 | 1285 | m | Price on request |
| 52 | 1.5 | solid | 29.7 | 1730 | m | Price on request |
| 52 | 2.5 | solid | 35.1 | 2610 | m | Price on request |
| 61 | 1 | solid | 27.2 | 1450 | m | Price on request |
| 61 | 1.5 | solid | 31.3 | 2021 | m | Price on request |
| 61 | 2.5 | solid | 37.1 | 3015 | m | Price on request |
Packaging & Shipping
Packaging details
 |  |  |
| Steel Wooden Drums | wooden drums | Cable Drum In container |
Packing: steel wooden drum, other as required
Cable Drum Data
| CABLE DRUMS | D1=Flange Diameter(mm) | W=Useful Width (mm) | D2=Barrel Diameter(mm) |
 | 1000 | 700 | 500 |
| 1100 | 700 | 550 | |
| 1200 | 700 | 600 | |
| 1400 | 750 | 710 | |
| 1600 | 900 | 900 | |
| 1800 | 1120 | 1000 | |
| 2400 | 1150 | 1300 |
Delivery Port:
 |  |  |
| Port of Shenzhen | Port of Hongkong | Port of Guangzhou |
CERTIFICATES
| Certificate | Information | |
 | ISO 9001:2008 quality management systems | Certificat ISO 9001:2008 Shenzhen chengtiantai cable industry development Co.Ltd. ; Certified through Guangdong quality Testing CTC Certification Co.Ltd.; Valid until 9th January 2022 |
 | ISO 14001:2004 environmental management systems | Certificat ISO 14001:2004 Shenzhen chengtiantai cable industry development Co.Ltd. ; Certified through Guangdong quality Testing CTC Certification Co.Ltd.; Valid until 9th January 2022 |
 | OHSAS 18001:2007 assessment specification for occupational health & safety management systemsenvironmental management systems | Certificat OHSAS 18001:2007 Shenzhen chengtiantai cable industry development Co.Ltd. ; Certified through Guangdong quality Testing CTC Certification Co.Ltd.; Valid until 9th January 2022 |
ABOUT CTT Cable
SOME GREAT SHOT ON OUR MANUFACTURING PLANT
PRODUCTION FIGURES
 | |
| •Cable production started 1983 •36 years of cable manufacturing experience •Sales in 2018(FY) about 500 million USD •100,000 m2 Production area •2 Manufacturing plant 1 R&D Center •350 Will-trained employees •Exported more than 22 countries | •200 Sets Of Testing Equipment •100 Testing Items •40 wire drawing machines •20 stranding machines •10 bunching machines •25 Extruder Facility •20 Braiding machines cable & •wires from 0.5 to1000 mm2 |
RECOMMENDED ORDERING PARAMETERS
For prompt quotation / supplies please make sure your inquiries and your orders are securing the following data :
1 International or Special Standard. (Alternatively, the precise usage of the cable.)
2 Rated voltage.
3 Copper or Aluminium conductors.
4 Size of each conductor.
5 Insulation material : PVC XLPE or others.
6 Number and identification of conductors.
7 Other requirements.
8 Packing.
9 Required delivery time.
10 Required validity.
If this all seems a litle too technical for you, then why not get in touch with us.We look forward to assisting you in identifying the best products for your specific application and to answer any questions you might have.
WARRANTY
For a period commencing on the date shipped the Goods to Buyer and continuing for a period of 12 months thereafter.
