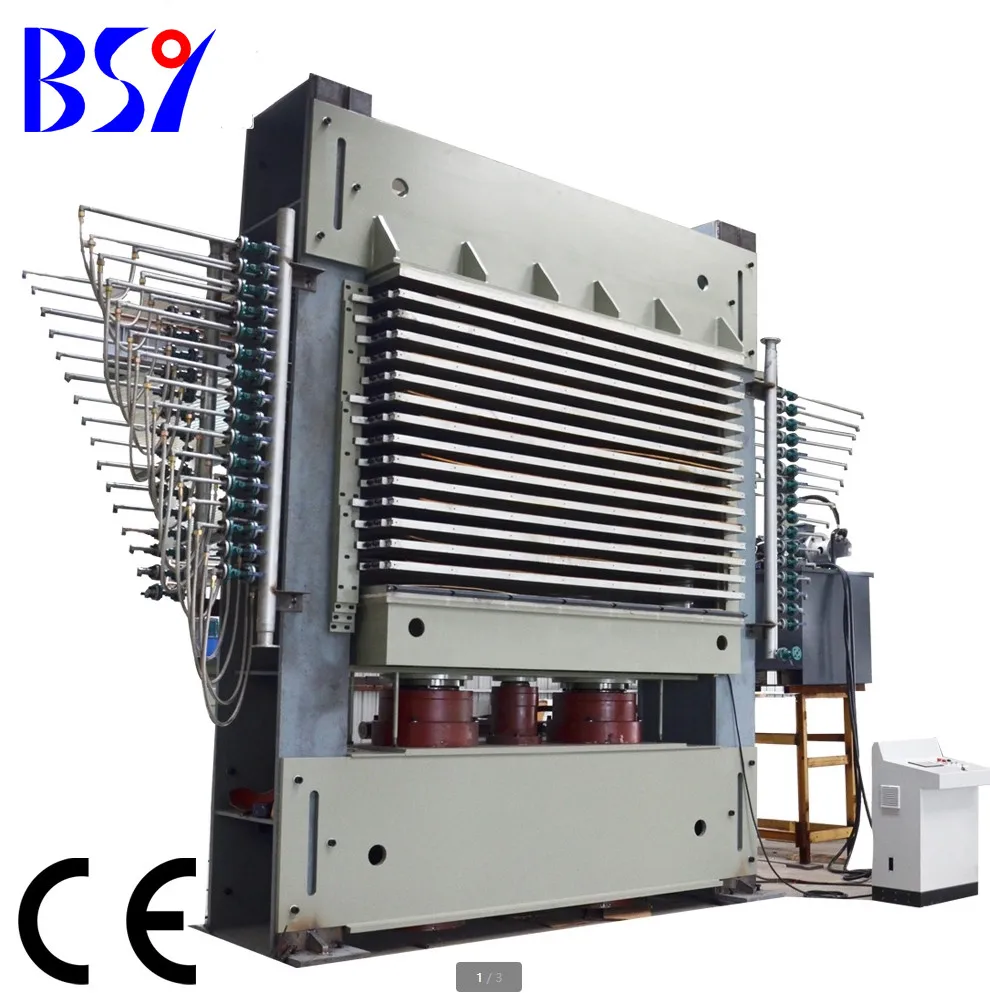

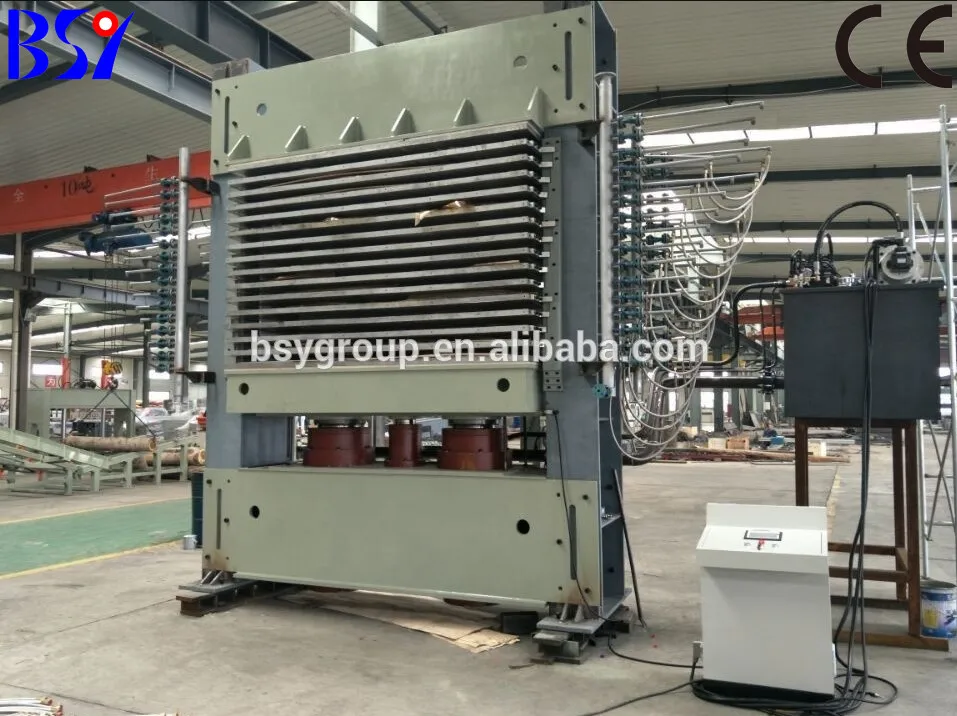

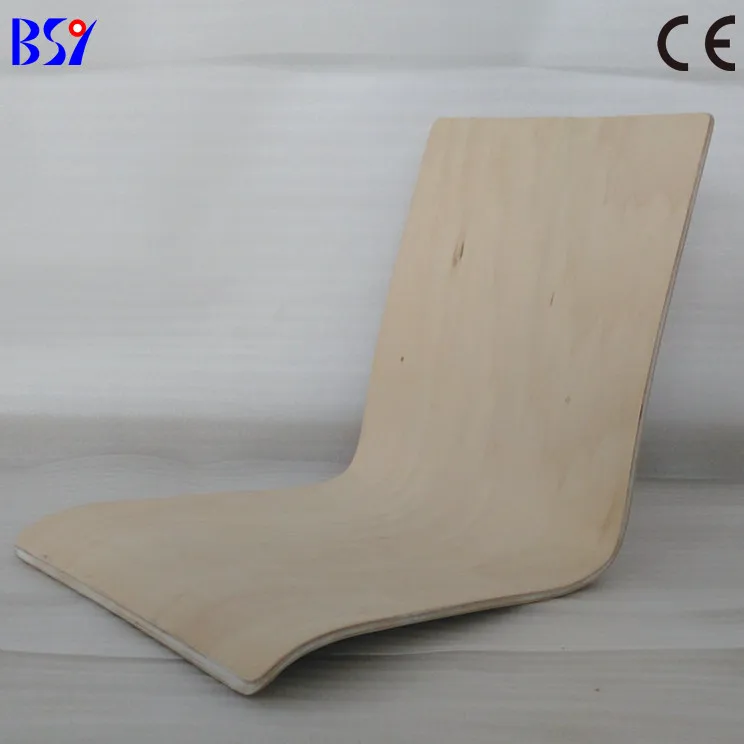

plywood chair press machine/bending plywood hot press machine



Use:



Which is used for hot pressing and sticking boards after gluing and forming.



Technical data:



Model	BY214x8/6-15	BY214x8/4-15
Nominal pressure	6000KN	4000KN

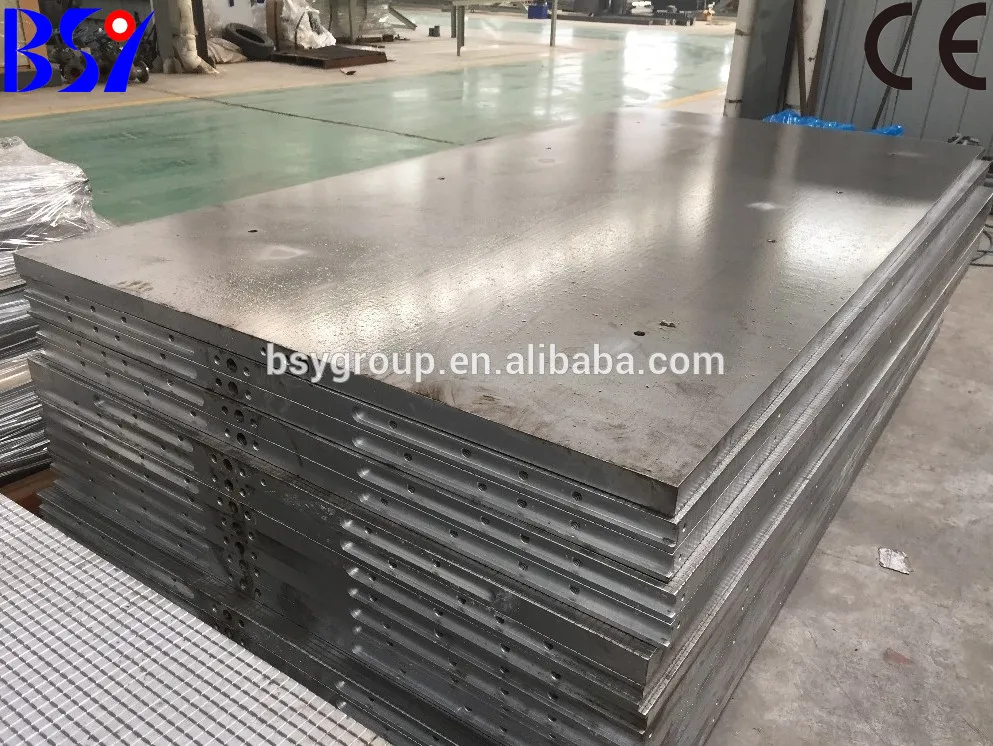

Hot plate size	2700x1370x42mm	2700x1370x42mm
Product dimensions	4X8feet	4X8feet
Opening	70mm	70mm
Opening number	15	15
Plunger cylinder diameter	2-∅360.∅190	2-∅320.∅190
Working stroke	1050mm	1050mm
Working pressure	25Mpa	25Mpa
Motor	30kw	30kw
Closing speed	4m/min	4m/min
Overall sizes	5600x1446x5395mm	5600x1446x5395mm
Weight	35000kgs	34000kgs



Advantages:



1. Heavy,solid and reliable complete structure.

2. Plates has double enters and double exits,which ensure a high efficient and small temperature difference

3. Each platen has his own control valve. This ensure a easy maintenance in future.

4. Input and output tubes of steam and heat conduction oil are alternative

5. Oil cylinder with bigger diameter,heavy duty. And inside pillar is solid while others maybe hallow

6. Closing time is 12-15 seconds which others maybe more than 20 seconds.

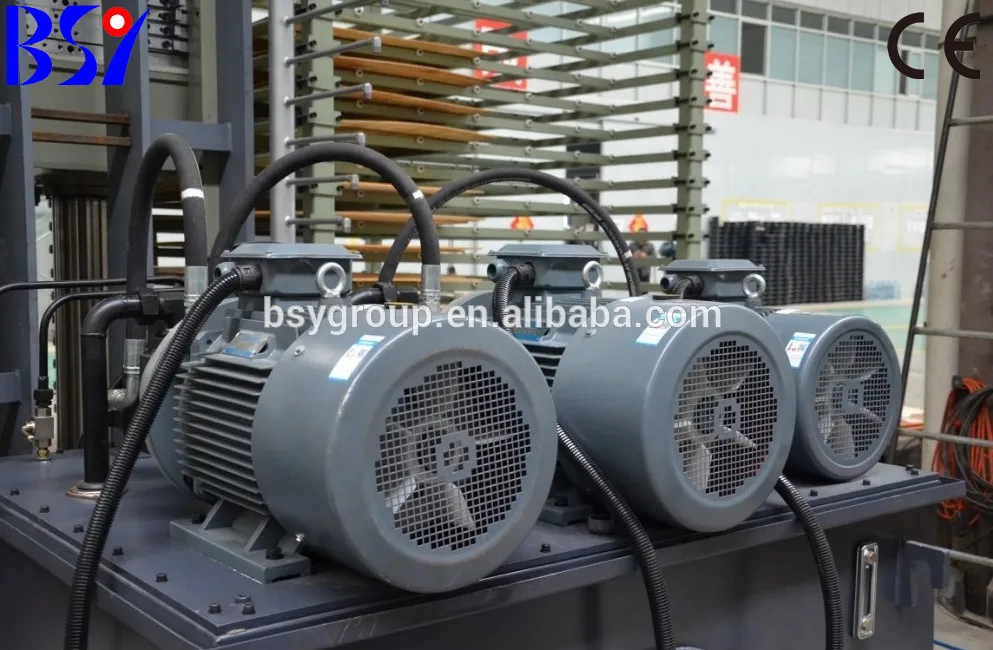

7. Electric elements: Schneider. Hydraulic pressure station is made in Taiwan

8. OMRON PLC Control with touch screen

9. Electrical Brand:OMRON and ABB

10. The in feed&out pipe is made of PTEE,but others may use PVC.Our is more durable

11. Plunger made by 15mm condensing cast iron and chromium plating process.

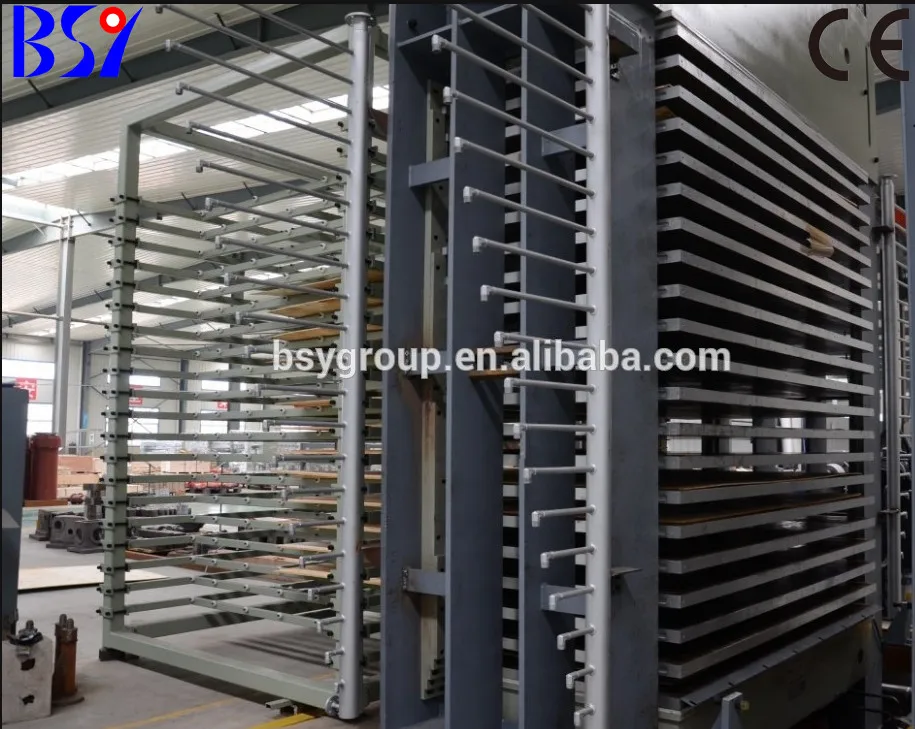

The detail:









About us:

SHANDONG BAISHENGYUAN GROUP         CO.,LTD

1. Leading manufacturer of woodworking machinery in China, found in 1956. specialize in this field for more than 60 years.

2. Almost 30 year export experience, exported dozens of countries in Asia, Europe, Africa and America. All products are quite popular among clients.

3.Specializing in plywood production line and finger joint board production line. We have our own designers to meet any of your requirement.

4. Having own after –sale maintenance center, our engineer can go to overseas for installation and commissioning.

Any questions,please feel free to contact with us:
