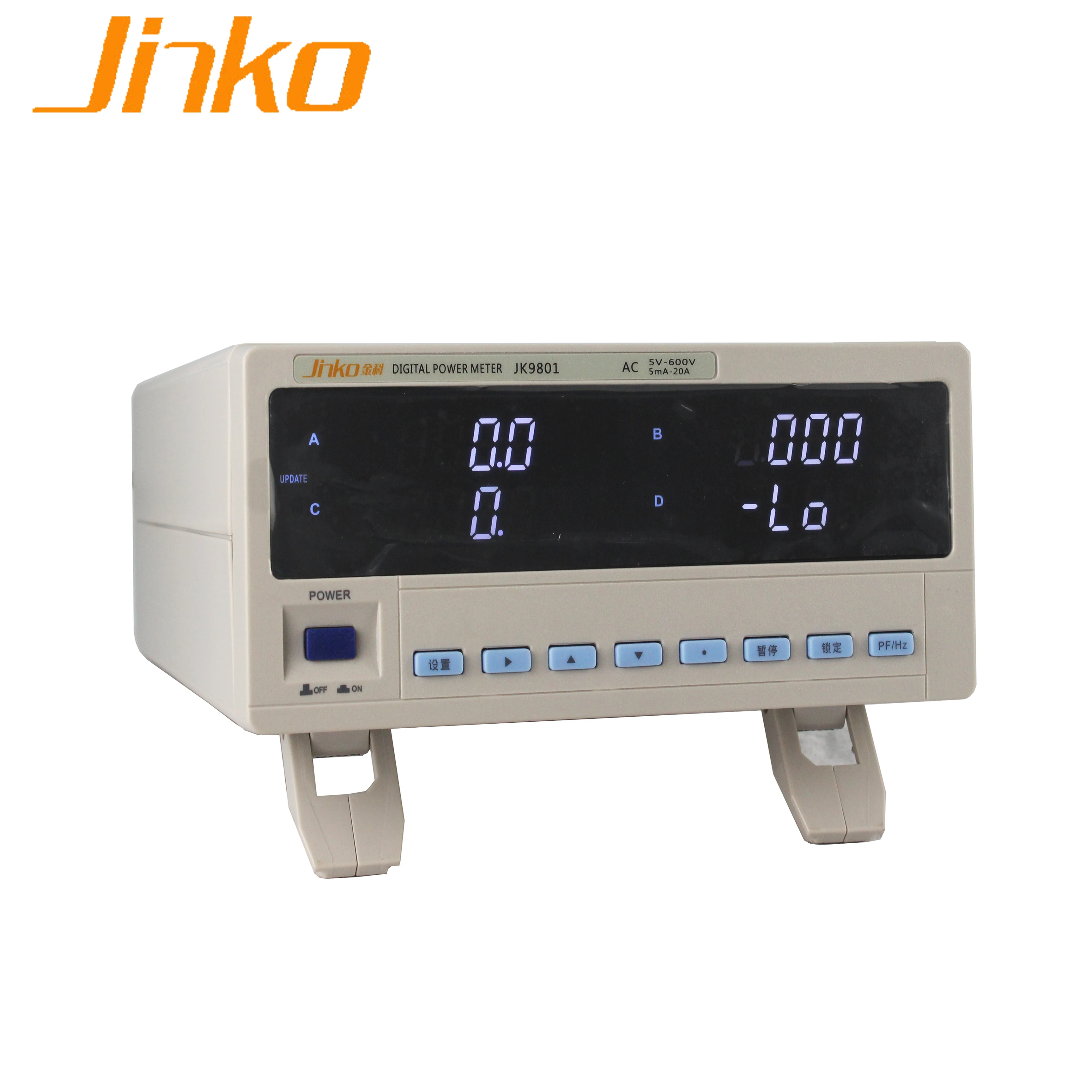

Измеритель коэффициента мощности переменного тока электрический параметр динамометр 600 в 20 А цифровой

Измеритель коэффициента мощности переменного тока электрический параметр динамометр 600 в 20 А цифровой

Категория: Измерители мощности >>>
Поставщик: Changzhou,Jinailian,Electronic,Technology,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	0.91 $*	0.75 $*
Aug-18-2025	0.76 $*	0.55 $*
Jul-18-2025	0.64 $*	0.92 $*
Jun-18-2025	0.39 $*	0.60 $*
May-18-2025	0.38 $*	0.13 $*
Apr-18-2025	0.78 $*	0.74 $*
Mar-18-2025	0.50 $*	0.72 $*
Feb-18-2025	0.41 $*	0.30 $*
Jan-18-2025	0.19 $*	0.19 $*

Характеристики

Product Description

Product features:

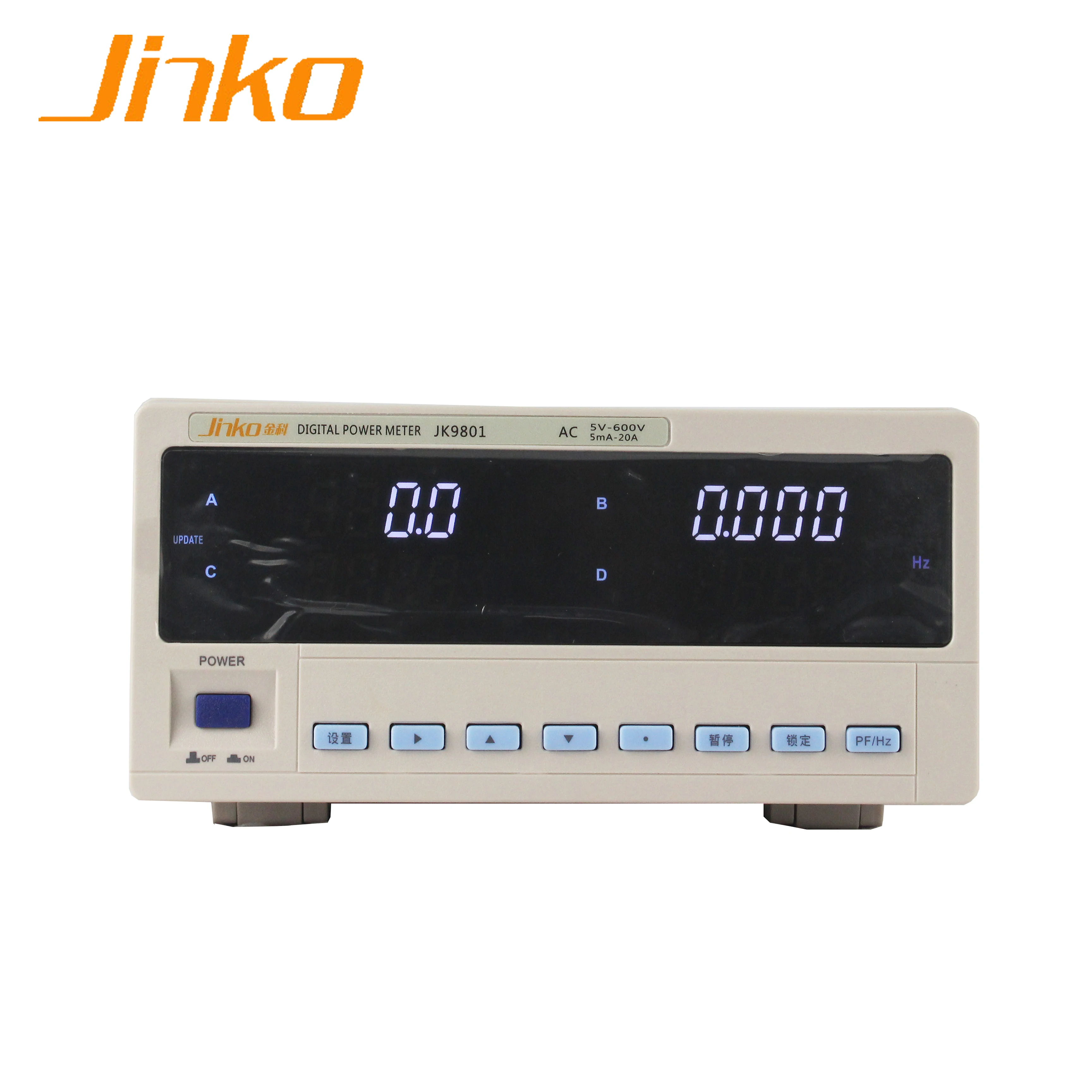

Four window shows at the same time: frequency and voltage, current, power, power factor /
All measurements were Trms true effective value
The automatic range
Accuracy: 0.5
With a high immunity to external noise
Support data locking
Can set the upper and lower limits of alarm function
Applicable to the production line test: if the lighting products, household electrical appliances, electrical products, power products.

Application field:
Energy consumption test of household appliances
Energy consumption test of air conditioner
Power consumption of electrical lighting
Power test of LED lamp
Motor and motor testing
Charger and switch power supply test

Technical parameter

Connection mode	Single-phase
display	LED digital screen
Measurement items	Voltage V, current A, active power W, power factor, frequency of Hz PF
Measuring form	Trms true RMS
Voltage range	5V ~ 600V AC (automatic range switching) Peak voltage: 700V AC Minimum test voltage 5V AC (less than 5V can be customized)
current range	10mA ~ 20A AC (range automatic switching) Peak current: 26A AC Minimum test current 10mA AC (less than 10mA can be customized)
The power range	0.1W-12kW
Power factor range	0.001-1.000
	Calculation method: Watts (W) ÷ [Voltage (V) × Current (A)] = Power factor (PF)

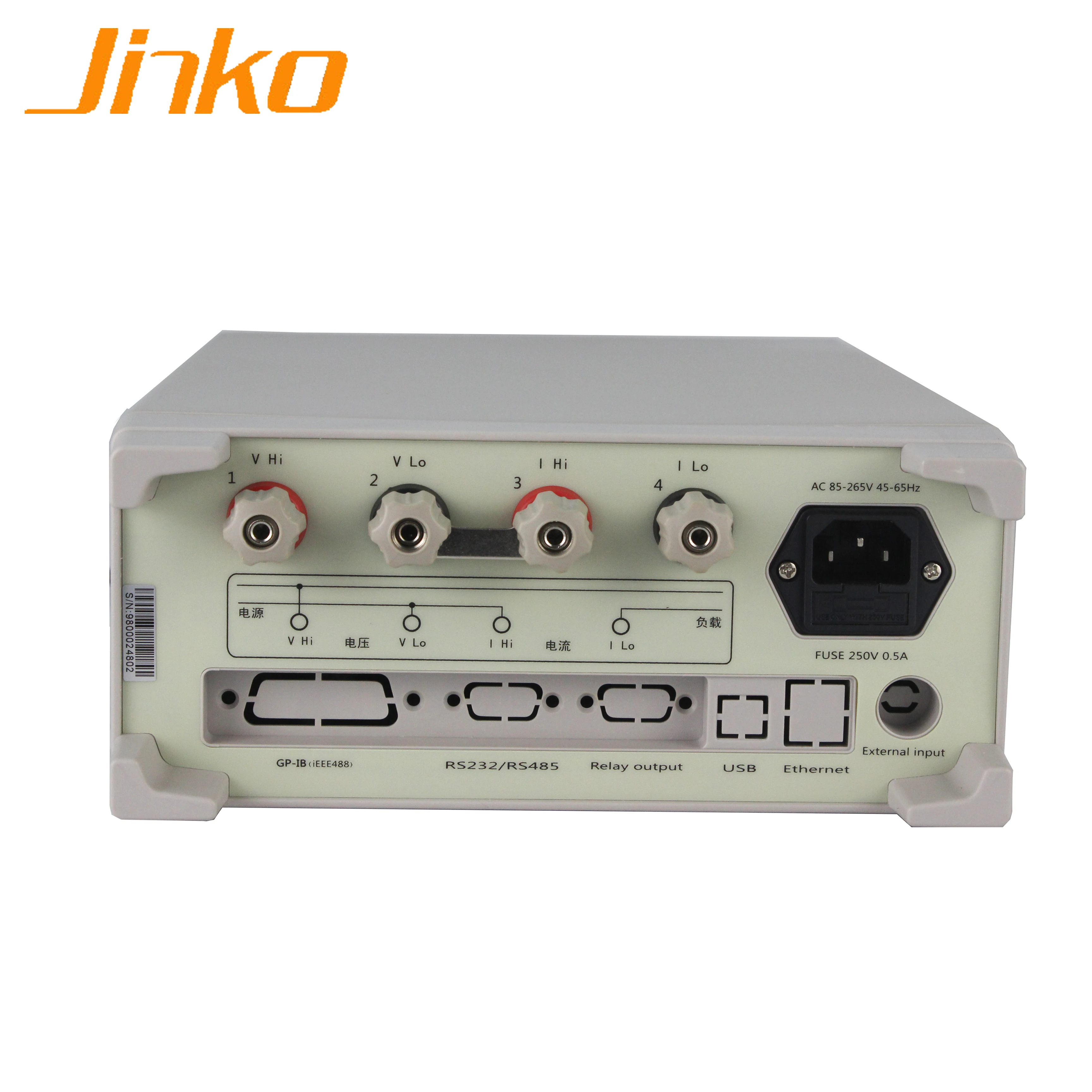

communication interface	Matching RS232 or 485, relay output function
Frequency range	45-400Hz
Basic accuracy	(0.4% + 0.1% range reading 1 words)
Measuring speed	5 times / sec
Input impedance	more than 1MΩ (all voltage)
Power supply	85 - 265V AC/ DC 50/60 Hz,
Volume and weight.	355mm * 223mm * 112mm width is 1.8kg
Enclosure	Power line, manual, warranty card

Packaging & Shipping

112

Company Information

Changzhou Jinailian Electronic Technology Co., Ltd. , established in 2000, is a private hi-tech enterprise integrating R&D, manufacturing and marketing. After 20 years of development, Jinko has developed 30 varieties, including: LCR Digital Bridge series; capacitance and inductance measurement (sorting) series; leakage current tester series; DC low resistance tester, MOS tube tester, transistor tester, multiplex temperature tester, paperless recorder, electrical parameter measuring instrument, and other high-precision measuring instruments and testers. Other active products such as: DC stabilized voltage supply and high power switching power supply.
