Редуктор планетарного редуктора 57PLF Nema 23 для шагового двигателя 57
- Категория: Speed Reducers >>>
- Поставщик: Shenzhen,Rtelligent,Mechanical,Electrical,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 67.88 $* | 70.19 $* |
| Aug-16-2025 | 66.26 $* | 69.53 $* |
| Jul-16-2025 | 55.64 $* | 58.82 $* |
| Jun-16-2025 | 65.42 $* | 68.68 $* |
| May-16-2025 | 57.59 $* | 60.75 $* |
| Apr-16-2025 | 64.66 $* | 67.82 $* |
| Mar-16-2025 | 63.38 $* | 66.76 $* |
| Feb-16-2025 | 63.64 $* | 66.62 $* |
| Jan-16-2025 | 62.31 $* | 65.2 $* |
Характеристики
Products Description

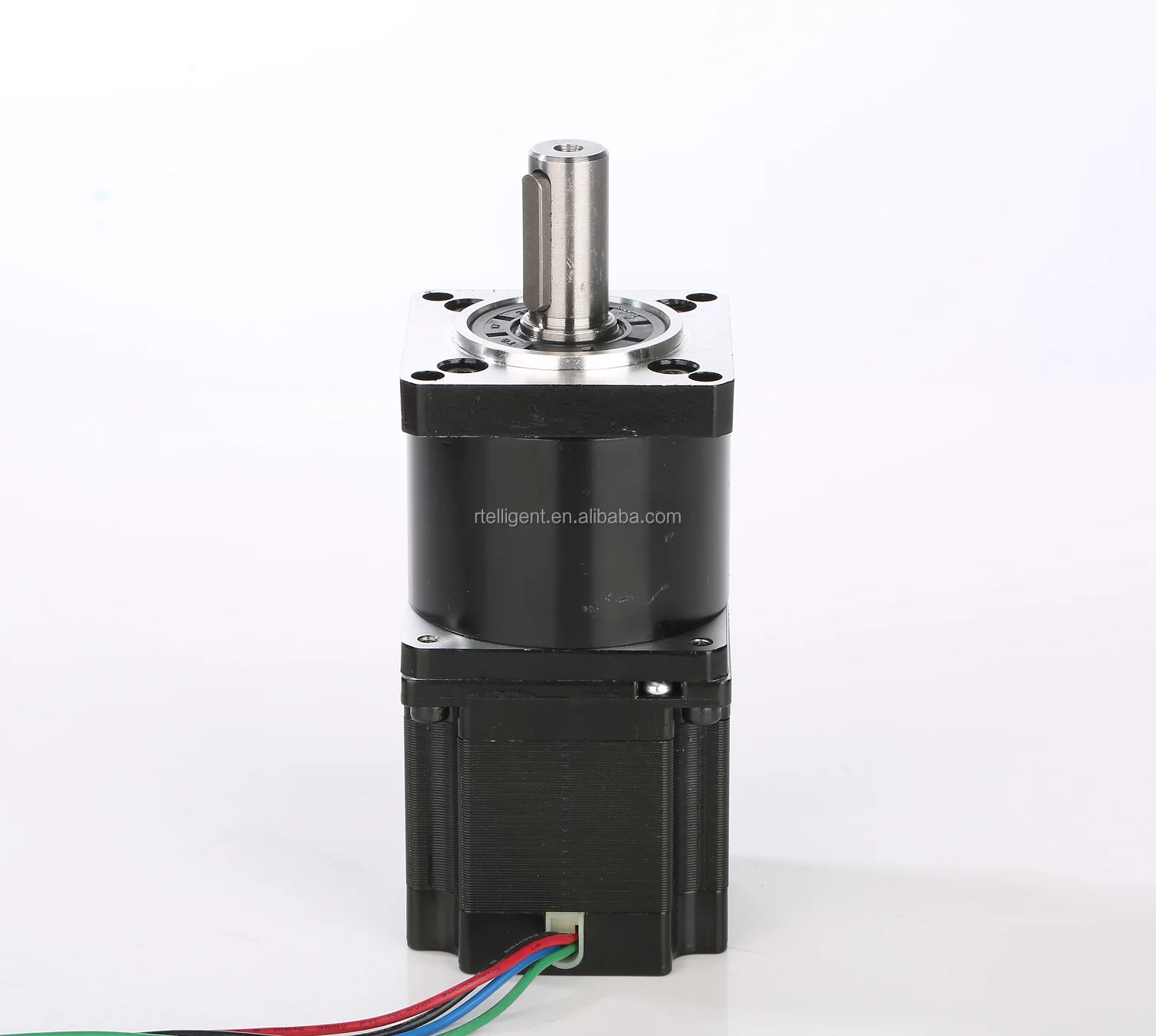

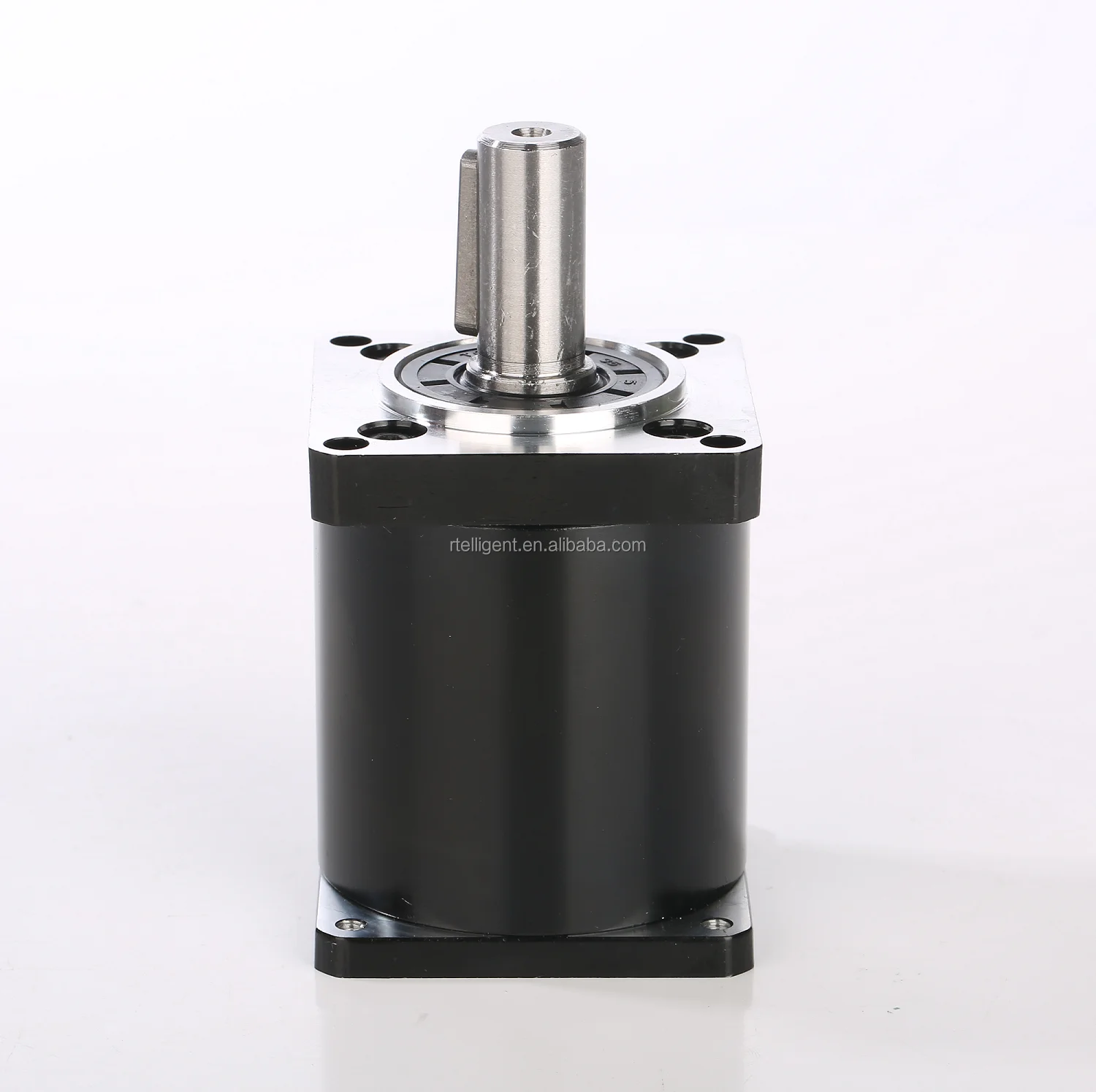

Based on characteristics of mechanical transmission, the stepper motor reducers reduce the speed on the output end to increase the motor driver torque, thus to increase the motor's loading capacity. In massive inertia and high torque output applications, reducer is a cost-effective method.

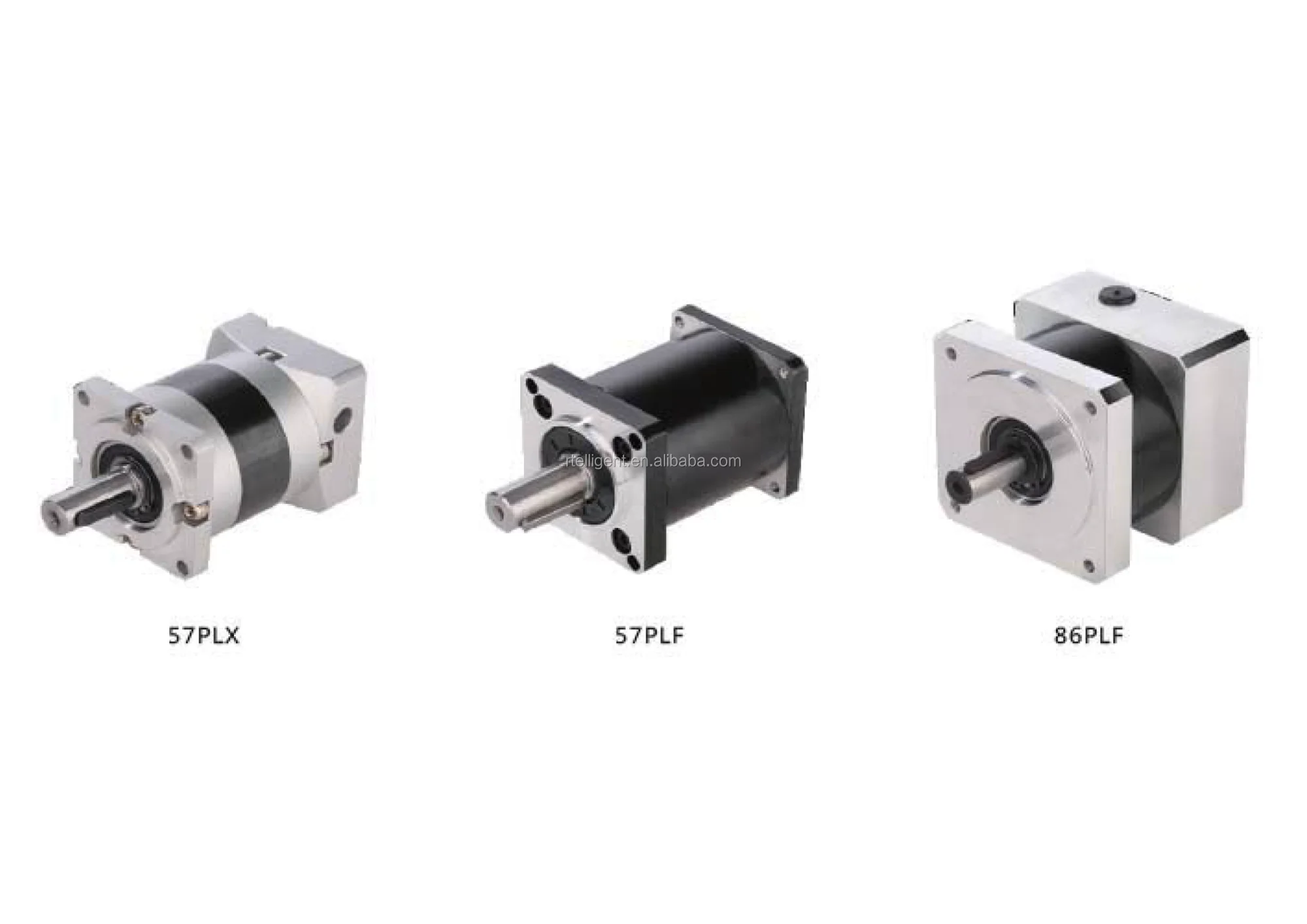

Rtelligent provides two series of reducers: PLF basic transmission reducer and PLX precision reducer.
The PLF backlash is <15 Arcmin (level 1) and <25 Arcmin (level 2)
Rtelligent provides two series of reducers: PLF basic transmission reducer and PLX precision reducer.
The PLF backlash is <15 Arcmin (level 1) and <25 Arcmin (level 2)
Naming
Product Paramenters
Reducer series | Motor base | Motor shaft diameter | Motor shaft length | Level 1 speed ratio | Base length of level one reducer |
42PLF | 42 | 5 | 12 | 4/5/10 | 44 |
57PLF | 57 | 8 | 8 | 4/5/7/10 | 53 |
86PLF | 86 | 14 | 32 | 4/5/7/10 | 83 |
Reducer series | Level 2 speed ratio | Base length of level two reducer |
42PLF | 15/20/30/40/50 | 51 |
57PLF | 15/20/30/40/50 | 70 |
86PLF | 15/20/25/40/50/100 | 97 |
Installation Instructions
