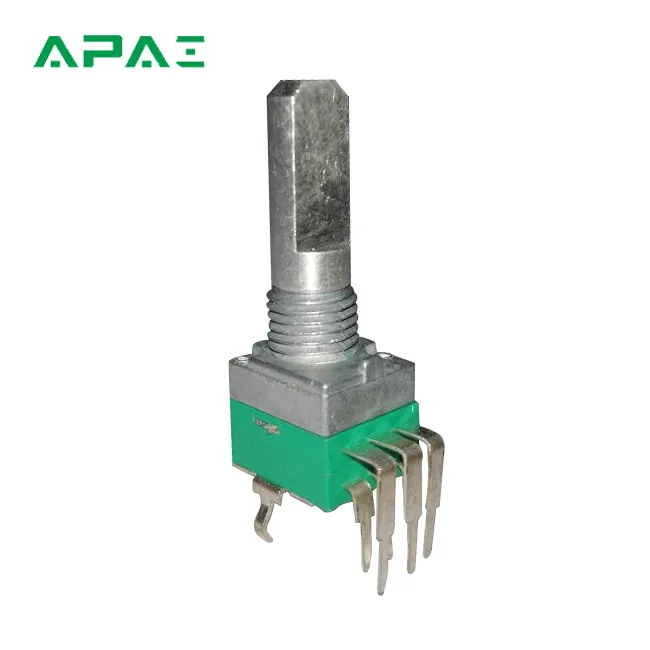

Роторный потенциометр RK095GH2 A10K B10K 09
- Категория: Potentiometers old >>>
- Поставщик: Foshan,Apai,Electronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.64 $* | 0.43 $* |
| Aug-15-2025 | 0.49 $* | 0.42 $* |
| Jul-15-2025 | 0.39 $* | 0.8 $* |
| Jun-15-2025 | 0.91 $* | 0.99 $* |
| May-15-2025 | 0.13 $* | 0.28 $* |
| Apr-15-2025 | 0.53 $* | 0.11 $* |
| Mar-15-2025 | 0.79 $* | 0.44 $* |
| Feb-15-2025 | 0.47 $* | 0.93 $* |
| Jan-15-2025 | 0.36 $* | 0.65 $* |
Характеристики
NEW
Operating temperature -10 ℃ ~ +70 ℃
Manual soldering 260 ℃ Max 3sec
Total resistance 1KΩ ~ 1MΩ
Resistance tolerance ±20%
Resistance taper A B
Sliding noise Less than 68 mV
Residual resistance Less than 20 Ω
Insulation resistance More than 100MΩ at DC 250V
Max. Operating voltage 50V AC
Withstand voltage 1 Minute at AC 300 V
Total rotational angle 300° ± 5°
Rotational torque 20 ~ 250 gf.cm
Rotational stopper strength 4Kgf.cm Max
Rotational life 10,000 cycles
