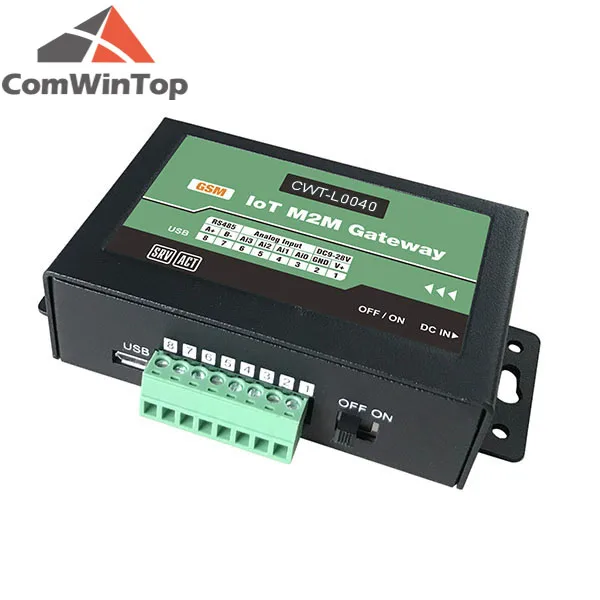

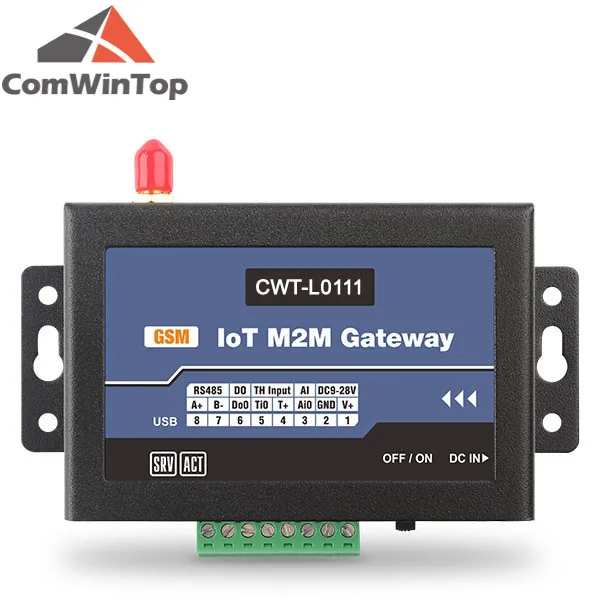

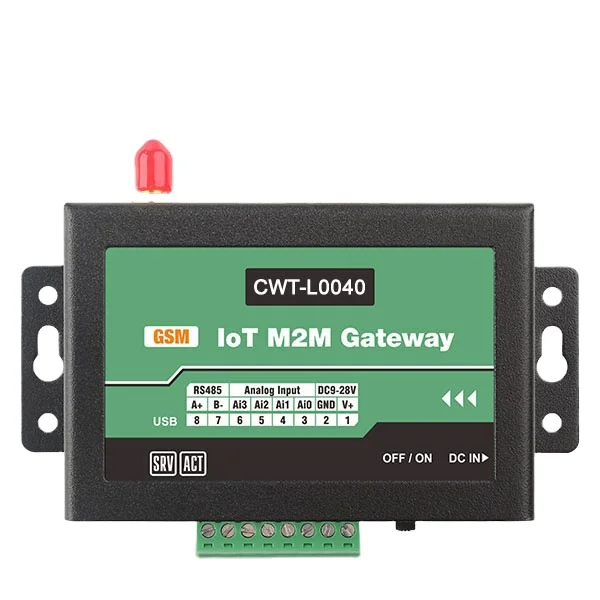

CWT-L Series IoT Gateway |
CWT-L M2M Iot Modbus Rs485 Gsm Gprs 3g 4g Rtu Dtu Modem
Overview
For acquiring the remote operating parameters and process management, CWT-L series IOT M2M Gateway help machine to access internet via GPRS/4G/Wi-Fi and establish TCP/IP connection with server.
CWT-L can be widely used in industrial automatic control, base station / computer room monitoring, environmental monitoring, water conservancy project, power industries, agriculture, etc.
Basic Features
1. RS485 to GPRS/4G/Wi-Fi to server
Mode A: Two-way data transparent forward between RS485 and server
Not change the communication data format
Mode B: Modbus master mode on RS485
CWT M2M IoT Gateway(RTU) as modbus master read slave over RS232/RS485, then push slave data to server by TCP/IP(optional multiple protocol)
2. IO to GPRS/4G/Wi-Fi to server
Port Features
Port | Features |
RS485 | l Two-way data transparent forward mode between RS485 and server l Modbus master mode on RS485 to read/write data from slaves |
DI (digital input) | l Accept dry contact l Optional pulse counter input (counting frequency: 0-50Hz) |
DO (digital output) | l Transistor output (drive voltage=power supply voltage, Drive current≤500mA l Remote or local event activate DO on/off/pulse l Remember status when power lost |
AI (analog input) | l Accept 4-20mA (option: 0-5V), Sampling frequency: 33Hz, 16-bit precision) l Convert signal to actual measure value,support adjustment l Configurable parameters for signal acquisition, alarm, data communication l Detect connect or disconnect to alarm |
TI (temperature& Humidity input) | l Accept DS18B20 temperature probe (measure -40~80℃) l Accept AM2301 temperature & humidity probe (measure -40~80℃, 0~100%RH) l Configurable parameters for alarm (high or lower), data uploading l Fahrenheit or centigrade units for temperature l Detect probe connect or disconnect to alarm |
Wireless network communication | l TCP/IP connect at most 4 servers(support Static IP address or domain) l Events(e.g. alarm, timer) trigger upload data l Communication protocol: Modbus TCP,http post, Cwt_IO(two-way communication) l Support two-way data transparent transmission between RS485 to server |
SMS Communication (Wi-Fi version don’t support) | l Preset 10 phone numbers (support distribute authority to receive sms) l Sms alarm when value out of preset normal range l Editable alarm and recover sms with time stamp l Query status or value via sms command l Sms report status or value on schedule l Remote setting via sms commands l Can query SIM card balance, sms forward l support power lost sms alarm and recover sms(works with inside battery) |
System Features
lAdopted highly integrated industrial 32-bit ARM MCU
lReliable performance with built-in double watchdog, 24×7 operation
lWith signal filtering mechanisms
lNetwork-reconnect and retransmission to ensure data accurately transmit
lUpdate RTC automatically or manually, clock source support Sms, NTP, CwtIO Server
lCan set multiple timers(second, minute, day, week, month) to upload data
lProvide configure software, visual programming
lOptional inside battery that life is 8-20 hours, cellular module Intelligent sleep when power lost
Universal Specifications
Core | MCU | Cortex M3 32-bit ARM |
Power | Power supply | 9-28V DC (Standard adapter: DC 12V/1.5A) |
Consumption | 12V input Max. 150mA/Average 50mA | |
Network | Optional Network | GSM/GPRS (4 band 850/900/1800/1900Mhz) WCDMA (3G), FDD LTE(4G) Wi-Fi, 802.11 b/g security WEP/WPA/WPA2 |
Config port | Mini USB | PL2303 chip |
Other interface | SIM/UIM | Standard user card interface |
Antenna | Standard SMA female interface (50Ω) | |
Others | Optional Battery | lithium-polymer, 500mAh/3.7V,life:8-20 hours |
Working Environment | temperature | -30℃~+70℃ |
humidity | 5~95%(non-condensing) | |
Physical | Terminals | 1×8pin 3.81mm spacing, pluggable |
Housing | Providing IP30 protection | |
Dimension | 88×60×25mm | |
Weight | 150G |
Size Diagram
gateway×1, antenna×1,USB cable×1, configure Software
Free CWT Cloud
