Линия электропередачи строительства беспилотных
- Категория: Aircraft >>>
- Поставщик: Bazhou,Dpair,Hardware,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.46 $* | 0.1 $* |
| Aug-17-2025 | 0.22 $* | 0.16 $* |
| Jul-17-2025 | 0.2 $* | 0.39 $* |
| Jun-17-2025 | 0.21 $* | 0.54 $* |
| May-17-2025 | 0.47 $* | 0.29 $* |
| Apr-17-2025 | 0.97 $* | 0.4 $* |
| Mar-17-2025 | 0.10 $* | 0.44 $* |
| Feb-17-2025 | 0.48 $* | 0.97 $* |
| Jan-17-2025 | 0.45 $* | 0.34 $* |
Характеристики

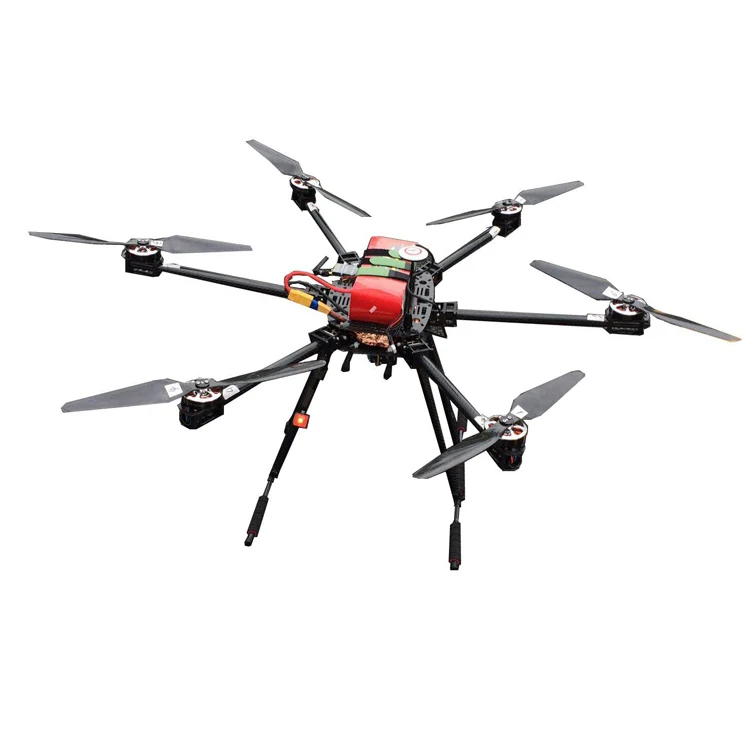

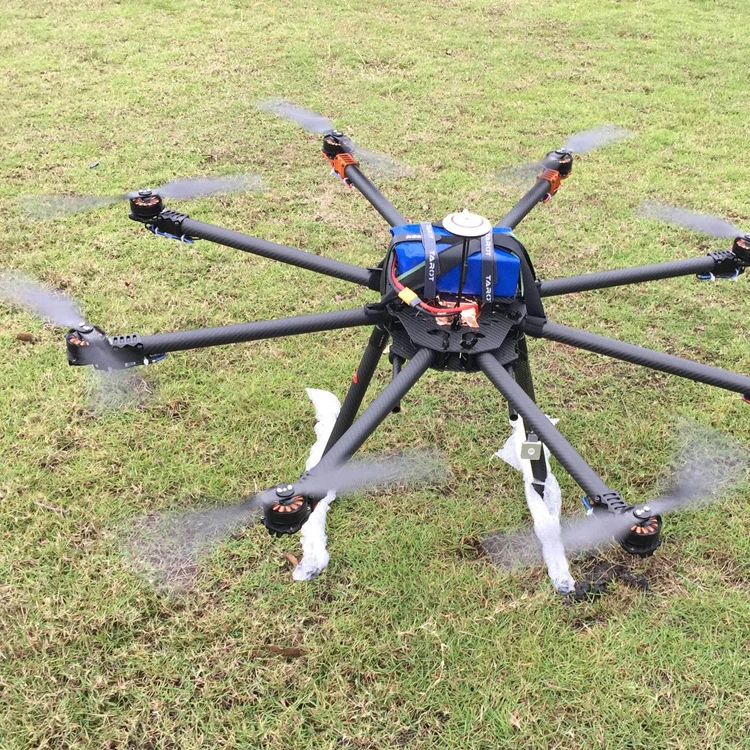

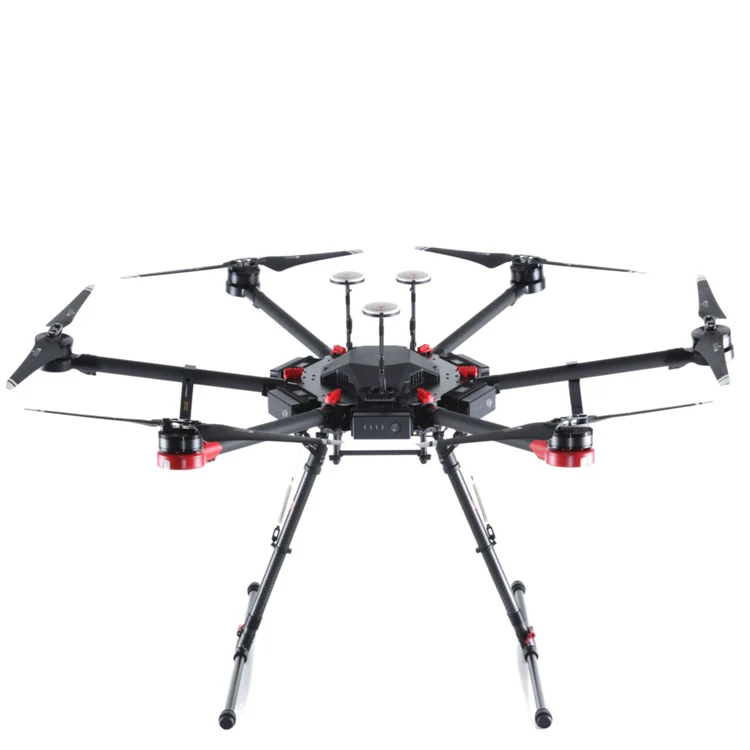

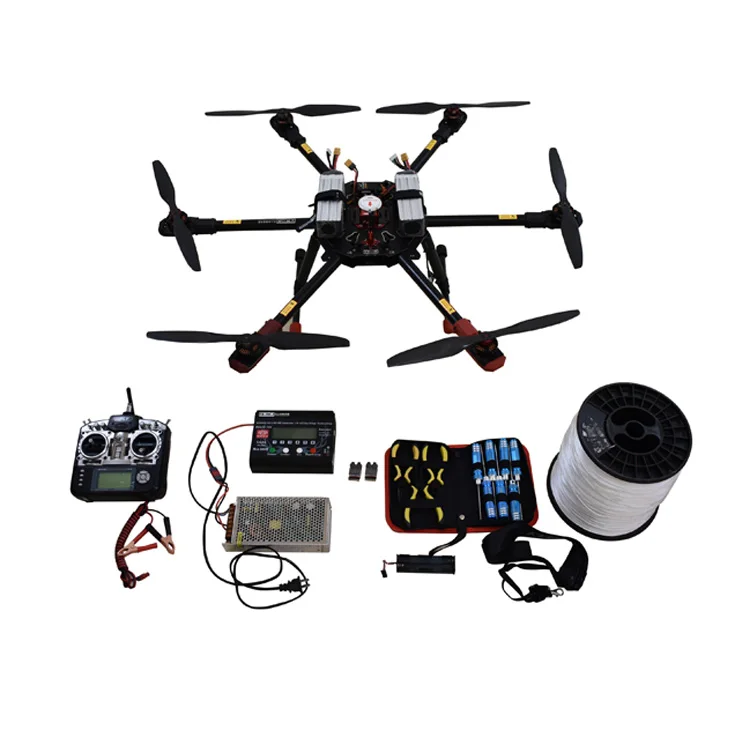

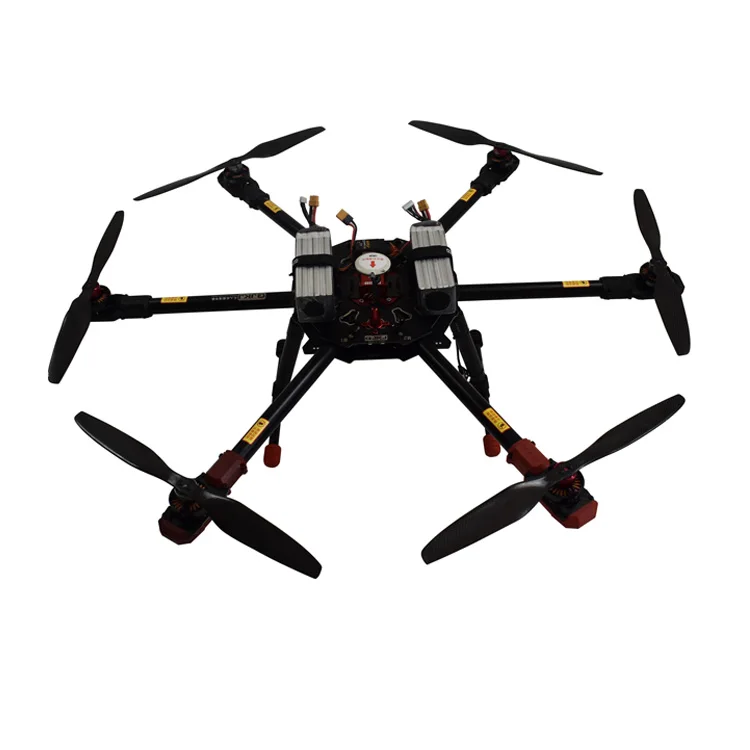

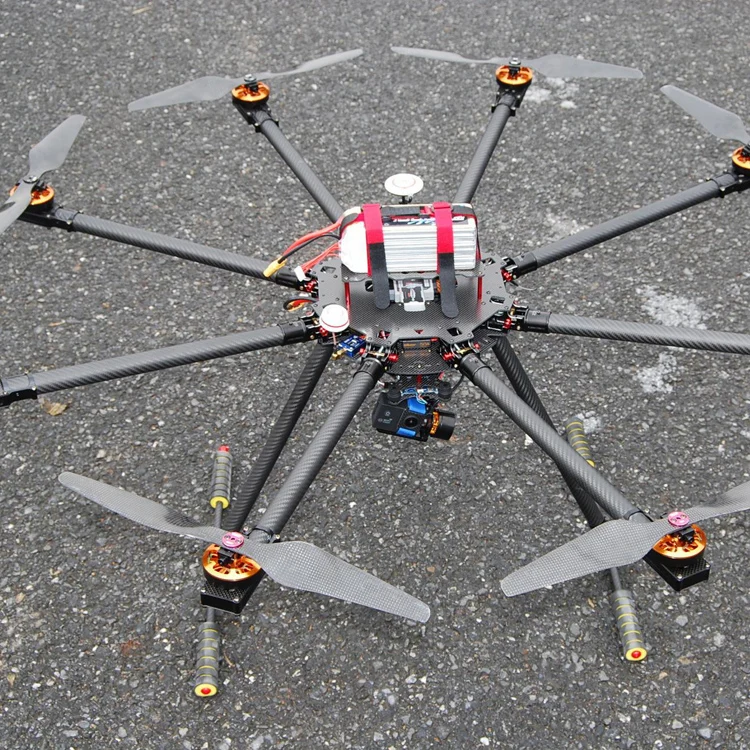

Transmission line dedicated unmanned aircraft
Transmission line dedicated unmanned aircraft the act of flying a strong and lightweight rope and attaching it to the towers, is typically performed via helicopters or by workers climbing the towers. Both these methods involve risk to both helicopter pilots and ground crews. The use of is eliminating the previously complex process consisting of several steps of reattaching the rope and decreasing the risk of injury for involved people.
This is a great proof of concept for unmanned aircraft because we proved that they can string both the outboard lines and the center line through the middle of the center phase of a tower. There are risks associated with both helicopter and tower climbing methods.
Aircraft parameters
Number of aircraft axles(axis) | 6axis |
Remote control distance(km) | Radius 2km, diameter 4km |
Maximum ceiling height(m) | 2000m |
Maximum flight speed(m/s) | 45m/s |
flight duration(min) | One battery (6500mA) for 16 minutes Two battery (6500mA) for 25 minutes |
Size(cm) | 120cm*30cm*30cm |
Power battery parameters | 6500mA, 22.2V, 25C |
Remote control battery parameters | 2200mA, 11.1V, 10C |
Traction rope size(mm) | 1.2mm, 2.0mm, 3.0mm |
Traction distance(m) | 1.2 mm traction rope linear radius can fly 1500 meters 2.0 mm traction rope linear radius can fly 1000 meters 3.0 mm traction rope linear radius can fly 600 meters |
