Игольчатый роликовый подшипник K202408 серии K
- Категория: >>>
- Поставщик: Jinan,Str,Bearing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-17-2025 | 1.75 $* | 1.73 $* |
| Jul-17-2025 | 1.18 $* | 1.52 $* |
| Jun-17-2025 | 1.9 $* | 1.45 $* |
| May-17-2025 | 1.22 $* | 1.13 $* |
| Apr-17-2025 | 1.22 $* | 1.54 $* |
| Mar-17-2025 | 1.22 $* | 1.45 $* |
| Feb-17-2025 | 1.19 $* | 1.1 $* |
| Jan-17-2025 | 1.46 $* | 1.47 $* |
Характеристики
Product Description

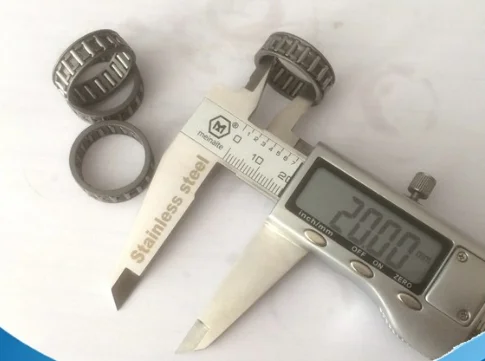

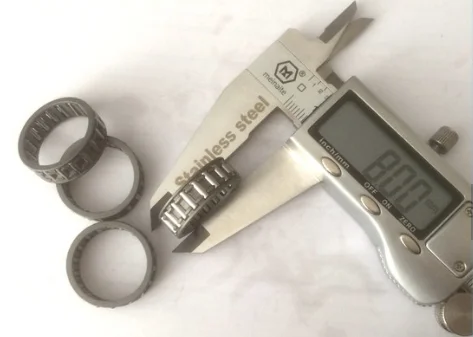

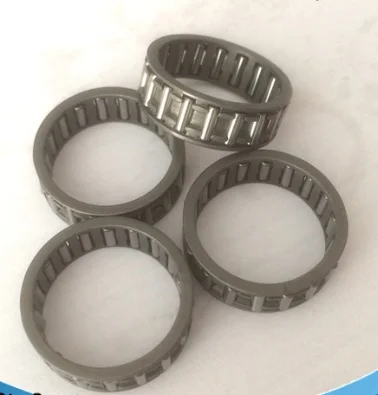

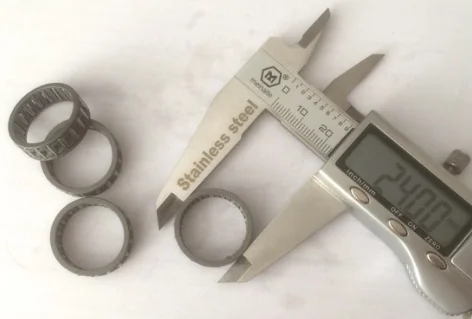

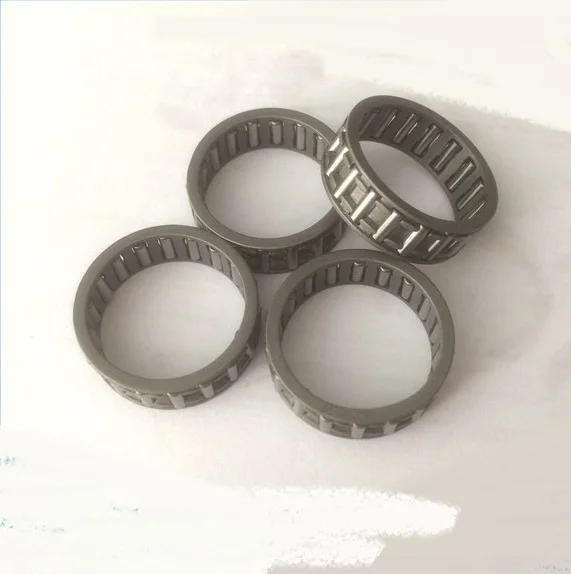

20*24*8mm K series needle roller bearing K202408
K series nylon cage radial needle roller bearings size
Models
| Shaft | Bearing Designation | Mass | BoundaryDimensions | BasicLoadRating | Limiting Speed | ||||
| Diameter | |||||||||
| Approx | Fw | D | C | Oil | |||||
| CurrentCode | OriginalCode | Dynamic | Static | ||||||
| mm | g | mm | N | rpm | |||||
| 17 | K17X21X10 | 29241/17 | 5.6 | 17 | 21 | 10 | 7900 | 10100 | 21000 |
| K17X21X13 | 39241/17 | 7.5 | 17 | 21 | 13 | 10000 | 14100 | 21000 | |
| K17X21X17 | 59241/17 | 9.5 | 17 | 21 | 17 | 12000 | 17400 | 21000 | |
| K17X23X14 | 29243/17 | 11.5 | 17 | 23 | 14 | 11000 | 15000 | 21000 | |
| 18 | K18X22X10 | 29241/18 | 6.1 | 18 | 22 | 10 | 8200 | 9900 | 20000 |
| K18X22X13 | 39241/18 | 7.7 | 18 | 22 | 13 | 9000 | 12100 | 20000 | |
| K18X22X17 | 59241/18 | 10.8 | 18 | 22 | 17 | 11900 | 17600 | 20000 | |
| K18X24X12 | 19243/18 | 11.6 | 18 | 24 | 12 | 11200 | 12900 | 20000 | |
| K18X24X13 | 12.6 | 18 | 24 | 13 | 12900 | 14900 | 20000 | ||
| K18X24X13.5 | 13 | 18 | 24 | 13.5 | 12900 | 14900 | 20000 | ||
| K18X24X20 | 49243/18 | 19 | 18 | 24 | 20 | 20000 | 26500 | 20000 | |
| K18X25X14 | 14.9 | 18 | 25 | 14 | 16500 | 18800 | 20000 | ||
| K18X25X22 | 24.3 | 18 | 25 | 22 | 22900 | 28400 | 20000 | ||
| K18X26X14 | 19 | 18 | 26 | 14 | 18000 | 20000 | 18000 | ||
| K18X28X16 | 19244/18 | 24 | 18 | 28 | 16 | 19000 | 18400 | 19000 | |
| 19 | K19X23X13 | 8.2 | 19 | 23 | 13 | 9300 | 13000 | 20000 | |
| K19X23X17 | 11.1 | 19 | 23 | 17 | 12000 | 18600 | 20000 | ||
| 20 | K20X24X10 | 29241/20 | 6.5 | 20 | 24 | 10 | 8700 | 12100 | 19000 |
| K20X24X12 | 8 | 20 | 24 | 12 | 9600 | 13800 | 19000 | ||
| K20X24X13 | 39241/20 | 8.9 | 20 | 24 | 13 | 9600 | 13800 | 19000 | |
| K20X24X17 | 59241/20 | 11.2 | 20 | 24 | 17 | 12400 | 20000 | 19000 | |
| K20X26X12 | 19243/20 | 13.2 | 20 | 26 | 12 | 13100 | 15700 | 19000 | |
| K20X26X16 | K9249/20 | 17.5 | 20 | 26 | 16 | 18000 | 25000 | 18500 | |
| K20X26X17 | 39243/20 | 18.2 | 20 | 26 | 17 | 18700 | 25500 | 19000 | |
| K20X26X20 | 49243/20 | 22 | 20 | 26 | 20 | 20600 | 28500 | 19000 | |
| K20X28X20 | 19245/20 | 26.8 | 20 | 28 | 20 | 23400 | 28000 | 18000 | |
| K20X28X25 | 29245/20 | 36.2 | 20 | 28 | 25 | 30000 | 28500 | 18000 | |
| K20X30X30 | 39245/20 | 56 | 20 | 30 | 30 | 35000 | 41000 | 18000 | |
| 21 | K21X25X13 | 9 | 21 | 25 | 13 | 9600 | 14500 | 19000 | |
| K21X25X17 | 12 | 21 | 25 | 17 | 12800 | 21000 | 19000 | ||
| 22 | K22X26X10 | 29241/22 | 7.1 | 22 | 26 | 10 | 8700 | 12900 | 18000 |
| K22X26X13 | 39241/22 | 9.4 | 22 | 26 | 13 | 10000 | 15400 | 18000 | |
| K22X26X17 | 59241/22 | 12.1 | 22 | 26 | 17 | 13100 | 22100 | 18000 | |
| K22X27X13 | 29242/22 | 10.8 | 22 | 27 | 13 | 14000 | 23000 | 18000 | |
| K22X28X17 | 39243/22 | 19.7 | 22 | 28 | 17 | 19000 | 26500 | 18000 | |
| K22X28X23 | 59243/22 | 26 | 22 | 28 | 23 | 20000 | 27000 | 19000 | |
| K22X29X16 | 19244/22 | 22.2 | 22 | 29 | 16 | 19500 | 25000 | 17000 | |
| K22X30X15TN | 14.4 | 22 | 30 | 15 | 19600 | 22900 | 17000 | ||
| K22X30X20 | 19245/22 | 28 | 22 | 30 | 20 | 21000 | 23500 | 18900 | |
| K22X32X24 | 43.4 | 22 | 32 | 24 | 33500 | 39500 | 16000 | ||
| 23 | K23X35X16TN | 30 | 23 | 35 | 16 | 24000 | 23400 | 15000 | |
| 24 | K24X28X10 | 8.1 | 24 | 28 | 10 | 9400 | 14300 | 17000 | |
| K24X28X13 | 10.1 | 24 | 28 | 13 | 10500 | 17000 | 17000 | ||
| K24X28X17 | 9243/24 | 13.2 | 24 | 28 | 17 | 14000 | 24500 | 17000 | |
| K24X29X13 | 13.5 | 24 | 29 | 13 | 13100 | 19100 | 16000 | ||
| K24X30X17 | 21.5 | 24 | 30 | 17 | 19000 | 27000 | 16000 | ||
| K24X30X31 | 39.1 | 24 | 30 | 31 | 27000 | 43000 | 16000 | ||
| 25 | K25X29X10 | 29241/25 | 8.3 | 25 | 29 | 10 | 9700 | 14900 | 16000 |
| K25X29X13 | 39241/25 | 10.4 | 25 | 29 | 13 | 10800 | 17900 | 16000 | |
| K25X29X17 | 59241/25 | 13.7 | 25 | 29 | 17 | 14500 | 25500 | 16000 | |
| K25X30X13 | 29242/25 | 12.9 | 25 | 30 | 13 | 14100 | 21300 | 16000 | |
| K25X30X20 | 59242/25 | 20.5 | 25 | 30 | 20 | 21100 | 28000 | 16000 | |
| K25X30X25 | 21 | 25 | 30 | 25 | 21700 | 40400 | 15000 | ||
| K25X30X26 | 52.436 | 21.6 | 25 | 30 | 26 | 20100 | 26500 | 15000 | |
| K25X31X17 | 39243/25 | 21.8 | 25 | 31 | 17 | 19000 | 28000 | 16000 | |
| K25X31X21 | 39243/25 | 26.2 | 25 | 31 | 21 | 24100 | 37500 | 16000 | |
| K25X32X16 | 19244/25 | 24.5 | 25 | 32 | 16 | 20500 | 27500 | 15000 | |
| K25X33X20 | 19245/25 | 32 | 25 | 33 | 20 | 28000 | 37500 | 15000 | |
| K25X33X24 | 29245/25 | 38.7 | 25 | 33 | 24 | 33900 | 46500 | 15000 | |
| K25X34X18 | 32 | 25 | 34 | 18 | 48000 | 67000 | 15000 | ||
| K25X35X30 | 39245/25 | 65.5 | 25 | 35 | 30 | 46500 | 61500 | 14000 | |
| K25X30X26 ZW | 27 | 25 | 30 | 26 | 21000 | 35000 | 14000 | ||
Company Information
Packaging & Shipping
Our Services
1.We can offer a various kind of bearing with top quality.
2.Promptness in technical support pre- and after sales.
3.We can supply the samples (some for free).
4. OEM for our customers.
5.Prompt delivery time.
FAQ
Q:Why choose us?
A:1. We are a Professional team who is experienced for more than ten years
2. We can offer a various kind of bearing with high quality and best price.
Q:How is the quality of your products?
A:The same quality, we have lower price.The same price,we have better quality.
Q: Do you provide samples? is it free or extra?
A:Yes, we could offer some samples for free charge but do not pay the cost of freight.
Q:What is the delivery time?
A: We have stock for most of the bearings. For small quantity, we will arrange delivery about 2-5 days.
Q: What is your MOQ?
A: For common bearing model number, our MOQ is 1pc.
Please feel free to contact us if you have any questions or needs.
