Характеристики
Product Description

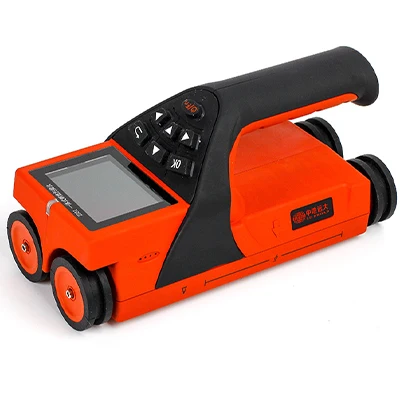

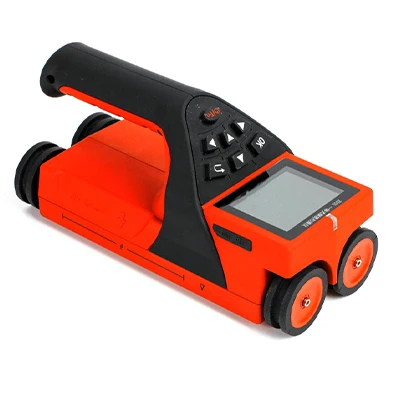

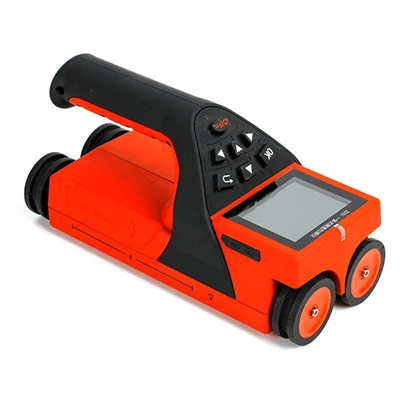

New best Construction building Rebar Concrete Scanners Rebar Scanner Rebar Detector In Concrete Steel Bar Scanner
Specification
Name | Portable Concrete Rebar Detector steel bar scanner |
Applicable range of Rebar(mm) | φ6~φ50 |
Protective layer thickness range(mm) | Small range:1~80 Large range:5~185 |
Maximum Allowable Error of Protective Layer Thickness(mm) | ±1 1~60 |
±2 60-100 | |
±3 101~120 | |
±5 121-160 | |
±8 161~185 | |
Applicability of Diameter Measurement (mm) | ϕ 6~Ф50 |
Maximum Error of Diameter Measurement (Specification) | ±1 |
Scanning mode | Thickness model,JGJ Testing |
Scanning range | Borderless |
JGJ Testing | Achieve single point 1-6 measurements, automatically calculate the average |
Data transmission mode | USB\\ wireless |
Screen | 2.8-inch High Resolution Color LCD Screen (320 x 240 pixels |
Power supply | Built in high capacity lithium battery |
Set shutdown time | 5min,10 min,15 min,30 min,60 min,90 min |
With error correction | -3.0~+3.0(±0.5,±1.0,±1.5,±2.0,±2.5,±3.0) |
Operation | Silicone keypad |
Remote Data Management | Implementing real-time data upload Online |
working temperature | -10℃~+42℃ |
Size(mm) | 219×92×106 |
Weight(Kg) | 0.60(Battery included) |
steel bar scanner Special Functions:
1. The detection mode is intuitive, accurate, accurate display of steel bar position, spacing, protective layer thickness in the
same screen;
2. Single handing machine, operation design and four wheel positioning method, equipped with high strength wear-resistant tires,
easy to protect the wear and tear of the detector;
1. The detection mode is intuitive, accurate, accurate display of steel bar position, spacing, protective layer thickness in the
same screen;
2. Single handing machine, operation design and four wheel positioning method, equipped with high strength wear-resistant tires,
easy to protect the wear and tear of the detector;
