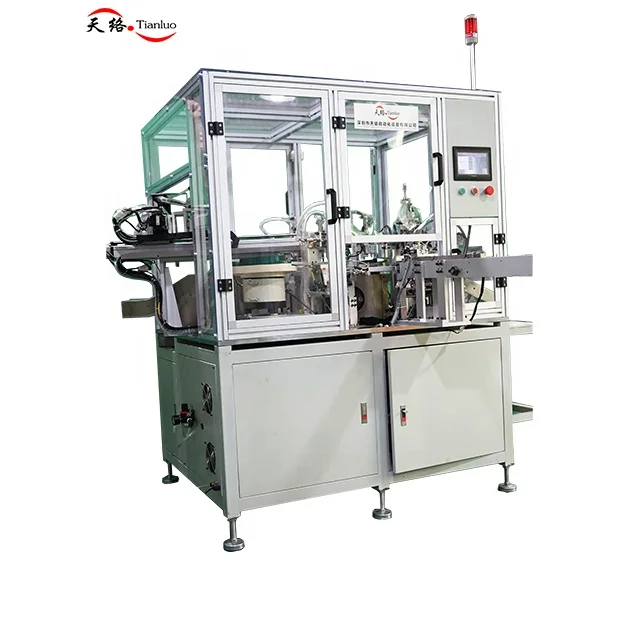

Instrument movement motor timer clock movement assembly equipment

Product Description



Product function

      This equipment is suitable for the Instrument movement motor or timer clock movement assembly, that for automatic assembly of the timer components. It adopts PLC control system to automatically complete feeding, assembly and finished product discharge; it greatly improves production efficiency, reduces workers and reduces costs.



Instrument movement motor timer clock movement assembly equipment parameter details

Function	automatic assembly
Application	moverment
Type	automatic machine
Production efficiency	1000-1200 pcs/hour
Power supply	220V 50/60Hz/4.0KW
Sizes	1900mm (L) x 1500mm (W) x 1700mm (H) (for reference only)
Air volume	160L/min
Weight	600Kg
Air supply	0.5-0.7Mpa
Feeding mode	Vibrating feeder









Machine Structure:

1. Electronic control: touch screen, PLC control;

2. Gas into components: cylinder drive, optical fiber sensor;

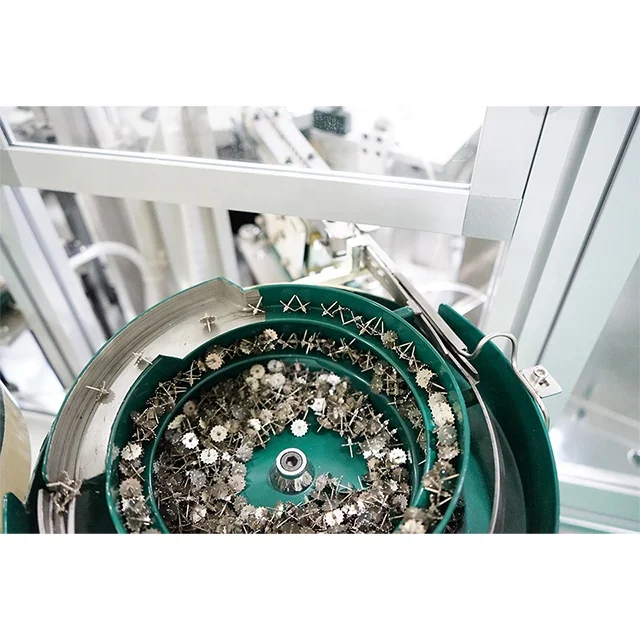

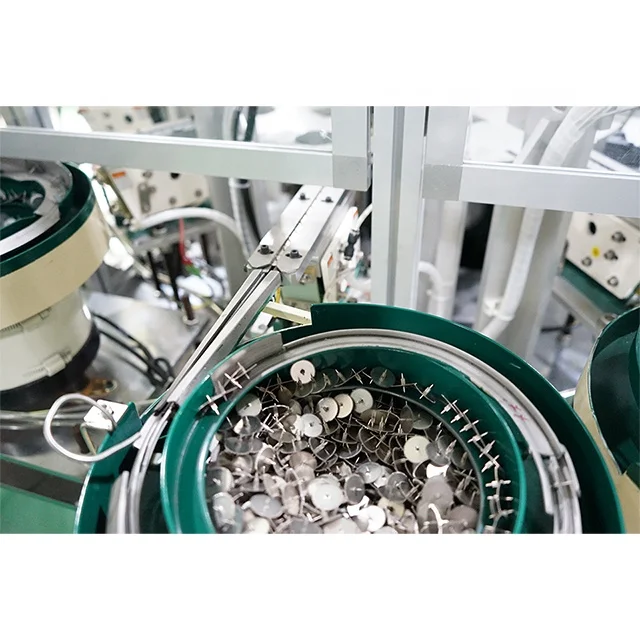

3. The vibrator automatic feeding;

4. The structure sliding part is made of high speed steel, which is stable wear and good fixity;

5. 1years warranty;

6. Alarm indication;

Main Features

1. This series machines is designed and manufactured specifically for the timer and instrument assembly industry.

2. Automatic feeding, assembly one-time processing complete.

3. Automatic detection, automatic start when material is detected, automatic stop when lack of material.

4. Automatic counting , set output.

5. Using the touch screen, intuitive interface, simple and safe operation.

6. Abnormal shutdown, automatic alarming when reporting abnormal information.



    Can be designed and customized for customers, to a greater extent to meet the technical needs of different products.
