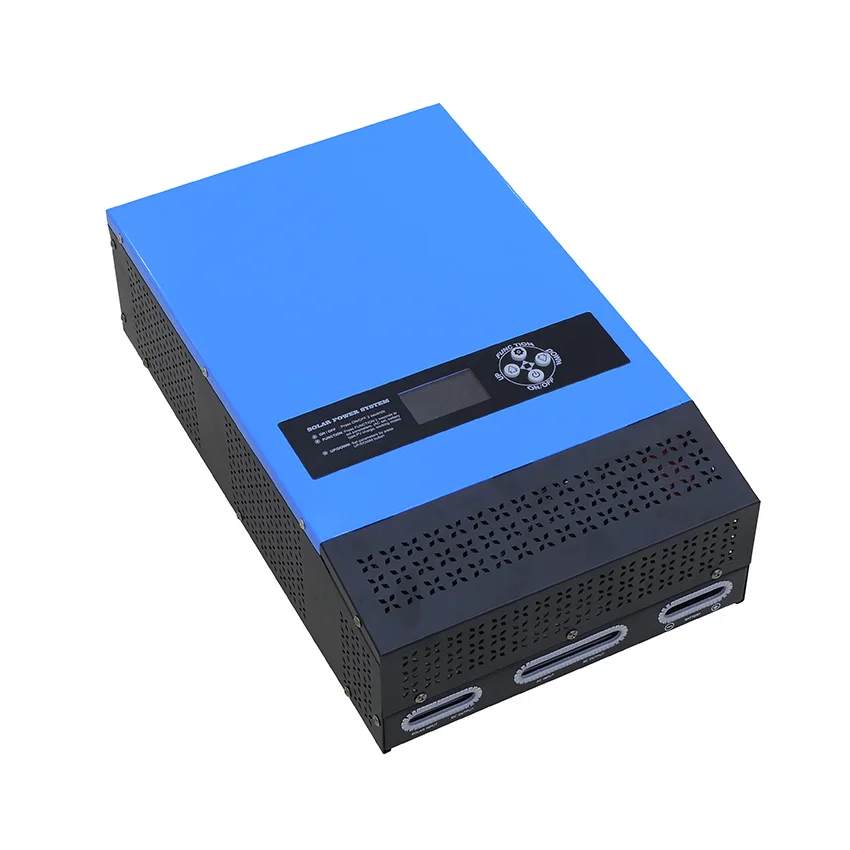

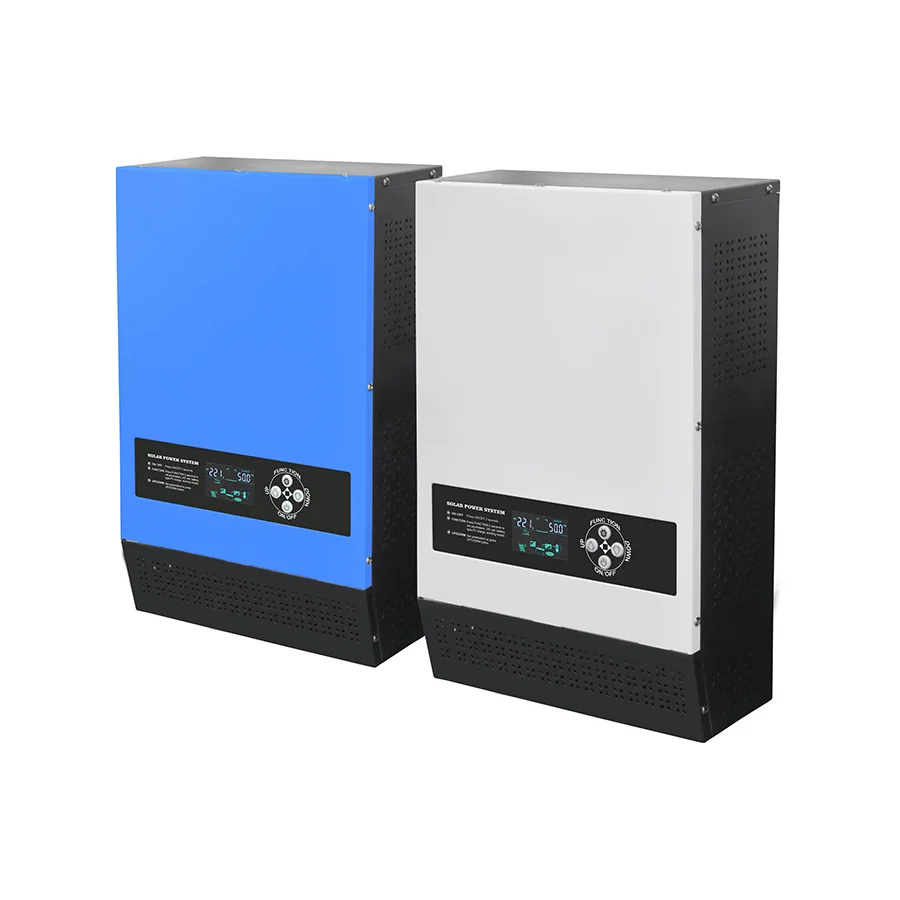

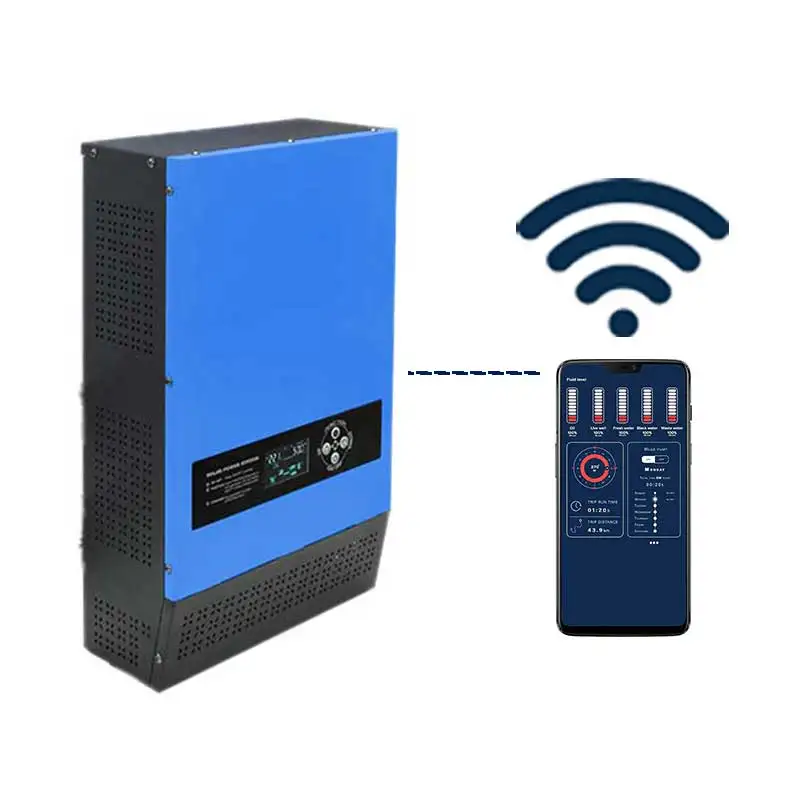

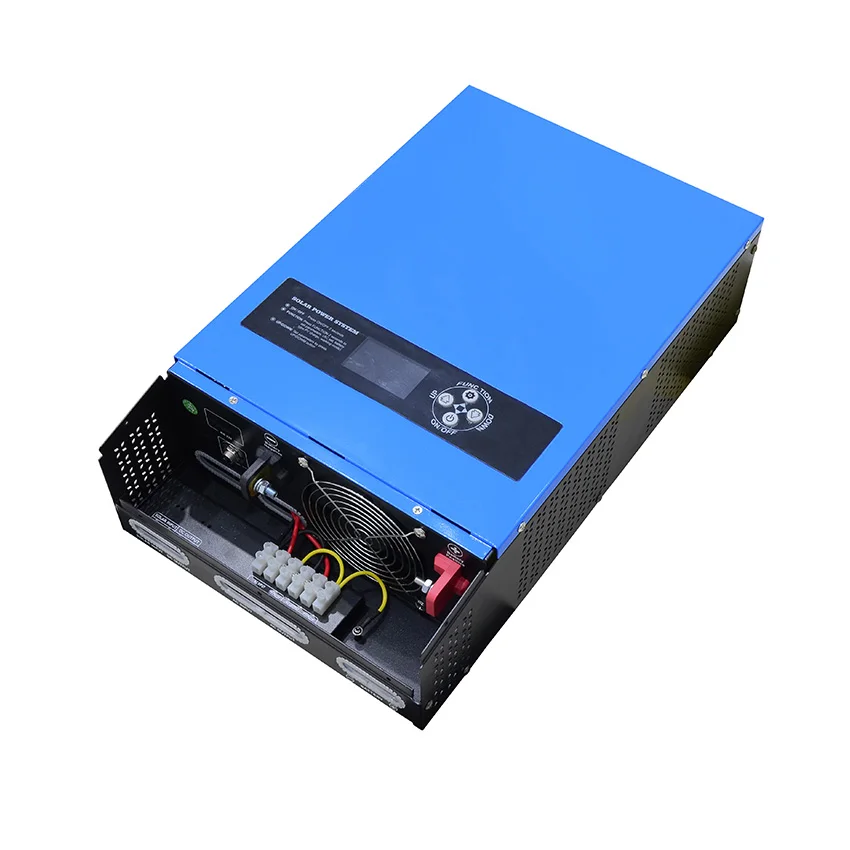

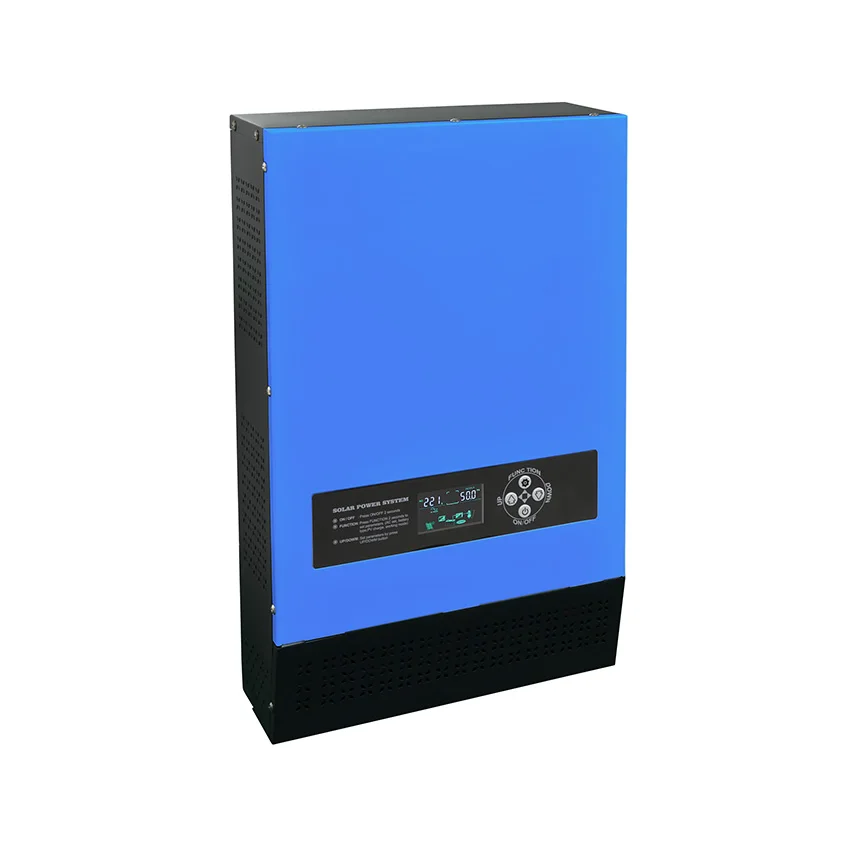

Солнечный инвертор senoidal pura psw Инвертор 1500 Вт 2 кВт 3000 4000 5000 6000 микро для сварки 12
- Категория: Инверторы и Преобразователи >>>
- Поставщик: Guangdong,Xindun,Power,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 10879.77 $* | 11423.78 $* |
| Aug-19-2025 | 10788.98 $* | 11327.33 $* |
| Jul-19-2025 | 9051.86 $* | 9504.94 $* |
| Jun-19-2025 | 10605.67 $* | 11135.74 $* |
| May-19-2025 | 9233.31 $* | 9695.11 $* |
| Apr-19-2025 | 10422.49 $* | 10943.11 $* |
| Mar-19-2025 | 10330.95 $* | 10847.10 $* |
| Feb-19-2025 | 10239.30 $* | 10751.96 $* |
| Jan-19-2025 | 10148.75 $* | 10655.1 $* |
Характеристики
Product Description
![750wd1.jpg]()
| Exclusive Feature |
| Product Details |
| Technical parameter |
| Model XD-LS | 10212/24 | 20212/24/48 | 30224/48 | 40224/48 | 50248 | 60248 | |
| Rated Power | 1000W | 2000W | 3000W | 4000W | 5000W | 6000W | |
| Peak Power(20ms) | 3000W | 6000W | 9000W | 12000W | 15000W | 18000W | |
| Battery Voltage | 12/24VDC | 12/24/48VDC | 24/48VDC | 24/48VDC | 48VDC | ||
| Size(L*W*Hmm) | 490*300*130 | 510*320*140 | |||||
| Packing Size(L*W*Hmm) | 565*395*225 | 585*415*225 | |||||
| N.W.(kg) | 11.5 | 17.5 | 19.5 | 21.5 | 23.5 | 25.5 | |
| G.W.(kg)(Carton Packing) | 13 | 19 | 21 | 23 | 25 | 27 | |
| Input | DC Input Voltage Range | 10.5-15VDC(Single battery voltage) | |||||
| AC Input Voltage Range | 85VAC~138VAC /89VAC~144VAC / 93VAC~150VAC / 170VAC~275VAC / 178VAC~288VAC /186VAC~300VAC | ||||||
|
AC Input Frequency Range |
45Hz~65Hz | ||||||
| Max AC charging current | 25A/15A | 30A/25A/15A | 30A/20A | 30A/25A | 30A | 30A | |
| AC charging method | Three-stage (constant current, constant voltage, floating charge) | ||||||
| Output | Efficiency(Battery Mode) | ≥85% | |||||
|
Output Voltage (Battery Mode) |
110VAC±2% / 115VAC±2% / 120VAC±2% / 220VAC±2% / 230VAC±2% / 240VAC±2% | ||||||
|
Output Frequency (Battery Mode) |
50/60Hz±1% automatic recognition | ||||||
| Efficiency(AC Mode) | >99% | ||||||
| Output Voltage(AC Mode) | 110VAC±10% / 115VAC±10% / 120VAC±10% / 220VAC±10% / 230VAC±10% / 240VAC±10% | ||||||
|
Output Frequency (AC Mode) |
Tracking Automatically | ||||||
| Output waveform distortion(Battery Mode) | ≤3%(Linear load) | ||||||
|
No load loss (Battery Mode) |
≤0.8% rated power | ||||||
| No load loss(AC Mode) | ≤2% rated power( charger does not work in AC mode) | ||||||
|
No load loss (Energy saving Mode) |
≤10W | ||||||
| Alarm | A | Normal working condition, buzzer has no alarm sound | |||||
| B | Buzzer sounds 4 times per second when battery failure, voltage abnormality, overload protection | ||||||
| C | When the machine is turned on for the first time, the buzzer will prompt 5 when the machine is normal | ||||||
| Transfer Time | ≤4ms | ||||||
| Environment | Operating temperature | ≤55dB | |||||
| Storage temperature | -10℃~40℃ | ||||||
| Noise | -15℃~60℃ | ||||||
| Elevation | 2000m(More than derating) | ||||||
| Humidity | 0%~95% ,No condensation | ||||||
This inverter has comprehensive protection: Battery undervoltage/overvoltage protection, overload power protection, inverter output short circuit protection, temperature protection.
Using Method
| How to Use the Invertor? |
1. Battery number and capacity should be configured according to the rated voltage of the solar power system or invertor;
2. We offer 3 optional working modes (transfer time≤4ms):
01 Grid priority mode: When the grid and battery are connected to the invertor, grid will supply power to the loads directly after voltage being stabilized and charge batteries via invertor. When the grid is cut off, the battery will automatically continue to supply power via invertor.
02 Energy saving mode: If the power of the connected AC loads is lower than 5% of the invertor’s rated power, there will be no output from the invertor. Only the chip of invertor is working. The power consumption of the invertor is only 1~6W. The LCD shows the output voltage 0. If the power of the connected loads is over 5%, within 5S the invertor will automatically convert DC to AC to supply power for the loads . The LCD shows the output voltage.
03 Battery priority mode: When the grid and battery are connected to the invertor, battery will supply power to the loads first. When battery capacity is not enough, the grid will continue to supply power automatically.
Application Case
| Practical Application |
Delivery & Payment
| Packaging & Shipping |
Package
Carton Box for packaging advised to protect in transportations.
Shipping
1. Fedex/ DHL/ TNT/ UPS for samples, door-to-door.
2. By air or by sea for batch goods, for CFL, Air port/ Port receiving.
3. Customers specifying freight forwarders or negotiable shipping methords.
4. Delivery time: 7 days for samples; 10 to 25 days for batch goods.
| Payment Term |
| T/T | EXW | 30% T/T in advance, balance paid before dispatch |
| FOB | ||
| CNF(CFR) | 30% T/T in advance, balance paid against copy of B/L | |
| CIF | ||
| L/C, D/A, D/P, Money Gram, Western Union, Paypal (Optional) | ||
