Автоматический лак для ногтей эфирное масло электронная сигарета сироп глазной глицерин медицинская машина розлива

Автоматический лак для ногтей эфирное масло электронная сигарета сироп глазной глицерин медицинская машина розлива

Категория: Табака и сигарет машинное оборудование >>>
Поставщик: Guangzhou,Rifu,Packaging,Machinery,Co.,Ltd.

Цена:10 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	11900.55 $*	12495.17 $*
Aug-18-2025	11800.4 $*	12390.73 $*
Jul-18-2025	9900.53 $*	10395.71 $*
Jun-18-2025	11600.86 $*	12180.10 $*
May-18-2025	10100.45 $*	10605.65 $*
Apr-18-2025	11400.29 $*	11970.71 $*
Mar-18-2025	11300.33 $*	11865.11 $*
Feb-18-2025	11200.36 $*	11760.50 $*
Jan-18-2025	11100.25 $*	11655.71 $*

Характеристики

Product Description

Product Application

Adopts the principle of plunger quantitative filling, into the bottle, positioning, filling, the bottles are automatically controlled by the PLC, in accordance with the GMP standard. Suitable for medical, food, daily chemical, pesticide and fine chemical liquid filling.

\t Model	\t RF-8G
\t Filling capacity (ML)	\t 25-250ml,50-500ml,150-1000ml(can be customized)
\t Filling velocity (BPM)	\t 35-55BPM(it depends on filling volume and material)
\t Power supply (VAC)	\t 220V/380V
\t Motor power (KW)	\t 2.5
\t Filling accuracy	\t ≤±1%
\t Gas consumption (MIN)	\t 4KGS×30LITER
\t Outline dimension (mm)	\t 2500X900X2200
\t Weight(KG)	\t 450

Main Features

1.Touch screen operation interface;
2.Up and down movement type filling, effectively prevent the foam from being produced, easy to take apart and wash;
3.The filling accuracy can reach +/-1%;
4.The filing cylinder is ground, unique filing valve design, no leakage;
5.With no bottle no filing and automatic bottle stop function;
6.Design different positioning devices according to the actual situation of the bottle;
7.The equipment is easy to clean, can be disassemble without tools, it can also be cleaned online or high temperature sterilization;
8.PLC programmable control use Japan Mitsubishi;
9.Frequency converter adopts France Schneider;
10.Pneumatic components adopt Taiwan Airtac;
11.Material contact parts are made of SUS304# stainless steel;
12.The equipment meets the hygiene and safety standards. The user can choose the glass protective cover.

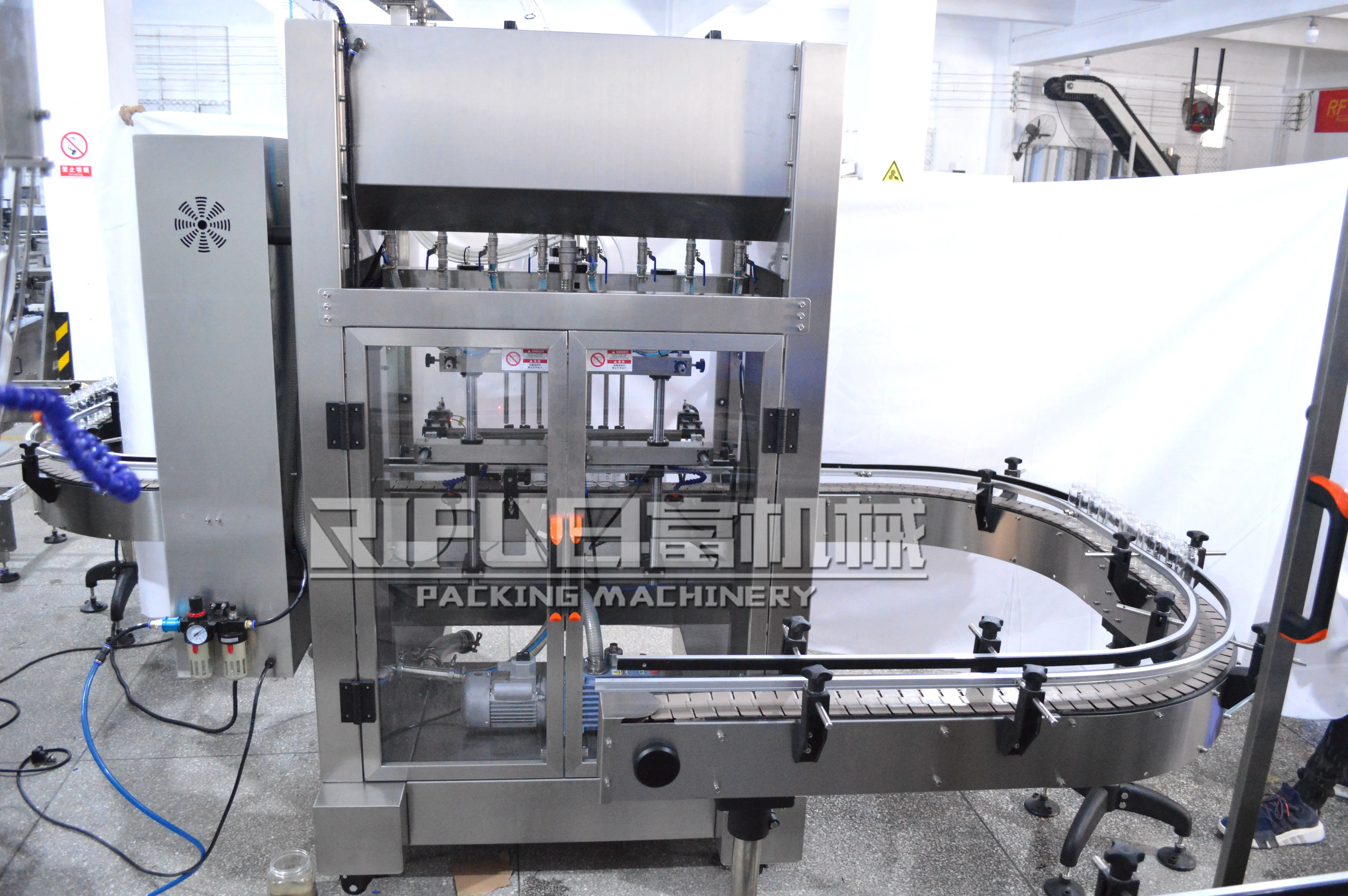

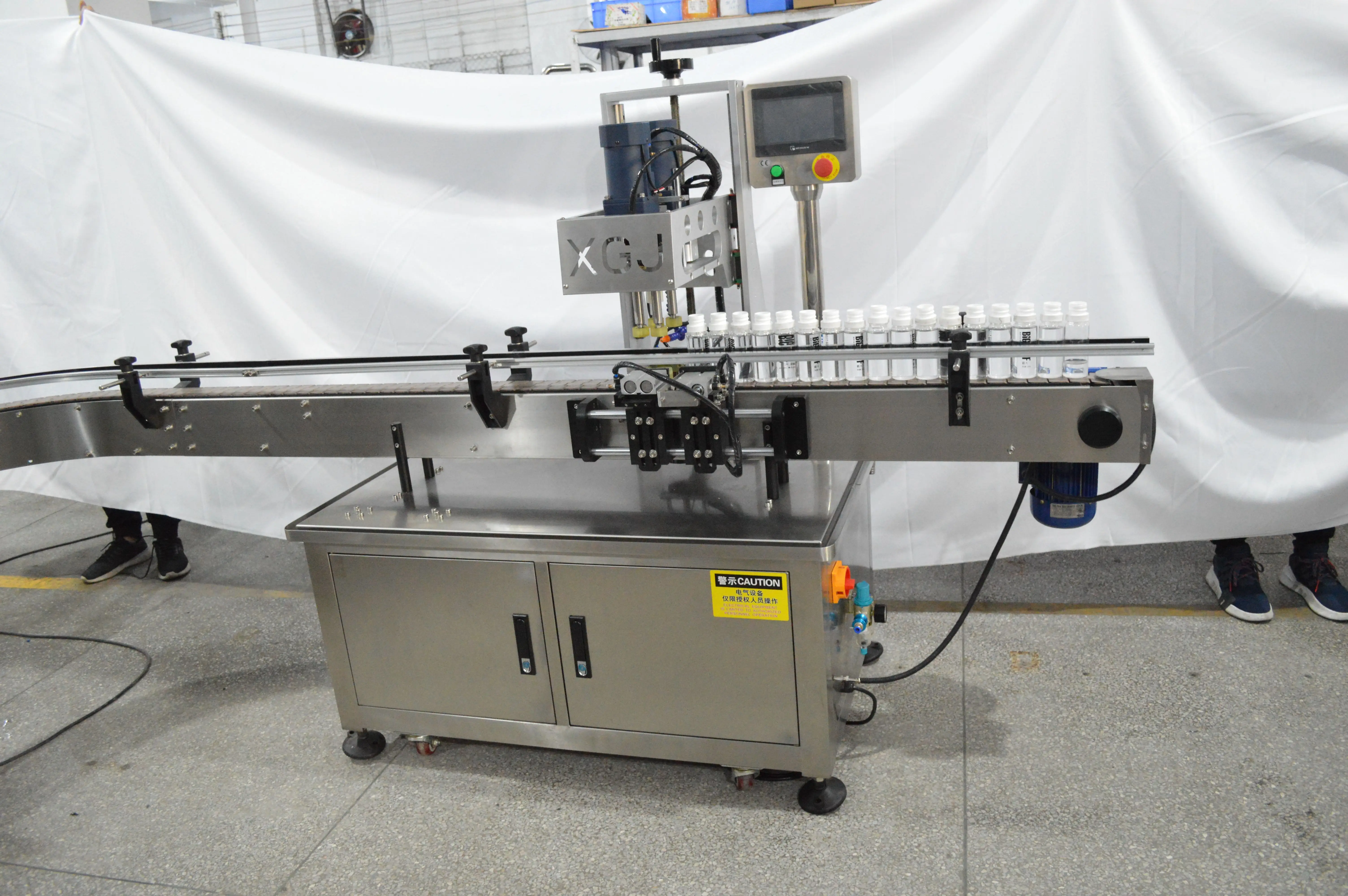

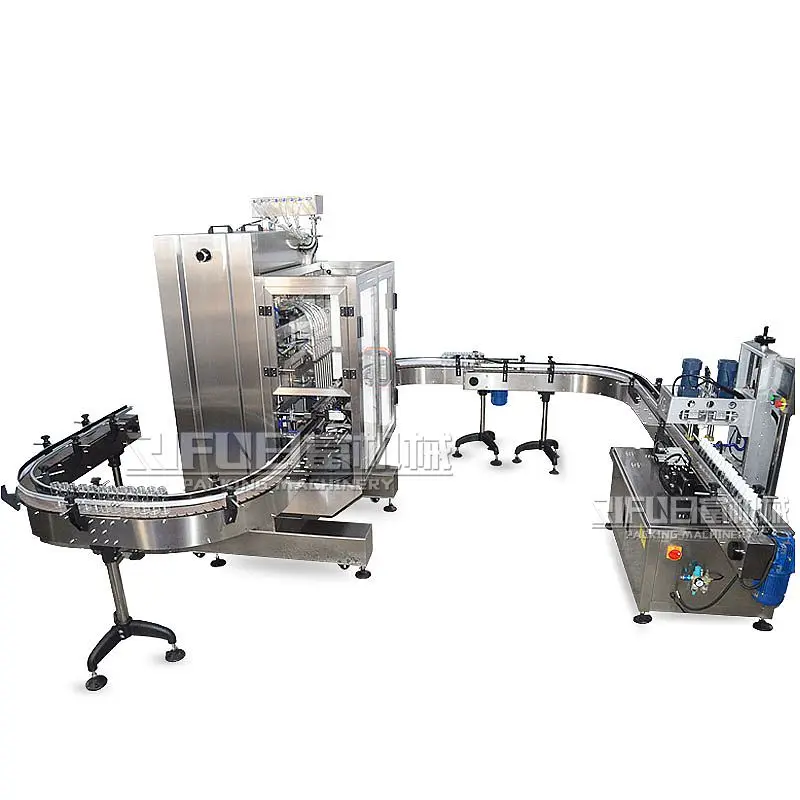

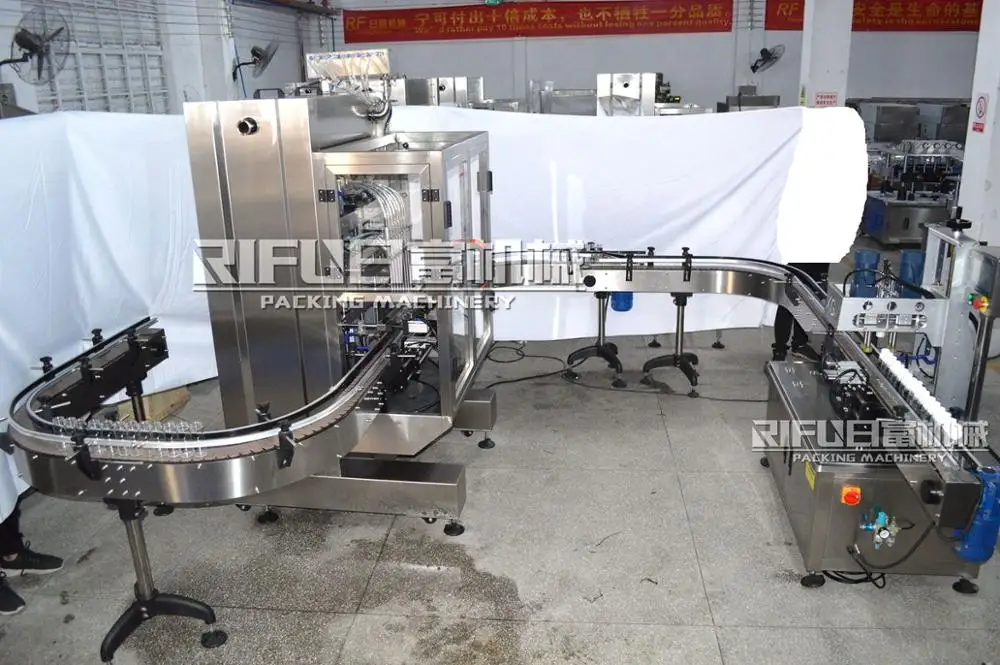

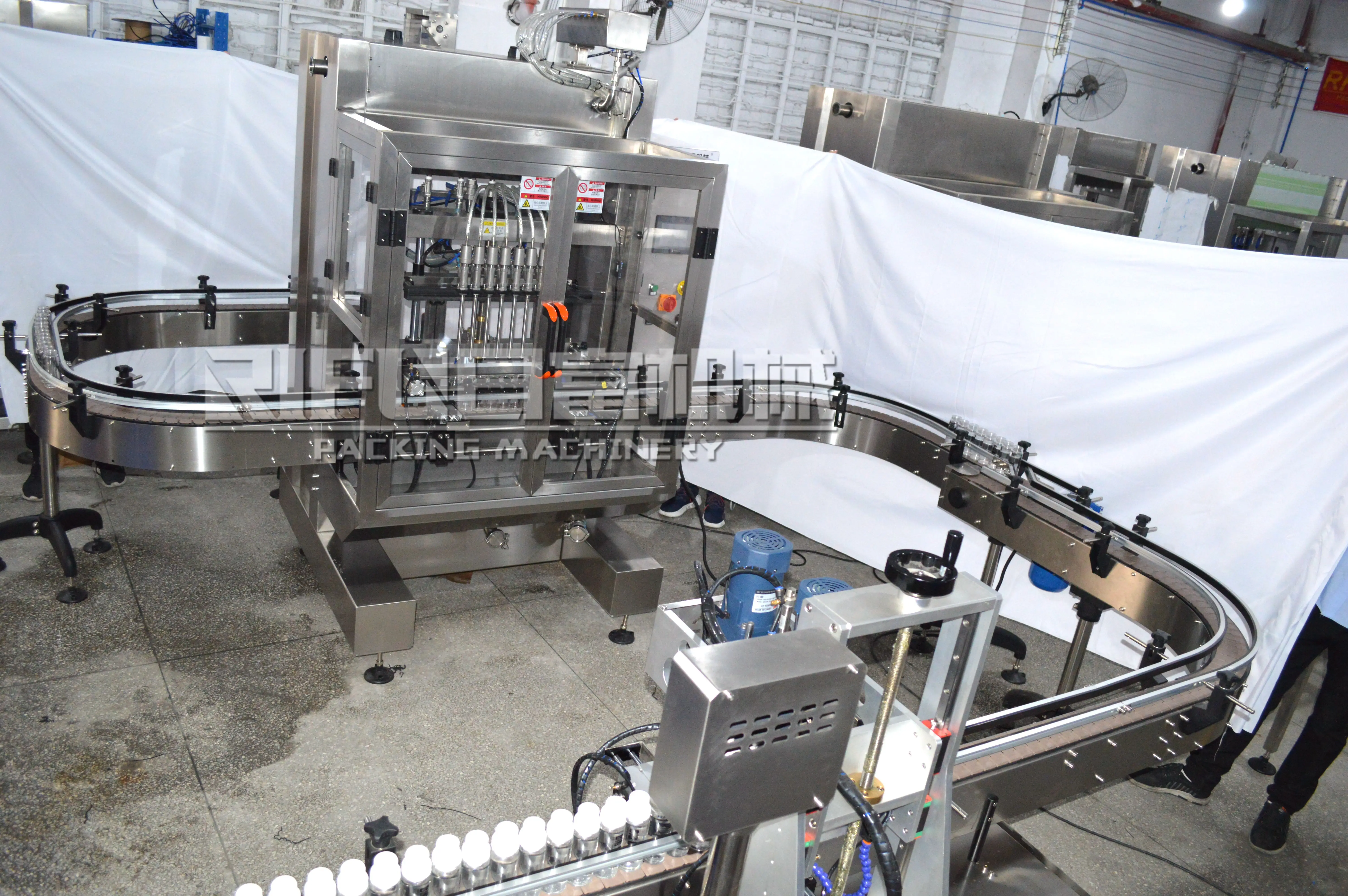

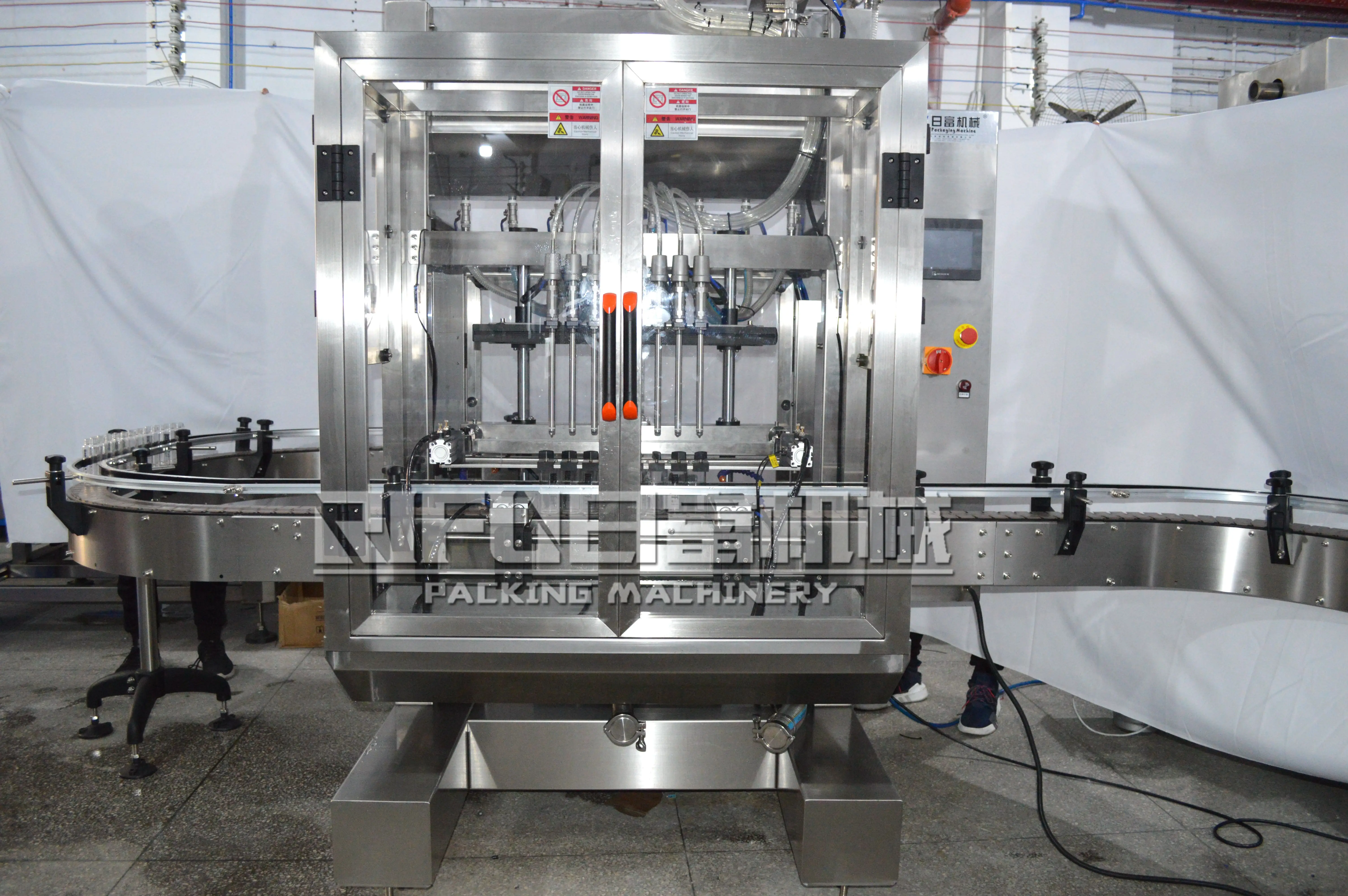

Detailed Images
