Система контроля доступа для пешеходов высокая безопасность вход оптический выдвижной клапан турникет

Система контроля доступа для пешеходов высокая безопасность вход оптический выдвижной клапан турникет

Категория: >>>
Поставщик: Shenzhen,Sinomatic,Technology,Co.,Limited

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-18-2025	0.20 $*	0.28 $*
Aug-18-2025	0.25 $*	0.39 $*
Jul-18-2025	0.5 $*	0.72 $*
Jun-18-2025	0.89 $*	0.38 $*
May-18-2025	0.90 $*	0.36 $*
Apr-18-2025	0.34 $*	0.23 $*
Mar-18-2025	0.11 $*	0.38 $*
Feb-18-2025	0.52 $*	0.83 $*
Jan-18-2025	0.7 $*	0.3 $*

Характеристики

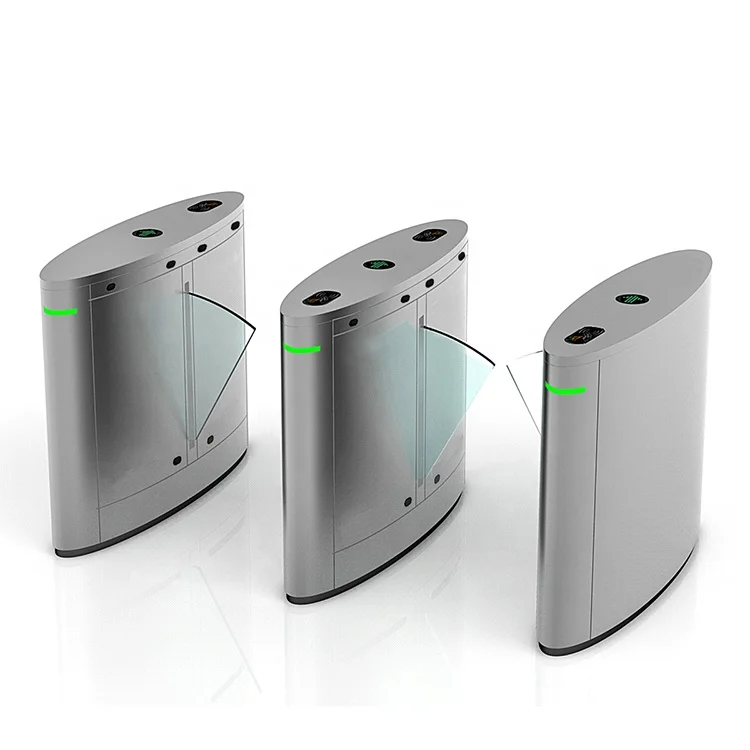

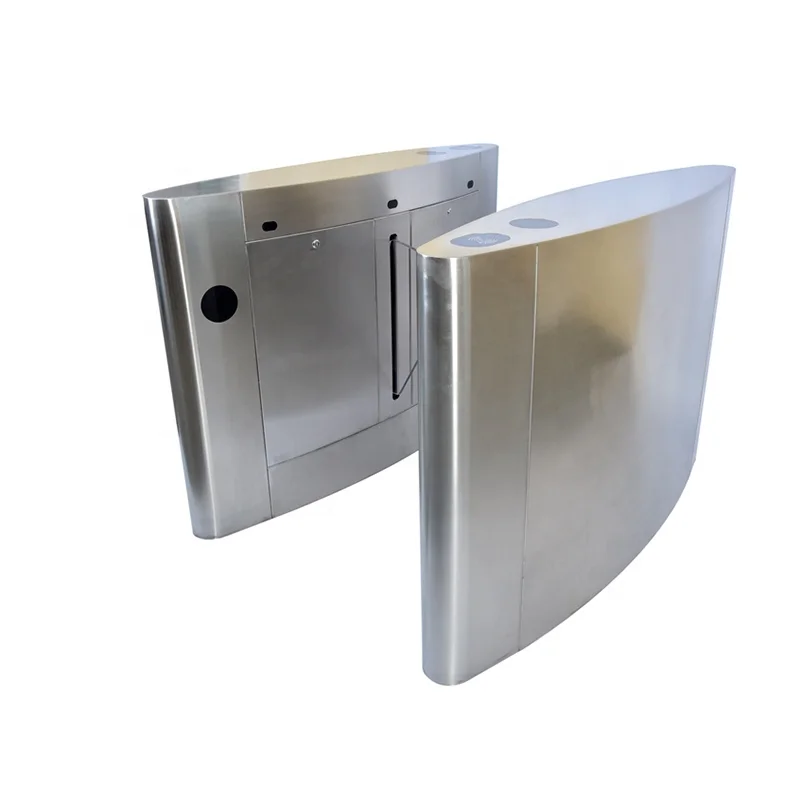

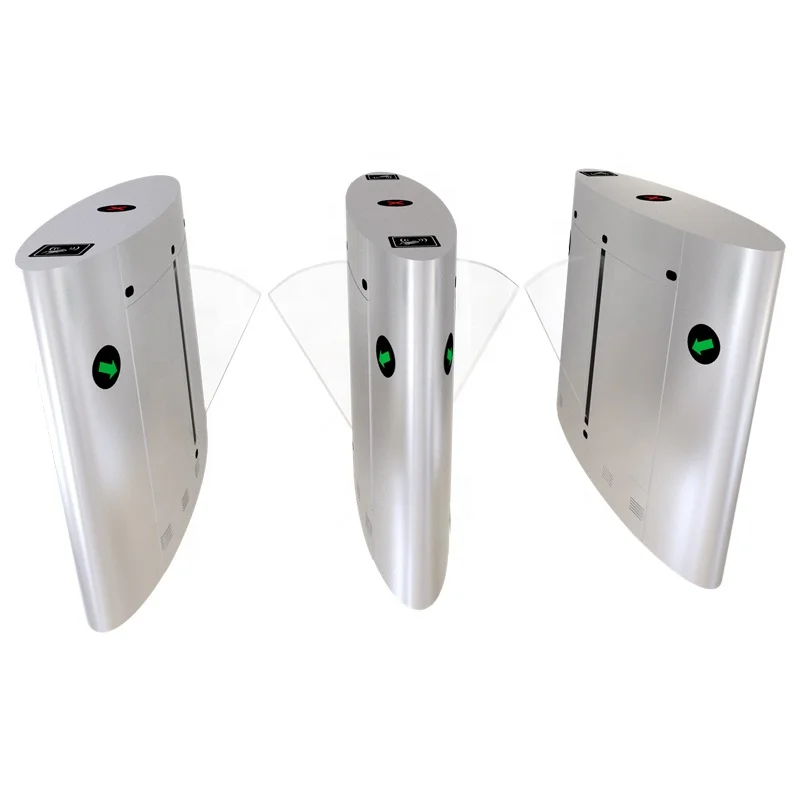

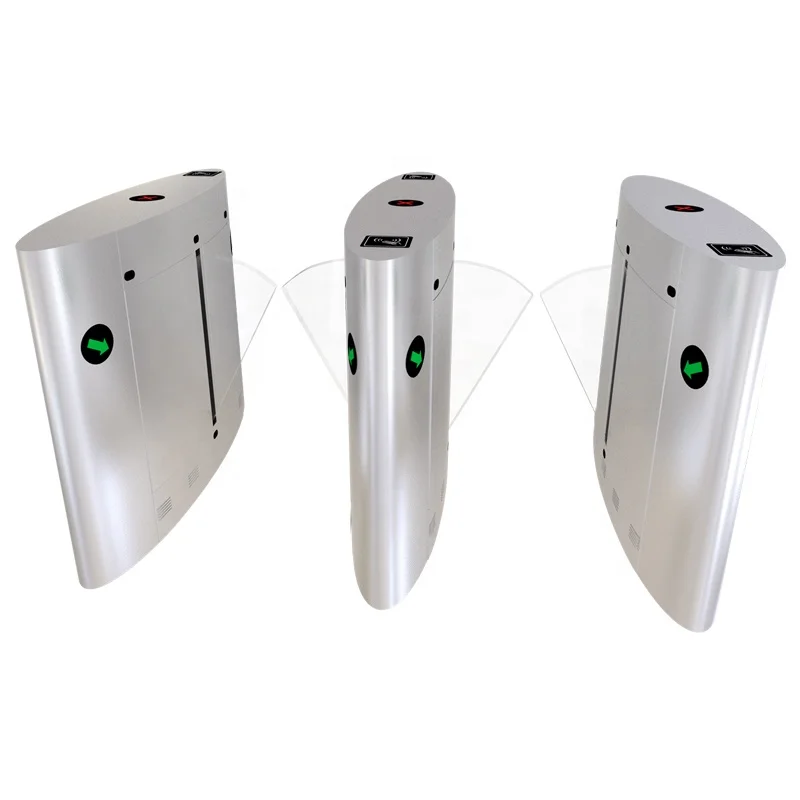

Product show

Functions & Features

1. Fault detection and alarm functions, easy to use and maintenance

2. The running status can be programmed and controlled with the built-in keyboard on the main board

3. Mechanical anti-pinch function. If the gate meets resistance in the reset process, motors will stop working automatically within the prescribed time and reset again after the default delay (till fully reset)

4. Anti-breakthrough function. The gate is locked automatically until opening signal received

5. Support infrared photocell for anti-pinch and reset function

6. Automatic reset function. Should the user fail to pass within the prescribed time (default time is 5 seconds), the system will cancel the authority of the current user automatically

7. Gate can be set as normally open or normally closed

8. Can be used with variety of card readers: IC / ID card readers, bar codes, fingerprints, etc. (Access controller needed)

9. Direction can be set as single-direction or bi-direction

10. LED direction indicator

11. Gate auto opens when power off and auto close when power on

12. Alarm function, in case of illegal intrusion and reverse intrusion, etc.

Product Specs

\t Power supply	\t AC220±10%V 50Hz/AC110±10% 60Hz
\t Motor voltage	\t DC 24V
\t Access device input voltage	\t Dry contact or 12V electrical level signal or > 100ms 12V impulse signal, driving current > 10mA
\t Direction	\t Can be set as single or double
\t Max flow rate	\t 25 to 30 person per minute
\t Flap openning/closing time	\t 1s
\t Flap lenght	\t 270mm
\t Flap material	\t Acrylic or foam
\t Working temperature	\t -20°C~+60°C
\t Working humidity	\t 0~95%RH
\t Application	\t Indoor/ outdoor with tent
