Аэрозольный робот для багажа в
- Категория: Оборудование для металлического покрытия >>>
- Поставщик: Anno,Robot,(shenzhen),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 8568.50 $* | 8996.31 $* |
| Aug-16-2025 | 8496.12 $* | 8921.89 $* |
| Jul-16-2025 | 7128.69 $* | 7484.16 $* |
| Jun-16-2025 | 8352.59 $* | 8770.39 $* |
| May-16-2025 | 7272.58 $* | 7636.7 $* |
| Apr-16-2025 | 8208.99 $* | 8618.45 $* |
| Mar-16-2025 | 8136.13 $* | 8543.31 $* |
| Feb-16-2025 | 8064.10 $* | 8467.32 $* |
| Jan-16-2025 | 7992.56 $* | 8392.54 $* |
Характеристики
Product Description
Technical Parameters
Payload | 6 kg | ||
Reach | 1500 mm | ||
Structure | Articulated | ||
Number of axes | 6 | ||
Repeatability | ±0.05 mm | ||
Max. motion range | Axis 1 | ±165° | |
Axis 2 | +135°/-75° | ||
Axis 3 | +78°/-76.5° | ||
Axis 4 | ±360° | ||
Axis 5 | ±115° | ||
Axis 6 | ±450° | ||
Max. speed | Axis 1 | 148°/sec | |
Axis 2 | 148°/sec | ||
Axis 3 | 150°/sec | ||
Axis 4 | 222°/sec | ||
Axis 5 | 222°/sec | ||
Axis 6 | 360°/sec | ||
Body Weight | ≈125 kg | ||
Mounting type | Ground, bracket, ceiling | ||
Applicable industries | Handling, loading &unloading, palletizing, painting | ||
Ambient temperature | -20 ℃~80 °C | ||
Workspace
Main Applications
Painting
Applicable Cases

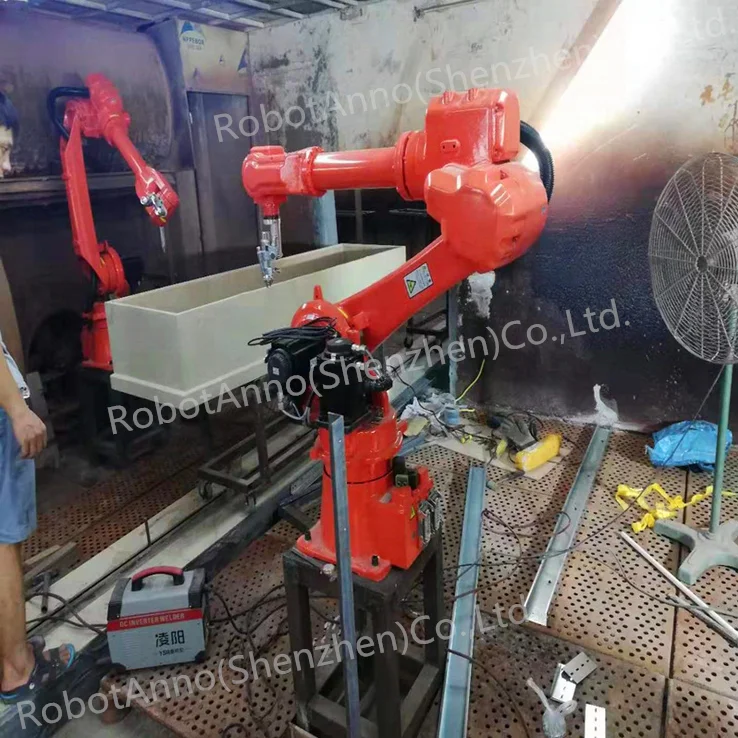

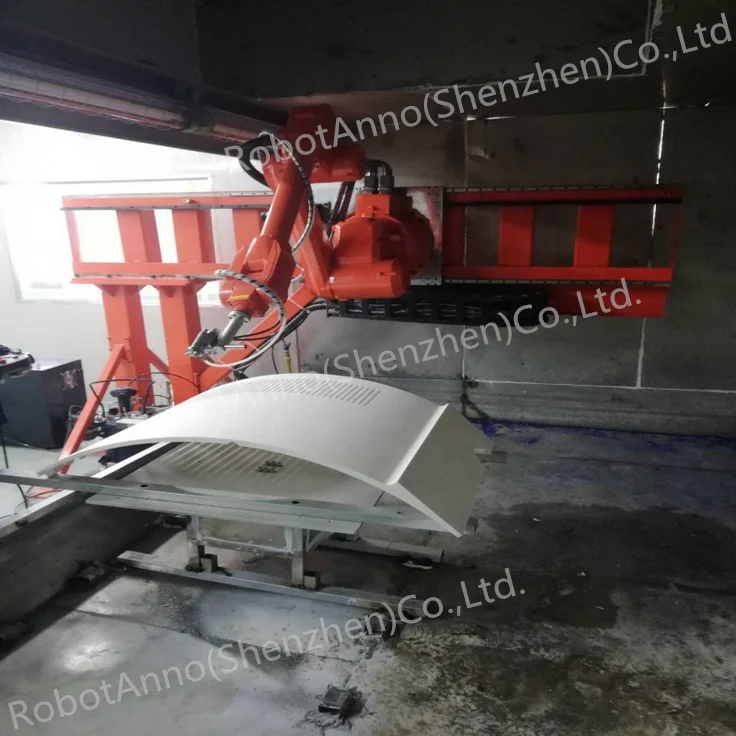

Hanging line tracking and painting

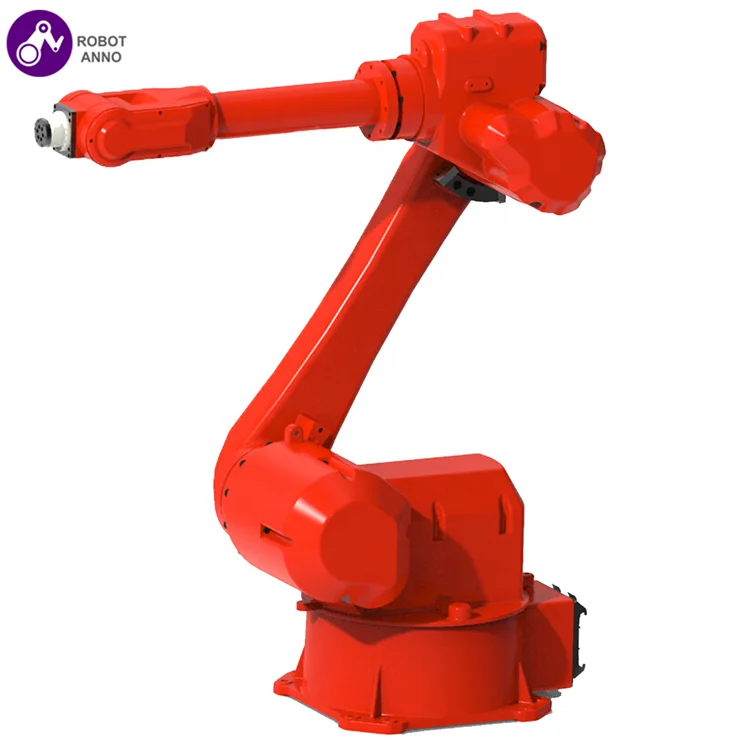

PT1500-B-6 is the painting robot with a payload of 6 kg and a reach of 1500 mm, it is generally integrated with various non-standard turntables or hanging equipment to form work stations.
The figure shows the hanging line tracking and painting solution provided for a customer. It not only significantly reduces labor cost but also improves the yield.
PT1500-B-6 is the painting robot with a payload of 6 kg and a reach of 1500 mm, it is generally integrated with various non-standard turntables or hanging equipment to form work stations.
The figure shows the hanging line tracking and painting solution provided for a customer. It not only significantly reduces labor cost but also improves the yield.
Detailed Images
Harmonic reducer
Control the servo motor by three methods: position, speed and torque
Servo Motor
High-precision control, good high-speed performance and strong anti-overload capability
Servo Motor Driver
Control the servo motor by three methods: position, speed and torque
Controller board
Including various interfaces such as IO module, safety module, A / V analog module
Aluminum Alloy Shell
Independent design, exquisite appearance, CNC machining and casting

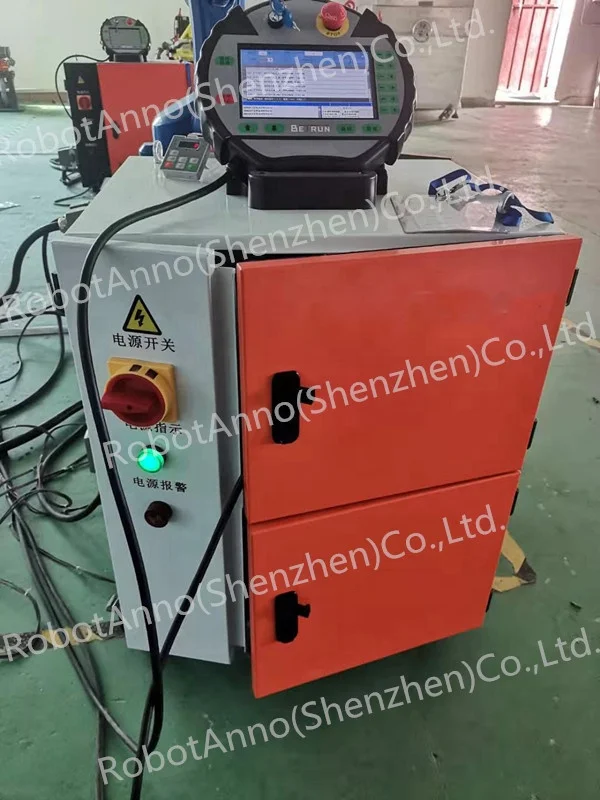

Robot Control System
Features of Robot Control System
●Structural optimization algorithm suitable for the body control of various types of structure.
●Modular setting of functions
suitable for diverse applications.
●8-axis control realizes the control of external axes (traveling axes and positioner).
●Suitable for multiple increments; absolute servo.
●Suitable for multiple increments; absolute servo.
●Open structure for synchronization of international technology and extension
of functions.
of functions.
●Software PLC functions facilitate logic control.
●Process functions make programming easy. ●Improved computer bus
connection ensures reliability and practicability.
connection ensures reliability and practicability.
●Safety module ensures safe production of the robots.
●Support change in Chinese, English, Russian, Vietnamese and Korean.
Packing&Shipping
Package: Normally we use the standard exporting packaging. We also can according to clients' request .
Shipping :
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.
2. By Air: Delivery from the Shenzhen airport to customers' destination city air port.
3. By Sea: Delivery from the Shenzhen sea port .
Shipping :
1. By Couriers: DHL, UPS, FEDEX, TNT are the main courier we are co-operating at present.
2. By Air: Delivery from the Shenzhen airport to customers' destination city air port.
3. By Sea: Delivery from the Shenzhen sea port .
Related Products
Company Introduction
RobotAnno (ShenZhen) Co., Ltd. is a professional R & D and manufacturer of desktop robotic arm solutions. Through continuous innovation, RobotAnno is committed to providing educational robots, light industrial robots and commercial robots with cost-effective, easy-to-operate, and experiential revolutionary desktop robotic products and solutions.
FAQ
Q1. Can I have a sample order?
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Samples arrived often need 3-5 days.
Q3. Do you have any MOQ (minimum order quality)limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed an order?
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions.
Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.
Q6. Is it acceptable to print my logo on the product?
A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer one-year warranty for our products.
Q8: How to deal with the flaw?
A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%
A: Yes, we welcome sample order to test and check quality.
Q2. What about the lead time?
A: Samples arrived often need 3-5 days.
Q3. Do you have any MOQ (minimum order quality)limit?
A: Low MOQ, 1pc for sample checking is available.
Q4. How do you ship the goods and how long does it take to arrive?
A: We often ship by DHL, UPS, FedEx or TNT. It usually takes 3-5 days to arrive. Airline and sea shipping is also optional.
Q5. How to proceed an order?
A: Initially, let us know your requirements or application. Besides, We quote according to your requirements or our suggestions.
Thirdly, customers confirms the samples and places deposit for formal order. Finally, We arrange the production.
Q6. Is it acceptable to print my logo on the product?
A: Yes. Please inform us formally before our product and confirm the design firstly based on our sample.
Q7: Do you offer guarantee for the products?
A: Yes, we offer one-year warranty for our products.
Q8: How to deal with the flaw?
A: Our products are produced in strict quality control system and the percent of pass is often maintained over 99.8%
