Power: 7.2V Large capacity rechargeable battery

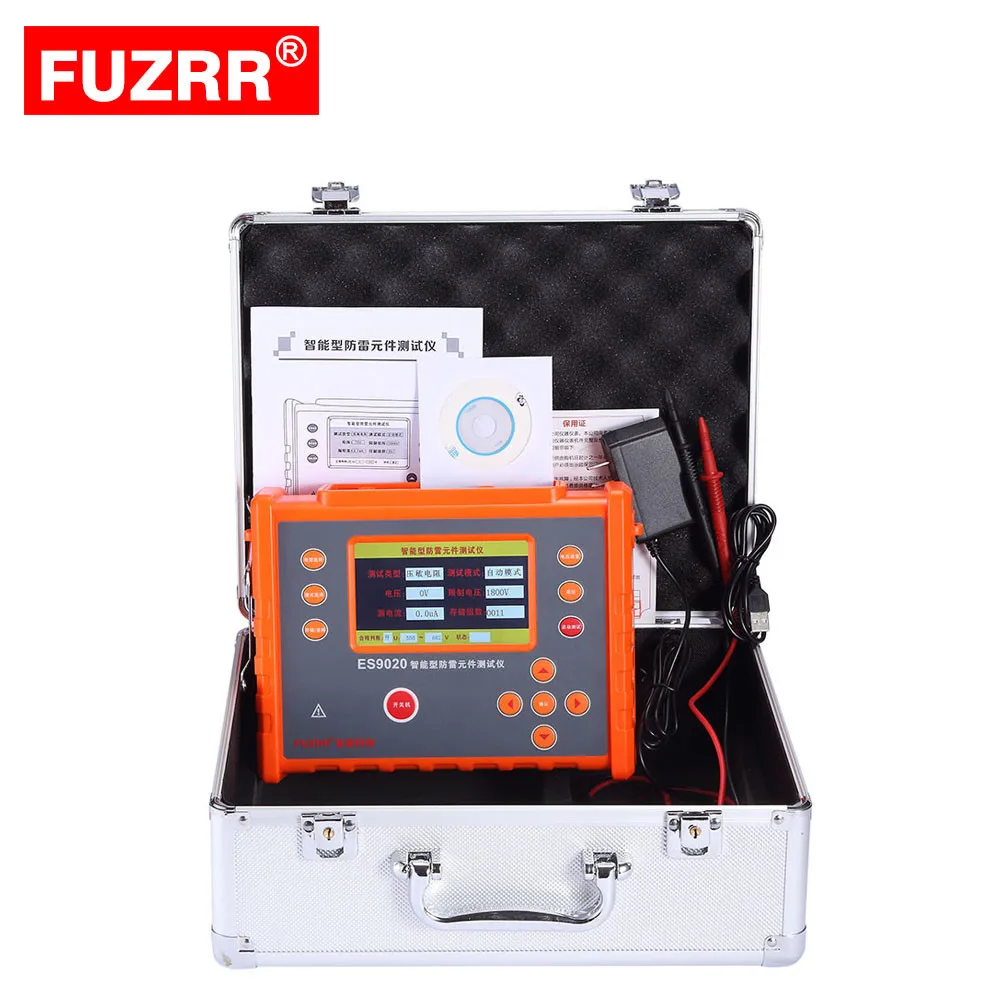

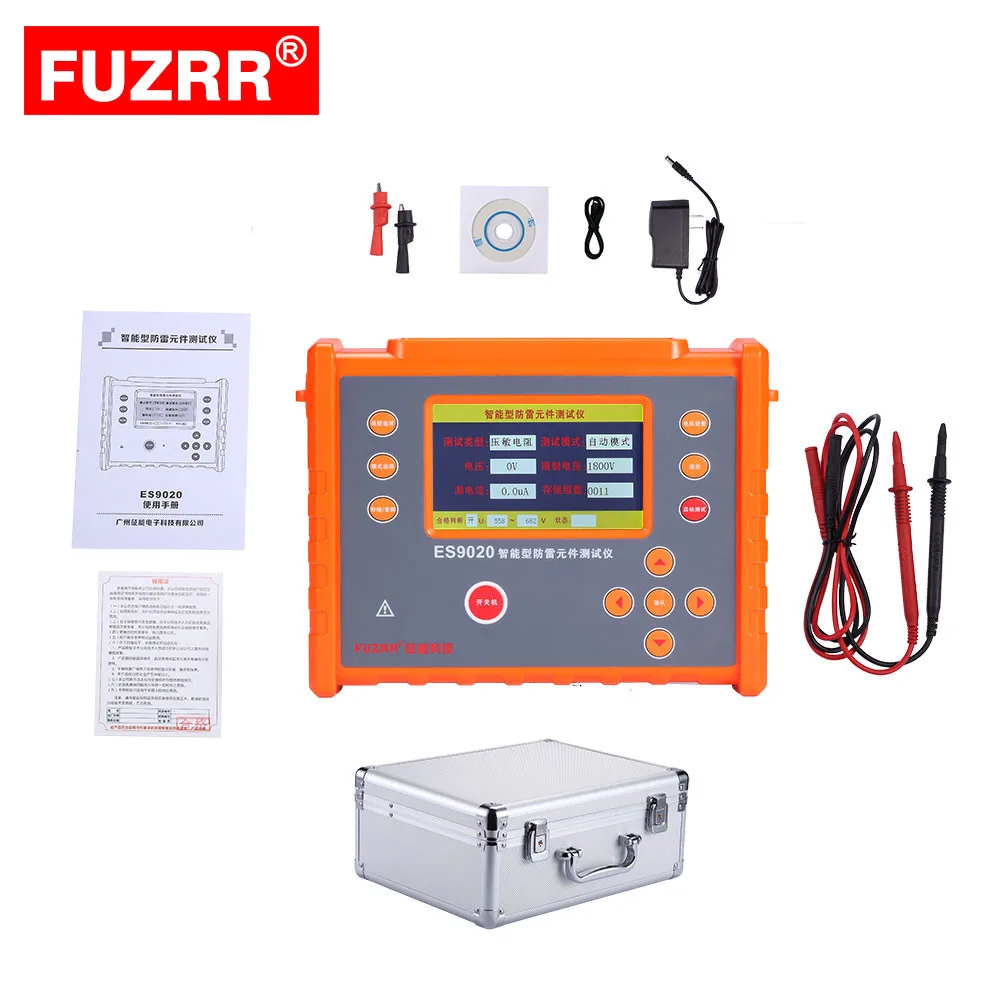

Accessories
Instrument | 1PC |
High voltage test line | 2PCS(red, black each 1) |
Battery | 1.2V Rechargeable Battery 6 section |
charger | 1PC |
USB data line | 1PC |
CD | 1PC |
Manual, certificate | 1SET |
Instrument box | 1PC |
Function | |
Base condition | 23℃±5℃,below 75%rh |
Voltage measurement(V) | 0~2000V Accuracy±2%rdg±3dgt |
Leakage current measurement(uA) | 0.1uA~199.9uA Accuracy±3%rdg±5dgt |
DC voltage resolution | 1V |
Leakage current resolution | 0.1uA |
Insulation resistance | 0~1000MΩ |
Test settling time | ≤3s |
Discharge rate of discharge tube | (100±8) V/s |
Power | 7.2V Large capacity rechargeable battery |
Yes, suitable for use in dim places | |
USB data transmission | Have |
Display mode | 5-inch color TFT LCD |
LCD display size | 108mm×65mm |
Instrument size | 240mm (L)×188mm (W)×85mm (H) |
Test line | Test line red 1m, black 1m |
Data storage | 500groups |
Data review | Data review function:“MR”symbol display |
Overflow display | Over-range overflow function: "OL" symbol display |
Judging function | Measurement exceeds the setting range |
Power consumption | Standby:150mA Max |
Measure:880mA Max | |
Weight | 1230g(including) |
Battery voltage | |
Automatic shut-down | Instrument will automatic shut-down after 15 minutes no operation |
Insulation resistance | ≥50MΩ (1000V) |
Pressure resistance | AC3kV/50Hz 1min |
Working temperature and humidity | -10℃~+50℃<85%RH |
Working temperature and humidity | -15℃~+55℃<90%RH |
Suitable for Safety Regulations | IEC61010-1,IEC1010-2-31,IEC61557-1,5,IEC60529(IP54),pollution grate 2,CAT Ⅲ 300V |
Our company is a high-tech enterprises including R & D and production and sales departments.ZhengNeng Company is committed to online monitoring equipment, portable electrical measuring instruments.ZhengNeng in line with scientific and technological innovation, people-oriented principle for many years has been recognized by customers. The company has professional technical team, and cooperat with Guangzhou major university, scientific research institutes, to provide high-quality products and perfect after-sales service to the national electric power industry.
Company's main products are power quality monitor, field calibration meter, phase volt ampere meter, relay protection test instrument, clamp power meter, grounding resistance tester, grounding fault tester,insulation resistance tester, high voltage current clamp meter, high voltage CT ratio tester, loop resistance tester, DC resistance tester, leakage protection testing instrument and other products.
Our company has professional technical team and strict quality control system,and has passed ISO9001:2008 quality system authenticatio,adhere to scientific and technological innovation, excellence, mutual benefit and win-win business spirit to seek greater development.
CERTIFICATE OF HONOR
FIELD TEST
1. Payment Information:
We can accept Bank Transfer, Paypal, Western Union, Money Gram, Cash etc.
2. Delivery time:
Within 15 workdays after confirmed payment(base on the quantity you order)
3. MOQ:
Small order is also welcome.
