Высококачественная матрица ASK 4x4 Hdmi с ИК-пультом дистанционного управления 3d
- Категория: Прочее домашнее аудио- и видеооборудование >>>
- Поставщик: Ask,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.65 $* | 0.79 $* |
| Aug-18-2025 | 0.58 $* | 0.16 $* |
| Jul-18-2025 | 0.52 $* | 0.41 $* |
| Jun-18-2025 | 0.58 $* | 0.25 $* |
| May-18-2025 | 0.89 $* | 0.96 $* |
| Apr-18-2025 | 0.12 $* | 0.61 $* |
| Mar-18-2025 | 0.12 $* | 0.94 $* |
| Feb-18-2025 | 0.23 $* | 0.13 $* |
| Jan-18-2025 | 0.28 $* | 0.29 $* |
Характеристики

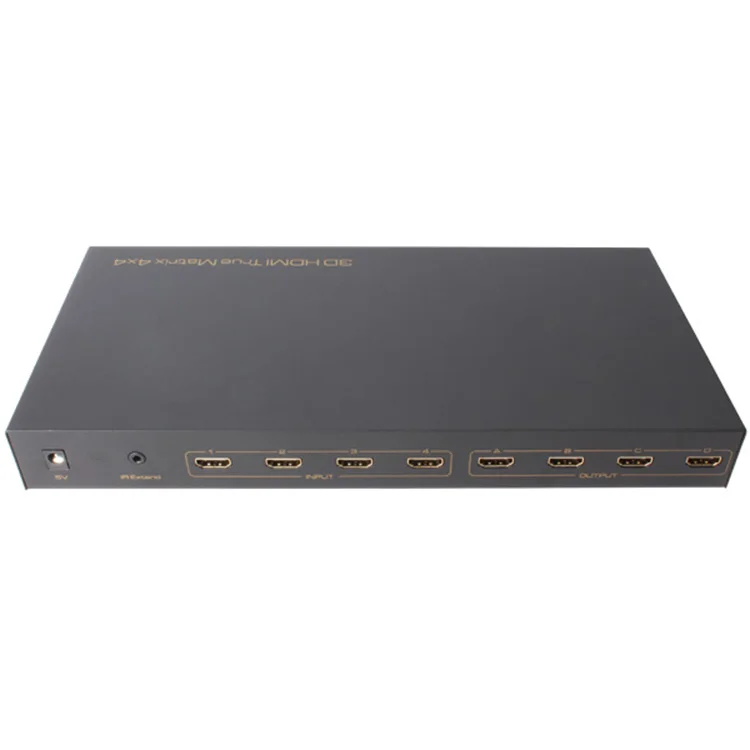

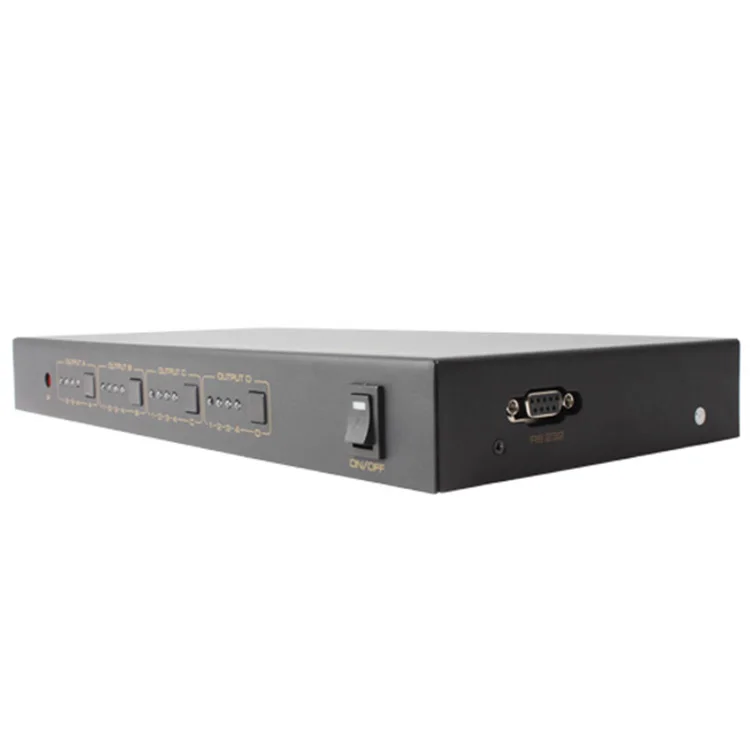

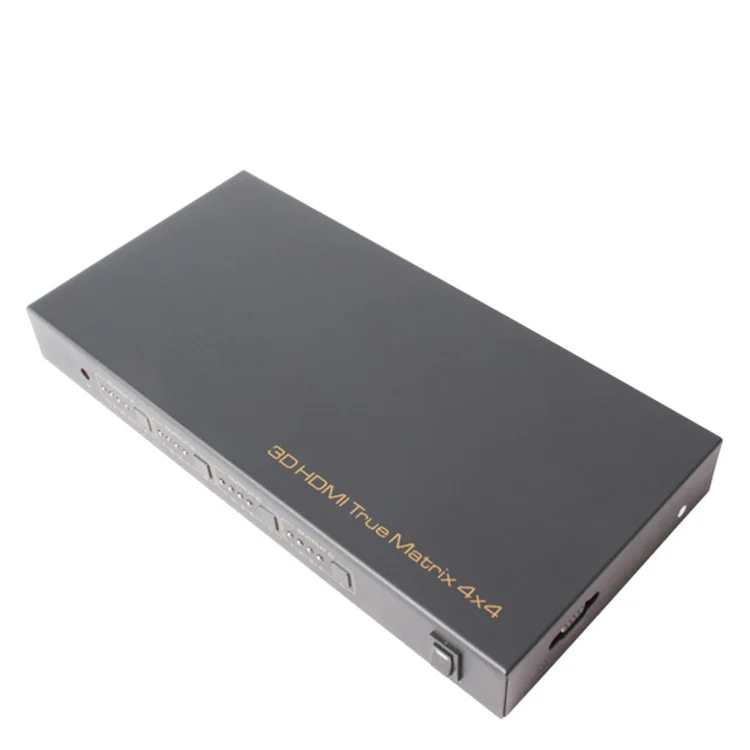

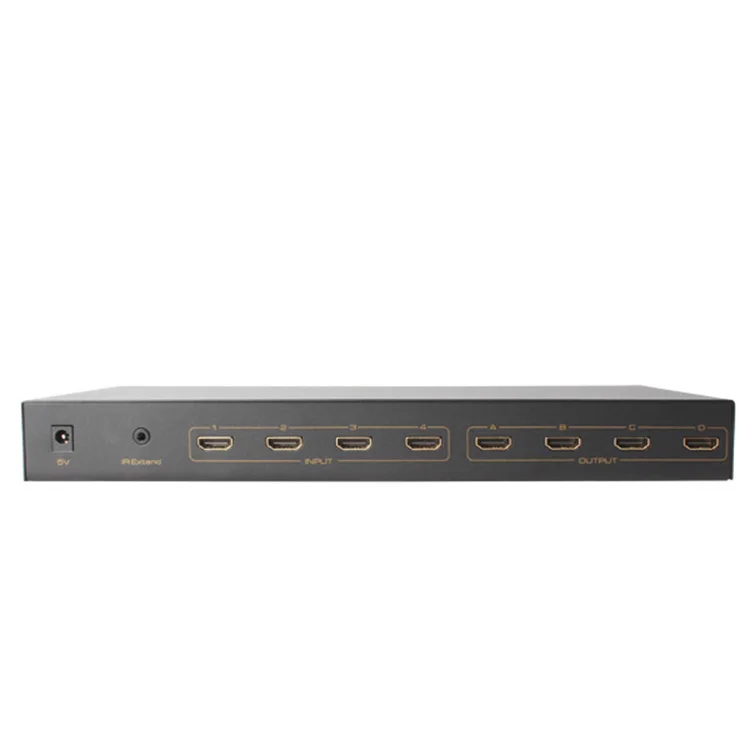

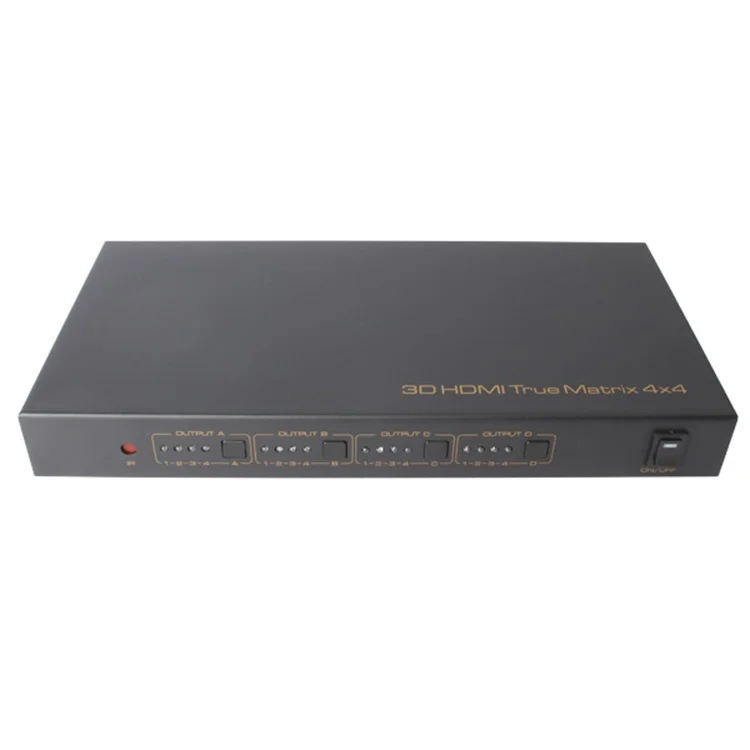

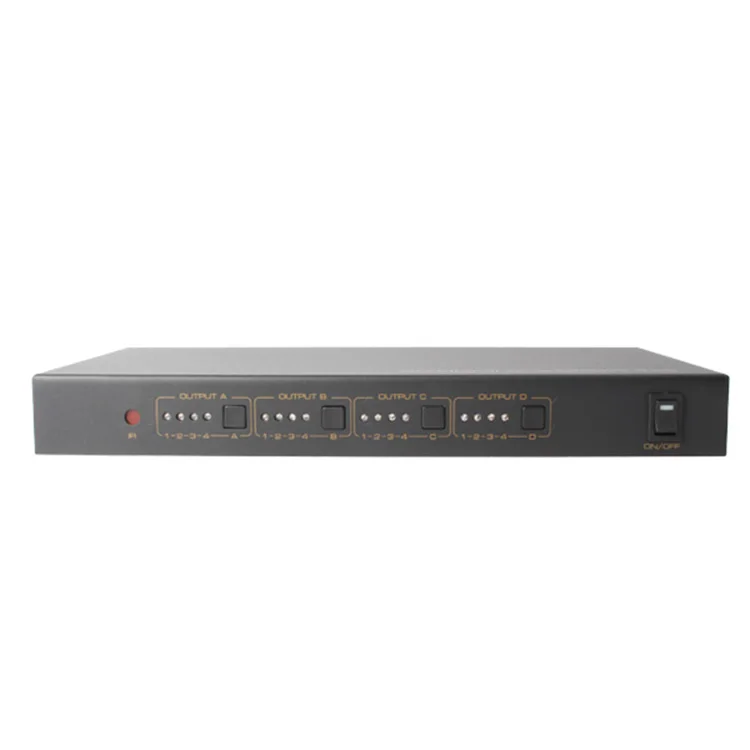

1080P HDMI True Matrix 4x4 FUll HD Support RS232 and IR control 4 HDMI input 4 HDMI Output
4X4 HDMI Matrix
Model No: HDMX0007M1
Introduction:
The 4x4 HDMI Matrix can connect four HD Sources with four HD Displays; it can easily switch and distribute four HD Source signals to four HD displays at the same time.
High Quality Matrix
Our devices offer solutions for noise, space and security concerns, data center control, information distribution, conference room presentation, school and corporate training environments.
Detailed Description
1080P hdmi matrix switcher 4x4 rs232 hdmi matrix switcher 4x4
>>Features
HDMI True Matrix 4x4 FUll HD Support RS232 and IR control 4 HDMI input 4 HDMI Output
l Four Input HD Source signals switch and distribute to four HD Displays l Support 30/36 Bit Deep Color l Support Blue-Ray DVD24/50/60fs/HD-DVD/xvYCC l Support Audio Format:DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD l Support Signal Retiming l Input HDMI Cable length up to 10M if use the standard AWG26 HDMI Cable; Output HDMI Cable length up to 15M if use the standard AWG26 HDMI Cable. l It can use the remote to choose the signal source or switch the input signal source by press the switch button. l Use 5V3A Power Adaptor |
HDMI True Matrix 4x4 FUll HD Support RS232 and IR control 4 HDMI input 4 HDMI Output
>>Operating and Connection
HDMI True Matrix 4x4 FUll HD Support RS232 and IR control 4 HDMI input 4 HDMI Output
1.To use the HDMI cable to connect the four HD sources with the HDMI input port of the matrix. 2.To use the HDMI Cable to connect the four HD displays with the HDMI output port of the matrix. 3.To connect the power adaptor with the matrix. 4.To use the RS232 cable and the IR cable to connect the RS232 port and IR port of the matrix with the control equipment to do control to the matrix. |
HDMI True Matrix 4x4 FUll HD Support RS232 and IR control 4 HDMI input 4 HDMI Output
>>Specifications
HDMI True Matrix 4x4 FUll HD Support RS232 and IR control 4 HDMI input 4 HDMI Output
HDMI Input/Output Resolution……24/50/60fs/3D/1080p/1080i/720p/576p/576i/480p/480i Deep Color…………………………………..…………….24bit/deep color 30bit,36bit HDMI Audio Format……………….…DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HDMI Max bandwidth……………………………………………………………………225MHz HDMI Max baud rate…….…………………….……………………………………..…6.75Gbps Input/Output TMDS signal …………….…………………………..………0.5~1.5Volts p-p(TTL) Input/Output DDC signal…………….…………………………………..………… 5Volts p-p (TTL) HDMI Input cable distance.…... ……………….…………≤10m AWG26 HDMI standard cable Output cable distance…………………………….………...≤15m AWG26 HDMI standard cable Max working current……………………………….………………………………………….........2A Power adapter format…………………..…………………………….…………………………5V/3A Operating Temperature range……..…………….…….……………………………….…(-15 to +55℃) Operating Humidity range…………………………………….….…5 to 90%RH (No Condensation) Product size (L x W x H)…………………………….……………………………308X151X36 (mm) Weight…..………………………………………………………..……………………………1216g |
Home Theatre System ASK HDSW0017M1 4K hdmi 3x1 switch with audio extractor
HDMI True Matrix 4x4 FUll HD Support RS232 and IR control 4 HDMI input 4 HDMI Output
Other Services:
HDMI True Matrix 4x4 FUll HD Support RS232 and IR control 4 HDMI input 4 HDMI Output
>>Related Products
HDMI True Matrix 4x4 FUll HD Support RS232 and IR control 4 HDMI input 4 HDMI Output
FAQ
Q1.What is your MOQ?
A: Our MOQ is not the same based on different items. Small orders are also welcome, but the unit price is also difference from wholesale price.
Q2.What package do your use for the product?
A:Usually we have professional neutral package for the products. Customized package are also available based on certain MOQ.
Q3.What is your main market?
A: Asia Australasia Central/South America Eastern Europe Mid East/Africa North America Western Europe
HDMI Matrix Splitter Switcher 4 input 4 Output FUll HD Support RS232 and IR control
Certifications
