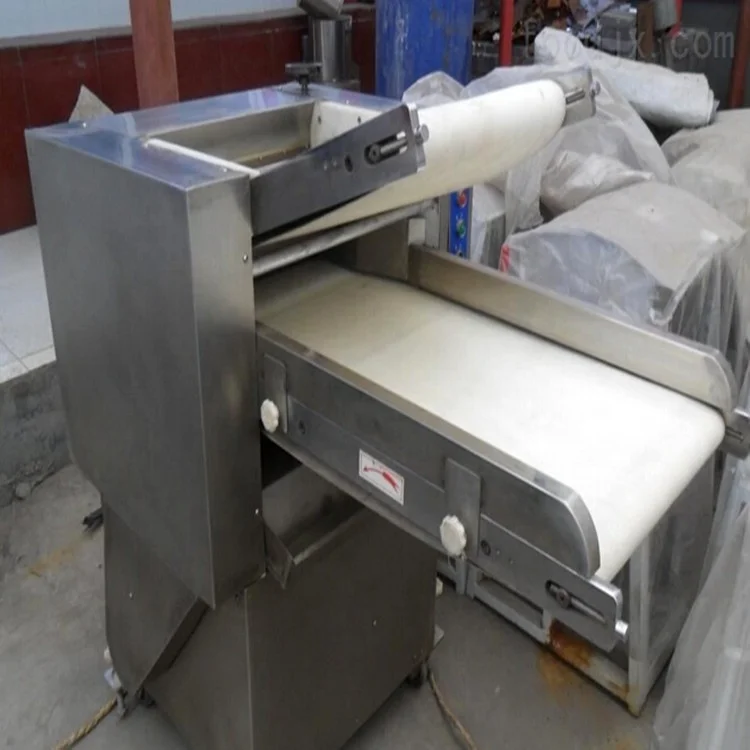

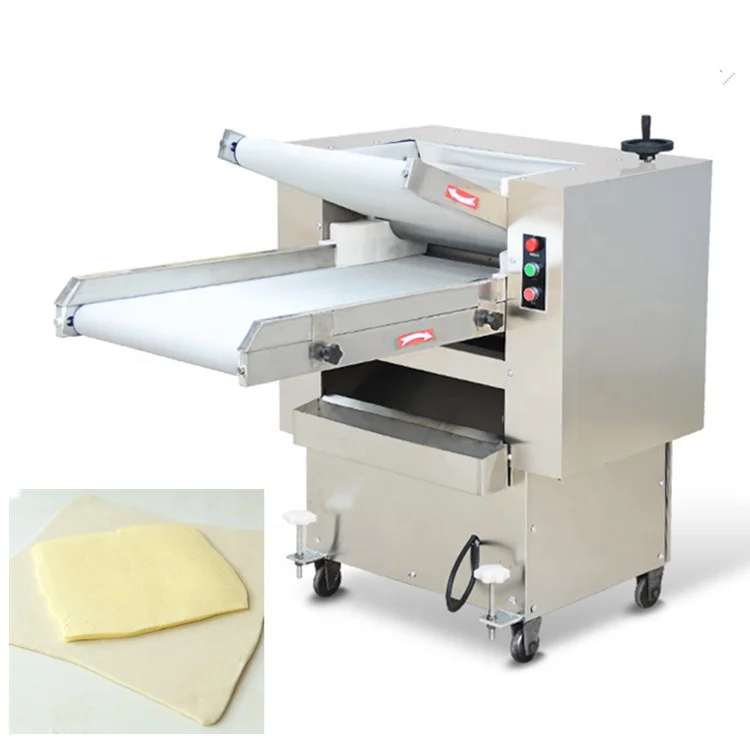

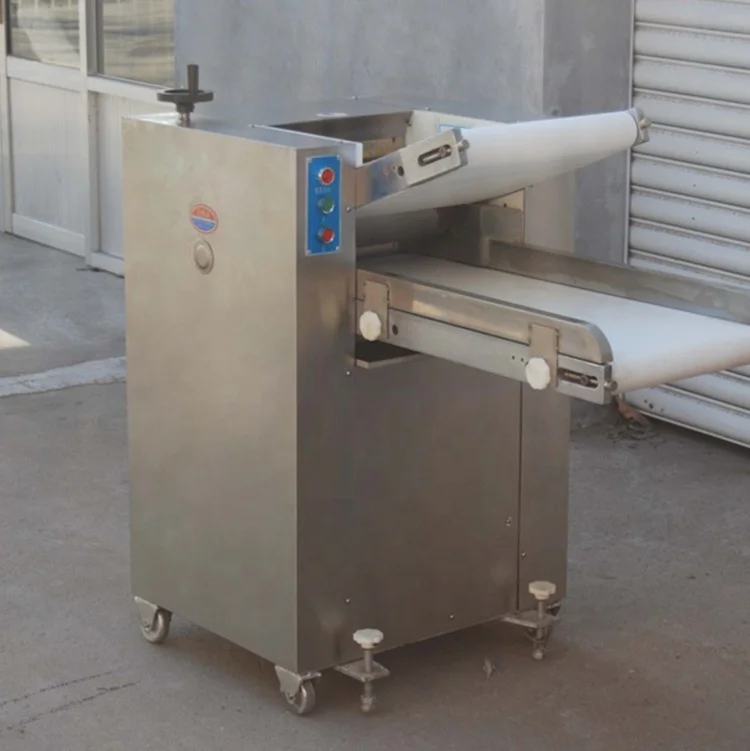

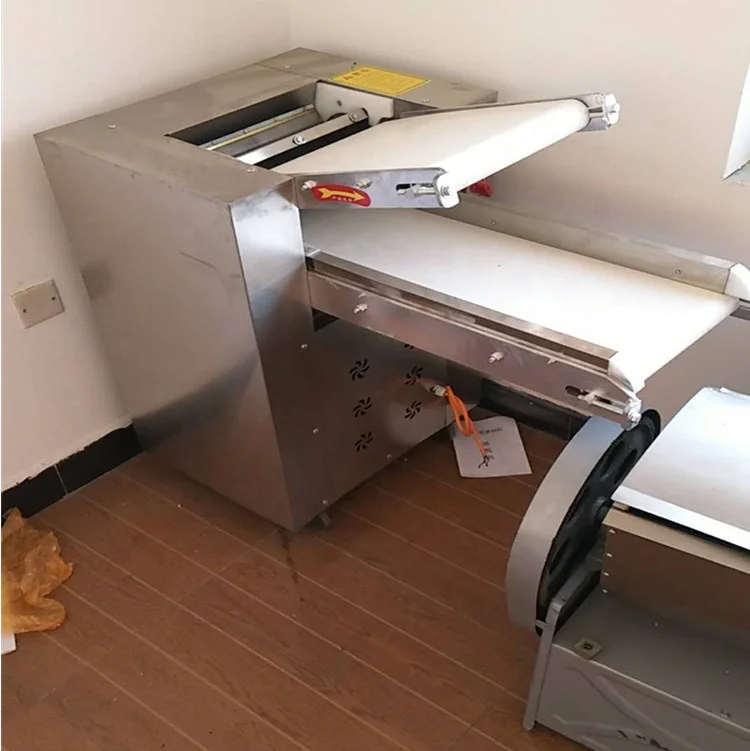

JUYOU cookie dough sheeter



Introduction

1. The automatic dough pressing machine is composed of main frame, transmission, transportation folded part, plowing parts.

2. The dough sheeter presser uses chain as a drive transmission, with smooth transmission, low noise.

3. This dough pressing machine has automatic folding function,high efficiency, labor saving.

4. The roller has three parts. Upper roller, down roller, and adjustable roller. It’s easy to operate and maintenance.

5. This dough pressing machine can be used together with tortilla bread machine, pizza sheeter machine, chin chin machine, noodles machine, etc.



Working principle of dough pressing machine

Put some mixed dough onto the conveyor belt, start the machine, automatically the dough is delivered into the rollers,under the role of conveyor and roller,the dough automatically feed and pressed. After pressed, the dough is transferred into the upper conveyor from down conveyor, because of the different running speeds, make the dough automatically folding and transport, feed, turn to the next process. After repeated rubbing pressure to achieve the desired pressure effect. Roll gap adjustment is via a turbine deputy and eccentric mechanism to realize step-less thickness, the user can grasp the actual situation and pasta process.



Technical Parameter



Type	JU-350	JU-500
Press Range	5—25mm	8—25mm
Press Speed	74r/min	79r/min
Power	2.2kw	3kw
Voltage	380V  50HZ	380V  50HZ
Motor	Y100L1—4  2.2kw	Y100L2—4  3kw
Waterproof	IPX1	IPX1
Dimension	1035*650*1065mm	1130*755*1240mm
Weight	245kg	330kg
Belt Dimension	Up  1815*335mm Low 945*370mm	Up 2066*480mm Low 1222*460mm
