Все в одном ПК 4 Гб RAM безвентиляторная 12 1 дюймовая панель сенсорный экран для промышленного
- Категория: Industrial Computer & Accessories >>>
- Поставщик: Guangzhou,Sosu,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 164.76 $* | 167.11 $* |
| Jul-19-2025 | 133.86 $* | 136.23 $* |
| Jun-19-2025 | 161.6 $* | 164.6 $* |
| May-19-2025 | 160.69 $* | 163.52 $* |
| Apr-19-2025 | 128.28 $* | 131.23 $* |
| Mar-19-2025 | 157.14 $* | 160.43 $* |
| Feb-19-2025 | 156.4 $* | 159.66 $* |
| Jan-19-2025 | 155.38 $* | 158.0 $* |
Характеристики
Product Paramenters
System parameter | ||
CPU | RK3188 | |
RAM | 2GB | |
ROM | 8G | |
Network | WIFI, LAN | |
Integrated Gigabit network | ||
Speaker | Built-in | |
Touch parameter | ||
Touch panel | Capacitive 10 points touch | |
Touch life | more than 5000 million touches | |
Surface hardness | >=3H | |
Linear error | <1.5% | |
Type of glass | chemical strengthen | |
Environmental parameters | ||
Power | 12V-7A external power adapter | |
Voltage | 100-240V, 50-60Hz | |
Max power | =<15W | |
Working electric current | =<5A | |
Storage temperature | -20°C-60°C | |
Working Temperature | -10°C-60°C | |
Display parameter | ||
Size | 10.4 inch | |
Proportion | Positive screen 4:3 | |
Type of panel | Industrial control A grade panel TFT | |
Gray-scale response time | 5ms | |
Contrast Ratio | 1000:1 | |
Pixel pitch | 0.264mm | |
Backlight type | LED | |
Light bulb life | 50000h | |
Brightness | 300cd/m² | |
View angle | Vertical 160/ horizontal 160 (customize 178° full perspective) | |
Display color | 16.7million | |
Interface parameter | ||
USB | USB2.0 (USB3.0optional) | |
COM | COM232*2(RS485/RS422optional) | |
Extensive interface | VGA*1 | |
High Definition Multimedia Interface | HDMI*1 | |
Network interface | RJ-45*1 | |
Power interface | DC *1 | |
Audio interface | Audio input/output | |
Wireless interface | standard built-in wifi | |
LTP | Optional | |
Another parameter | ||
Material | metal | |
Color | standard black (or customized color) | |
Warranty | 1 year | |
Accessories | all in one pc, Back bracket/Buckle, power adaptor | |
Product Description
Wide working temperature endurance range
The special design of aluminum alloy +metal cold-rolled plate,it can work as normal even-10℃-60℃,with the characteristics of waterproof,dust-proof, pressure-resistant and anti-interference,adapting to various harsh industrial environments
True flat LCD screen with
seamless aluminum alloy panel design
seamless aluminum alloy panel design
Effectively prevent dust and water from entering the machine and affecting the normal use of the machine
Efficient heat dissipation
Cold rolled steel plate back with multi-directional heat dissipation,good protection for stable operation of the motherboard, longer service lifespan,improve the stability of operation
Gigabit speed limited network/wireless WIFI
Multiple Gigabit Ethernet ports are optional（built-in WIFI），faster network speed and smoother operation
High compatibility
Bult-in industrial motherboard and compatible with the various operating system,it supports most of the grouping software,and good performance is helpful for production control process
Split-screen display and synchronous display
Standard equipped with VGA,HDMI expanded display screen, achieve multi-task synchronous split-screen,improve working efficiency
365*24H uninterrupted operation
Industrial-grade motherboard,imported all-solid capacitors,special process energy saving and low power consumption concept,support 24 hours of uninterrupted operation of the machine,improve production eficiency
Low consumption CPU High frequency, high performance, and strong stability
The industrial motherboards with Intel Celeron J1900 or Intel Core l3/5/7 processor are particularly suitable for industrial production due to its high performance and low power consumption.

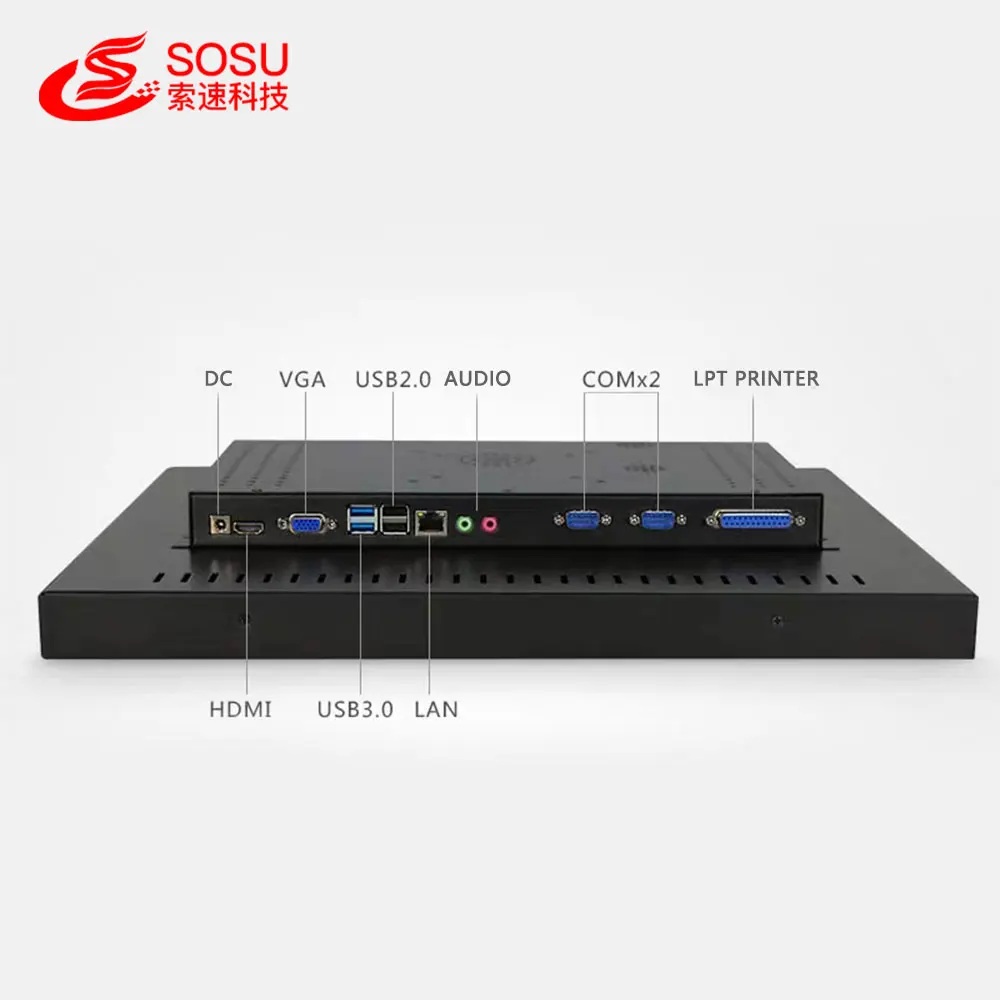

Rich device interface
Support extended customization
Support extended customization
Precise touch & fast response
High resolution,responsive,pure flat touch screen, no blind spots,high stability
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Details Images
Customized function
Could add what you need, like Bluetooth, Camera, SIM card, expande Memory card, GPS, Scanner, Printer and so on
Company Profile
Company profile
Established in 2009, Guangzhou Sosu Electronic Technology Co., Ltd. is one of the earliest and largest manufacturers in commercial display equipment in China and integrates R&D, manufacture, and marketing management. With its profound technical advantage and hard-working spirit, it stands out in the field of commercial display and was awarded "One of top ten companies in Guangdong Commercial Display Industry
SOSU team has researched and developed these commercial display equipment include
Industrial monitor, Touch inquiry machine, Interactive smart whiteboard, Education touch all in one machine, LCD digital signage, LCD video wall, Charging station, and so on.
With strong technical research and development strength, excellent product quality, SOSU has earned good reputations from a variety of industrial customers.
Packing&Shipping
A.Package part: Here are three options for reference.
Package 1: Standard Paper carton
Package2: Wooden frame or Wooden case(based on paper carton)
Package3: Flight case (based on paper carton)
B.Shipment: here are many options for reference. Method
1: Shipp to agent address by domestic express Method
2: Shipp directly by Express (DHL, FedEx, UPS, TNT, etc) or Air or Sea..
FAQ
Q1: What payment methods your company accepts?
Q3: When will you make the delivery?
Q4: Which shipping can we provide?
Q5: I want to have a sample, can you provide?
Q6: I bought this LCD display on how to use and install it?
A: We accept most of the payment methods, but mainly accept T/T or Alibaba Assurance Payment.
Q2: How long is the warranty time for your products?
A:1 year full warranty is quoted normally. But customers can choose to extend the warranty to 2 years, 3 years.
Q3: When will you make the delivery?
A: We can make the delivery within 5 working days according to different models and quantities of your order.
Q4: Which shipping can we provide?
A: We will offer different delivery options for customers: express, air, sea, car, or the delivery handled by the customer’s own forwarder.
Q5: I want to have a sample, can you provide?
A: We are very glad to provide samples for testing and qualification. All samples should be paid before shipment. You can buy the samples from us directly using T/T, western union, or Pay pal.
Q6: I bought this LCD display on how to use and install it?
A: To help customers use our products better, we have recorded and uploaded some video guidance and we have an overseas support engineer team.
