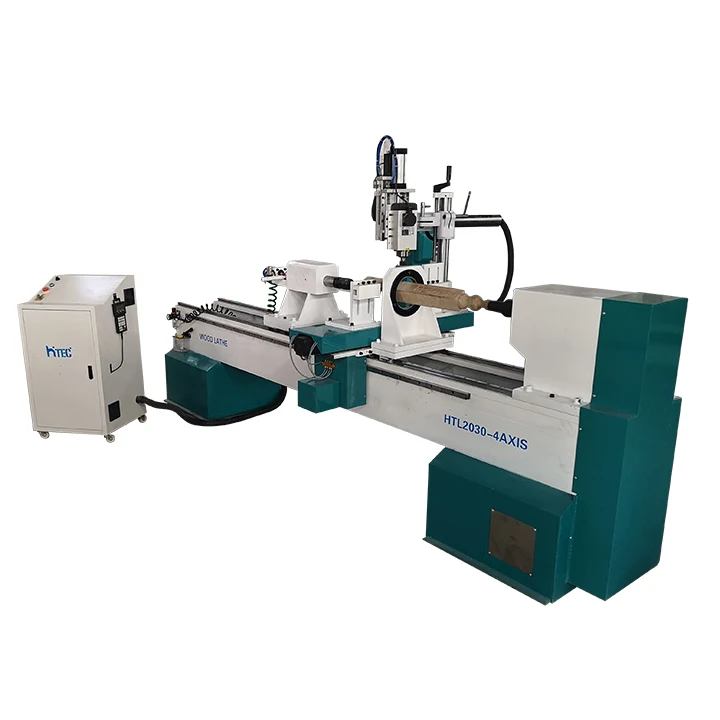

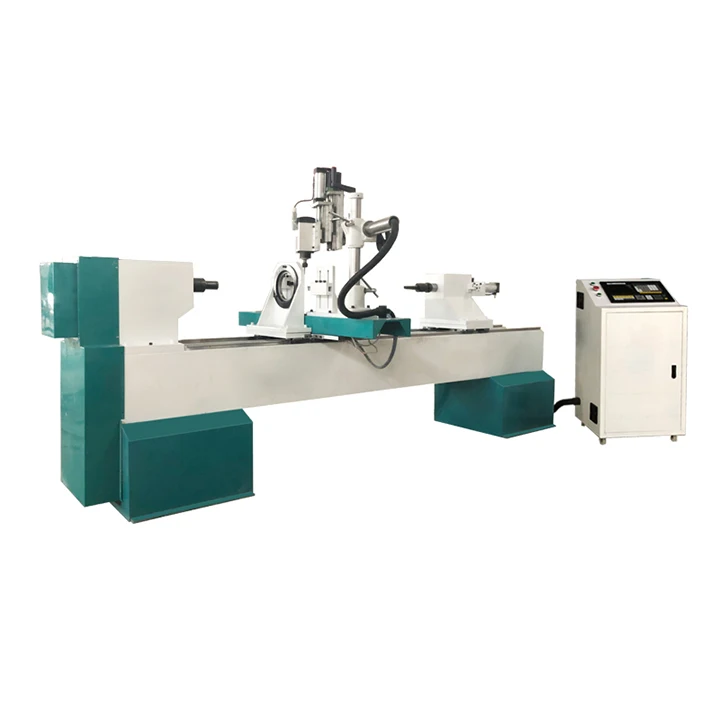

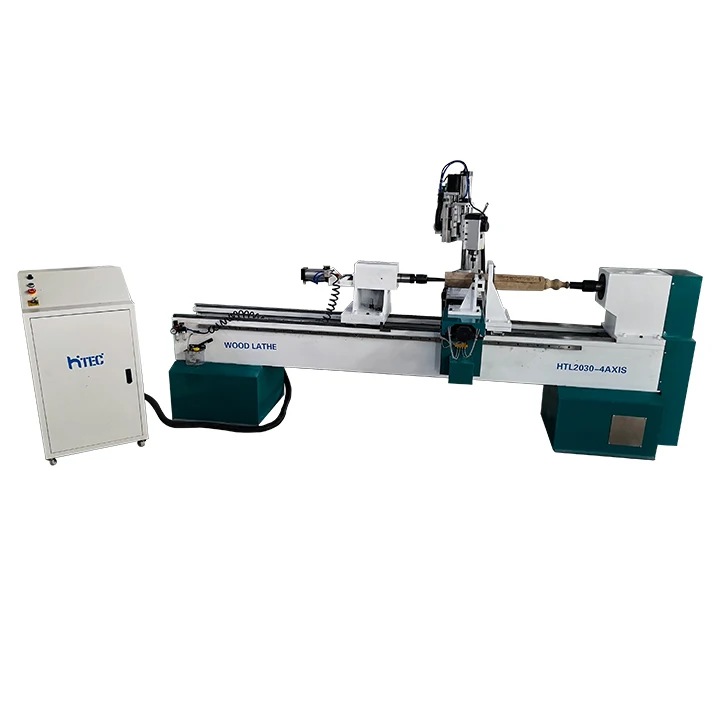

Wood Lathe

Features of wood lathe

1) Driving system:Adopt frequency conversion speed regulation system, could adjust the turning speed at any time to solve the problem of materials' vibration.
2) Spindle:we could configure single spindle or two spindles, single spindle could configure chuck, two spindle could process two pieces at the same time for high efficiency.
3) Performance part: high accuracy stepper motor, after program calculating, guarantee the exact processing size.
4) Feeding part:Taiwan TBL high quality straight line sliding rails and Germany NEFF precise ball screw, control the linear error effectively.
5) Japanese frequency converter with high stability
6) Operation system developed by ourself with patent is easy to operate.

Application

>>Applicable Material:

Various wood materials can be processed, such as beech, oak, pile of wood, birch, teak, Sapele, ashtree, merbau, sandalwood, rosewood and other wood material.



>>Applicable Industry:

For the production of solid wood furniture, solid wood staircase, wood columns, solid wood floor racks, wood decorative, wood crafts, such as rotating working pieces machining. Applies to furniture, staircases, decorative, wooden crafts manufacturing factory, etc.

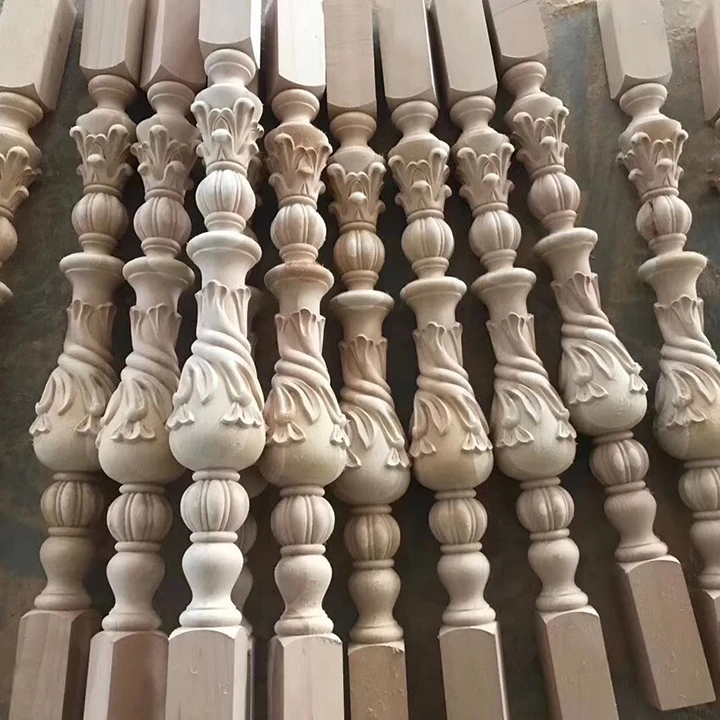

The final products include various cylindrical working pieces, bowl shape, tubular shape and vehicle wood crafts, such as various staircase column, Roman column, general column, tables or chairs legs, washstand, wooden vase, wooden table, baseball bat, car wooden furniture, children' s bed column, etc.

Parameters

Model	HTL1516-4Axis	HTL1530-4Axis	HTL2530-4Axis
Max Processing Size (Diameter*L)	300*1500mm	300*1500mm	300*2500mm
Spindle Power	4kw	4kw	5kw
Spindle Quantity	1	1	1
Tools Quantity	2	2	2
Max Feed Speed	35mm/s	35mm/s	35mm/s
Spindle Speed	0-3500rpm	0-3500rpm	0-3500rpm
Accuracy	0.001mm	0.001mm	0.001mm
Control System	CNC, PC+12"LCD Or DSP	CNC, PC+12"LCD Or DSP	CNC, PC+12"LCD Or DSP
Support Command	G Code	G Code	G Code
Software	AutoCAD, Coreldraw, Artcam, Type3, Ucancam, Caxa, UG, Mastercam
Voltage	380V/50HZ	380V/50HZ	380V/50HZ
Machine Dimension	2750*1200*1300mm	2750*1300*1400mm	3750*1300*1400mm
Weight	1500kgs	1500kgs	2000kgs
Remark:	C Series Function: Double  Cutters, Just Turning Cut CE Series Function: Double Cutters, Turning Cut + Cylinder Engraving CEP Series Function: Double Cutters, Turning Cut + Cylinder Engraving + Plane Engraving





Details Parts of wood lathe



Customer Feedback For This Machine

HITEC Company Information

Established in the year 2002,An ISO 9001 Firm.We are manufacturer and deverlops of the high technology machines.Hitec products are used in a wide variety of industries,markets and applications thoughout all over the world. Hitec is highly committed to offering the most advanced,capable and efficient manufacturing technology backed by unsurpassed service and support.
We offer cnc wood router,cnc laser,cnc plasma,cnc parts.
Cnc Wood Router inclued :2&3D cnc router,3axis atc cnc router,4axis cnc router,5axis cnc router also the hot sale advertising cnc router.
Cnc Laser inclued :co2 laser cutting machine,metal laser cutting machine,fiber laser cutting machine,metal&nometal laser cutting machine,fiber laser marking machine,co2 laser marking machine ect.
Our offered range of products has ISO standard,CE standard,FDA standard.We are able to supply to all over the world with High Quality,Professional Service,High speed cnc router,cnc laser,cnc plasma and cnc parts.
