Column Mounted Slewing 1t 2 Ton 3t 5t Jib Crane Low Price



•

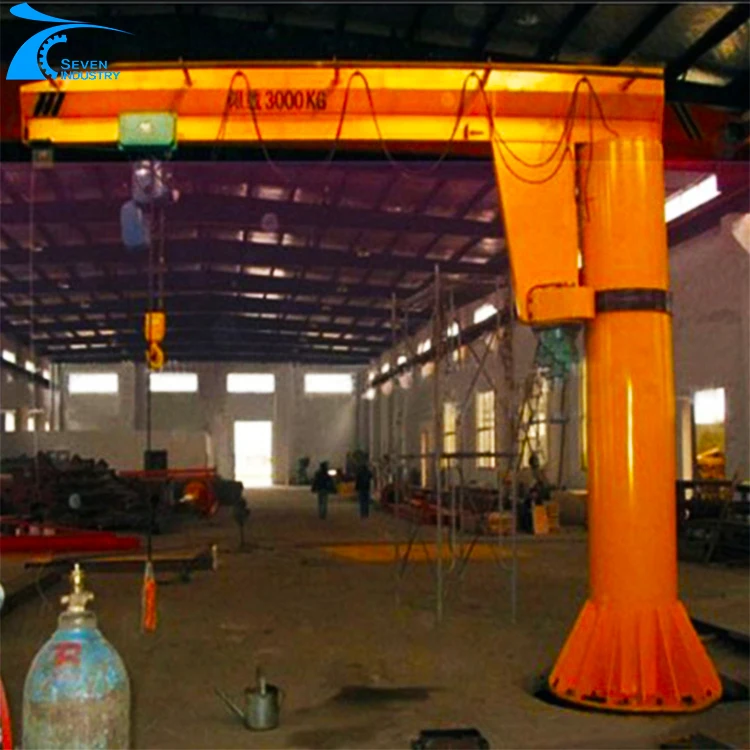

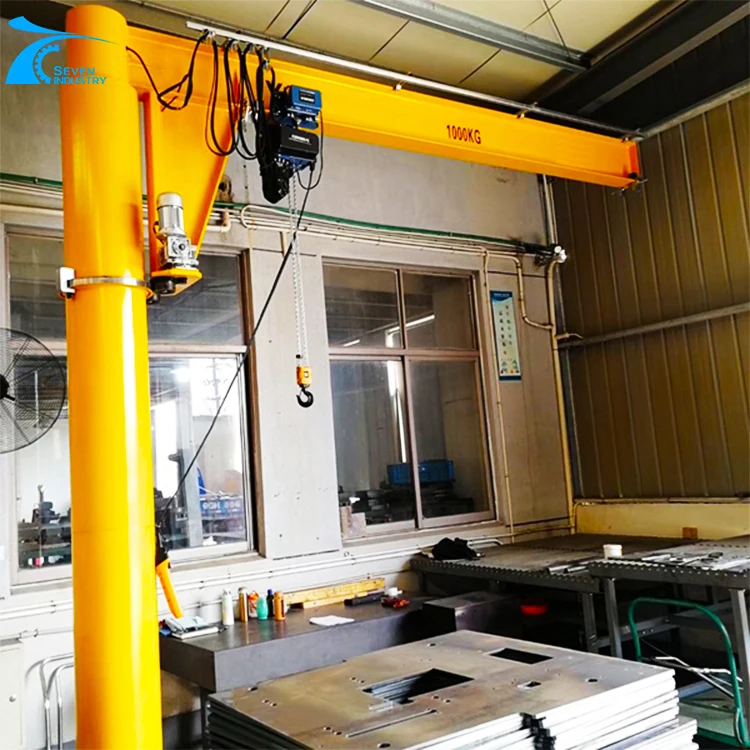

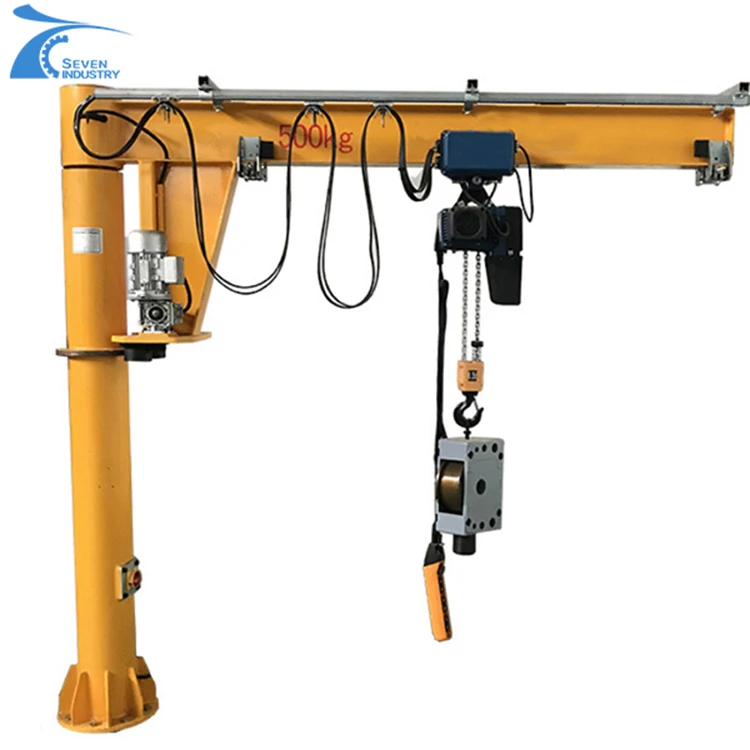

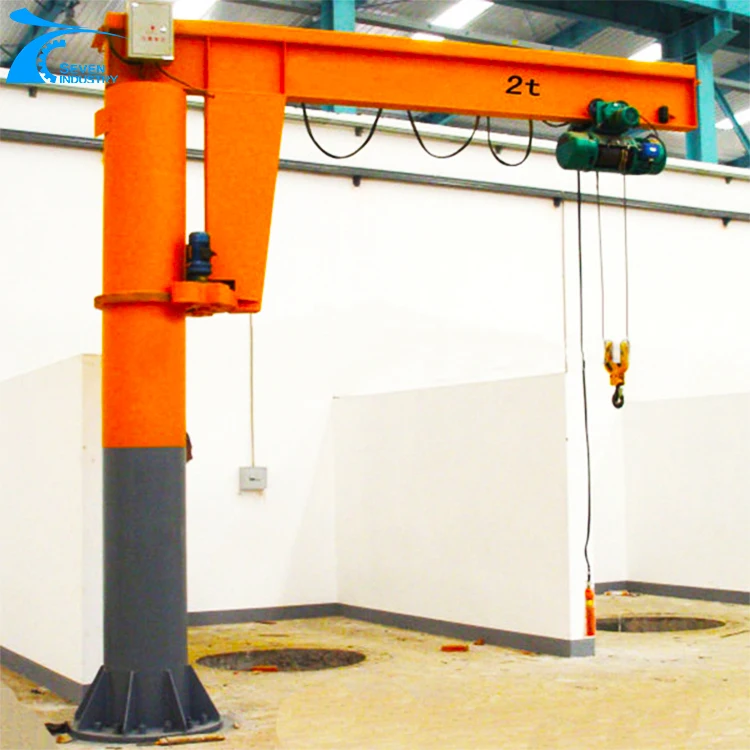

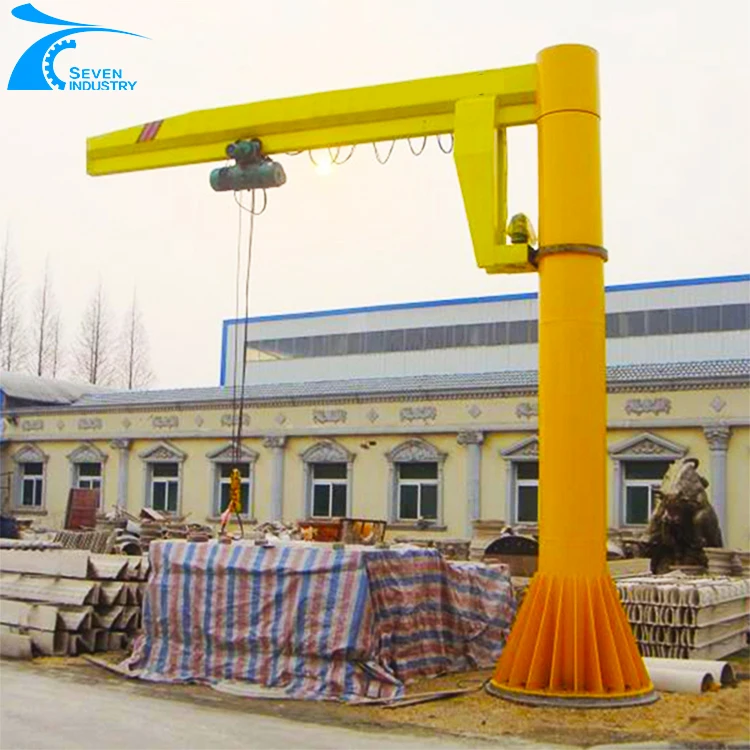

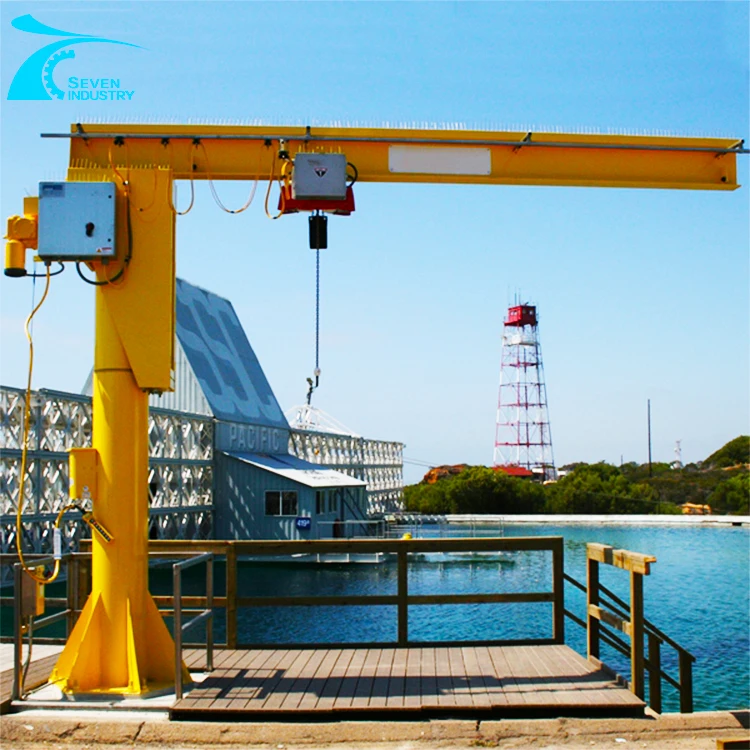

  BZ Type Pillar Jib Crane





• Load capacity: 1ton ~10 tons


• Crane span: 2m ~12m or customized


• Lifting height: 2m to 12m or customized


• Hoist unit: wire rope hoist or chain hoist


• Working duty: A3


• Power source: Based on your power supply

Compact Design:
The advanced design idea gives the crane light structure and excellent performance, at the same time narrows the hook operation distance in the maximum, and improves the space utilization rate effectively. So it can reduce your workshop investment costs and bring more investment returns.
Smooth, Fast Loading
The standard configuration of the crane are the trolley and crane both having step-less frequency conversion control system, with features of braked stably, accurate location, and reliable performance, which make traveling steady, positioning quick, solving the problem of swing of goods. Safer, Reliable, Using Free Maintenance Design The crane used the best technology in the whole process shows its superiority, especially in the frequent operations. The perfect braking system improves safety and reliability a lot, which can be adjusted by itself with dustproof design, and it can be used more than 1 million times. Hardening and polishing the tooth surface will make sure the crane operate without trouble.
Excellent Performance
As an important logistics equipment, if the crane is out of order, it will cause great damage. So our products always having high quality will be your best choice.

technical parameters

Lifting Capacity(t)	0.5	1	2	3	5
Lifting Height(m)	6	6	6	5	5
Valid Radius(m)	4~5	4~5	4~5	5~5.5	5~5.5
Working Duty	A3
Hoisting Speed	0.8~8m/min
Traveling speed	20m/min
Slewing speed	0.5~1m/min
Slewing Angle	180°,270°,360°
Max Length(m)	5.59	5.61	5.626	6.82	6.44



recommend products

Why choose us

about us



Founded in 1988, Henan Seven Industry Co., Ltd is a various cranes producer over 30 years, SEVENCRNE serves design, manufacture, sale, installation and maintenance of cranes to a wide range of industries including machinery, metallurgy, power industry, railways, water conservancy, ports, mines, coal, petroleum, chemical industries, etc. Our annual capacity is over 5,000 SETS, also have been exporting our cranes over 60 countries and regions in this global market with stable quantity each month already.

We are located in Changyuan crane Industrial Park, Henan Province, covering an area of more than 680,000 square meters. At present, there are more than 3,000 employees, more than 160 middle and senior professional technicians and managers.

Also, we, a china-based company as a serious comprehensive distributor of other crane products as well. Such as port crane, tire crane boat crane workstation crane, etc. Meanwhile, we are willing to accept any inspection customers needs to guarantee the perfect quality for customers and commit to establishing long term stable and mature business relationship with customers.

Our slogan: 1. First class service

           2. Safe

           3. Efficient

           4. Reliable

Company name: SEVENCRANE (Henan Seven Industry Co., Ltd)

Address: Huida xintiandi, qilihe north road, Zhengdong new district, Zhengzhou city, Henan province, China.

Products: Overhead cranes, Gantry cranes, JIB crane, Hoist, Winch, Work Platform, Crane parts

1. What’s the information should I provide when inquiry?

More details or drawings, more better.

A: Lift capacity

B: span

C: lift height

D: power source

Or other specials you give us will be more appreciated.



2. How many operating methods for my selection?

Standard operating methods:

A: pendent controller with push buttons.

B: remote control with push buttons

C: cabin(space capsule seat) control with joystick.

Choose any type as you like.



3. Can this type work in hazardous environment?

Sure! Can customize for you, acid proof or explosion proof, no problem for that.



4. How long is your warranty?

Our warranty is 15 months after received the goods.



5. Can you provide the serious lifting tools?

Sure, we can provide any lift tools such as lift sling belt, lift clamp, grab, magnet or other specials as your requirement!



6. Usage period

About 30 years under common use.



7. How can we install the crane?

Our senior engineer can be your side to do the installation guide service and training. Moreover, our best sales can visit your country.



8. Safety device

Overload limiter, Limit Switch (lifting and traveling), Interlock protection device, Buffer, Overhaul cage, Rail clear plate, Protective cover, Bus bar preventer plate, Anti-collision device, Main isolating switch, Emergency stop system, Motor overload protection, and so on.
