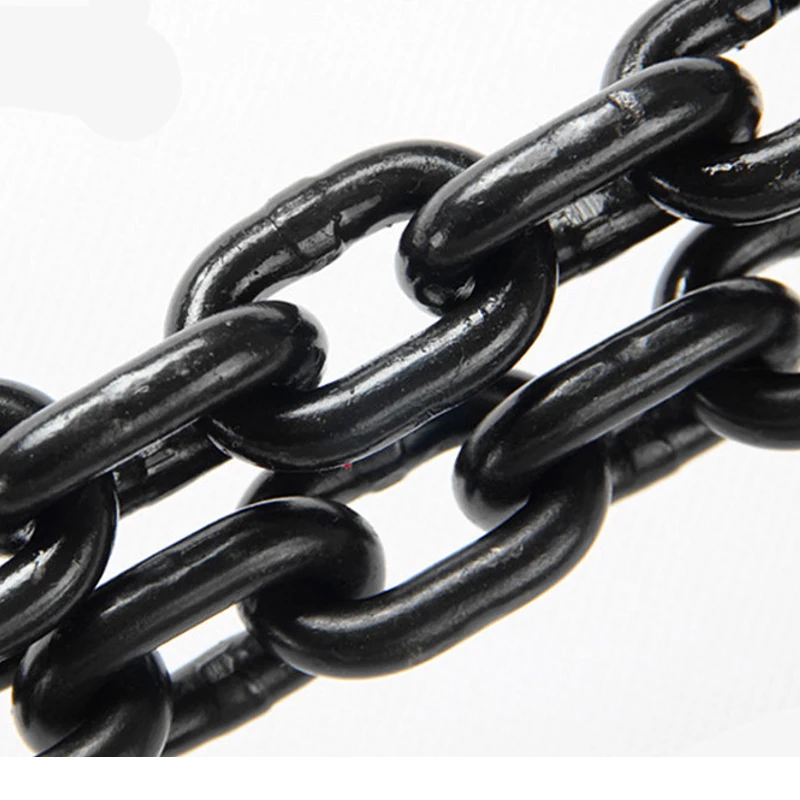

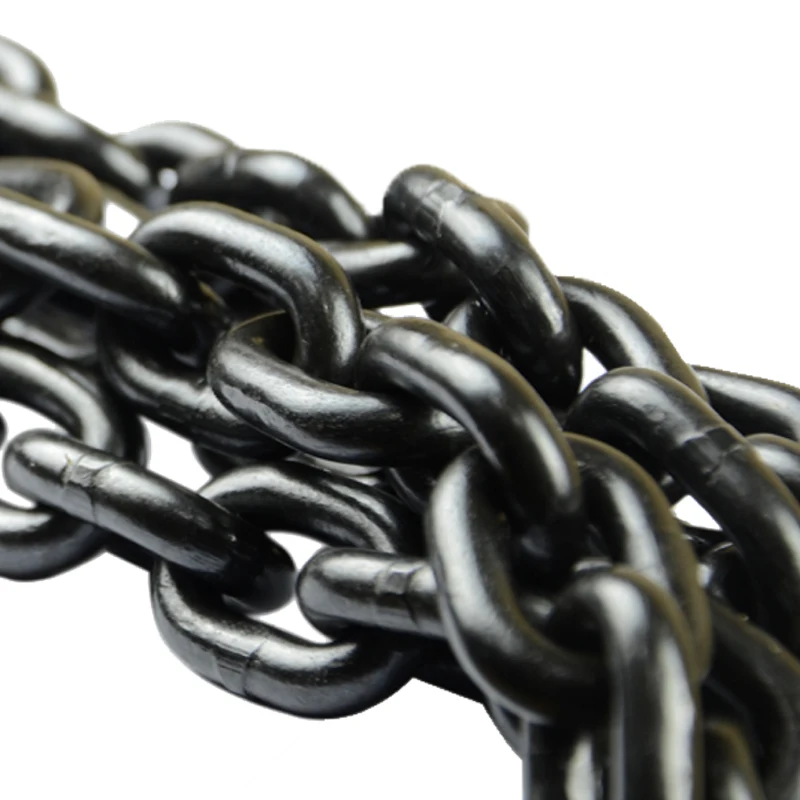

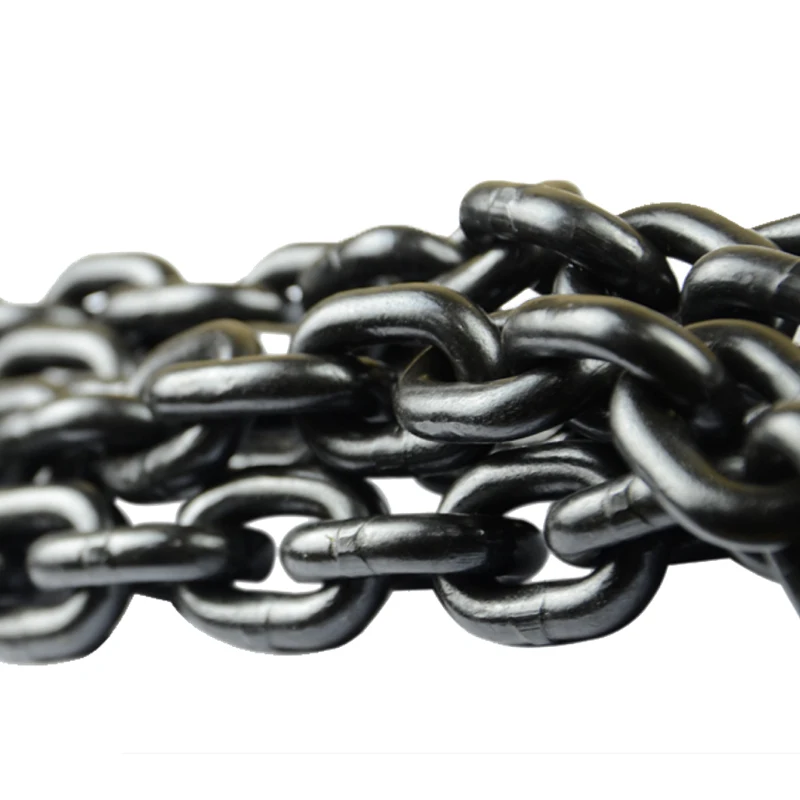

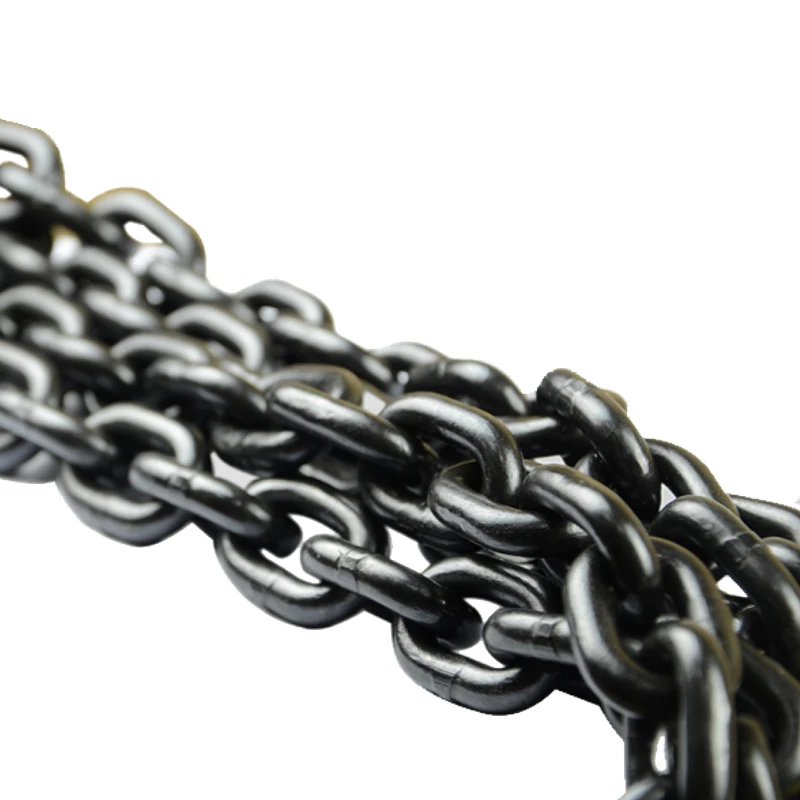

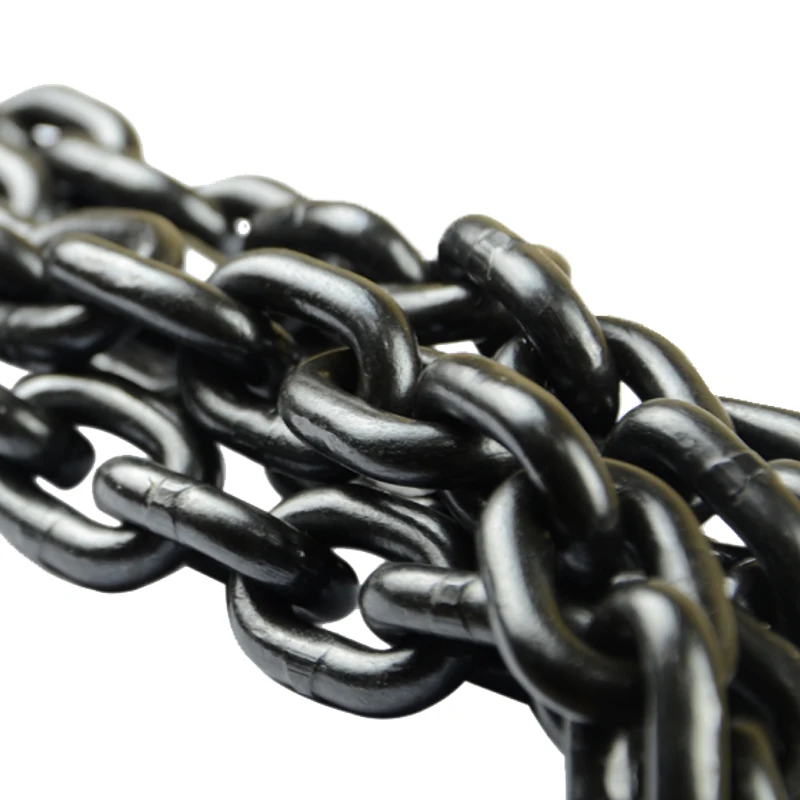

G 80 Load chain High quality

Real Factory/ Manufacturer.

More photos about my Chain Work Shop



Size dxp (mm)	Width		Approx Weight (kg)	Working Load(KN)	Test Load (KN)	Breaking Load min(KN)
	Inside min (mm)	Outside max(mm)
6x18	7.5	21	0.79	1.1	27	45.2
7x21	9	24.5	1.07	1.5	37	45.2
8x24	10	28	1.38	2	48	61.6
10x30	12.5	35	2.2	3.2	76	80.4
11x43	12.6	36.5	2.33	3.8	92	125
12x36	15	42	3.1	4.6	109	154
12.5x38	15.5	42.2	3.3	4.9	117	181
13x39	16.3	46	3.8	5	128	196
14x42	18	49	4.13	6.3	150	214
14x50	17	48	4	6.3	150	250
15x46	20	52	5.17	7	168	280
16x48	20	56	5.63	8	192	320
16x49	24.5	59.5	5.71	8	192	320
16x64	23.9	58.9	5.11	8	192	320
18x54	23	63	6.85	10	246	410
18x64	21	60	6.6	10	246	410
19x57	23.7	63.2	7.7	11.3	270	450
20x60	25	70	8.6	12.5	300	500
22x65	28	74.2	10.7	15.3	366	610
22x66	28	77	1.2	15.3	366	610
22x86	26	74	9.5	15.3	366	610
24x72	32	82	12.78	18	432	720
24x86	28	79	11.6	18	432	720
26x78	35	91	14.87	21.3	510	850
26x92	30	86	13.7	21.3	510	850
30x90	38	105	19.6	28.3	678	1130
30x108	34	98	18	28.3	678	1130
32x96	40	106	22.29	32.2	772	1286
34x126	38	109	22.7	36.3	870	1450
34x102	46.5	121.5	25.5	36.3	870	1450
36x108	49.5	128.5	31	40.7	978	1630
38x137	42	121	29	45.3	1086	1810
38x114	52	136	32	45.3	1086	1810
42x126	55.5	144.5	38.6	55.4	1332	2200





Please kindly note: JDP Guangzhou Technology Co.,Ltd. is the only export office of Huaige Group.

Please never believe other fake companies.

And all the email from my company should be @huaigegroup.com

More details about the product please kindly check with us export @huaigegroup.com

Whatsapp & Mobile phone Number: 008613930223782

Thanks for your business!





Hebei Huaige Hoisting Machinery Group Co.,Ltd. was founded in 1999 in Baoding. Today, the Huaige is a global player. Its main development and production facility in China, offers future-oriented solutions with various hoists and other lifting tools for a wide range of applications.

As a famous hoisting tools manufacturer, we have assembled the most complete & professional Testing Line in hoisting field in China. Every product will be perfact both in performance and appearance.

For hoisting, moving, pulling, driving and conveying, our Huaige lifting means, Huaige Electric Hoists, Manual Hoist, Lever Hoists, Chain, Transportation trolleys also other hoisting tools are a guarantee of quality, innovation and safety. Each product we produced was inspected by our experienced technician who had over 30 years research and producing experience, and we also use strict quality control testing system to ensure the products' stability and durability.

Our Huaige family has an annual turover of 58 million USD, and currently has over 200 employees working in our production facilities, and we extended our business in over 80 countries worldwide.

In Tradition of Dynamic Innovation “that is in the tradition of a modern and dynamically growing family organization, the Huaige Group has officially been nominated as a Hidden Champion of the 21st Century because we are in our defined sectors worldwide leader in quality and technology.



Please kindly note: JDP Guangzhou Technology Co.,Ltd. is the only export office of Huaige Group.

Please never believe other fake companies.

More details about the product please kindly check with us export3(@)huaigegroup.com
