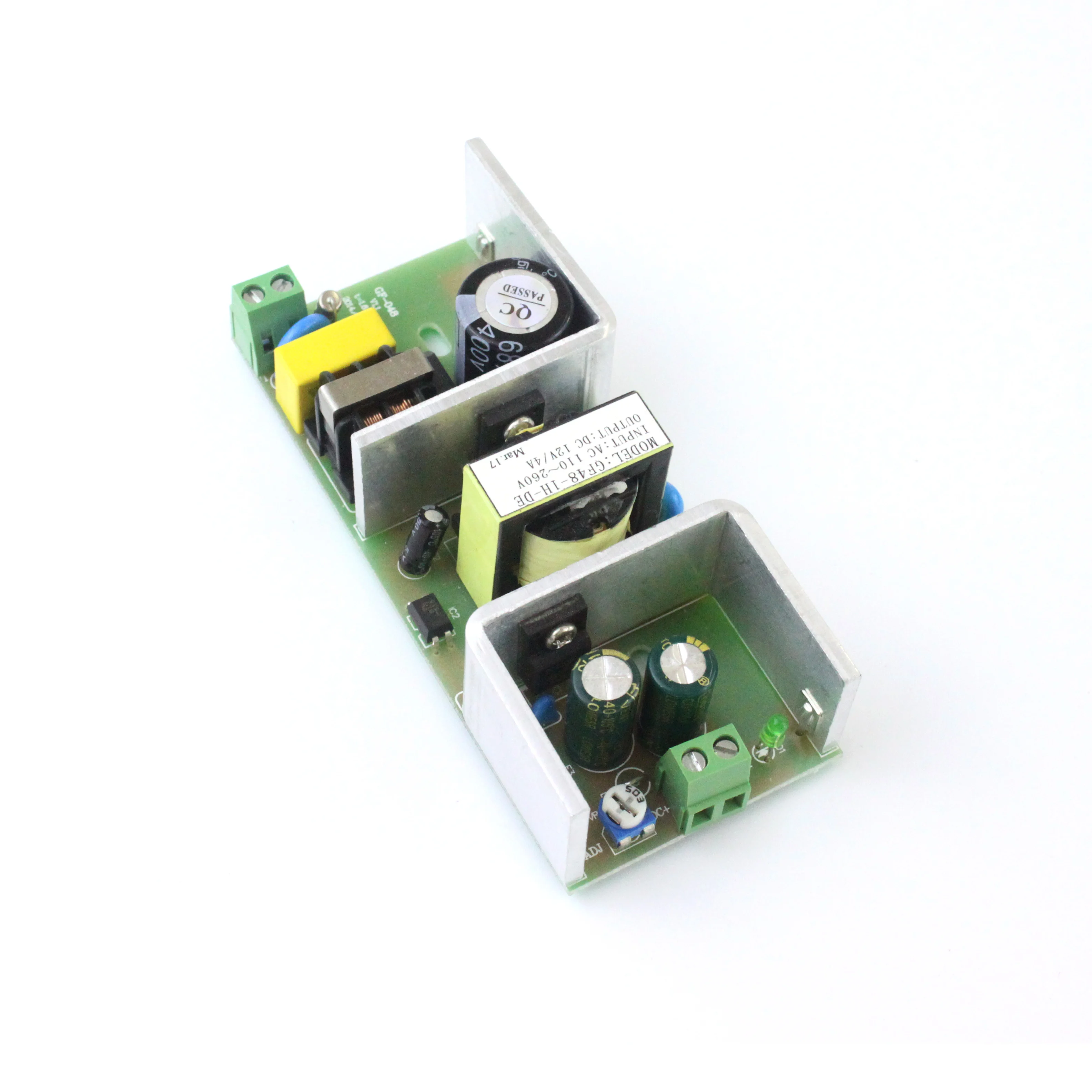

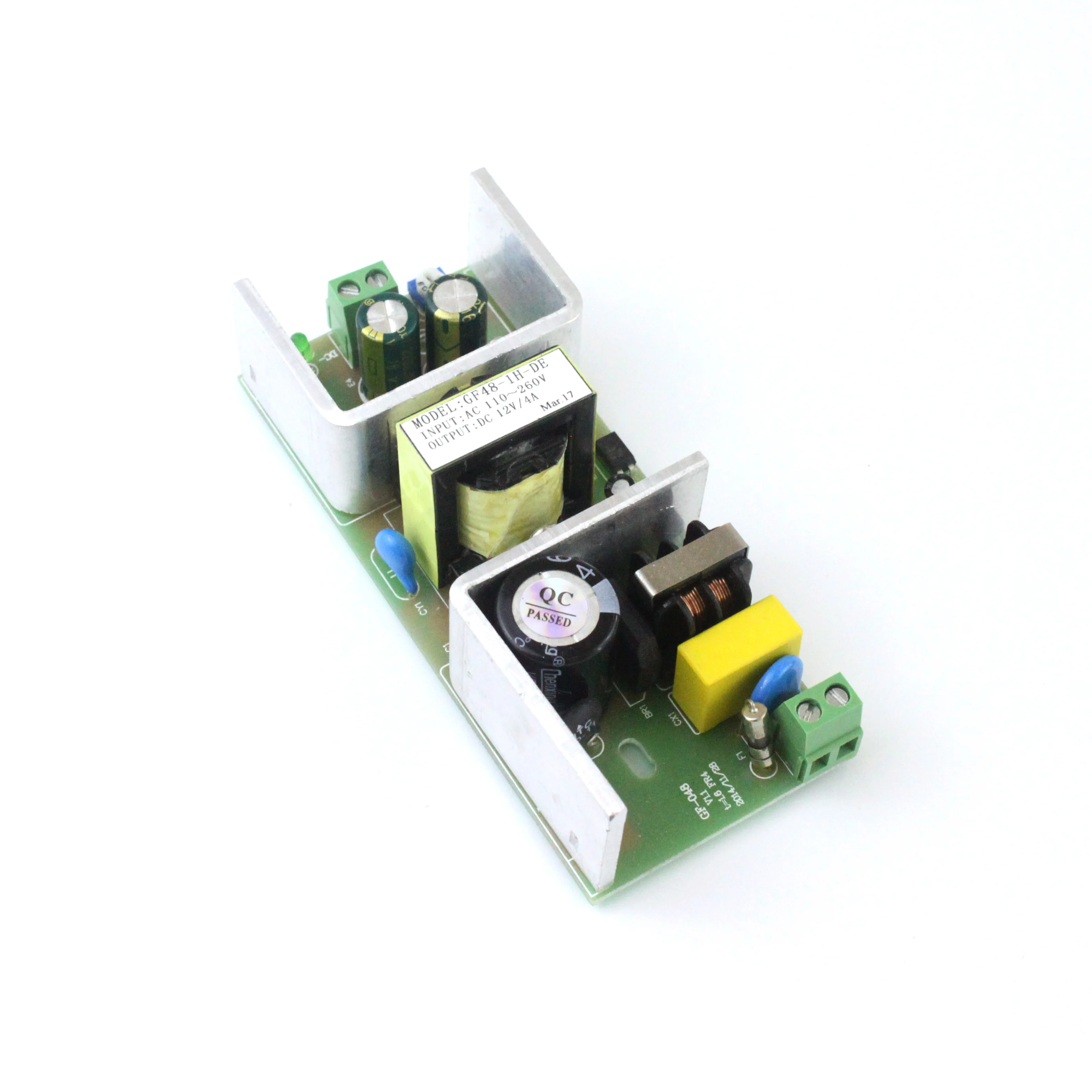

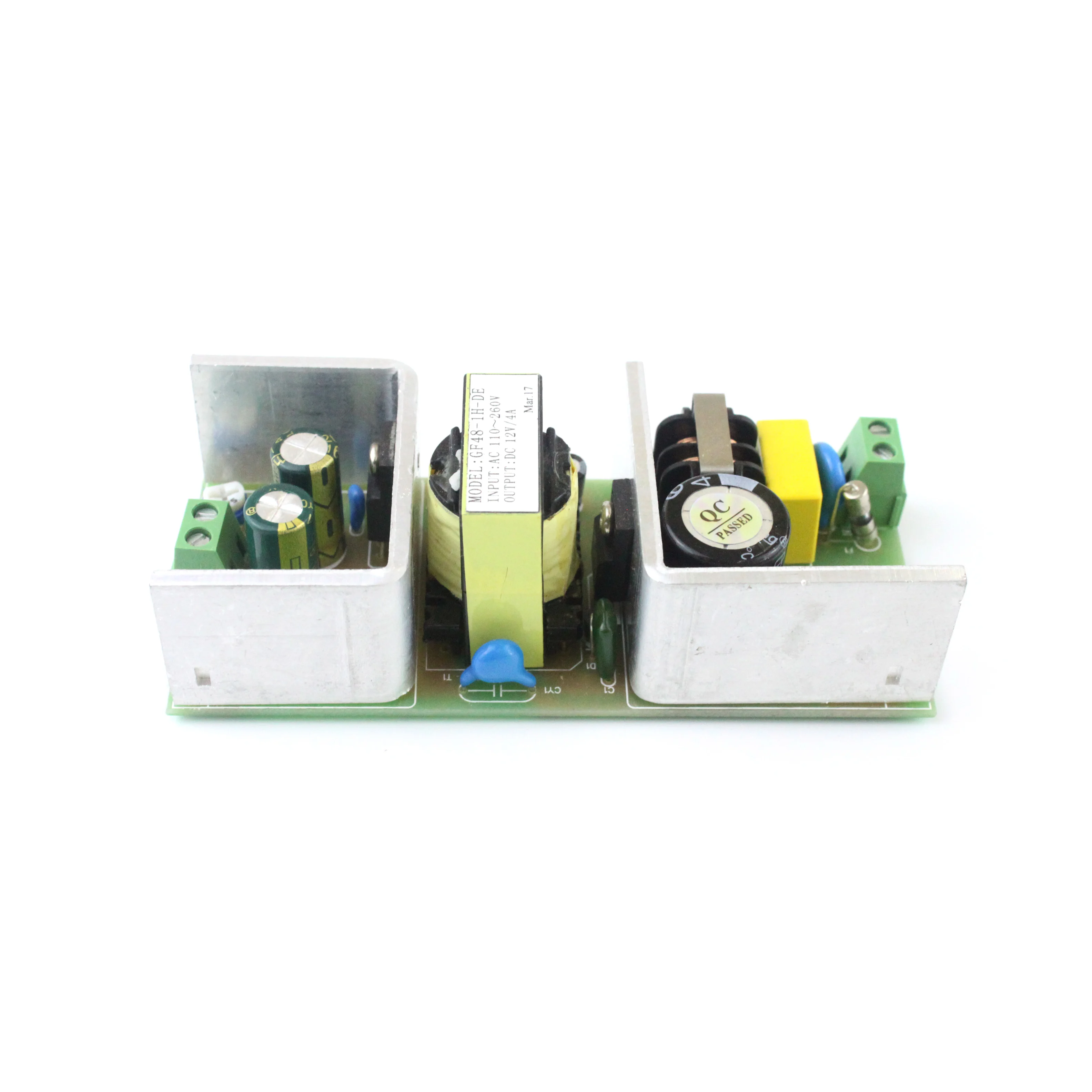

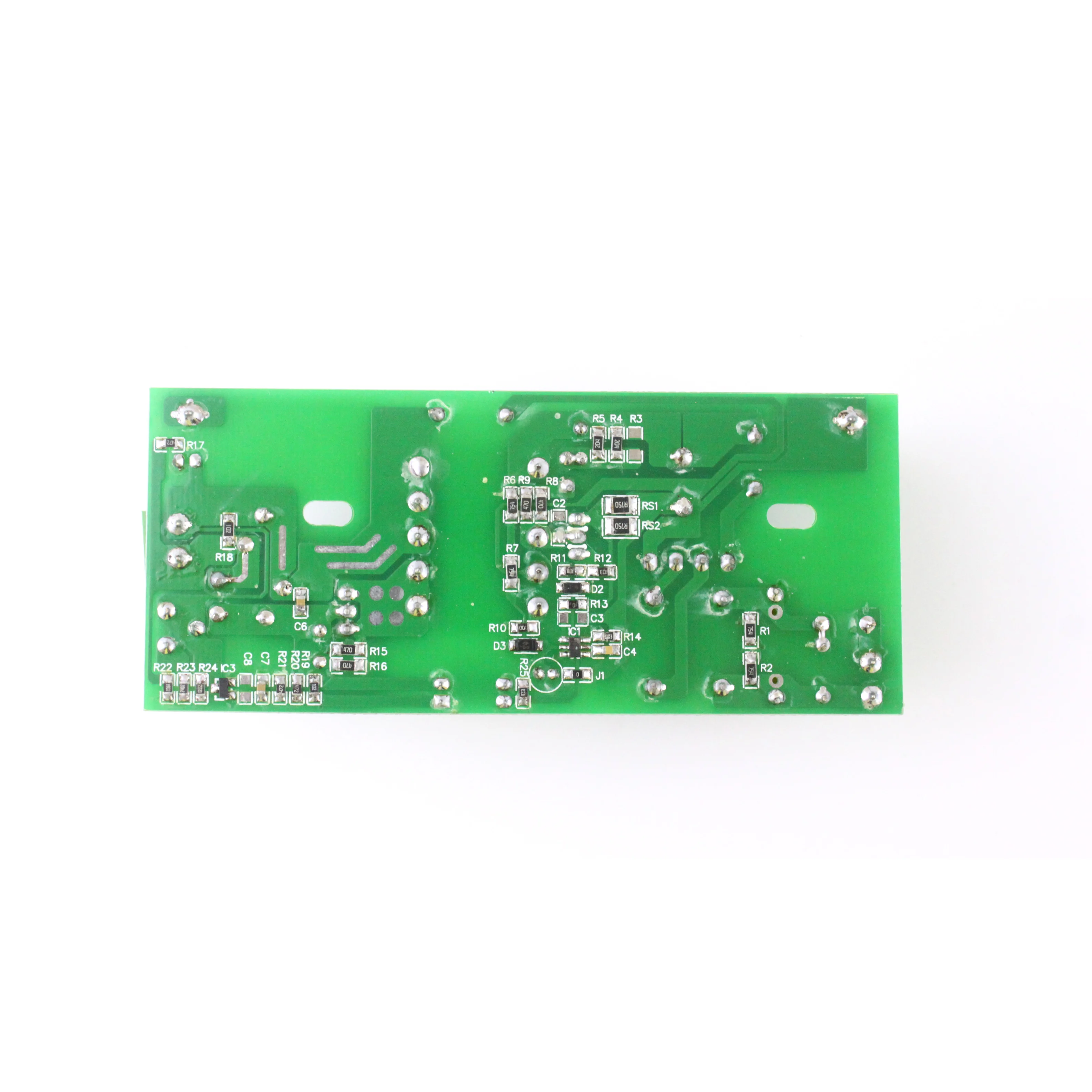

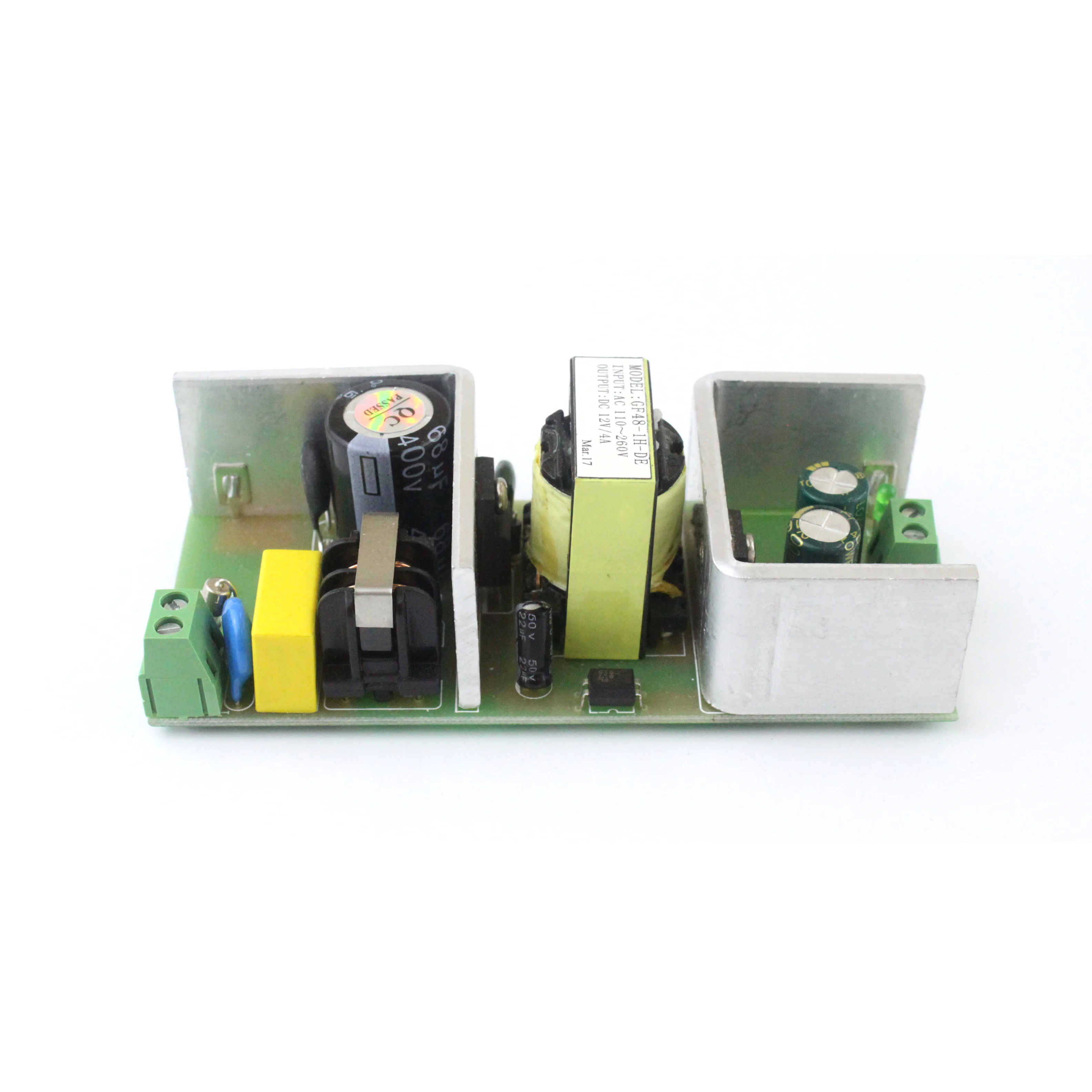

 5V 12V 15V 20V 24V 32V Factory OEM Adjustable Open Frame Power Supply







MODEL		GF50-1B-DE
OUTPUT	DC VOLTAGE	24V
	OUTPUT POWER	48W
	CURRENT RANGE	0-2A
	RIPPLE & NOISE(max.)	240mVp-p
	VOLTAGE ADJ. RANGE	±10%
	LINE REGULATION	±1.0%
	LOAD REGULATION	±2.0%
	VOLTAGE TOLERANCE	±2.0%
	CONNECTION TERMINAL	DC+, DC-
	SETUP,RISE TIME	800ms, 50ms at full load
	HOLD UP TIME	60ms
INPUT	VOLTAGE RANGE	86 ~ 264VAC
	AC CURRENT(Typ.)	0.35A/ 226VAC    0.18A/ 240VAC
	CONNECTION TERMINAL	AC-L,AC-N
	FREQUENCY RANGE	47-63Hz
	EFFICIENCY(Typ.)	82%
	INRUSH CURRENT(Typ.)	COLD START 15A/115VAC   30A/230VAC
	LEAKAGE CURRENT	<0.75mA/240VAC
PROTECTION	OVER LOAD	115%~135% of rated power; Pulsing hicuup shut down,auto recovery
	OVER VOLTAGE	Rated output voltage of 105%~150% start overvoltage protecion
		Protection: burst mode,load of abnormal conditions removed the automatic recovery
	SHORT CIRCUIT	voltage off and reset input for recovers
ENVIRONMENT	WORKING TEMP.	-0℃ ~ +45℃ (Refer to output load derating curve)
	WORKING HUMIDITY	20 ~ 90% RH non-condensing
	STORAGE TEMP.,HUMIDITY	-20℃ ~ +85℃ 10~95% RH
	TEMP. COEFFICIENT	±0.05%/℃
	COOLING METHOD	BY FREE AIR CONVECTION
SAFTY & EMC	SAFTY STANDARDS	CE EN60950-1 Approved
	WITHSTAND VOLTAGE	I/P-O/P:1.5KVAC, I/P-FG:1.5KVAC, O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG,O/P-FG: 100M Ohms/ 500VDC
	EMI CONDUCTION	Compliance to EN55022
	HARMONIC CURRENT	Compliance to EN61000-3-2,-3
	EMS IMMUNITY	Compliance to EN55024
OTHERS	DIMENSION	L115*W45*H20MM
	WEIGHT	0.13Kg,125PCS/Carton
	SHELL MATERIAL	NO

MOQ-

No limited



Many power models-

5 Watts - 1800 Watts



Many voltage output-

5V, 7.5V, 9V, 12V, 13.8V, 15V, 18V, 24V,29V, 36V, 48V,50V,60V (Depend on your requirement).



New Design-

We have professional engineer to make new design as your speical requirment.



Good quality-

We have the best professional and experienced engineer and the strict QC system.



Sample order-

We are pleased to offer you free sample, but you need to bear oversea freight.



Fast delivery-

The delivery time is 1-25 days which depend on quantity and details items.



Payment term-

T/T, L/C, Paypal, Western Union, Money Gram.



Solutions-

With more than 10 years experience,we can provide professional design solution for power supply according your requirement.



Cooperation-

You are welcome to be our distributor or agent in all over the world for switch power supply.Please contact us for more details.
