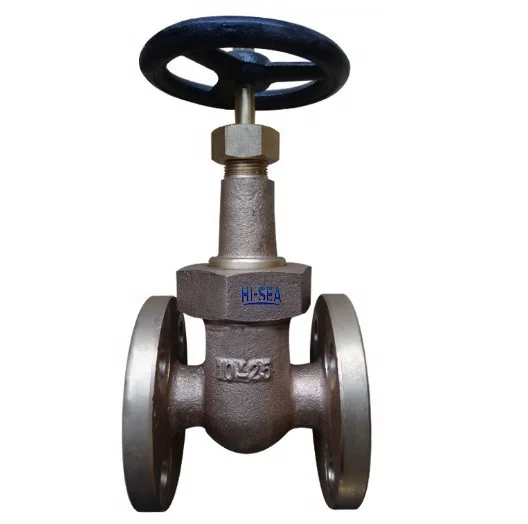

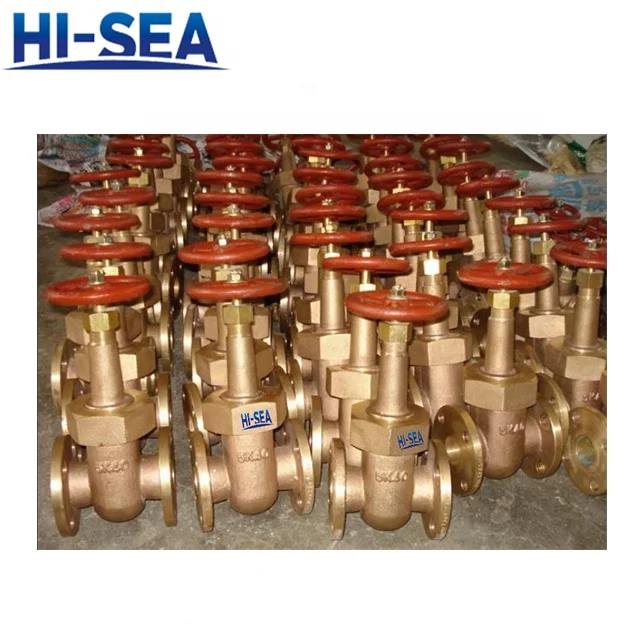

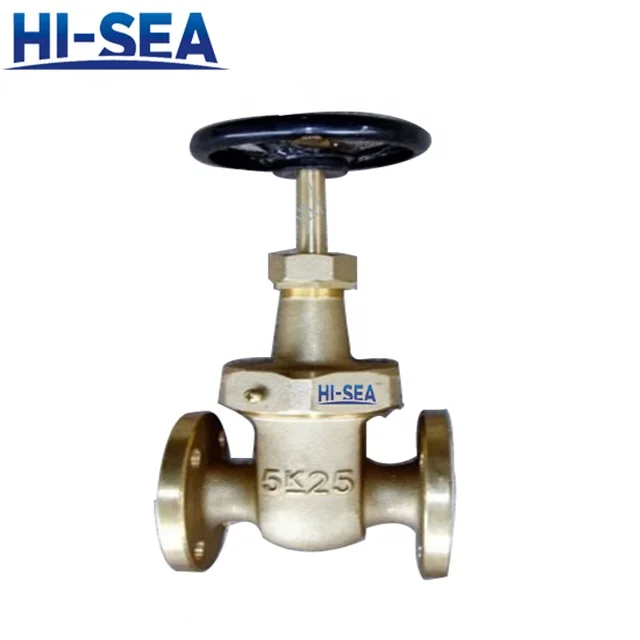

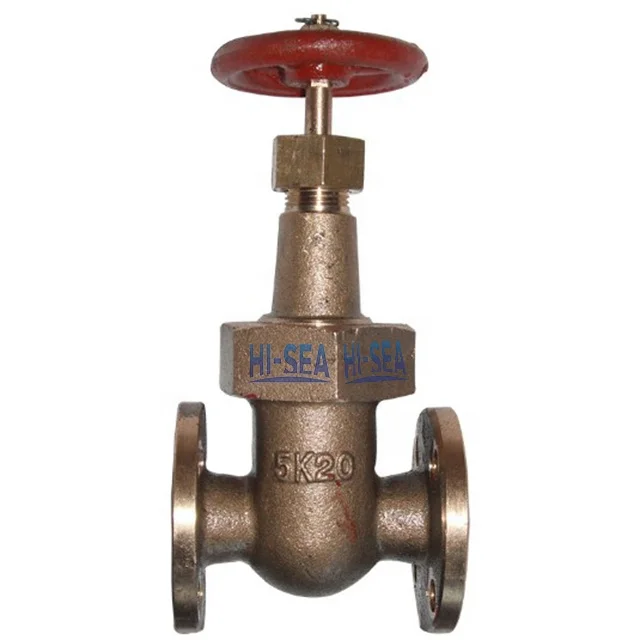

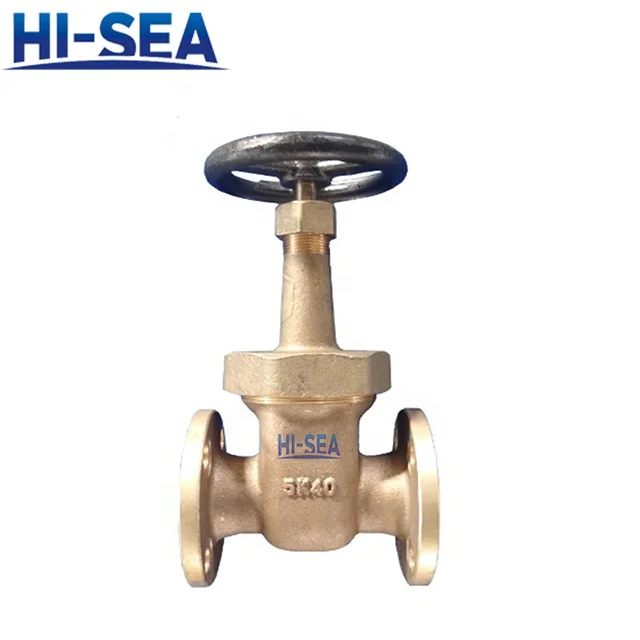

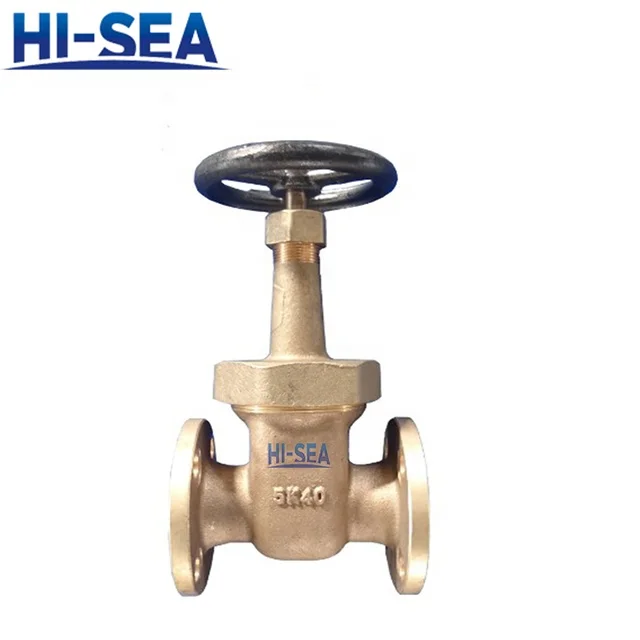

Marine Bronze Rising Stem Gate Valve

Material Chart

Name of Part	Material
Body	BC6
Bonnet	BC6
Disc	BC6
Stem	C3771BD OR BE
Gasket	NON-ASBESTOS
Handwheel	FC200



Drawing



JIS F7367 Marine Bronze Rising Stem Gate Valve (5K)

DN	d	L	D	C	NO.	h	t	H	D2
15	15	90	80	60	4	12	9	175	80
20	20	100	85	65	4	12	10	200	80
25	25	110	95	75	4	12	10	220	100
32	32	130	115	90	4	15	12	250	100
40	40	140	120	95	4	15	12	290	125
50	50	180	130	105	4	15	16	282	125
65	65	190	155	1330	4	15	18	302	140
80	80	200	180	145	4	19	18	335	160
100	100	230	200	165	8	19	18	375	180



JIS F7368 Marine Bronze Rising Stem Gate Valve (5K)

DN	d	L	D	C	NO.	h	t	H	D2
15	15	100	95	70	4	15	12	175	80
20	20	110	100	75	4	15	14	200	80
25	25	120	125	90	4	19	14	220	100
32	32	140	135	100	4	19	16	250	100
40	40	150	140	105	4	19	16	290	125
50	50	200	155	120	4	19	16	282	125
65	65	220	175	140	4	19	18	302	140



Packing & Delivery

Packing: Export packing

Delivery: It depends on customer's request.

Certification

Our Service

Quality Assurance

All our products are pruduced in strict accdrdance with products standard. All products undergo quality inspection before leaving the factory, and qualified products can be sold.



Product Customization Service

In order to allow customers to find the right products, our company can customize products according to customer requirements.
