              M   anufacturers laser screed concrete machine for sale





Function and Characteristics of Concrete Laser Screed

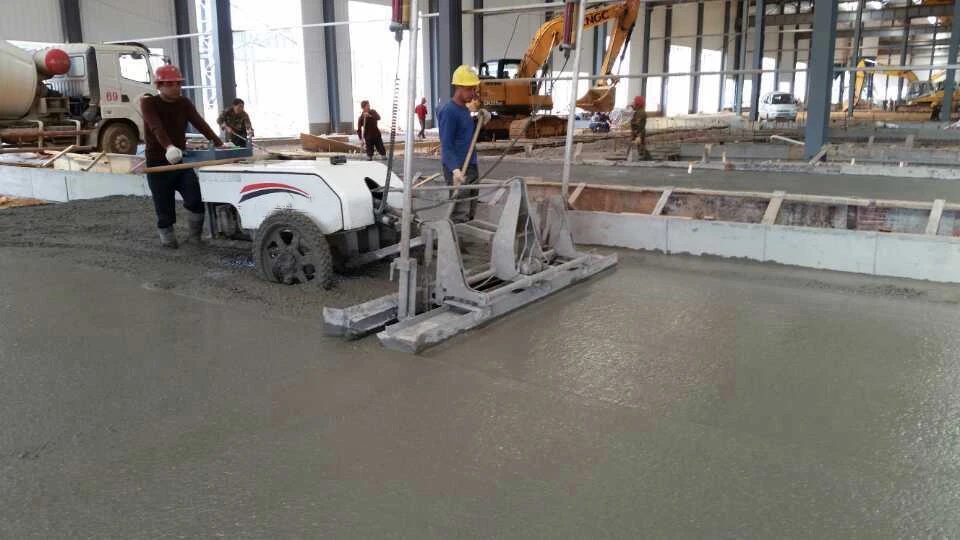

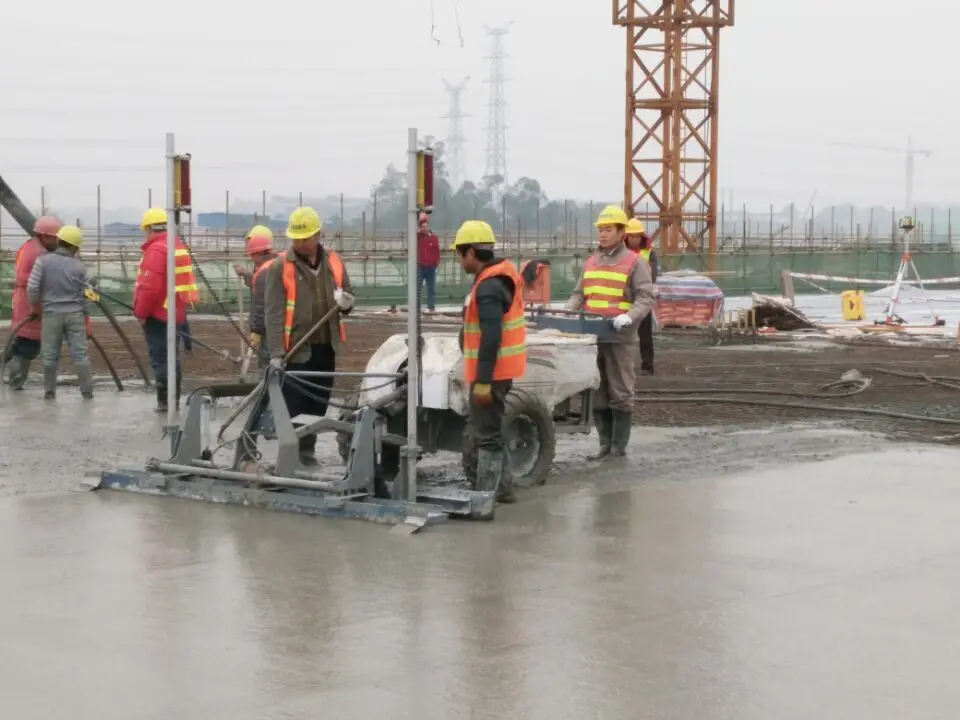

The Laser screed machine is used in large area concrete construction, such as the modern industrial workshop, the large market, storage, airport, the plaza, and so on. The Laser Screed can satisfy the construction requirements of large area and high planeness and levelness.

1. Use precision laser technology, closed loop control technology

2. lightweight, easy to operate, convenient and high effieciency

3. High vibrating performace

4. Laser Emitter, can automatically control the flat surface on flat, single or two-way slope.

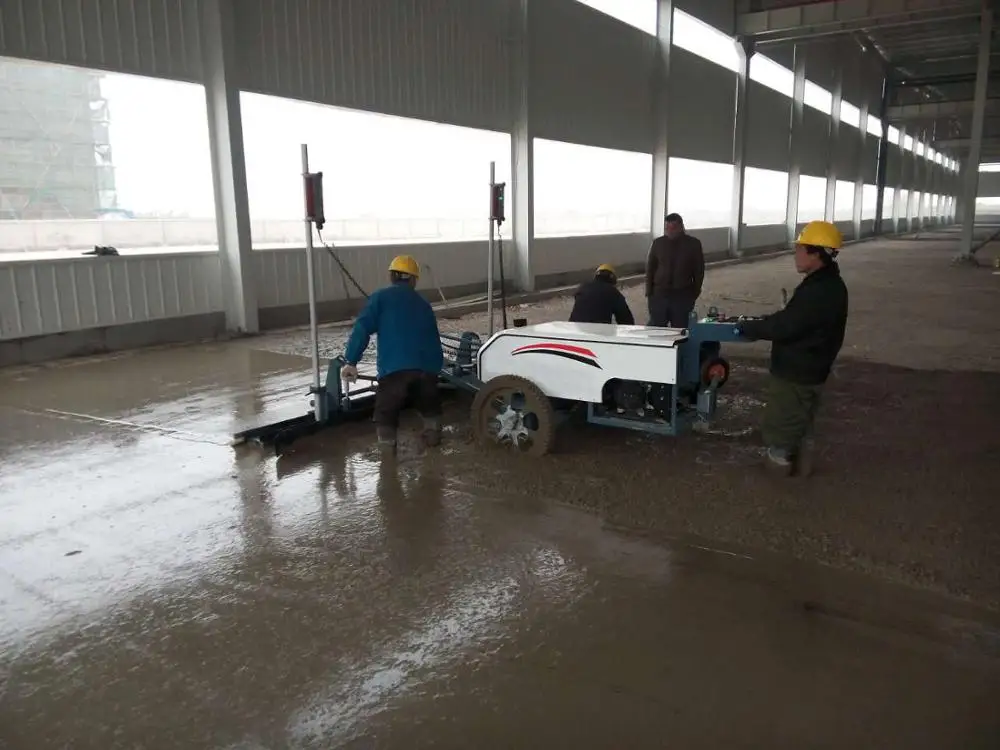

Indoor Floors such as workshop, plants and warehouses; clean workshop for electronics and appliance, food material warehouses, Medicine factories and warehouses and bulk supermarkets, logistics centers, conference and exhibition centers, etc.

Outdoor Ground such as docks, container yards, storage yards; Airfield runway, landing fields and parking lots; and squares, residential area squares and municipal roads.







Specification

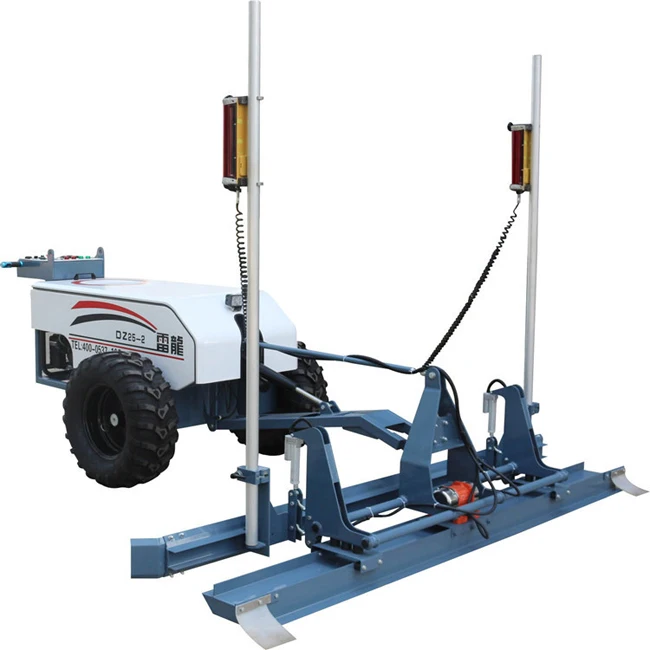

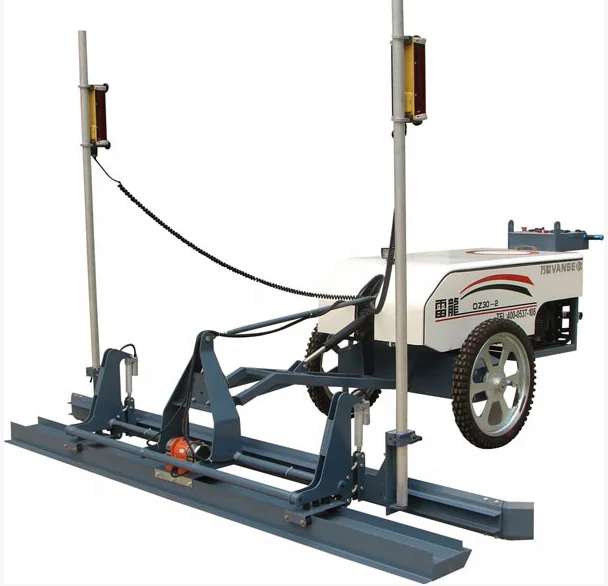

Product type	Name	Two wheel electric concrete laser leveling machine	Unit
Engine	Mode	Honda GX200
	Type	Electric 220V-50Hz
	Power	2.8	HP
	Lubrication oil level	0.6-0.8	L
	Fuel tank volume	17	L
Leveling system	Working mode of screed head	Rocking type
	Screed width	2000	mm
	Paving mode	Vibrating plate spreading
	Paving thickness	50-200	mm
	Screw conveyor power	2000
	Control mode of vibrating system	Vibration motor
	Excitation force		N
	Vibration frequency	50	Hz

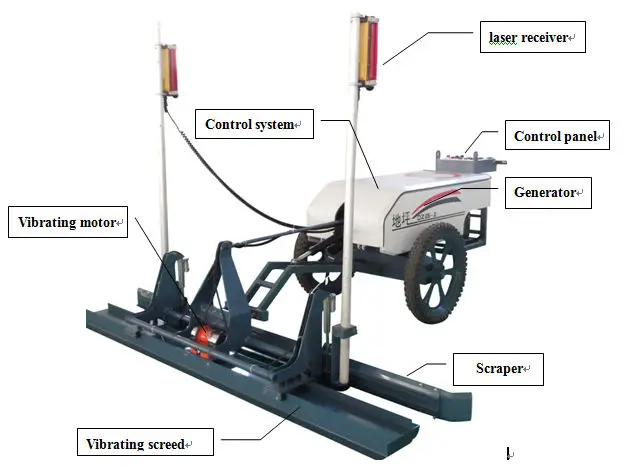

Laser system	Control mode of laser system	Microcomputer laser scanning
	Control effect of laser system	Flat surface,Slope,Double slope(three-dimensional)
Driving system	Drive type	Reducer+Motor
	Wheel	Solid puncture proof tyre/Special use wide tire
	Speed	0-40	m/min
Operation modes	Seat position
	Forward,back away	Manual control
	Turning	Manual control
Clearning system	Power	Alternator
	Theoretical flow	20	L/min
	Rated pressure	7	Mpa
Size and weight	Outline dimension	3220*2280*1180	mm
	Net weight	400	Kg







Customer visit



About us







Our services :
1. OEM Manufacturing welcome: Customer brand, Color etc.
2. Spare parts in stock.
3. We will reply you for your inquiry in 24 hours.
4. Factory visiting, pre-shipment inspection, training etc.
5. Purchasing agent for related machines.

6. Certificate available and testing machine service



Product Application

A. High quality

a. Our machine working width is 2.5m

b. The laser transmitter brand is Leica from Switzerland. It is the best brand in this industry

c. The walking motor is from Germany

d. The electric elements are all Mitsubishi from Japan

e. The gasoline is Honda brand from Japan

f. The wheels are solid wheels

g. The plug is air plug.

h. The screed is independently suspended. It has automatic induction system, can always keep screed to be flat.

i. Can use gasoline or electric, 2 kinds power source.

j. High accuracy, can reach 300 in 3m.

B. High efficient

It is suitable for large area. Every working team needs 8 workers. They can finish 300 sq.m /h.

C. Reduce cost

No more plywood, steel frame and workers  are needed. With high quality of  finished surface, the cost of maintenance is very little.
