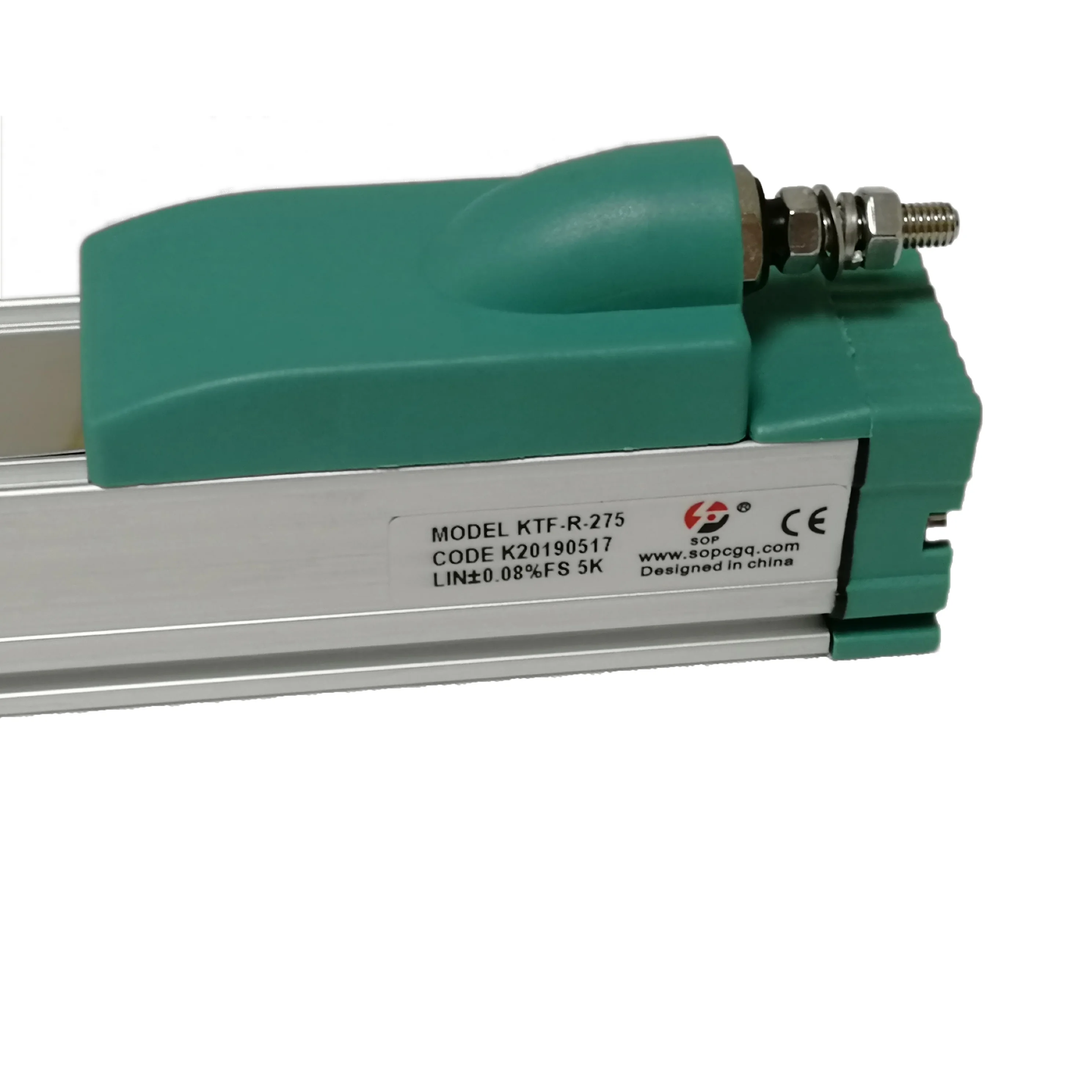

KTF 275mm Length 5k ohms Potentiometer Linear Slider Position Transducer for woodworking
- Категория: "
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-20-2025 | 32.24 $* | 33.53 $* |
| Jul-20-2025 | 26.83 $* | 27.22 $* |
| Jun-20-2025 | 31.45 $* | 32.0 $* |
| May-20-2025 | 31.9 $* | 32.61 $* |
| Apr-20-2025 | 25.83 $* | 26.32 $* |
| Mar-20-2025 | 31.9 $* | 32.99 $* |
| Feb-20-2025 | 30.31 $* | 31.67 $* |
| Jan-20-2025 | 30.9 $* | 31.28 $* |
Характеристики
Products Description
Slide type linear position sensor transducer is designed for most common occasions, especially for the places where the direction of length is limited and self-align is difficult. It is a high precision linear position transducer with a long lasting conductive track.
Application
It is widely used in injection mould, rubber machinery, wood-working machinery and hydraulic machinery.
Product Paramenters
Model | 400 | Unit | ||||
Working Stroke | 400 | mm | ||||
Electric Stroke | 402.5 | mm | ||||
Resistance Value | 5 | KΩ | ||||
Resistance Tolerance | 5 | ±% | ||||
Degree of Linearity | 0.05 | ±% | ||||
Repeatability | 0.01 | mm | ||||
Working current | ≤ 1 | uA | ||||
Max current | 10 | mA | ||||
Max voltage | 42 | v | ||||
Input voltage and output voltage temperature rate | 5 | ppm/K | ||||
Insulation Resistance (500vdc, 1bar, 2s) | ≥10 | MΩ | ||||
Insulation Intension (500VDC,50Hz, 2s,1bar) | ≤100 | uA | ||||
Length (A) | 498 | ±2mm | ||||
Mechanical Stroke | 409 | ±2mm | ||||
Net Weight | 400 | g | ||||
Movement | ±5 degree Angular deviation | |||||
Horizontal Direction | ≤ 0.4 | N | ||||
Vertical Direction | ≤ 1.1 | N | ||||

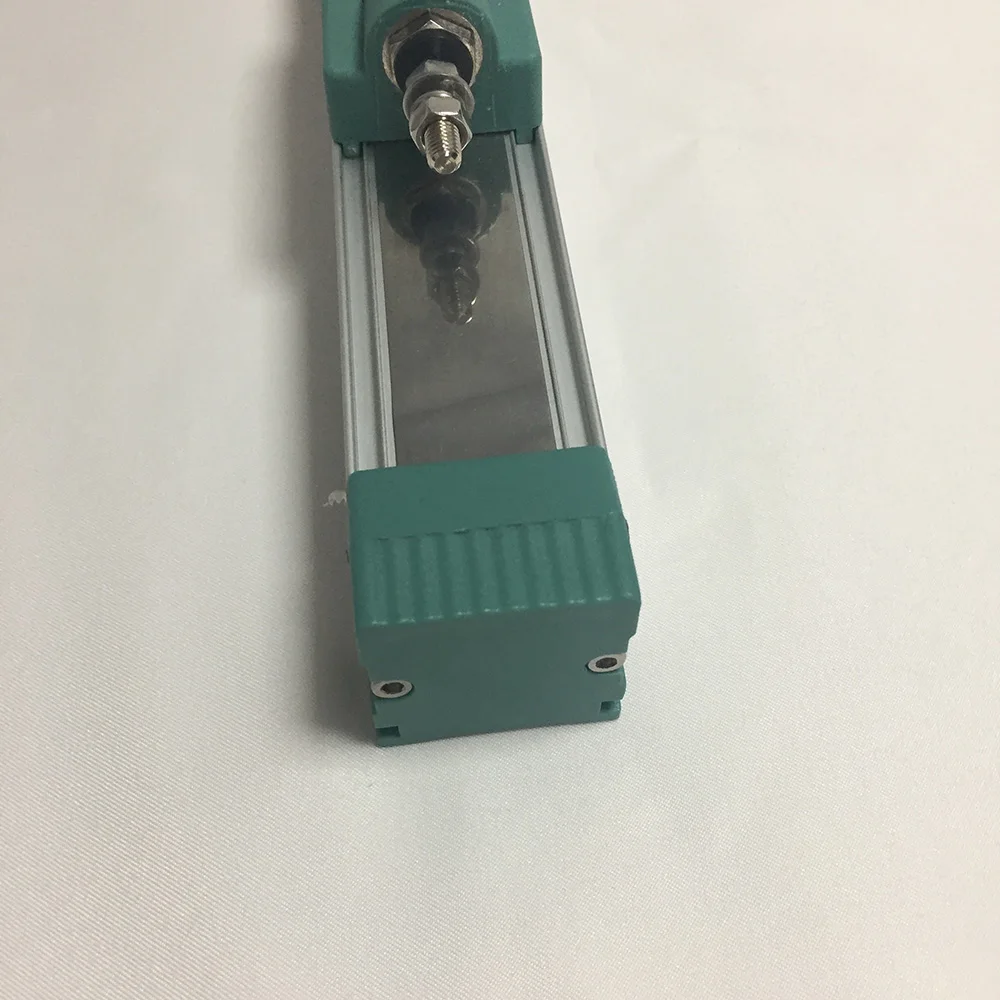

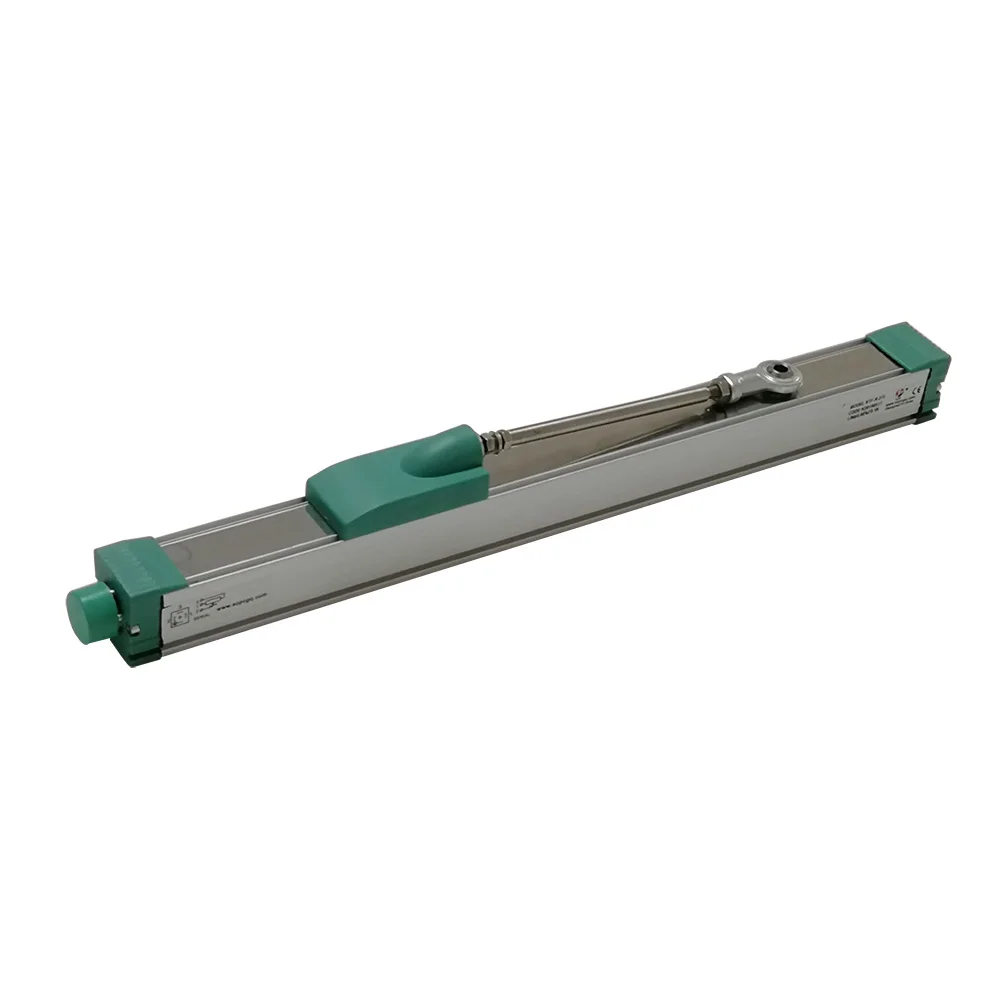

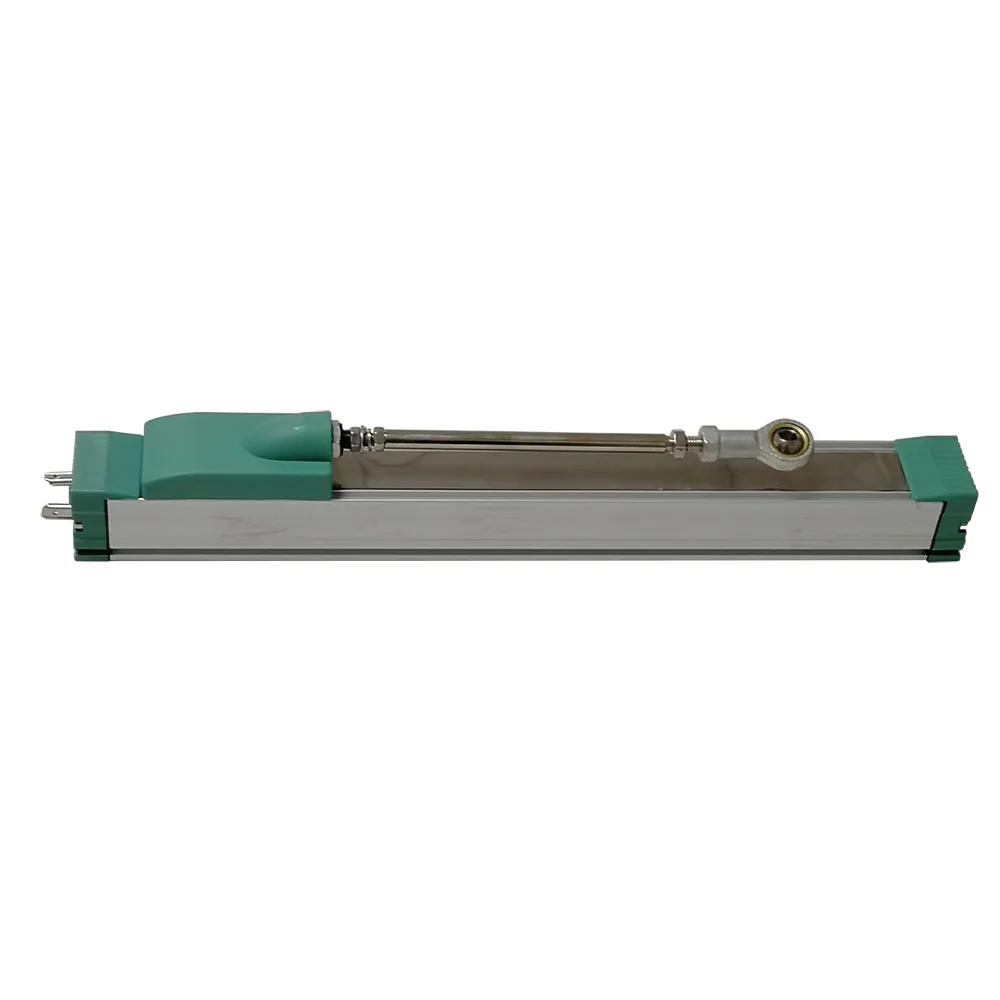

Product Show
Product Features:
1. Stroke lengths available from 75mm to 3500mm
2. Slide type position sensor
3. High performance and reliability even under extreme temperature and vibration
4. Also available with integrated signal converter with 4-20 mA output or 0-5/0-10 VDC output
Packing & Delivery
Slide type linear displacement sensor package includes:

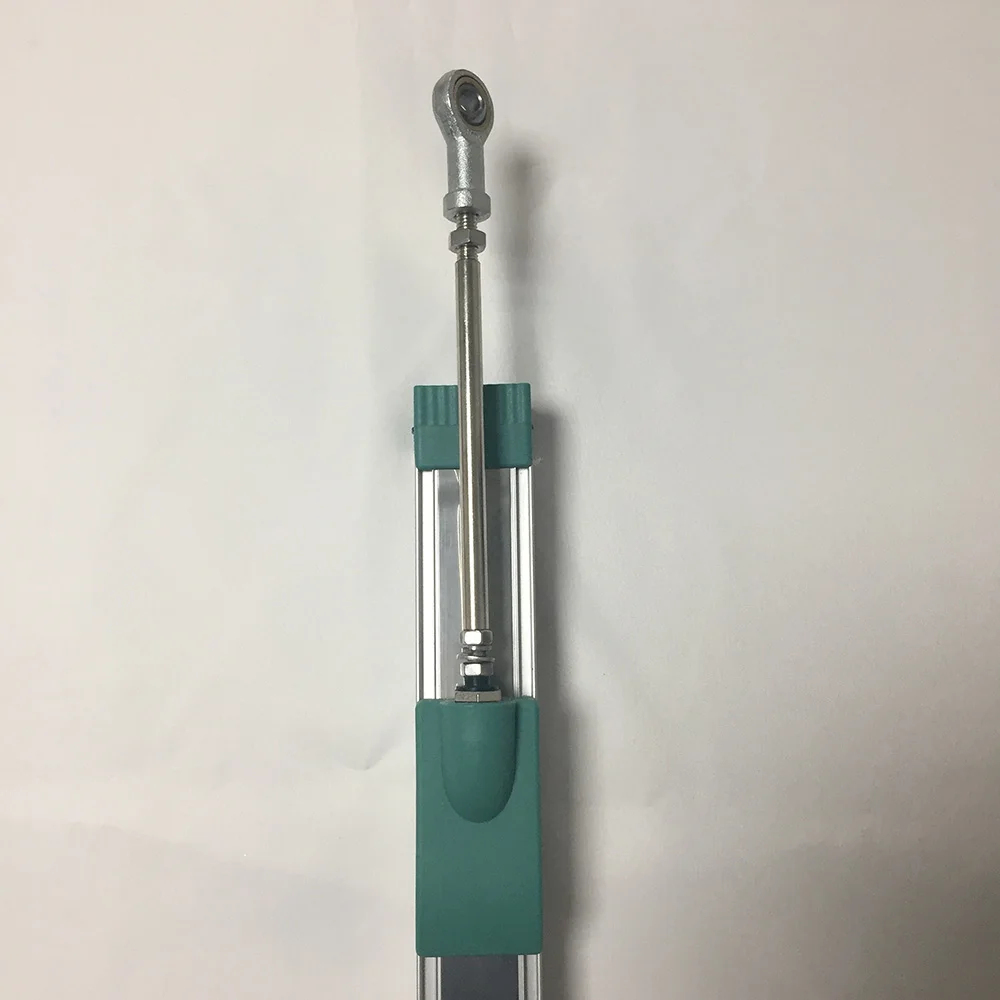

1 piece KTF slide position sensor with rod end joint
Please feel free to contact us if you need custom packaging.
Shipping methods:
1. By Express, such as DHL, UPS, FedEx etc
2. By Air Cargo
3. By sea
Company Introduction
Jiangxi SOP Precision Intelligent Manufacturing Technology Co., Ltd.
Established in 2018, our company is a manufacturer and trading company specialized in the research, development, production and sales of ring blowers and position sensors. All of products comply with international quality standards and are greatly appreciated in a variety of different markets throughout the world.
Our well-equipped facilities and excellent quality control throughout all stages of production enable us to guarantee total customers stisfaction. Besides, we have passed ISO9001:2008, ISO14001, CE, SGS, Rohs.
Related Products
FAQ
Q1. When can I receive the sensor?
A1. Generally speaking, you can get it within 10 working days.
Q2. What's use life of KTF sensor?
A2. It's up to 20 x 10^6 times.
