CCD sorter | ||||||
Model | 6SXZ-68 | 6SXZ-136 | 6SXZ-272 | 6SXZ-408 | 6SXZ-612 | 6SXZ-680 |
Output(t/h) | 0.6-1.2 | 1.4-2.4 | 2.8-4.8 | 4-7 | 6-10 | 8-16 |
Sorting Accuracy(%) | ≥99 | ≥99 | ≥99 | ≥99 | ≥99 | ≥99 |
Voltage (v/Hz) | 220V 50HZ | 220/50 | 220V 50HZ | 220V 50HZ | 220V 50HZ | 220V 50HZ |
Power Supply(Kw) | 1.0-1.3 | 1.1-1.4 | 2.5-2.9 | 4.8-5.2 | 4.8-5.2 | 8.5-10.9 |
Pressure(Mpa) | 0.4-0.6 | 0.5-0.7 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 | 0.6-0.8 |
Air Consumption(L/min) | <1000 | <1800 | <3200 | <4800 | <4800 | <6100 |
Weight(Kg) | 270 | 370 | 960 | 1180 | 1620 | 2200 |

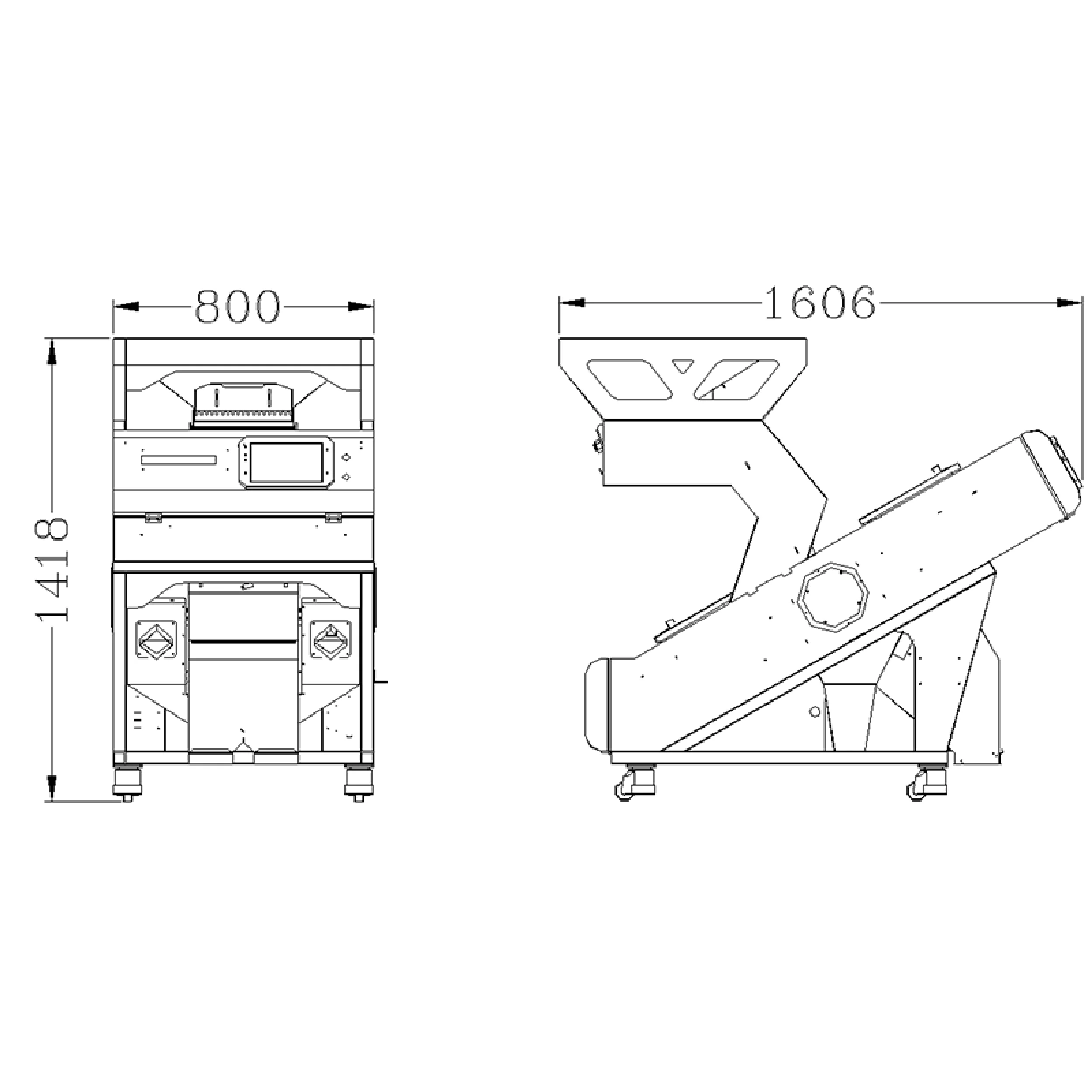

Dimension(mm) | 950*1510*1428 | 1290*1510*1770 | 2010*1530*2100 | 2680*1530*2100 | 3710*1530*2100 | 4200*1530*2250 |
Working Principle
According to the difference in the color of the material, the equipment that automatically sorts the different-colored particles in the granular material.
This product can be used for rice, grains, tea, flower tea, nuts, beans, dehydrated vegetables, dried fruits, seafoods, Chinese herbal medicines, tablets, plastics, ores, metals, precious stones, glass, etc.
Belt type color sorter’s advantages.
A. Belt-type color sorting machines break a smaller percentage of material. The product stays relatively static during the transport process as it moves horizontally on the belt. In contrast, material slides on the chute because of gravity, causing collision, friction, and larger vertical movements, thus worsening the broken ratio of the material.
B. Belt-type color sorters have a wide application range. One chute color sorter is usually applicable to certain products as the chute is designed for this kind of material based on sizes and shapes of the material at the very beginning. As a result, a chute color sorter can only work on certain products. It does not have multiple applications because of material-oriented chute design, and this problem does harm to sorting accuracy of other products. The appearance of belt sorters solved this problem with capability of wide applications.
C. Higher sorting accuracy. The belt structure makes the transmission smooth and stable without jumping of material. Belt sorting machines are designed friendly for color recognition, thus ensuring a higher sorting accuracy and lower carryover ratio.
D. Belt-type controlling the speed of transport of materials with a highly consistent mode, that means the time between camera's detecting of impurity and nozzles' ejection is always fixed, so the material will not be reaching the ejection point too early neither too late. Unlike chute type, the belt type color sorter has high accuracy because of the good control of transportation speed. However, the speed can't be changed as wish because in real application this will cause a lot of work for adjusting of camera.
1.Over 14 years experiences focus on color sorter. The biggest sorter machine factory in south China. We have the strength give better service and price to you.
2.Overseas Service Station: We have service station, cooperate reseller more than 40 countries. Wesort can meet your requirements on testing, installation and after sales service.
3.OEM/ODM is Supported: We have a strong R&G team(5 famous doctor engineers are included ). We can research and development suitable color sorter for you.
4.Quality Process Assurance: We pass ISO quality management system, each process of production are under strictly standard.
5.Shipping Guarantee: we have professional packaging operations team, independent export qualification to ensure product safety and stability to reach customers in the hands.
6.After-sales Service Guarantee: We provide one year warranty and lifetime maintenance. Free home repair during the warranty period (except for human factors or irresistible natural phenomena caused by failure or damage)
7. Sales team: Our professional sales team is fluent in English, Russian, Chinese , Spanish and Japanese. Can communicate better with customers.
1. who are we?
We are the largest color sorter R&D and sales base in southern China.There are total about 101-200 people in our office.
2. what can we do for you?
We will provide solutions to improve the quality of your materials. In order to increase the unit price and sales of your materials
3. What is color sorter?
Color Sorters used on the production lines in bulk food processing and other industries. They separate items by their colours, detecting the colours of things that pass before them.
4. What materials can be sorted
Rice, cereal, wheat, peanuts, beans, nuts, tea, plastics, minerals, etc. If you want to sort other materials, please contact our customer service.
5. how can we guarantee quality?
Confirm the performance of the machine through video; Always final testing 7-days before shipment;
6. what services can we provide?
Before sale service:Sales consultant will provide you with solutionswho spoken English, Spanish, Thai, Japanese, Korean, Indonesian, Vietnamese, Russian, Arabic After sale service: Door-to-door delivery and installation by engineers. One-year warranty and lifetime maintenance
