OT-ES805S led самотестирование LED Признаки
- Категория: Лампы аварийной сигнализации >>>
- Поставщик: OTC,(Shaoxing),Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.47 $* | 0.57 $* |
| Aug-16-2025 | 0.33 $* | 0.95 $* |
| Jul-16-2025 | 0.5 $* | 0.81 $* |
| Jun-16-2025 | 0.7 $* | 0.79 $* |
| May-16-2025 | 0.98 $* | 0.19 $* |
| Apr-16-2025 | 0.83 $* | 0.14 $* |
| Mar-16-2025 | 0.98 $* | 0.85 $* |
| Feb-16-2025 | 0.29 $* | 0.88 $* |
| Jan-16-2025 | 0.24 $* | 0.27 $* |
Характеристики
Relate Non-maintaine
Click the series number for more details
 | |||
| Non-maintained series | Maintained series | Combined series | Exit-Sign |
 |  |  |
Details of self test LED Exit sign
Bureau Certi
Product Description
Dear Engineers, Installers,
The latest OT-ES805S is according Latest ISO7010 request.
White LED light and greed PVC film. Please check below picture and confirm the advantages.
 | Machinary data |
| Item:OT-ES805S self test LED Exit sign | |
| Size: See Left | |
| Material: Fire resist ABS +PMMA | |
| Weight:565g | |
| Anbinate temperature: 0~55°C | |
| Guarantee: 4 Years | |
| IP/IK: IP20 / IK08 |
| Electric Data | Rate Supply voltage | 174~264V 50/60HZ |
| Main Power | 2W | |
| Typical λ(@230V 50HZ) | >0.8 | |
| Leak Current (PE) | 0 | |
| Over Voltage protection | 320V(1H) | |
| Max Permit forward voltage LED | 3.7 |
Electric Date Emergency | Battery pack type | 3 pcs NI-CD pack 3.6V 0.6Ah |
| Emergency mold | maintained | |
| Max forwawrd Emergency LED | 3.7V | |
| Charing current | 35mA / 24 hrs | |
| Discharging | 15mA / 3hrs | |
| Changeover | <0.1S @150V AC | |
| Battery protection | Max:4.2V / Min2.7V | |
| Test Button / rest mold / inhibit mold | N / N / N | |
| Emergency standard(full compliant) | IEC60598-2-22:2014 BS5266:2016 IEC62034:2012 |
Optical Data
| efficacious LED chip | LED F546 bulb 8 pcs |
| Lumen | 80LM Max |
Self-test (New updating in 2019)
| How Self test works
|
| |
Self test behavor

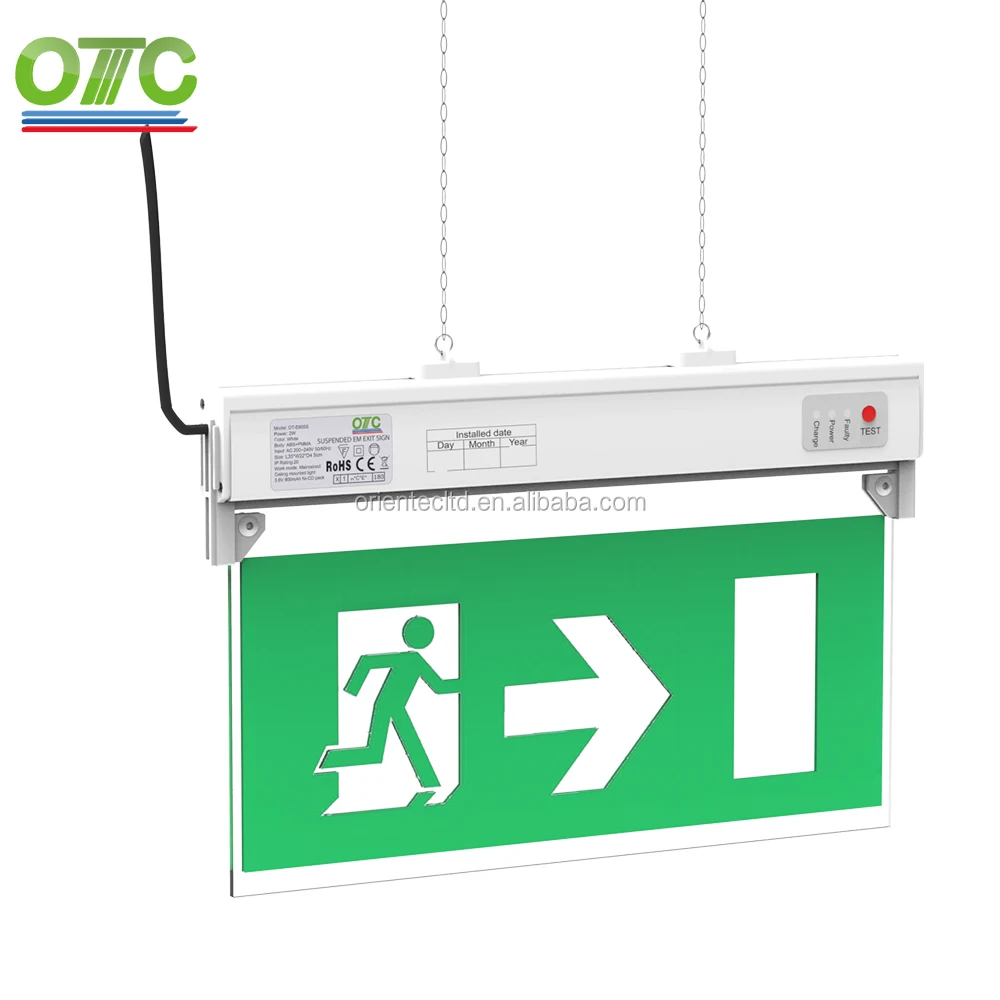

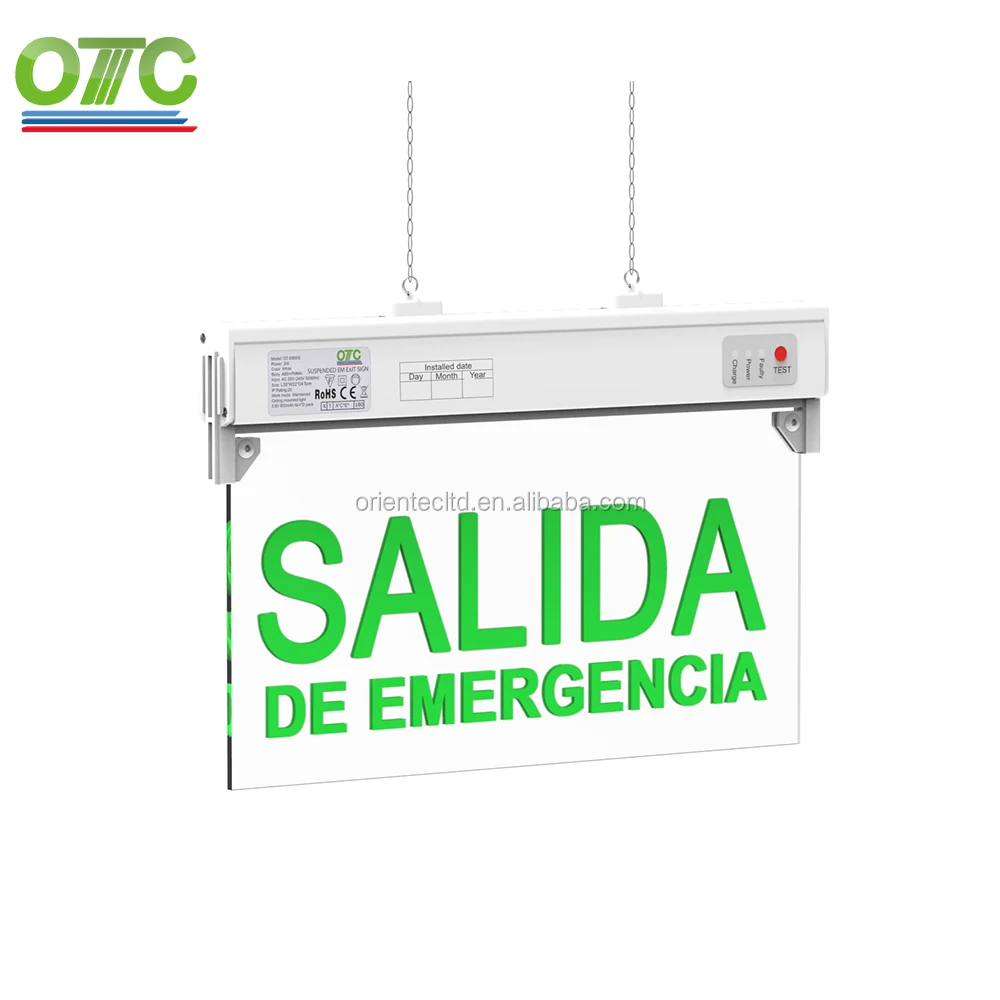

Install mode 1: hunging mode

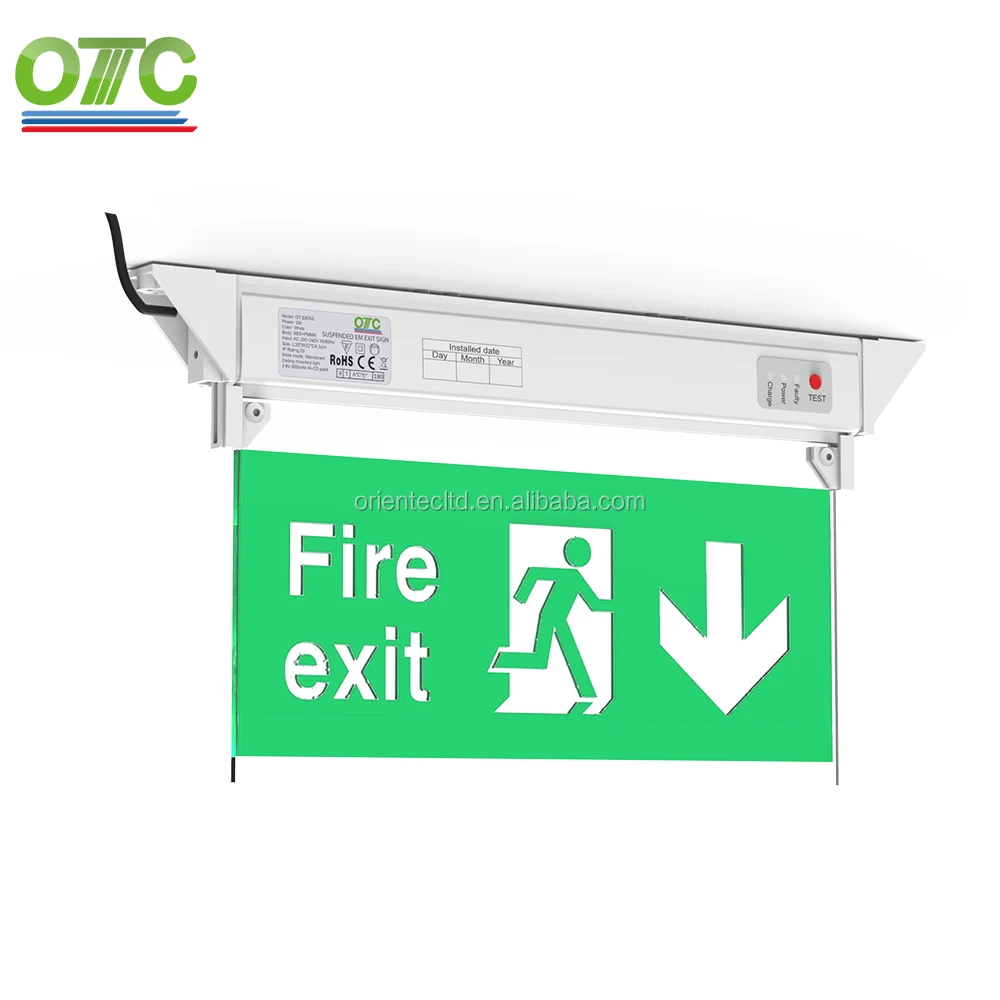

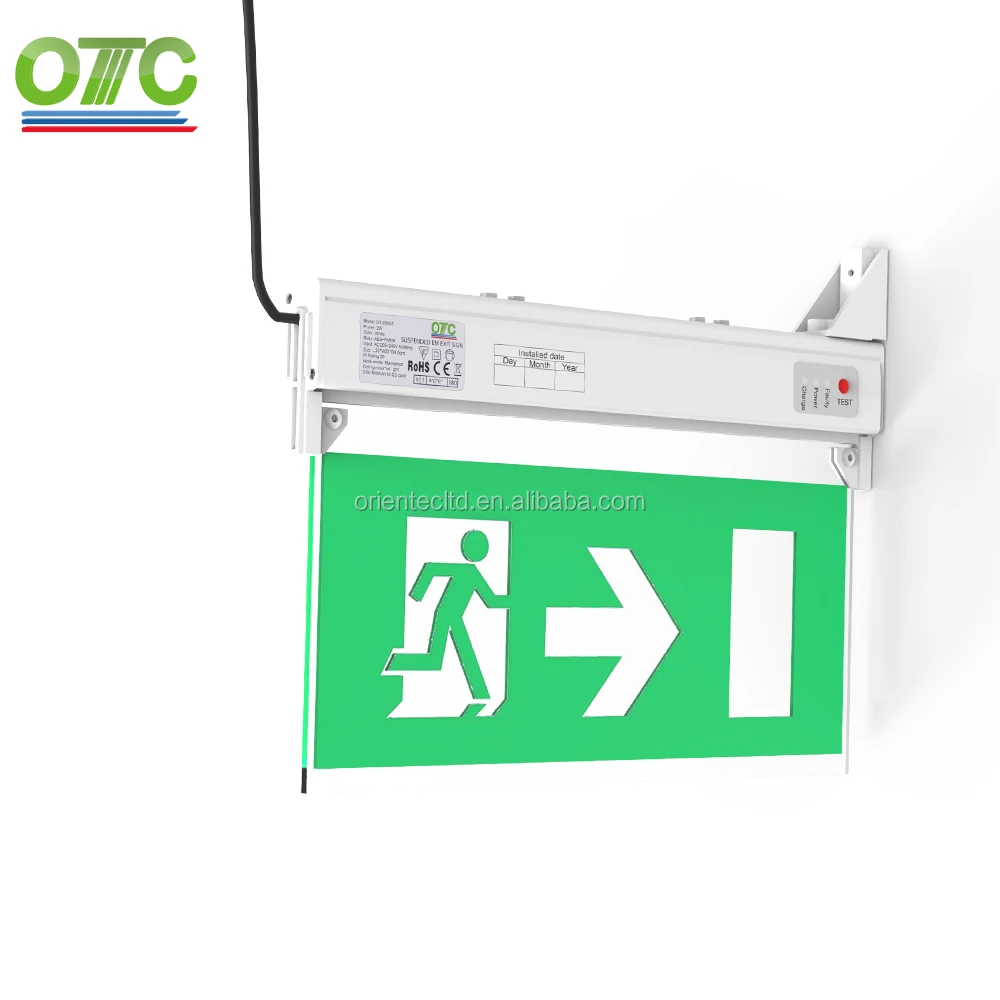

Install mode 2: Side mounting install
Install mode 3: Ceiling install

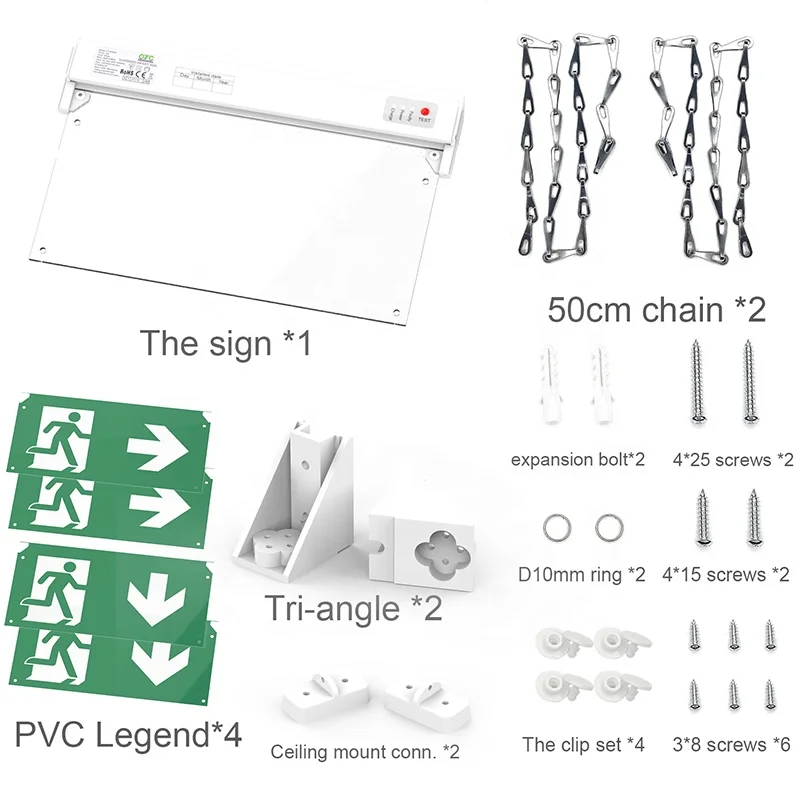

Packing list (Accessories)

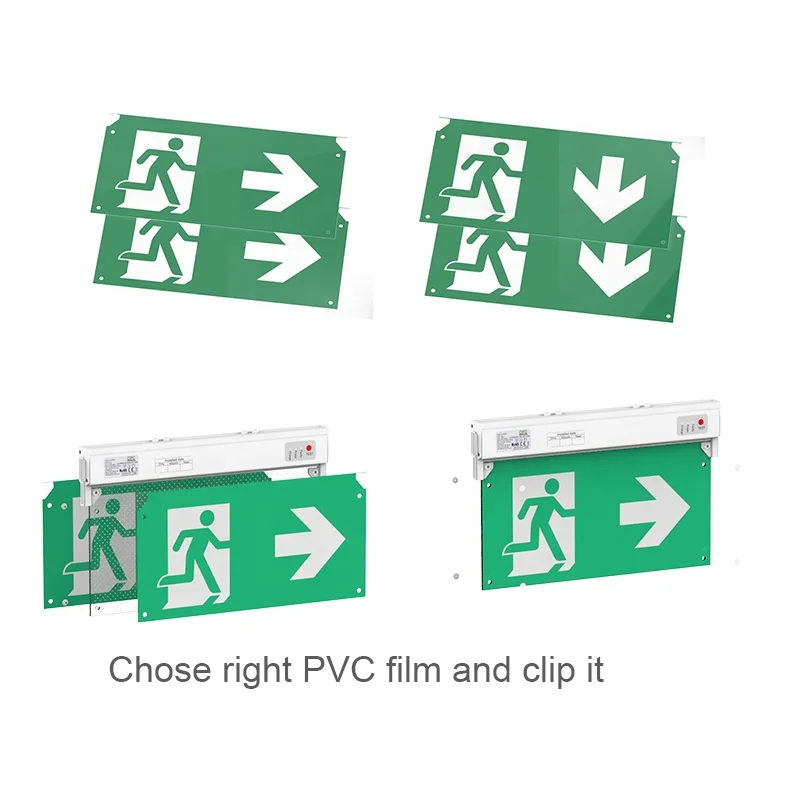

How to change the Legend
Packaging & Shipping
PACKING INFORMATION of this self test LED Exit sign
| Packing: | color box with polyfoam |
| Inner packing: | 1pcs/inner box |
| Outer packing: | 20 pcS/CTN |
| Carton Size: | 46*41*47.5cm |
| cG.W.: | 12KGS |
| N.W.: | 10GS |
Our Services
1. Projects & Technology Creating
2. Professional Technology support of self test LED Exit sign
3. OEM & Stratage service
Company Information
General instruction of OTC Electronic:
1. Ningbo OTC Electronic Co. is Branch of OTC IND. This branch just specialize LED lighting. It contains:
A. Low voltage version, EMC and RoHS compliant. For supermarket.
B. 220V/110V industerial lighting. EMC/ LVD/ RoHS compliant. We work with famous
C. Emergency light for project only. IEC60598-2-22:2014 full compliant. This used for bid government project.
D. OTC Own the patent of some item in this website.
2. Orientec Elec. with separate R & D depart. We apprecite you ideas about impove our current items.
A. The engin team in OTC proficent ProE, UG, Auto CAD and Protel.
B. The Marketing team will show you the trend in LED field.
C. You can sent inquiry as followed chart.
FAQ
1. Q: What is the quality standard?
ALL rhe emergency light in From OTC is full IEC compliant. Please don't try to persuade OTC use Li-ion battery as battery system.
PS: The engineer can remove your doubt based on IEC/ CE documents clause by clause.
2. Q: Does the R&D depart show solutons free of charge?
A: If just some doubt. Solutions are not needed. Free of charge.
eg. Why the sensor of my light run out so quickly, How yours can confirm 4 years guarantee?
Why the battery of our emergency light die just 50 cycles.
B: If you need new solutions.
Part 1; Draft solution sheet is free.
a. The construction solution sheet just with some Auto CAD 2D drawing.
b. The PCB solution just with general description.
Part 2; Formal solution sheet cost need confirm with sales manager.
a. The construction solution sheet together with 3D drawigns.
b. The PCB in protel and show you the sample to prove the function
C: If solution confirmed. and order placed. The solution cost will be refund.
3. Q: MOQ, main market
A: The MOQ is 200pcs
B, The main market of OTC is Western Europe(especially UK and DE) and US, AR, and AU.
