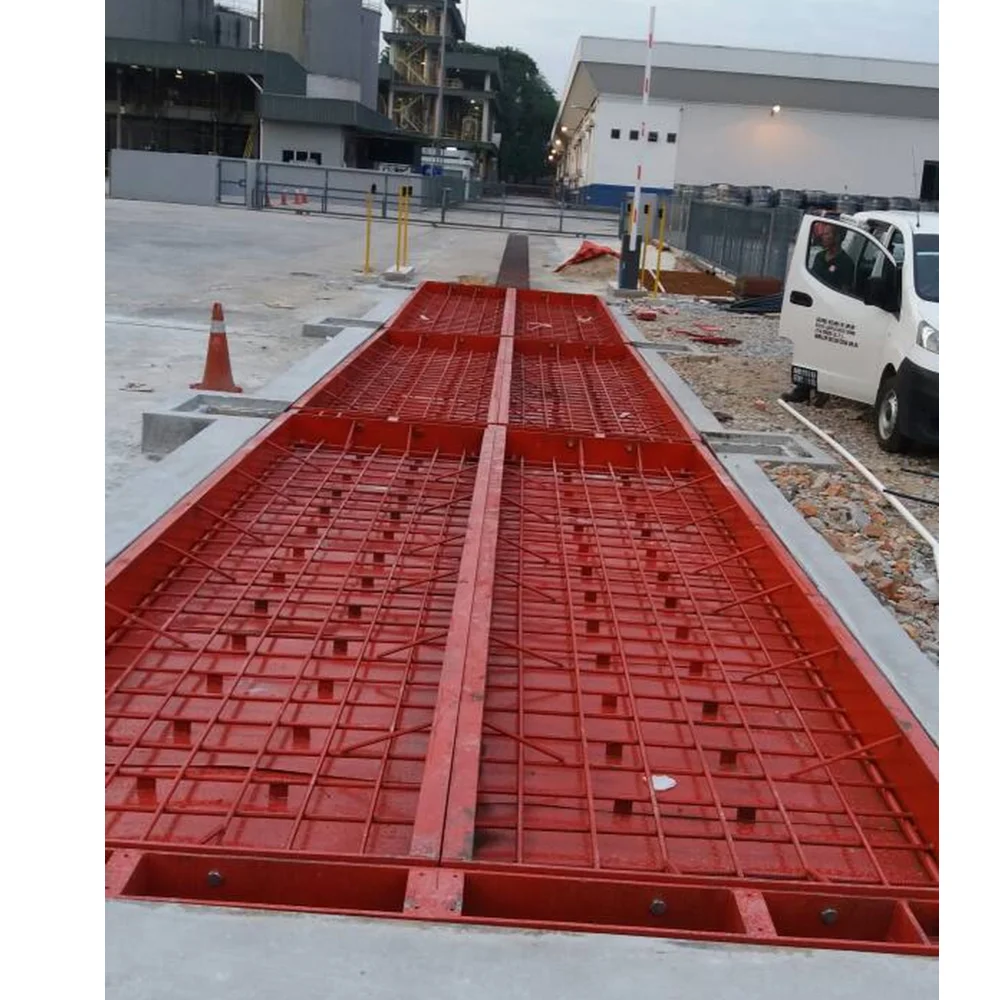

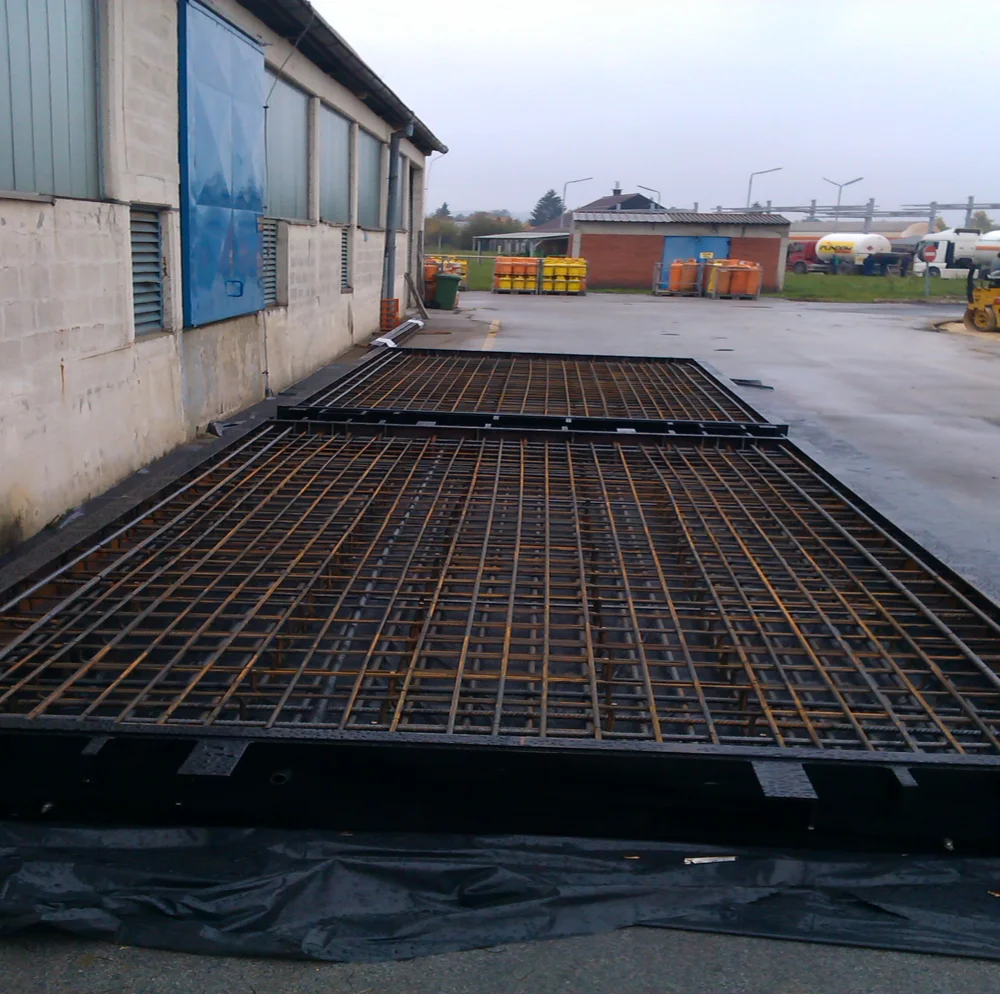

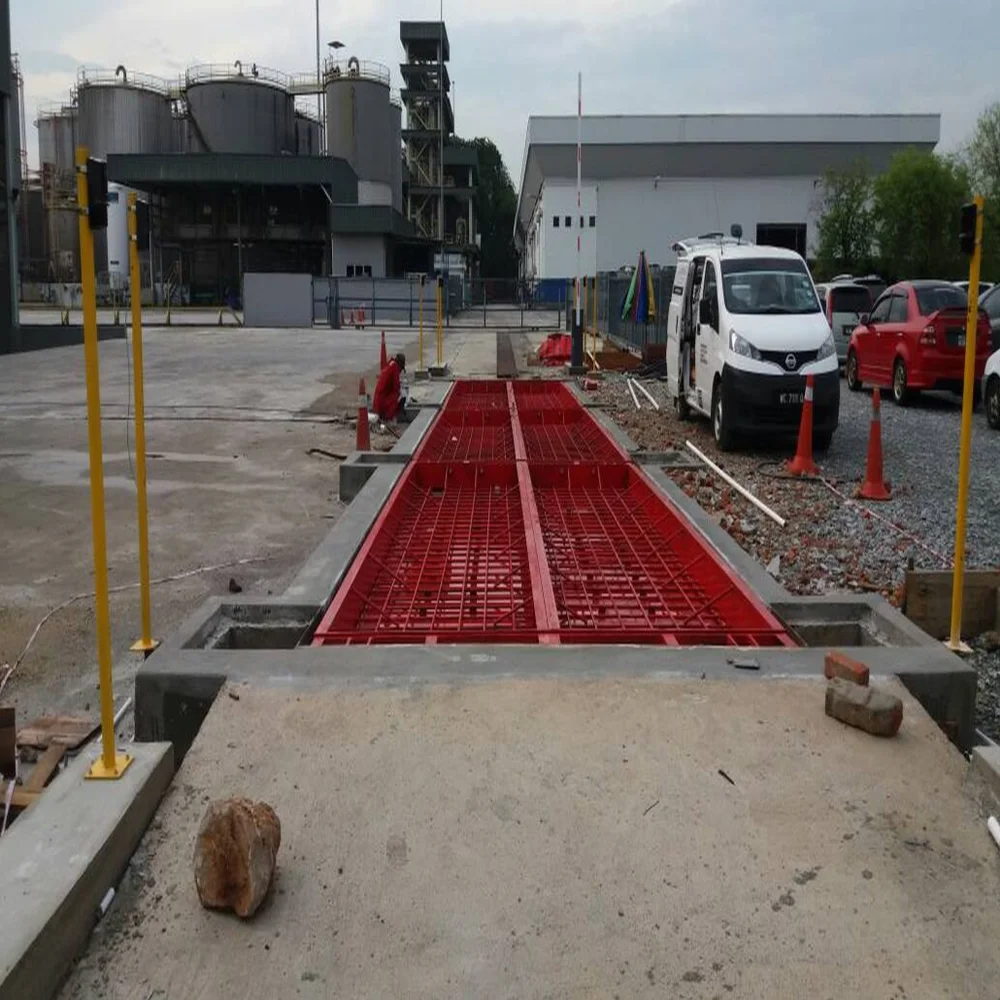

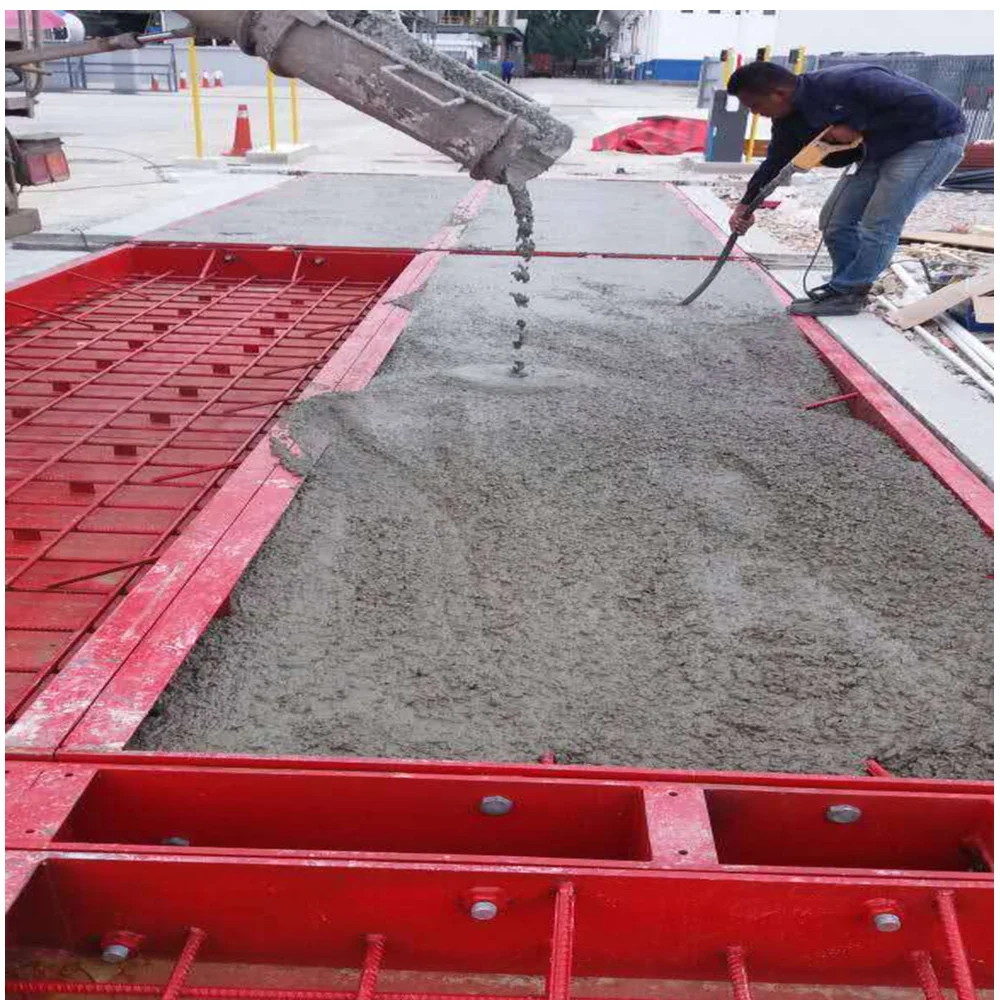

Concrete Truck Scale



Truck Scale Advantages:

1. Accurate: the min. load value is 10kg

2. Durable: over TEN-year service life for normal operation

3. Good Quality: make OEM products for a world-leading company

4. Reasonable Price: high price-performance ratio





Synthetic Parameter

Technical Index

1. Accurate Grade: OIML III

2. Capacity range: 20~120t

3. Length of weighing platform: 6~24m

4. Operation temperature: Indicator     0°C~+40°C

5. Weighing platform and Load Cell -35°C~+70°C

6. Safe overload: 110%

7. Relative humidity (RH)<95%

8. Power: 220VAC/50HZ







QHJ series bridge digital Truck Scale:

Model	QHJ series
Scale Body Structure	Module U-beam steel structure
Load cell	DZHM-41-D digital load cell
Indicator	DZ2008-4E+  digital indicator
Junction box	DJ6 Series
Signal cable	RVVP 6*0.5  10 meter
Optional Accessories	Printer/ Scoreboard displayer/ Computer/ Voltage stabilization





DZ2008-4E+ Indicator

1. Connection method of digital load cell
     Connection method: RS485
     Transmission baud rate: 9600 bps,19200 bps
     Excitation power supply: DC12V
     Digital connection capability:Up to 12 digital load cell

2. Display:7bits high brightness LED display, 7pcs state indicator



3. Keyboard:
   The number keys: 0~9
   The function keys: 20pcs(10pcs composite with number keys)



4. Clock: Display year/ month/ day, hour/minute/second, leap year, leap month

5. Data storage: can store 500 vehicle Number and tare, 1000 group weighing records



6. Operating environment:
Power supply: AC110~220V,50 Hz
Operating temperature: 0℃ -- 40℃
Storage temperature: -20℃ -- 70℃
Relative humidity: ≤95%RH





We can custom industrial Truck Scale according to custormer requirement:





 Manager system:

























 Blanking---Fold U shaped beam---U shaped beam pre-arch---U shaped beam automatic welding---Install and weld end plate---Surface shot blasting treatment---Surface protection treatment (epoxy zinc rich primer, acrylic polyurethane coating) ---Full scale calibration



2.What's the truck scale technical parameter??

Steel material: Q235 high quality durable steel

Truck scale structure: U beam

Top plate: 8mm checker plate, 10mm, 12mm flat plate

U beam thickness:6mm

U beam height:300mm

Connection plate:40mm



3. How to Install the truck scale???

We will send the installation manual and installation vedio to your side, it is easy to install the truck scale.



4. How about the delivery time, payment term, warranty time?

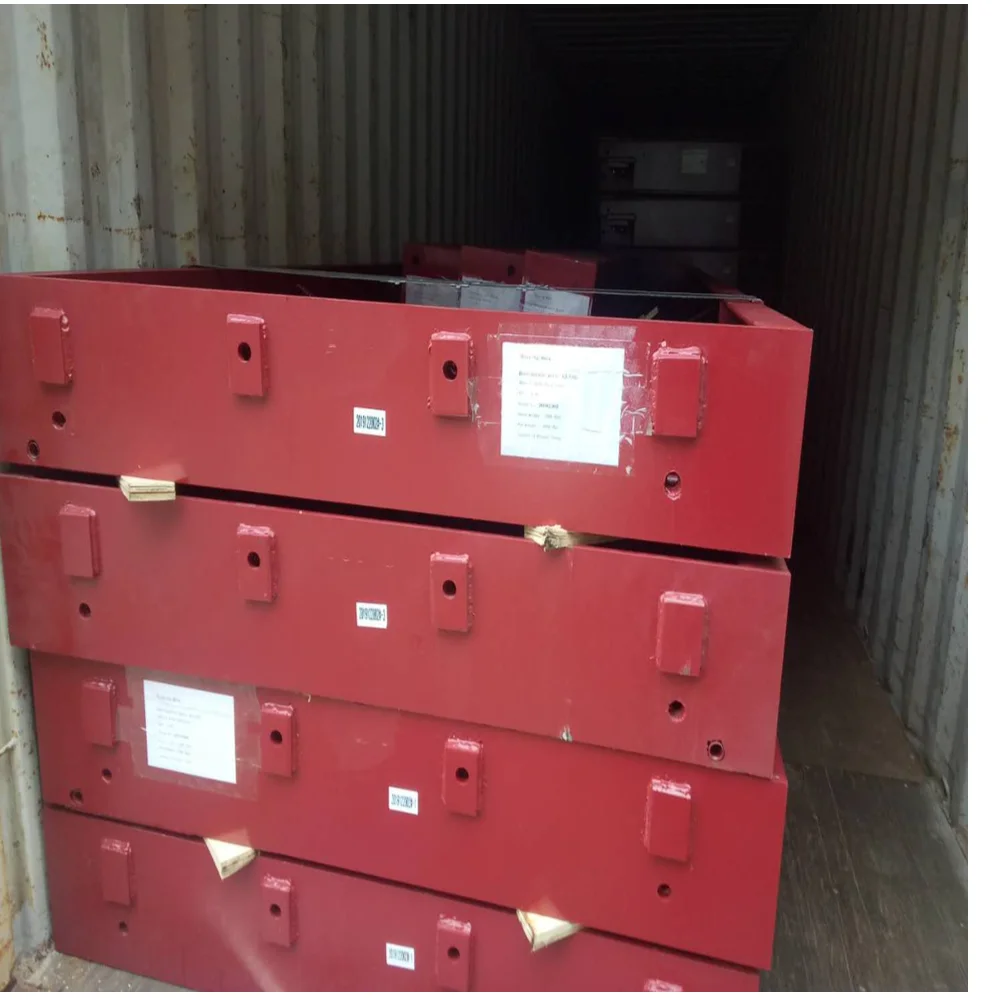

Delivery time: in general 15 days, if you are our distributor we can stock some sets truck scale for your side

Payment term: 30% deposit, 70% balance by TT, LC, Payal,

Warranty time: 3 years
