Промыватель песка
Высокая производительность кварцевый песок стиральная завод двухвинтовой мойка машины

Высокая производительность кварцевый песок стиральная завод двухвинтовой мойка машины

Категория: Промыватель песка >>>
Поставщик: Jiangxi,Province,County,Mining,Machinery,Factory

Цена:5 900,00 $ - 6 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	7021.72 $*	7372.10 $*
Aug-17-2025	6962.10 $*	7310.23 $*
Jul-17-2025	5841.27 $*	6133.55 $*
Jun-17-2025	6844.38 $*	7186.20 $*
May-17-2025	5959.56 $*	6257.29 $*
Apr-17-2025	6726.41 $*	7062.1 $*
Mar-17-2025	6667.36 $*	7000.79 $*
Feb-17-2025	6608.61 $*	6938.13 $*
Jan-17-2025	6549.43 $*	6876.95 $*

Характеристики

Product Description

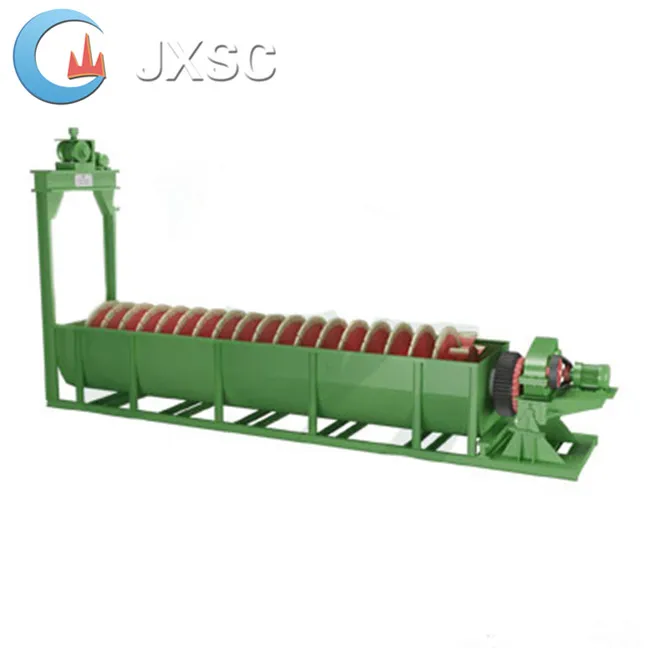

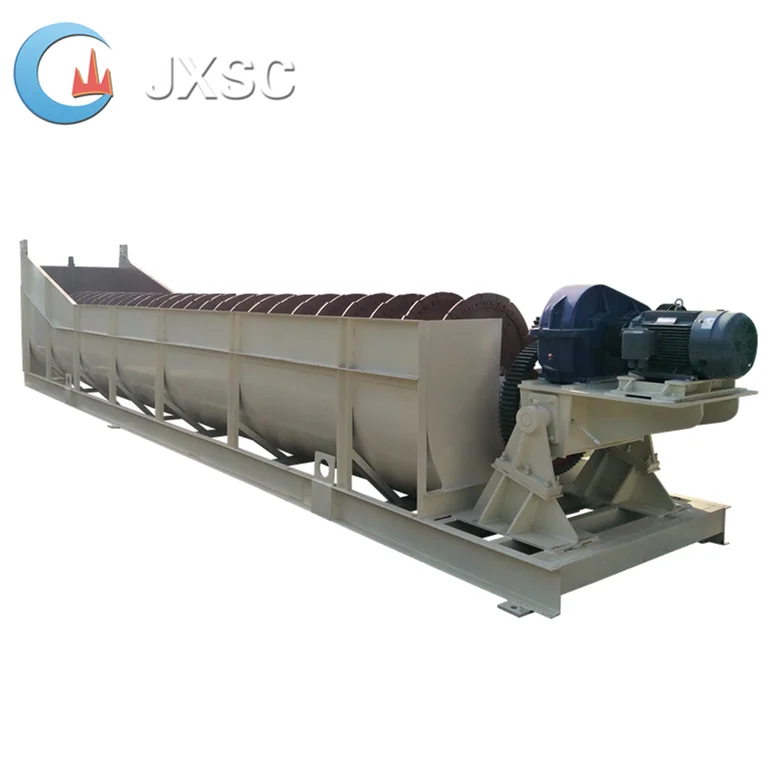

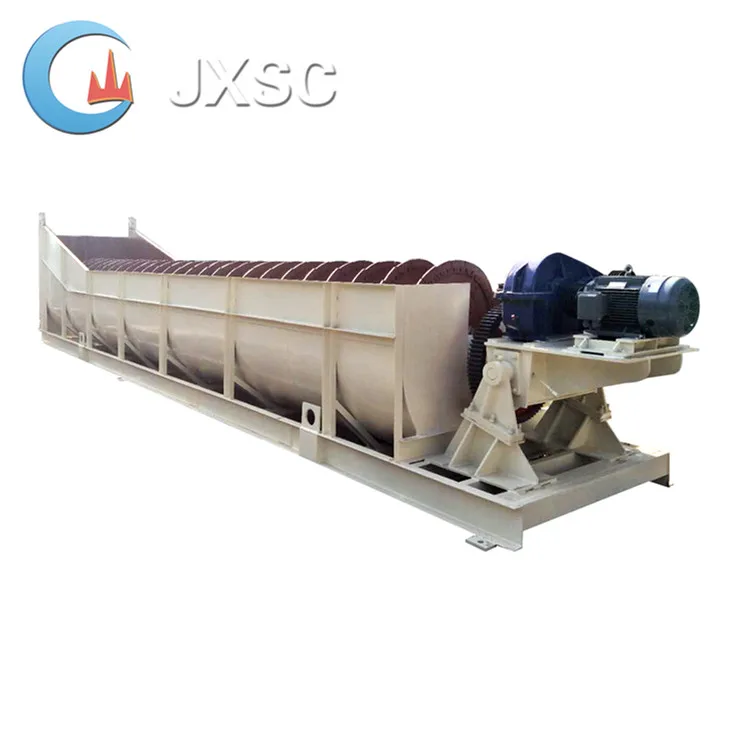

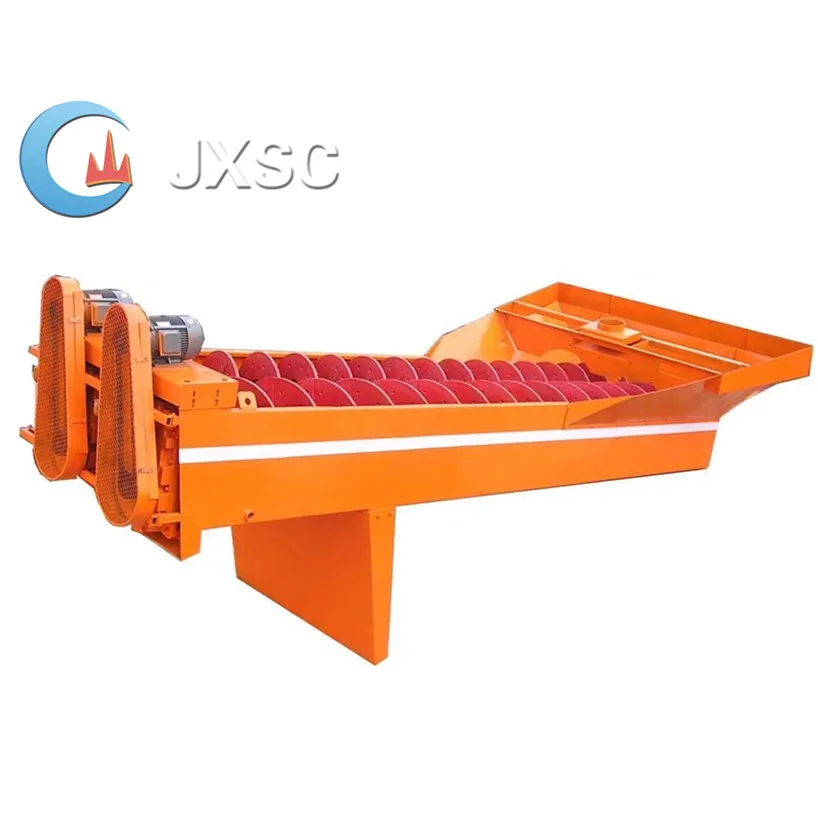

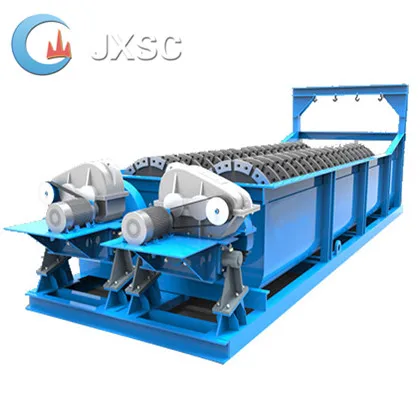

High Performance Silica Sand Washing Plant Screw Sand Washer Wash Sand Machine

Product introduction:

Spiral sand washing machine is suitable for construction sites, sand factory, hydropower station, concrete dam site, post and telegraph pole factory. The required users' sand and casting with "70" sand, glass quartz sand,oil filling pressure sand washing, grading and dehydration. Sand washing machine according to 15 ° tilt arrangement, the lower of the water tank is composed of three side weir plates formed by sedimentation tank. Screw head notinto the settling tank, spiral by motor through reducer drive continuous rotation, clean water into the porous plate from the bottom of the tank. This equipment has three functions: cleaning, dewatering, classify.

Application Field:

Quarry, sand,dry mortar, concrete mechanism sand, power plant desulfurization, quartz sand,etc.

Suitable material:

Pebble,granite, basalt, iron ore, limestone, calcite, quartz and diabase.

Principle of Operation:

Principle of spiral sand washing machine is size or proportion of different solid particle settling velocity in the liquid is different, fine mineral particles suspended in water or overflow, coarse particles sink to the bottom. The spiral discharged from the up, is a kind of classification equipment for mechanical grading. Milldischarging through the filter, coarse material is screwed into the mill inletusing on-chip spiral vane, the fine filter out from the overflow pipe. The base of the machine adopts a channel, the body adopts welded steel plate.

Performance characteristics:

1.Spirochetes is long, good sealing system.

2.Simple structure, strong processing ability.

3.Sand withlow water content, low mud content.

4.Reasonable structure, convenient maintenance.

\t ^Model	\t ^{Diameter of The Wheel Bucket (mm)}	\t ^{Speed Of Rotation (r/min)}	\t ^{Maximum Feeding Size(mm)}	\t ^{Processing Capacity (t/h)}	\t ^{Motor Power (kw)}	\t ^{Overall Dimensions (mm)}	\t ^{Weight (kg)}
\t ^XS2210	\t ²²⁰⁰	\t ^2.5	\t ^≦10	\t ^15~30	\t ⁴	\t ^{31801955 2350}	\t ²²⁶⁰
\t ^XS2610	\t ²⁶⁰⁰	\t ^2.5	\t ^≦10	\t ^20~50	\t ^5.5	\t ^{35152070 2672}	\t ²⁵⁰⁰
\t ^XS2810	\t ²⁸⁰⁰	\t ^1.2	\t ^≦10	\t ^50~80	\t ¹¹	\t ^{39643014 2895}	\t ³²⁰⁰
\t ^XS2815	\t ²⁸⁰⁰	\t ^1.17	\t ^≦10	\t ^60~100	\t ¹¹	\t ^{39642137 2895}	\t ³⁵⁸⁰
\t ^XS3016	\t ³⁰⁰⁰	\t ^1.2	\t ^≦10	\t ^70~110	\t ¹¹	\t ^{41693456 3055}	\t ³⁸⁵⁰
\t ^XS3210	\t ³²⁰⁰	\t ¹	\t ^≦10	\t ^80~120	\t ¹⁵	\t ^{43402760 3349}	\t ³⁹⁵⁰
\t ^XS3215	\t ³²⁰⁰	\t ^1.17	\t ^≦10	\t ^95~130	\t ¹⁵	\t ^{43462198 3345}	\t ⁴¹⁸⁵

Related Products

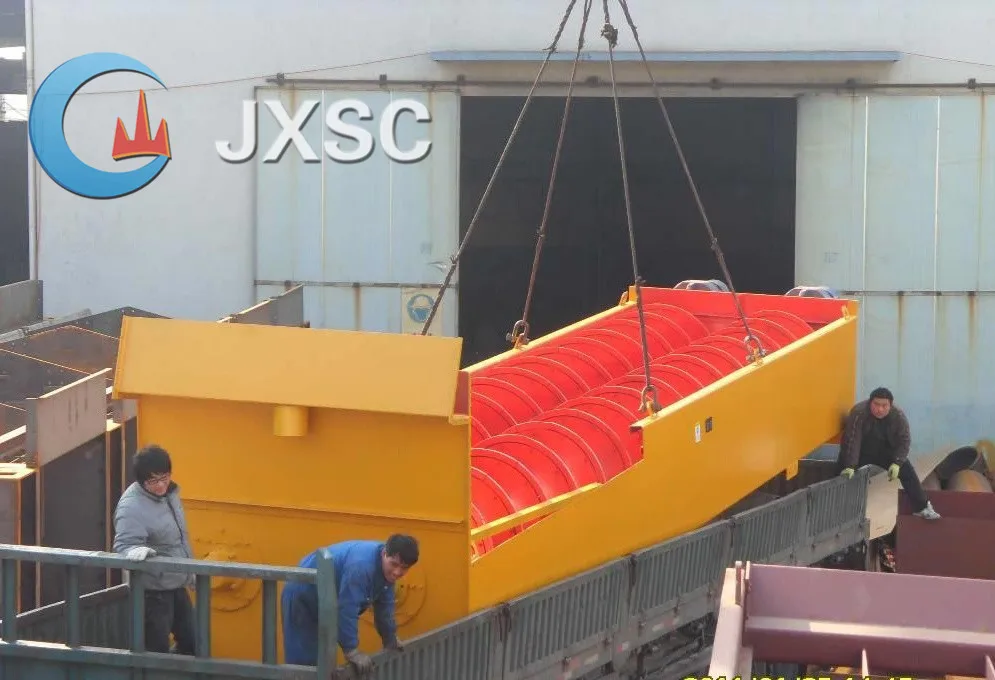

Packing & Delivery

\t Packaging: standard packing
\t Container	\t 40HQ/40GP/20GP
\t Load Port	\t Xiamen, Shenzhen, Guangzhou port
\t Trade term	\t FOB,CIF,CFR,EXW
\t Delivery time	\t Within 30 days, after receiving 30% deposit, balance before loading

Our Company

Jiangxi shicheng Mine Machinery Factory was established in 1985, it's a professional machinery factory special in mining equipment research, manufacturing, sales and offers professional mine processing plant workflow design, plant installation, equipment maintenance, beneficiation processing technology guidance service as one of the metallurgical machinery equipment factory. Our products are exported to Africa, Nigeria, Zambia, Zimbabwe, Congo, Uganda, Mozambique, Angola, Southeast Asia, South America and many other coutries and regions.We are committed to creating high quality and efficient crushing and screening equipment,quality is our eternal pursuit and responsibility.

Our Workshop

Our Customers

Our succeful cases

Zimbabwe cone crusher production line site

Malaysian impact crusher production line

Democratic Republic of the Congo customer's production line

Certifications

RFQ

●How long is the guarantee?
All of our products are guaranteed for one year. If products quality is not consistent with the description as we described or the promise before you place order, we promise 100% refund.
●What is the delivery time?
According to the specific data provided by the customer,our customized crushing machine`s delivery time is 30-48 days.
●What is the nearest port?
Xiamen, Guangzhou, Shenzhen
●What is the trade terms?
CIF,FOB,DDU ect is acceptable.
●Service and Payment Terms?
We can accept T/T and L/C; 30% deposit, 70% balance before delivery, which is international trade practice; Finished product pictures will provide to customers before delivery.
