Умная электрическая розетка для кабинета PDU 24 порта разъем C13 независимый переключатель HTTP SSH SNMP telnet 485 мониторинг
- Категория: Power Distribution Equipment >>>
- Поставщик: Dongguan,Orient,Electronics,&,Metal,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 750.48 $* | 788.9 $* |
| Aug-16-2025 | 743.29 $* | 780.68 $* |
| Jul-16-2025 | 624.5 $* | 655.65 $* |
| Jun-16-2025 | 731.23 $* | 768.19 $* |
| May-16-2025 | 636.30 $* | 668.11 $* |
| Apr-16-2025 | 718.7 $* | 754.65 $* |
| Mar-16-2025 | 712.92 $* | 748.43 $* |
| Feb-16-2025 | 706.88 $* | 741.42 $* |
| Jan-16-2025 | 699.46 $* | 734.0 $* |
Характеристики
Product Description
| Model | OIT-N-C1321-C1903-32A-3P |
| Input characteristics | |
| Rated input voltage | 380/415VAC |
| Cable specification | 5C*6.0mm or 5C*10AWG |
| Cable length | 2meter or optional |
| Max input current | 32A |
| Output characteristics | |
| Socket standard | ICE60320/C13,C19 |
| Output quantity | 24 way |
| Rating output voltage | 380/415VAC |
| Max output current | 32A |
| Max output power | 21KW |
| Functions | |

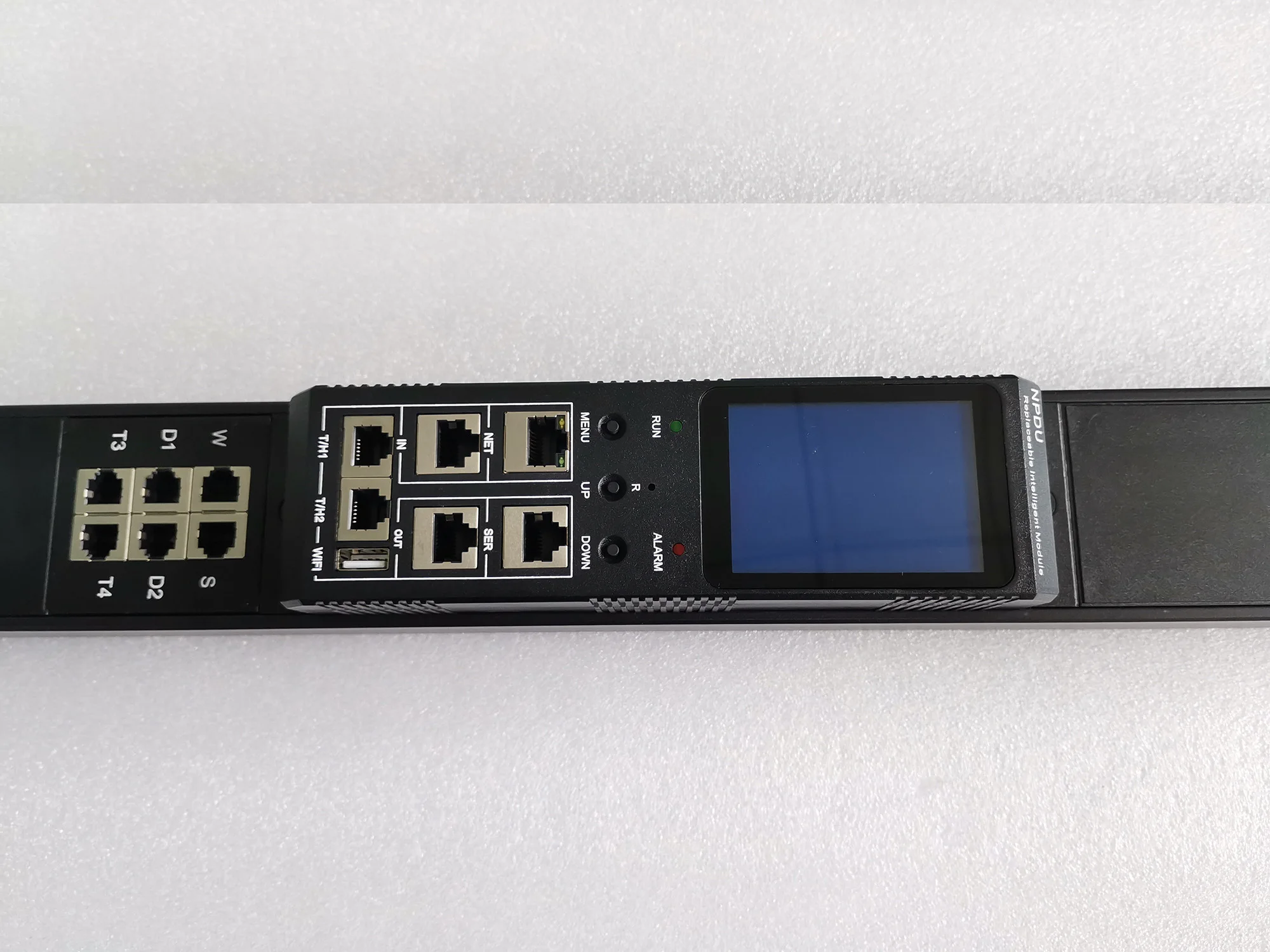

| Control | NPDU meter |
| Protection | |
| Size | |
| Product size | LXWXH=2000X44.4X67mm |
| Mounting length | 1977mm |
| Test items | |
| hi-pot test | PASS |
| Grounding | PASS |
| IR | PASS |
| Product color& material | |
| Product color: | Silver white or black |
| Shell material: | Aluminum alloy |
| Plastic flame retardant rating | UL94V-0 grade |
| Mounting | |
| Mounting method | Vertical Installation |

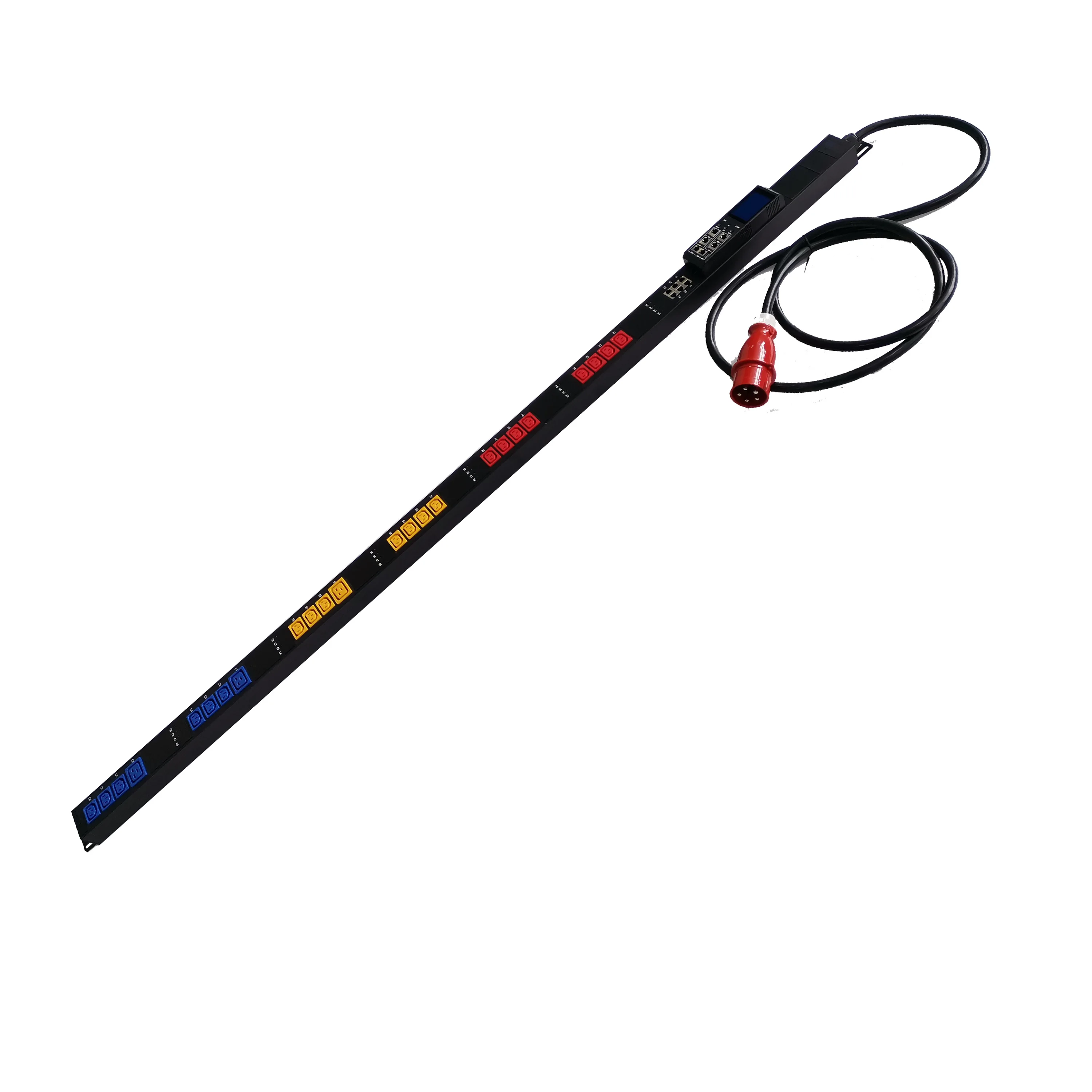

32Amp IEC60309 3P+N+E Input, distributed up to 10A/16A per outlet.

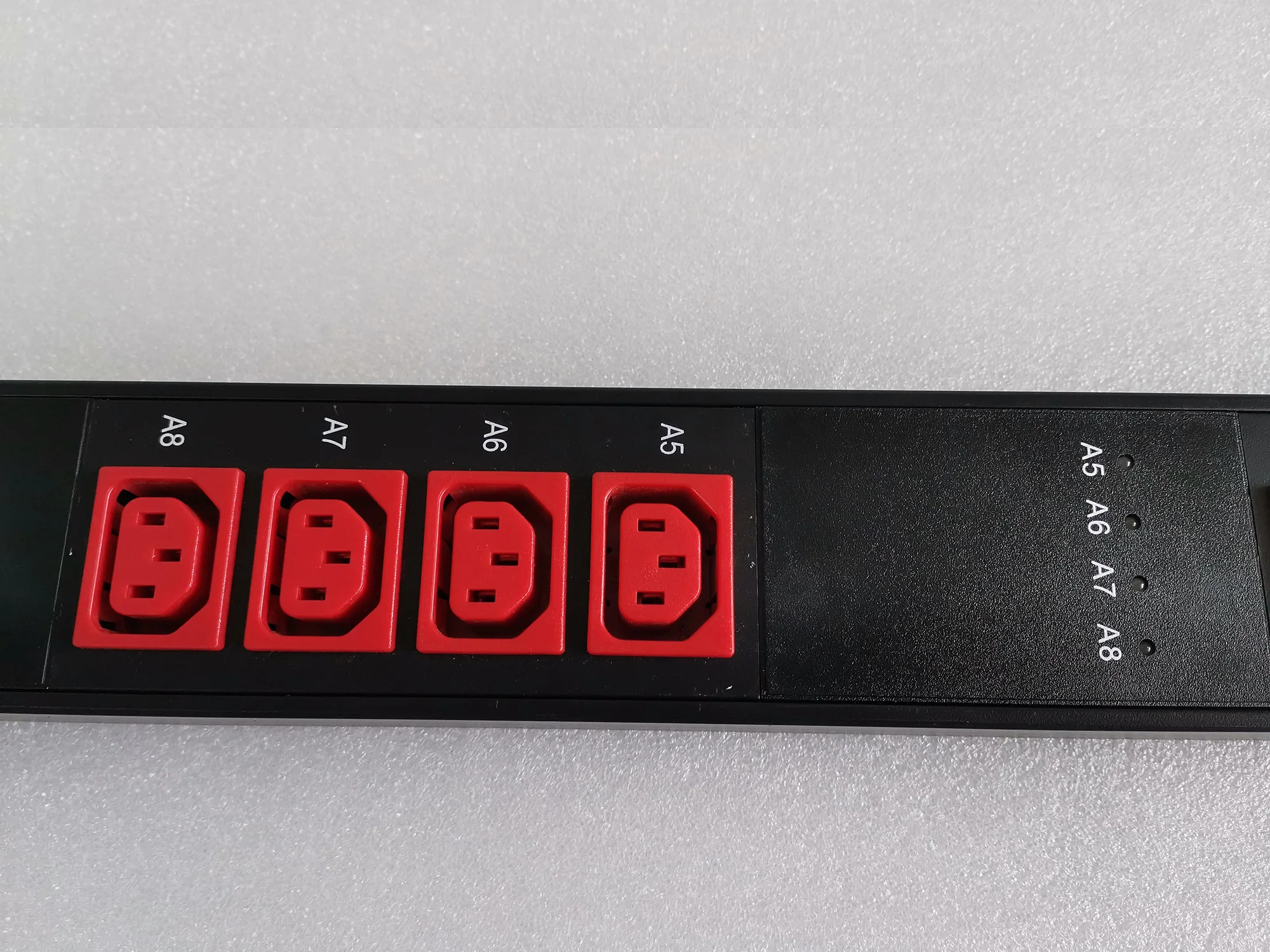

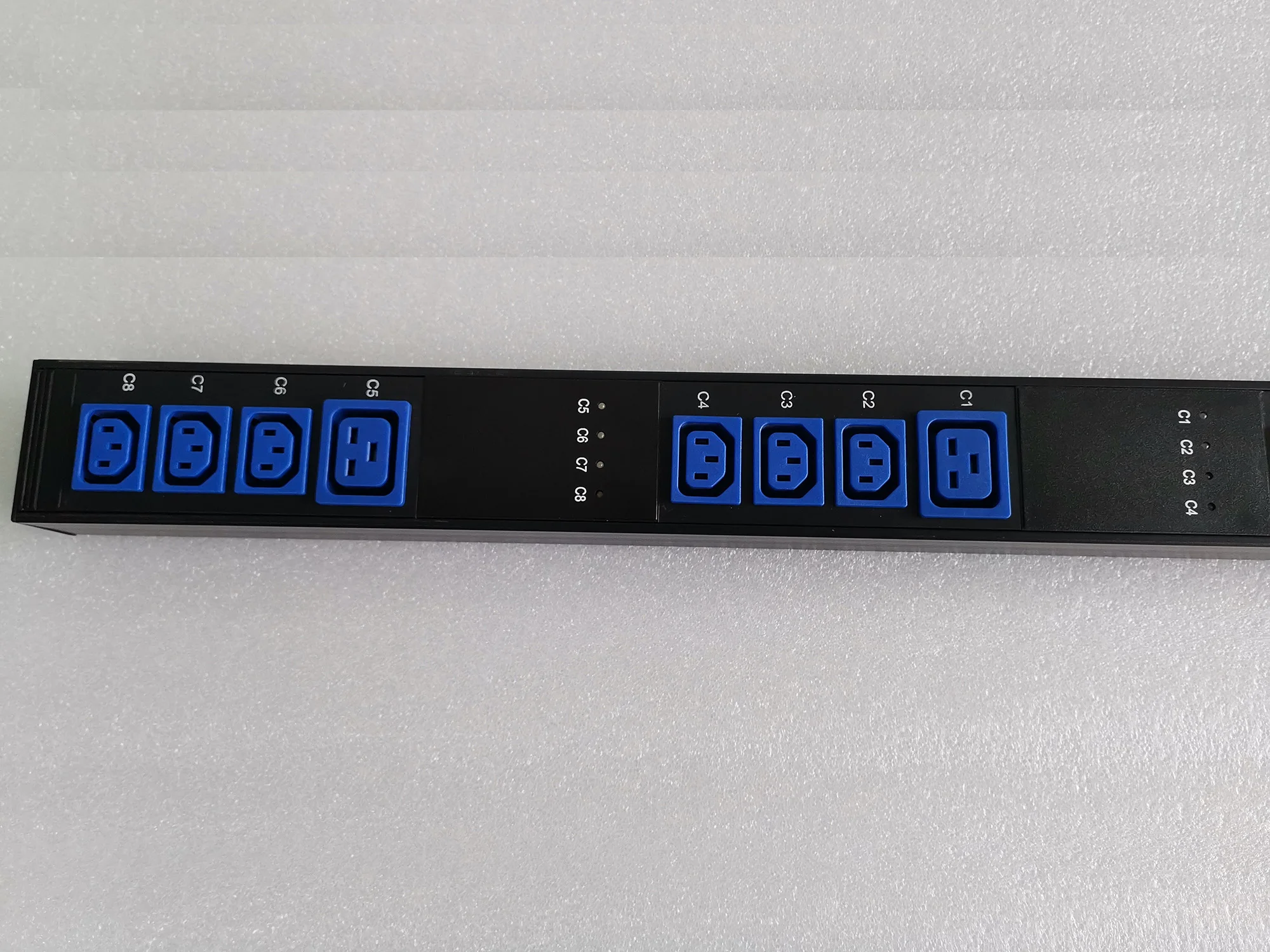

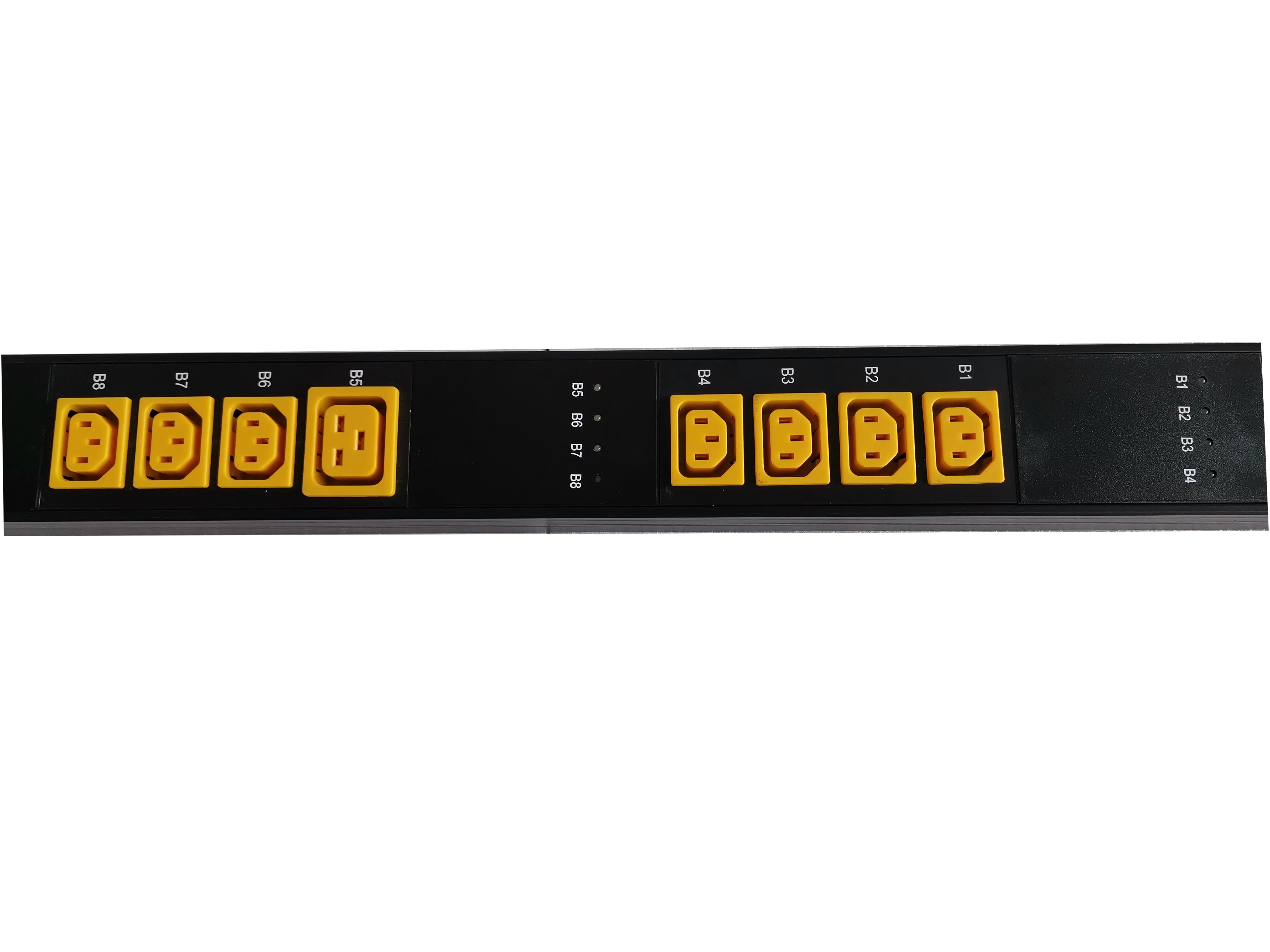

21*C13 +4*C19 ,4 outlets/group ,8outlets/phase.
Rack Mount OEM customized Design
Designed and Built by a factory with CE and ISO certification and High Quality design
6 Foot/2 meters power input cable(5C*6.0mm or 5C*10AWG)
380V 415V 50/60Hz usage
Max Wattage 21KW.
