11kv Электрический предохранитель типа
- Категория: Fuses >>>
- Поставщик: Wenzhou,Shuguang,Fuse,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.56 $* | 0.57 $* |
| Aug-19-2025 | 0.40 $* | 0.76 $* |
| Jul-19-2025 | 0.83 $* | 0.50 $* |
| Jun-19-2025 | 0.18 $* | 0.15 $* |
| May-19-2025 | 0.13 $* | 0.19 $* |
| Apr-19-2025 | 0.18 $* | 0.60 $* |
| Mar-19-2025 | 0.34 $* | 0.73 $* |
| Feb-19-2025 | 0.74 $* | 0.70 $* |
| Jan-19-2025 | 0.30 $* | 0.27 $* |
Характеристики

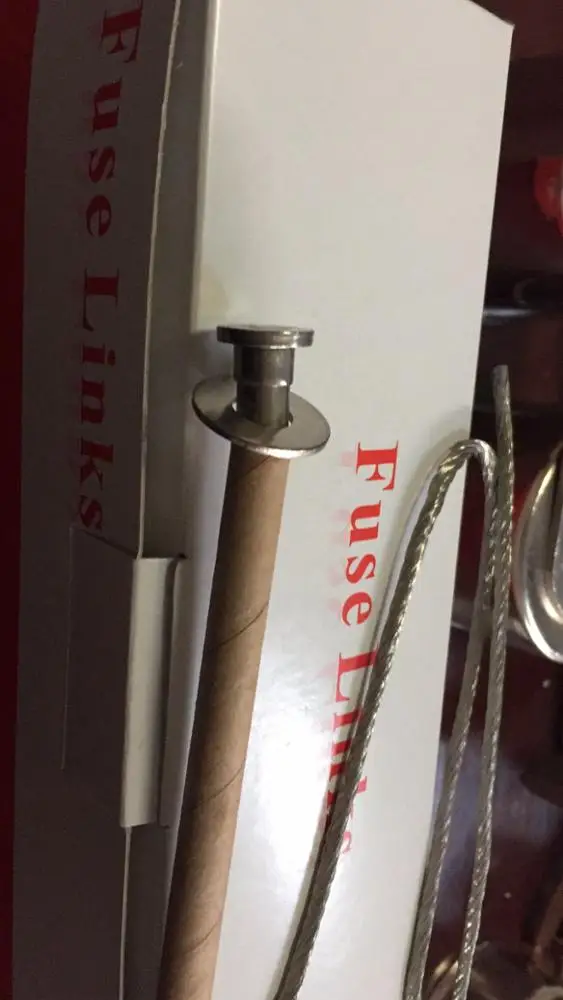

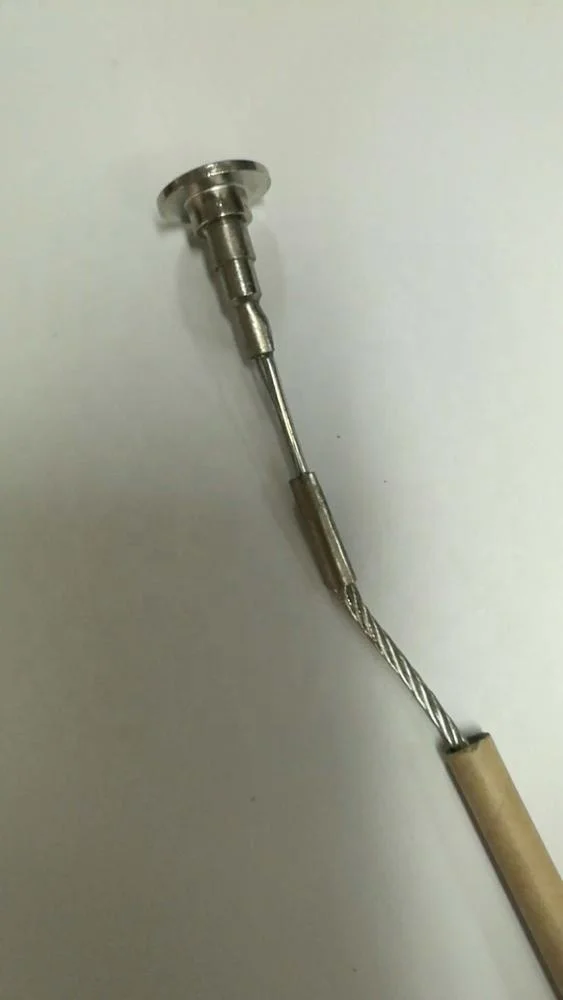

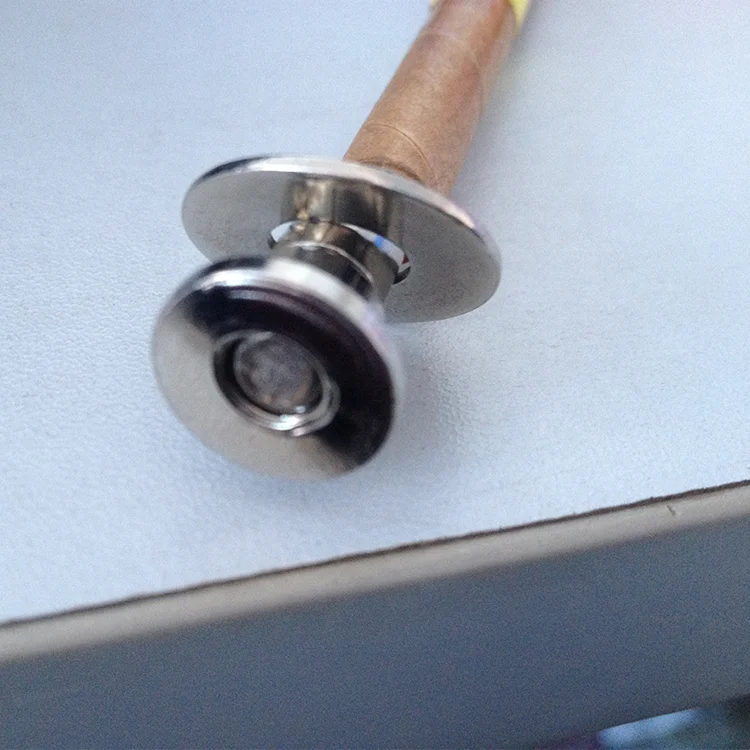

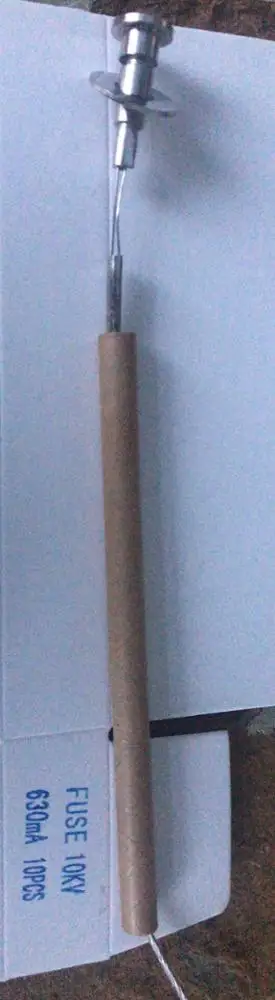

11kv electric fuse wire type element k
Product Description
high voltage fuse links,fuses,
fuse cutout , dropout fuse,expulsion fuse cutout link
KB,KU,KS type fuse links
KB,KU,KS type fuse links belong to K and T type fuse, it has general type, universal
type and screw type available according to IEC282 standard,
the product drop-out
type fuse of 11-36KV grade.
Melting Speed Ratio:
T type: 10~13
K type: 6~8
Rated Current:
1, 2, 3, 6, 8, 10, 12, 15, 20, 25, 30, 40, 50, 60, 65, 75, 80, 100, 140, 200A
"KB.KU,KS" Type fuses belong to "K" and "T" type fuse, it has general type, Universal type and screw type available according to IEC282 standard. The product drop-off type fuse of 11-36kv grade.
Dimension
Rated Current(A) | Dimension(mm) | QUANTITY/CARTON | ||||
A | B | C | D | E | ||
1-20 | 12.5±0.2 | 19.0±0.2 | NOTE1 | 2.0 | 8.0 | 500 |
30-40 | 12.5±0.2 | 19.0±0.2 | 3.0 | 8.0 | ||
50-75 | 19.0±0.3 | (Not applicable) | 4.0 | 10.0 | 250 | |
100-120 | 19.0±0.3 | (Not applicable) | 5.0 | 10.0 | 250 | |
140-200 | 19.0±0.3 | (Not applicable) | 7.0 | 12.0 | 250 | |
