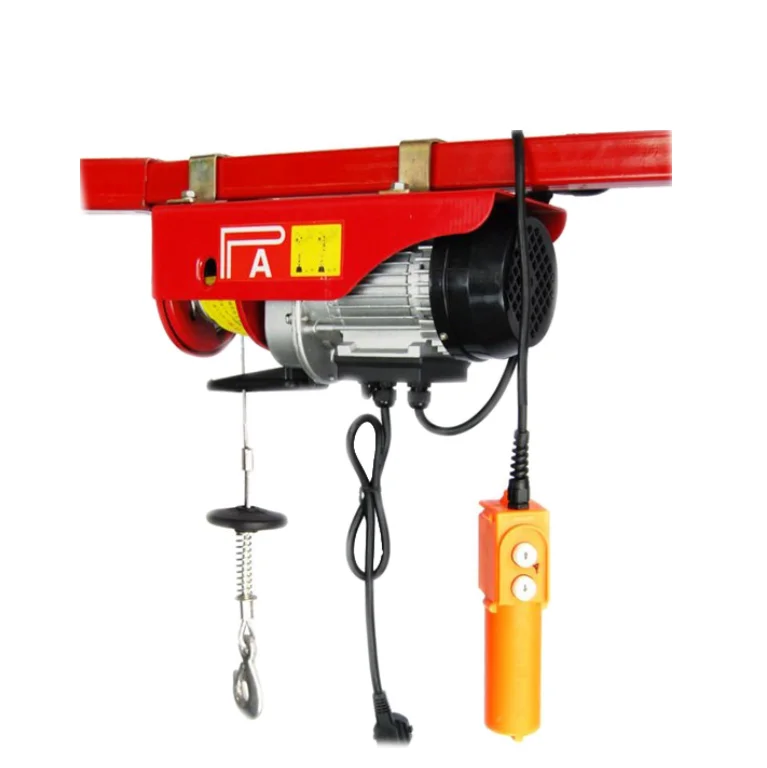

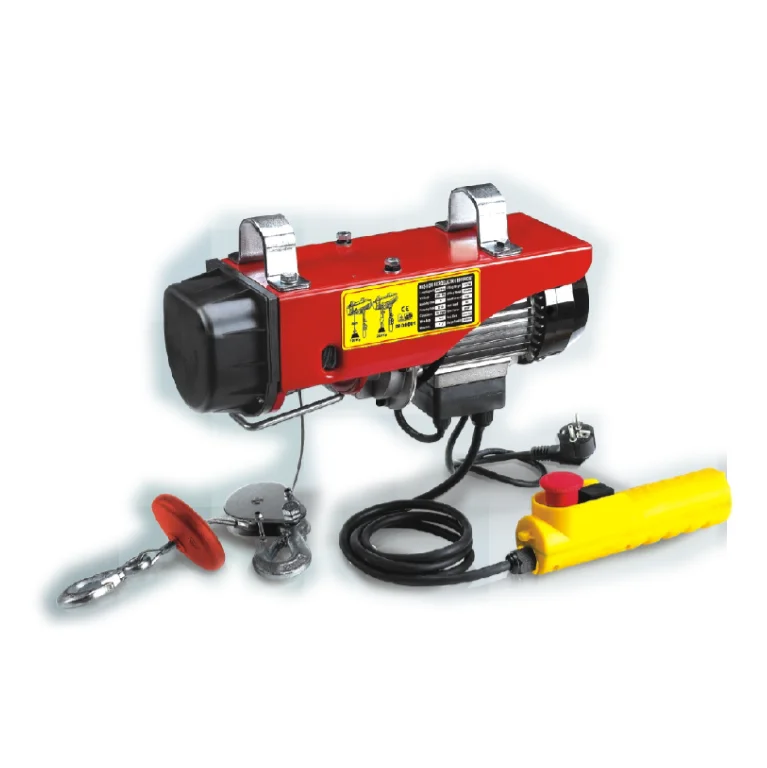

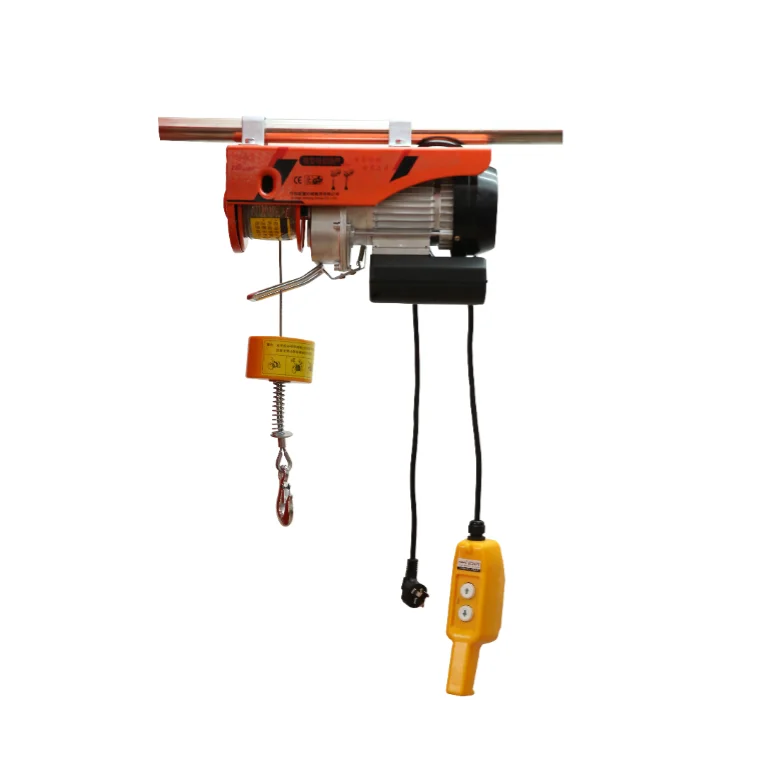

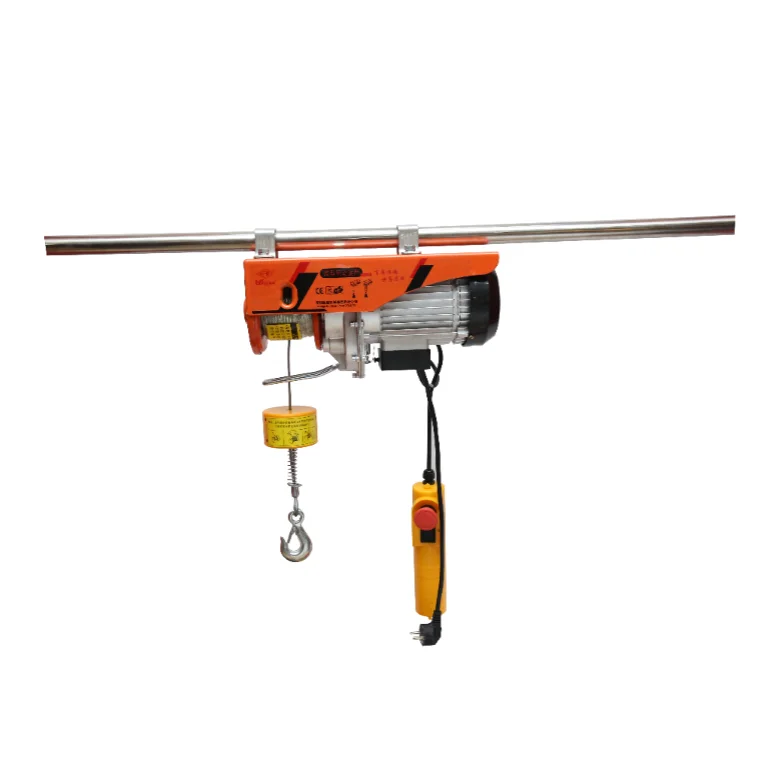

High quality PA mini electric hoist winch CE Certificate



1.Capacity: ranges from 100kg-1200kg
2.Small, convenient hoist for lifting often used for home, mall, construction, warehouse, workshop, harbors, airport and so on
3.100% pure copper motor, good cooling and durable
4.With emergency knob for the handle
5.With upper limit and lower limit
6.Anti-rotary wire rope
7.Longer stator and rotor
8.Thick shell to protect the mini hoist
9.CE certificate available







Mini-Electric Hoist with HUAIGE/JDP brand has compact and exquisite appearance and has the features of easy installation, security and reliability. lt is the important tool for hoisting in workshops, household garages and warehouses etc. lt is suitable for DlY market and is also the ideal equipment for hotels, shops, repairing, material handling, industrial assembly lines and larindustrial equipment etc. It adopts single-phase power and is widely used.

1. Mounting Clamps
2pcs included in the product, to fit for the support arm (an optional accessory) which it is size 45*45mm square tube and the thickness should be more than 1.8cm. if not using the fixing ring, please fix the electric hoist trough 4 screw holes on the motor housing.
2. Lower Limit Lever.
When the wire rope is going down to the position we designed, the wire rope will automatically act the limit lever to stop the hoist. The lower limit lever also prevents the wire rope improperly windling in the reverse direction on the drum.
3. Upper limit lever
When the load is lifting at the position we designed, the counter weight and limit stopper will automatically act the upper limit lever to stop the hoist.
4. Wire rope
19*7 structure and anti-twist aircraft rope with breaking force up to at least 4 times than the rated lifting capacity.
5.Pulley Hook.
Included in the products. When the load exceeds the lifting capacity of the single hook but less than max. lifting capacity, use the pulley hook to lift the load.
6. Power Plug
All of plug styles are available in all over countries and regions, and approved by VDE or UL.
7. Motor
With automatic brake system and thermal protection function. The thermal protection terminal will be automatically disconnected to project the moror when motor becomes overheated.
8. Gland
To fasten the power cord and prevent bending of the power cord to extend the lifttime.
9. Emergency stop switch
With TUV approval. In case of a failure or accident occurred, to press the red emergency stop switch to immediately stop the machine for safety.
10. Positive and Negative Switch
With TUV approval, controlling up and down function of the hoist, it is simple to use and easy to be replaced.







High quality PA mini electric hoist winch CE Certificate

Features and Advantages for the electric winch
1. The construction small lifting equipment have the features of compact, light, small-sized shape and smooth operation can be safely used with good quality, long life-span, high efficiency.
2. It can be applied in all kinds of locations in industry, business, handicraft industry and service industry.
3. not only on the overhead rails, but also be used in conjunction with many types of electric or manual cranes such as the single-girder crane, the double-girder crane, the cantilever crane and the gantry crane.
4. It is an ideal device to improve work efficiency and working conditions.













100 % High quality Pure Copper Motor





High Quality Accurate electric winch Equipment

High quality PA mini electric hoist winch CE Certificate

Model	Hook	Voltage (V)	Power (W)	Capacity(kg)	Lifting speed(m/min)	Lifting height(m)	Quantity (PCS)	Packing size(cm)	G.W /NW(kg)
PA200	Single hook  Double hook	110/220/230	510	100/200	10/5	12/6	2	38*32*25	24/22
PA250	Single hook  Double hook	110/220/230	550	125/250	10/5	12/6	2	38*32*25	25/23
PA300	Single hook  Double hook	110/220/230	600	150/300	10/5	12/6	2	38*32*25	26/24
PA400	Single hook  Double hook	110/220/230	980	200/400	10/5	12/6	2	45*33*27	34/33
PA500	Single hook  Double hook	110/220/230	1020	250/500	10/5	12/6	2	45*33*27	34/33
PA600	Single hook  Double hook	110/220/230	1200	300/600	10/5	12/6	2	45*33*27	35/34
PA800	Single hook  Double hook	110/220/230	1300	400/800	8/4	12/6	2	45*33*27	38/37
PA1000	Single hook  Double hook	110/220/230	1600	500/1000	8/4	12/6	1	54*25*32	33.7/32.7
PA1200	Single hook  Double hook	110/220/230	1800	600/1200	8/4	12/6	1	54*25*32	33.7/32.7





High quality PA600 mini type electric hoist CE
