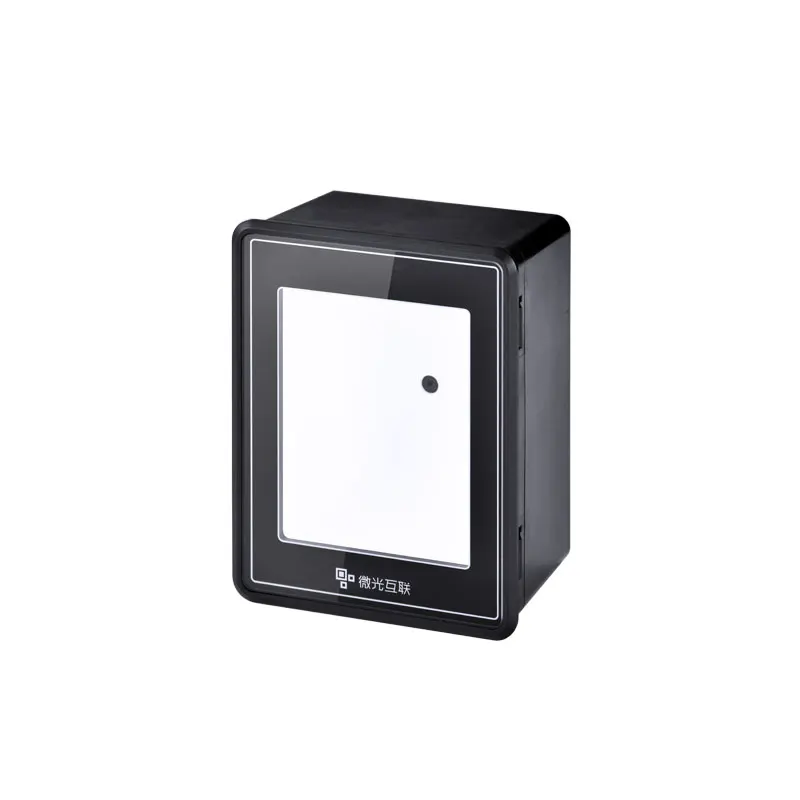

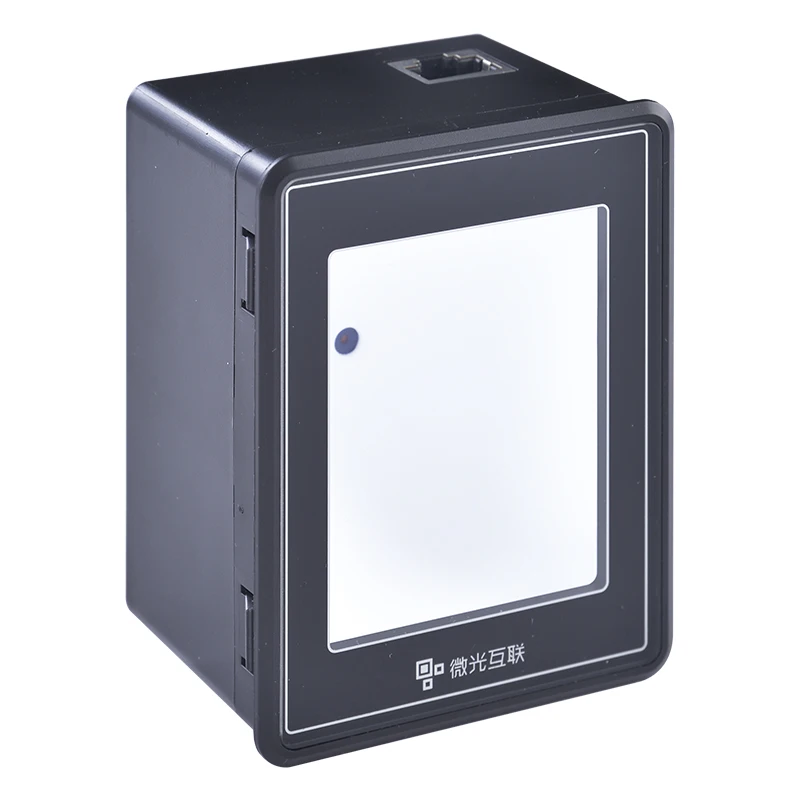

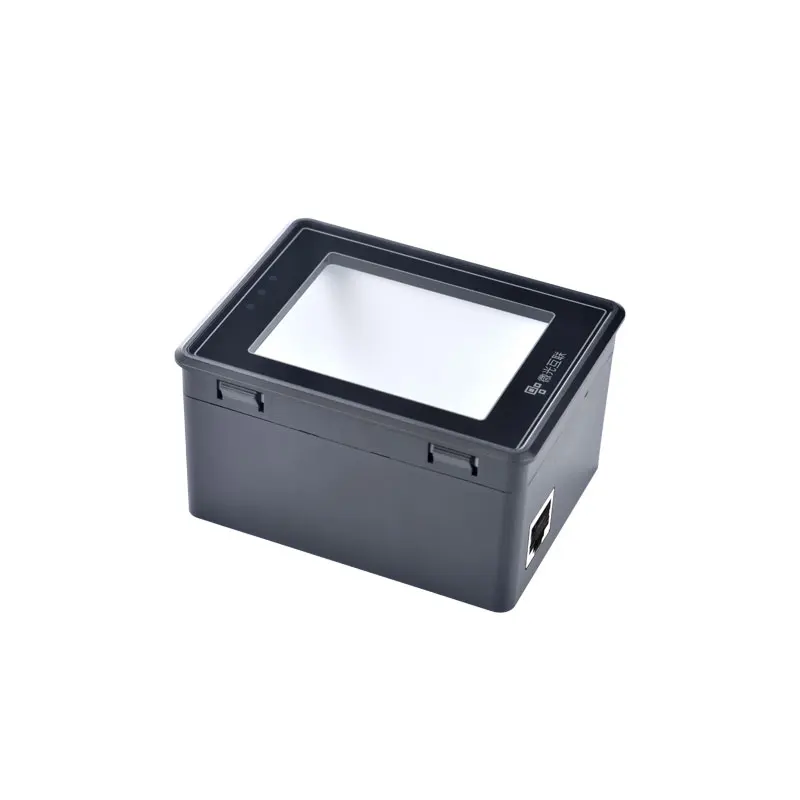

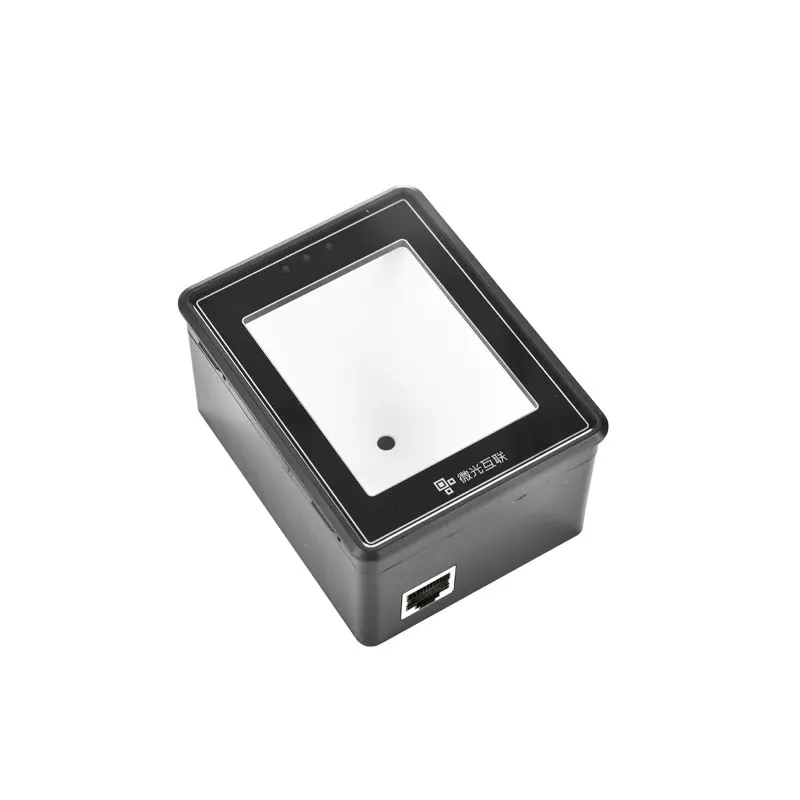

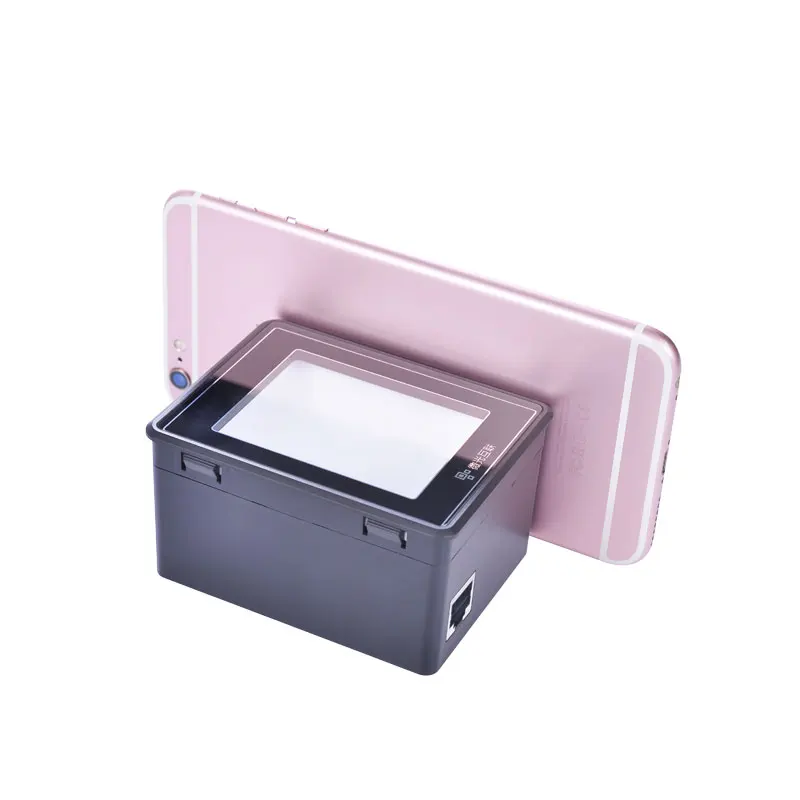

Беспроводной 2D сканер штрих-кодов TX400 считыватель

Specification parameters of TX400 series

Working Voltage

4.7v~15v

Working current

150mA

Reading direction

360 degree

Reading distance

0-10cm

Reading speed

70ms per time

Scanning feedback

Buzzer indication

Decoding mode

Image-based decoding engine

Imaging Sensor

640*480 CMOS

Recognizable code size

5-100mm

Wireless support

WIFI module can be added

Applied environment

Temp range-20°~70℃,Relative humidity 5%~95%

Output modes

USB analog keyboard,USB HID development board,RS232,TTL

Symbologies

QR code,Dmcode EAN-13,EAN-8,RSS_14,CODE_39,CODE_93,CODE_128,ITF,CODABAR,inverse code,image code

Development interfaces

USB-HID mode development,Serial communication development((provide C/C++,C#,Java,DELPHI SDK)

Compatible system

Windows series(XP,7/8/10),Android,Linux,Mac,etc.

Card Swiping support

NFC module can be added,Support ID card,NFC mobile phone,non-contact IC card,M1 proximity card

Recognizable radio frequency

ID card,Mifare_UltraLight,Mifare_One(S50),Mifare_One(S70),Mifare_Pro(X),Mifare_Desire.

Size

90*70*48mm

Weight

0.14kg

Material

PC+ABS

Interface

RJ45

Indication light

3(supporting programming)

Scanning feature

Automatic

Power consumption

0.75W

Recognition window

59*46*3mm Tempered glass

Light source:

White and Red LED light(Switchable)
